How to Optimize a Keyboard 3D Model for Rendering and Performance: Practical techniques to reduce polygons, improve rendering speed, and build production‑ready keyboard 3D assets.

Direct Answer

To optimize a keyboard 3D model for rendering and performance, reduce unnecessary polygons, instance repeating keycaps, clean up UV mapping, and export with efficient geometry settings. These steps maintain visual quality while dramatically lowering rendering time and memory usage.

Quick Takeaways

1. Most keyboard models waste polygons on identical keycaps that should be instanced.
2. Good topology matters more than high polygon counts for realistic rendering.
3. Clean UV islands improve texture sharpness and reduce material complexity.
4. Game engines and renderers require different export optimization strategies.
5. Efficient models render faster and scale better in large scenes.

Introduction

After modeling dozens of product assets over the years, I’ve noticed that keyboard models are often far heavier than they need to be. Designers get excited about detail and suddenly a simple mechanical keyboard ends up with millions of polygons.

The irony? Most of those polygons never improve the final render.

If your goal is professional visualization, product rendering, or game-ready assets, learning how to optimize a keyboard 3D model is essential. A well‑optimized model loads faster, renders faster, and behaves predictably across engines.

I see the same issues again and again: duplicated geometry, inefficient topology, messy UVs, and exports that accidentally double the file size.

Before diving into optimization techniques, it helps to understand the full workflow of building the model itself. If you're still in the modeling stage, this walkthrough explaining the step‑by‑step process designers use to build accurate 3D layoutsshows how structured modeling improves efficiency from the start.

In this guide, I’ll walk through the techniques I personally use to clean up keyboard assets for rendering pipelines and real‑time engines.

The difference between an amateur keyboard model and a professional one often comes down to optimization decisions most tutorials never mention.

save pin

Why Optimization Matters for Keyboard 3D Models

Key Insight: Keyboard models are highly repetitive objects, which means smart optimization can reduce polygon counts by 70–90% without visible quality loss.

A mechanical keyboard might contain over 100 keys. If every keycap is modeled as unique geometry, the scene quickly becomes inefficient.

In product visualization studios where I’ve worked, asset optimization is standard practice because rendering farms charge by time. Every unnecessary polygon increases cost.

Here are the most common hidden inefficiencies:

1. Unique geometry for identical keycaps
2. Over‑subdivided rounded edges
3. Boolean artifacts inside unseen geometry
4. Dense meshes beneath the keyboard plate

A keyboard model rarely needs ultra‑dense topology because most visual detail comes from materials, lighting, and normal maps.

This is why experienced product modelers focus on geometry efficiency first, then add visual detail through rendering techniques.

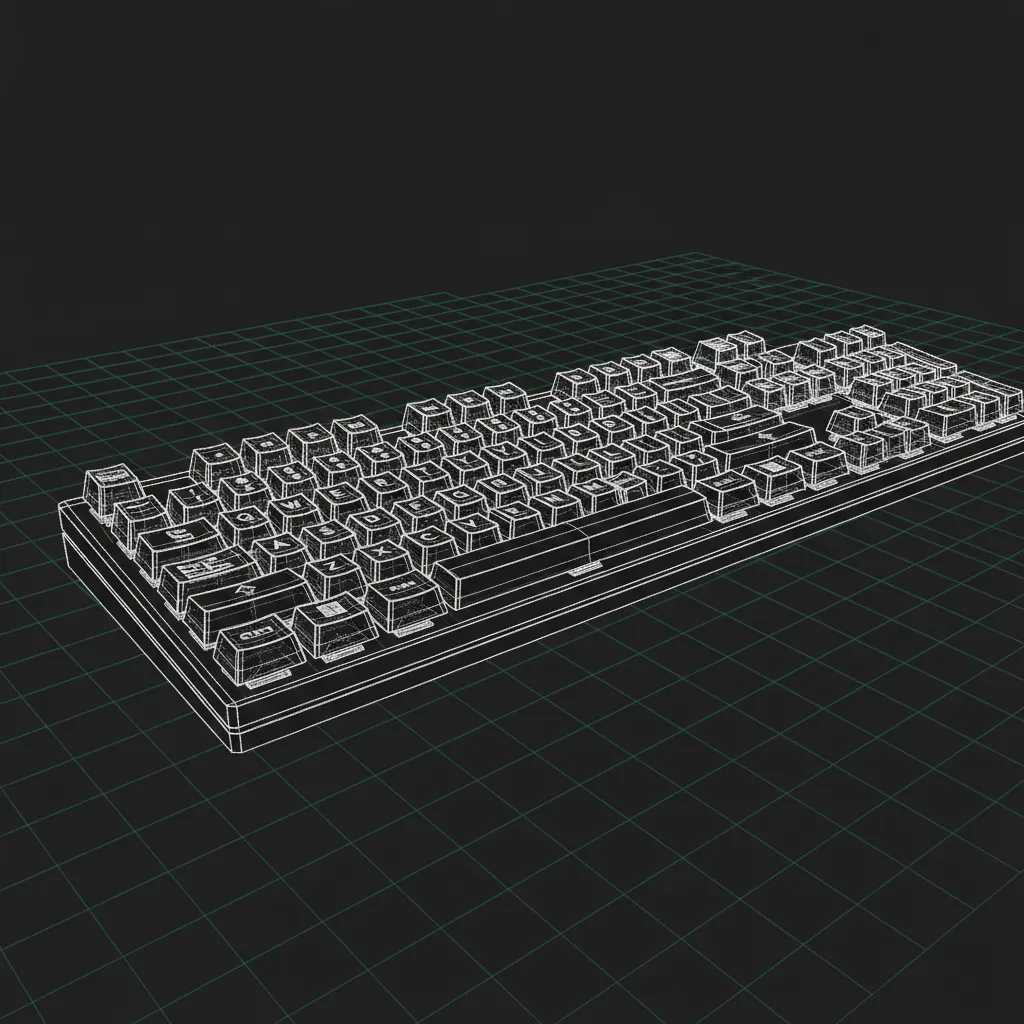

Reducing Polygon Count Without Losing Detail

Key Insight: Strategic bevels and normal maps preserve visual realism while dramatically lowering polygon counts.

One of the biggest mistakes beginners make is modeling every curve with dense subdivisions. In practice, small bevels combined with smoothing groups create the same visual effect.

My typical cleanup process looks like this:

1. Remove hidden faces beneath keycaps
2. Replace heavy subdivisions with bevel modifiers
3. Use weighted normals for smoother shading
4. Bake small surface details into normal maps

In one product visualization project, a keyboard model dropped from 1.8 million polygons to just 240k after optimization — and the rendered result looked identical.

This type of efficiency is critical when the keyboard appears in larger scenes such as workspaces or gaming setups.

save pin

Using Instancing for Repeating Keycaps

Key Insight: Instancing identical keys is the single most powerful optimization technique for keyboard modeling.

A keyboard contains repeating elements: keycaps, stems, stabilizers, and sometimes screws.

Instead of duplicating geometry, professionals use instancing.

Instancing means one piece of geometry is referenced multiple times rather than copied.

Benefits include:

1. Massive memory reduction
2. Faster scene loading
3. Easy global edits to all keycaps
4. Cleaner project structure

For example:

1. Create one keycap base mesh
2. Duplicate as instances
3. Change only the engraved letter textures

This approach keeps the scene extremely lightweight while maintaining full visual flexibility.

If you want to see how efficient modeling structures improve large scene performance, this guide showing how designers structure complex interior layouts for smoother rendering demonstrates the same optimization philosophy used in professional 3D pipelines.

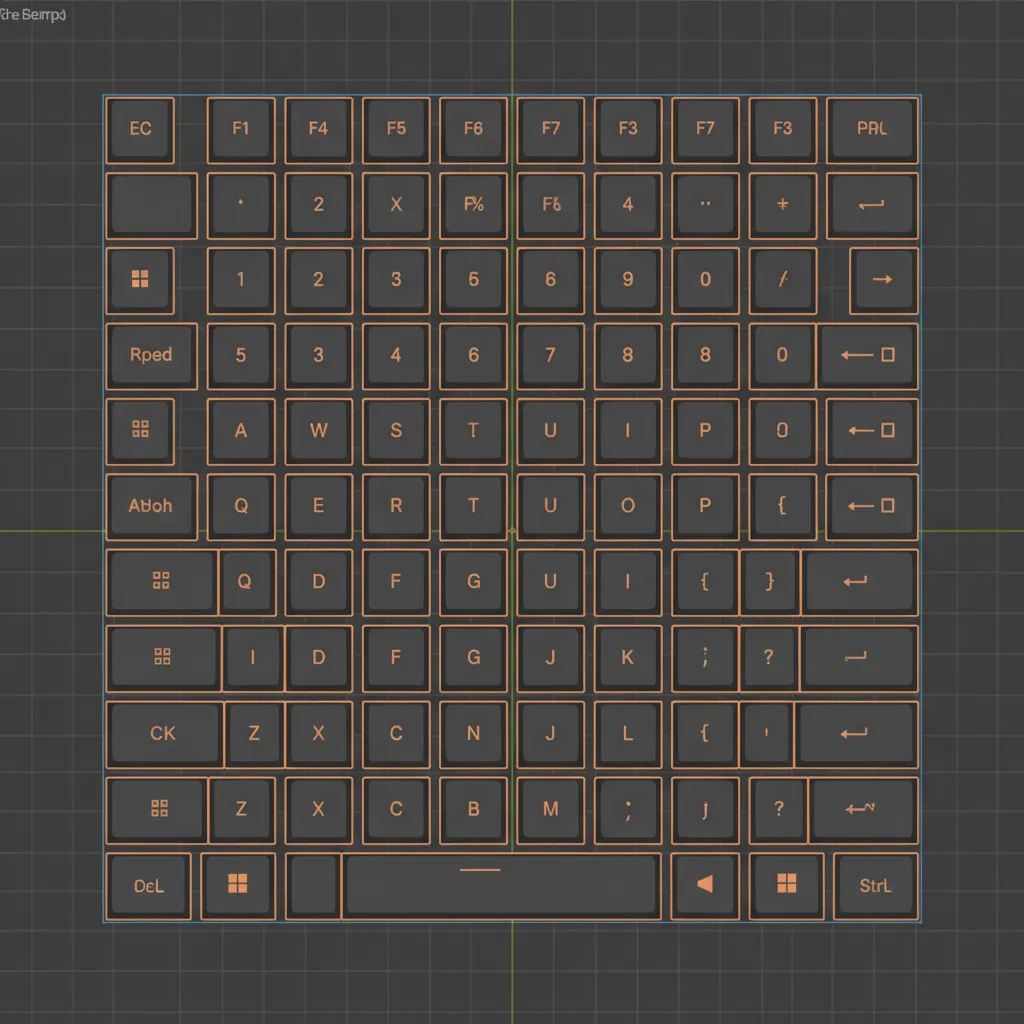

Improving UV Mapping for Keyboard Surfaces

Key Insight: Clean UV mapping prevents texture distortion and allows multiple keys to share the same texture space.

Keyboard models are perfect candidates for texture atlases.

Instead of assigning separate materials to every keycap, you can map many keys to a single UV sheet.

Effective UV workflow:

1. Unwrap one keycap cleanly
2. Reuse that UV layout across instanced keys
3. Place legends using decals or texture atlases
4. Keep UV islands aligned for consistent grain direction

This reduces draw calls in real‑time engines and improves rendering efficiency.

In production pipelines, texture atlases are one of the easiest ways to improve both performance and asset portability.

save pin

Preparing Keyboard Models for Game Engines or Rendering

Key Insight: The final optimization stage depends on where the keyboard model will be used.

Real‑time engines and offline rendering engines prioritize different things.

Here’s the key difference:

1. Game Engines: prioritize low polygon counts and minimal materials
2. Rendering Engines: prioritize shading quality and material realism

Optimization checklist before export:

1. Apply transforms
2. Freeze modifiers
3. Merge duplicate vertices
4. Remove hidden geometry
5. Pack UV islands efficiently

In larger scenes such as office environments, optimized assets make a major difference. This walkthrough showing how large workspace layouts are structured for smooth visualizationdemonstrates why efficient assets matter when scenes become complex.

save pin

Export Settings for Efficient 3D Assets

Key Insight: Poor export settings can undo all previous optimization work.

I’ve seen beautifully optimized models double in size simply because of incorrect export options.

Recommended export settings:

1. Use FBX or GLTF for compatibility
2. Triangulate meshes if targeting game engines
3. Embed textures only when necessary
4. Apply smoothing groups
5. Remove unused materials

Always test the exported file in the target engine before final delivery.

Answer Box

The most effective way to optimize a keyboard 3D model is to instance repeating keycaps, reduce unnecessary subdivisions, use shared UV layouts, and export with efficient geometry settings. These techniques preserve visual fidelity while dramatically improving performance.

Final Summary

1. Instancing keycaps drastically reduces keyboard model complexity.
2. Strategic bevels replace heavy subdivisions without visual loss.
3. Shared UV maps improve rendering efficiency.
4. Export settings strongly affect final file performance.
5. Optimization is essential for real‑time and large scenes.

FAQ

How many polygons should a keyboard 3D model have?

A typical optimized keyboard model ranges between 100k and 300k polygons depending on detail level.

What is the best way to optimize a keyboard 3D model?

The most effective method is instancing keycaps, cleaning topology, and using shared UV maps.

Can I use a high‑poly keyboard model in games?

Usually no. Game engines require lower polygon counts and fewer materials.

Should keycaps be separate objects?

Yes. Keeping them separate allows instancing and easier material control.

Do keyboard models need normal maps?

Normal maps help simulate fine details while keeping geometry lightweight.

What file format is best for keyboard models?

FBX and GLTF are widely supported for both rendering engines and game pipelines.

Why is my keyboard model rendering slowly?

Common causes include excessive polygons, too many materials, or duplicated geometry.

Is a low poly keyboard still realistic?

Yes. With proper shading, materials, and lighting, optimized models look identical to dense meshes.

References

1. Autodesk 3D Asset Optimization Guidelines
2. Blender Manual – Mesh Optimization
3. Unreal Engine Documentation – Static Mesh Optimization
