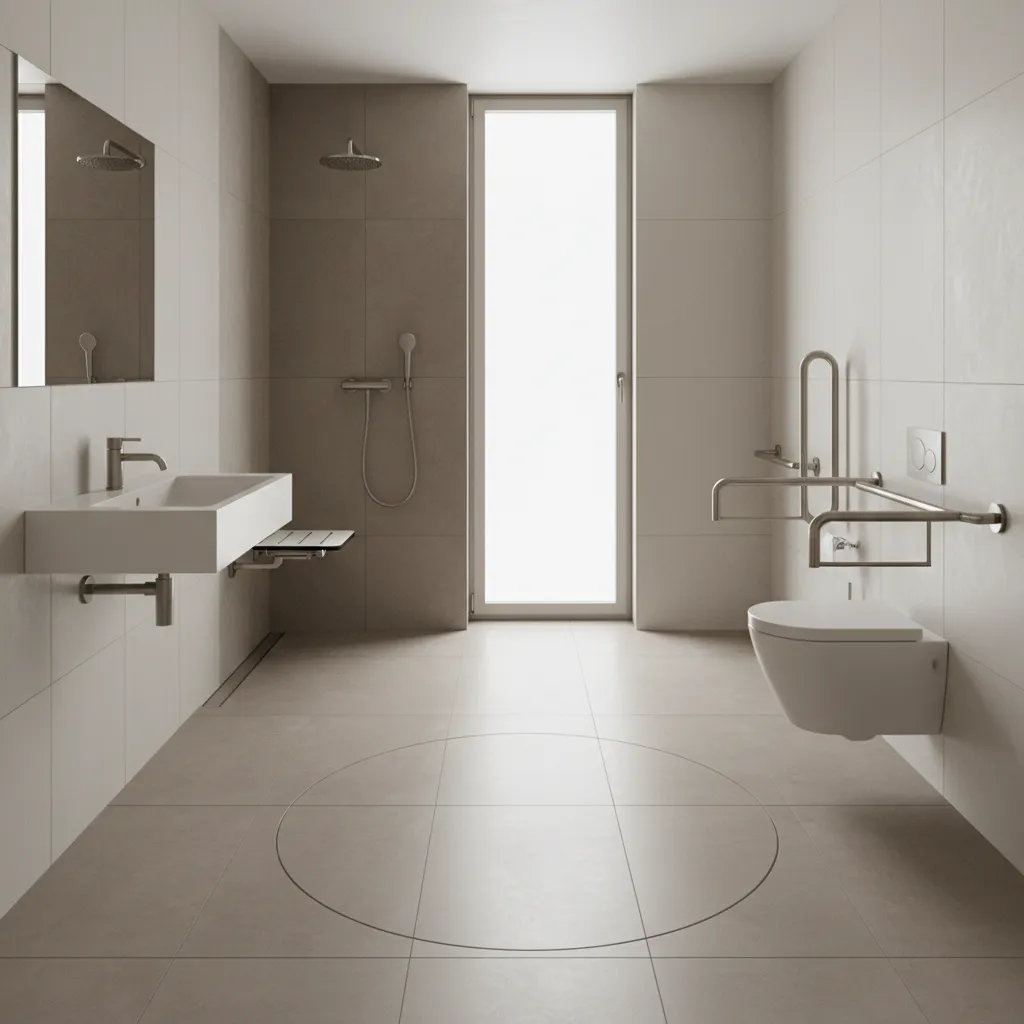

How to Optimize a Wheelchair Bathroom Floor Plan for Small Spaces: Smart layout strategies that make even compact bathrooms fully wheelchair accessible without sacrificing comfort

Direct Answer

A wheelchair bathroom floor plan for small spaces works when circulation comes first. Prioritize a 60-inch turning radius, place fixtures along one wall, and use barrier‑free showers and sliding doors to preserve maneuvering space. Even bathrooms under 40 square feet can become functional when the layout eliminates unnecessary obstacles.

Quick Takeaways

1. Wheelchairs typically require a 60-inch turning circle for safe movement.
2. Wall-aligned fixtures free the center area for maneuvering.
3. Roll-in showers and wet rooms eliminate thresholds.
4. Sliding doors recover up to 9 square feet of usable space.
5. Careful fixture spacing often matters more than overall room size.

Introduction

Designing a wheelchair bathroom floor plan in a small space is one of the most common challenges I see in residential renovations. Homeowners assume accessibility automatically requires a huge bathroom, but after working on dozens of accessibility remodels across Los Angeles and Seattle, I’ve learned the opposite is often true: layout intelligence matters far more than square footage.

Many compact bathrooms fail accessibility not because they’re too small, but because the fixtures are arranged poorly. A toilet angled the wrong way or a door swing blocking the turning zone can destroy usability instantly.

When clients start planning layouts, I usually recommend visualizing circulation early using a simple digital layout planner. Tools designed for mapping out bathroom circulation zones before constructionmake it much easier to see whether a wheelchair can actually turn and approach fixtures.

In this guide I’ll walk through the layout principles I rely on when designing compact accessible bathrooms. These are the same spatial tricks we use in real remodeling projects when the footprint simply cannot expand.

save pin

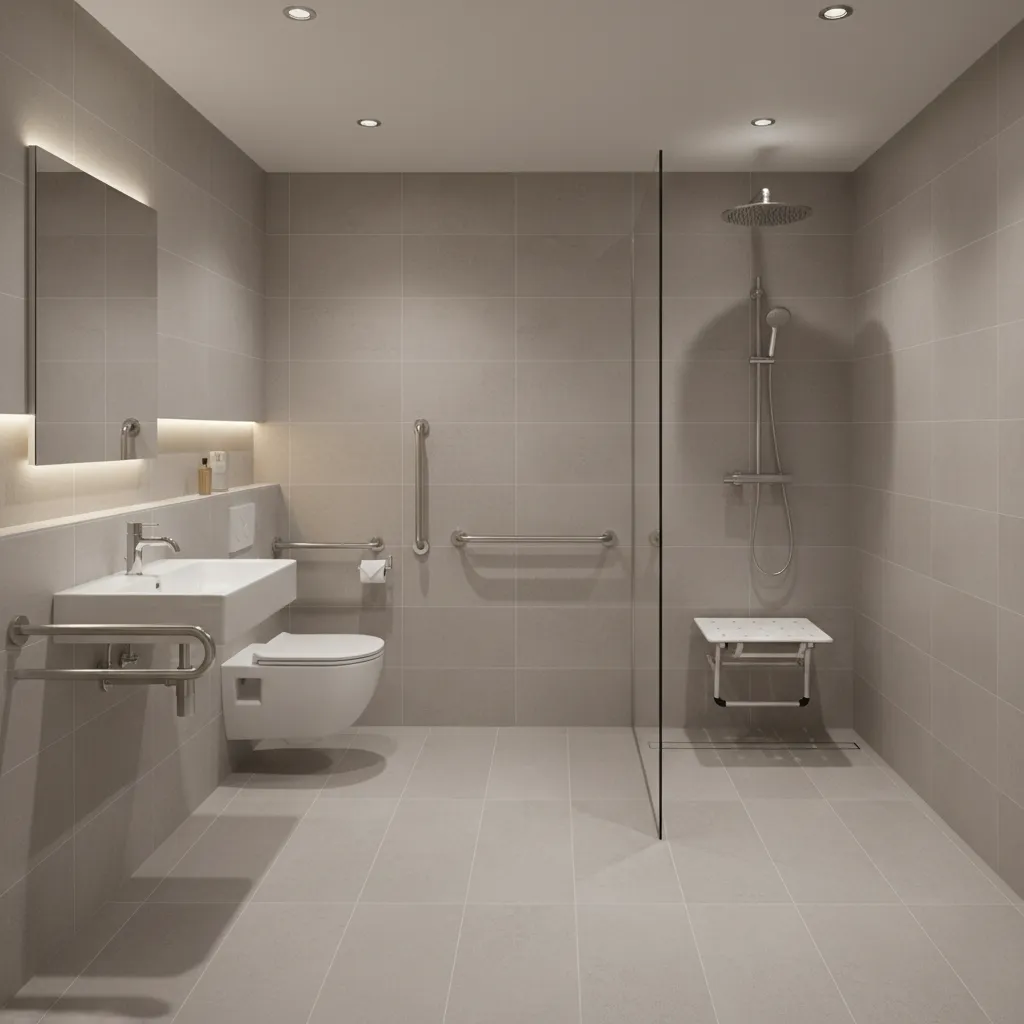

Challenges of Designing Small Accessible Bathrooms

Key Insight: The biggest constraint in small accessible bathrooms isn’t fixture size—it’s wheelchair turning clearance.

Most people focus on installing accessible fixtures, but the real design problem is circulation. Wheelchairs require clear paths and approach angles, which standard bathroom layouts rarely consider.

Typical issues I encounter in compact bathrooms include:

1. Door swings blocking turning space
2. Vanities placed directly opposite toilets
3. Narrow shower curbs preventing entry
4. Insufficient wall clearance for side transfers

The Americans with Disabilities Act (ADA) suggests a 60-inch turning diameter for wheelchairs. While residential projects aren’t legally required to follow ADA standards, these measurements remain the most reliable guideline.

In practice, what matters most is keeping the center of the room open. When the middle space becomes a circulation hub, even small bathrooms start working surprisingly well.

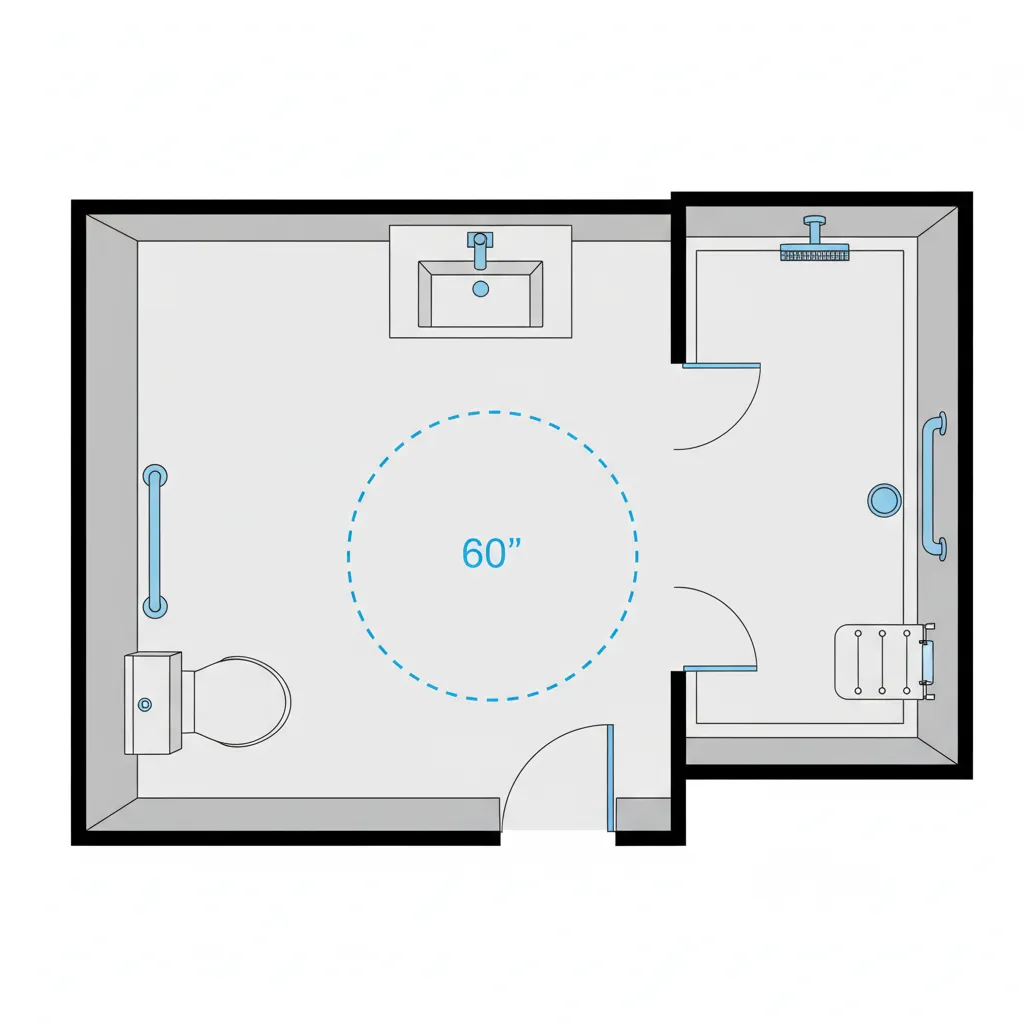

Minimum Space Requirements for Wheelchair Movement

Key Insight: A compact bathroom can remain accessible if key clearances are preserved around each fixture.

Based on accessibility standards and my own renovation projects, these are the spatial clearances that matter most:

1. Turning circle: 60 inches diameter recommended
2. Toilet side transfer space: 48 inches clear beside toilet
3. Sink knee clearance: 27 inches high minimum
4. Door opening width: 32 inches minimum clear
5. Shower entry: barrier-free or flush threshold

One trick I often use is shifting the toilet closer to a corner wall. This creates the transfer zone on one side while protecting the center turning space.

When clients experiment with layouts visually using a simple room layout visualization tool for testing wheelchair movement, they quickly see which placements block the turning radius.

save pin

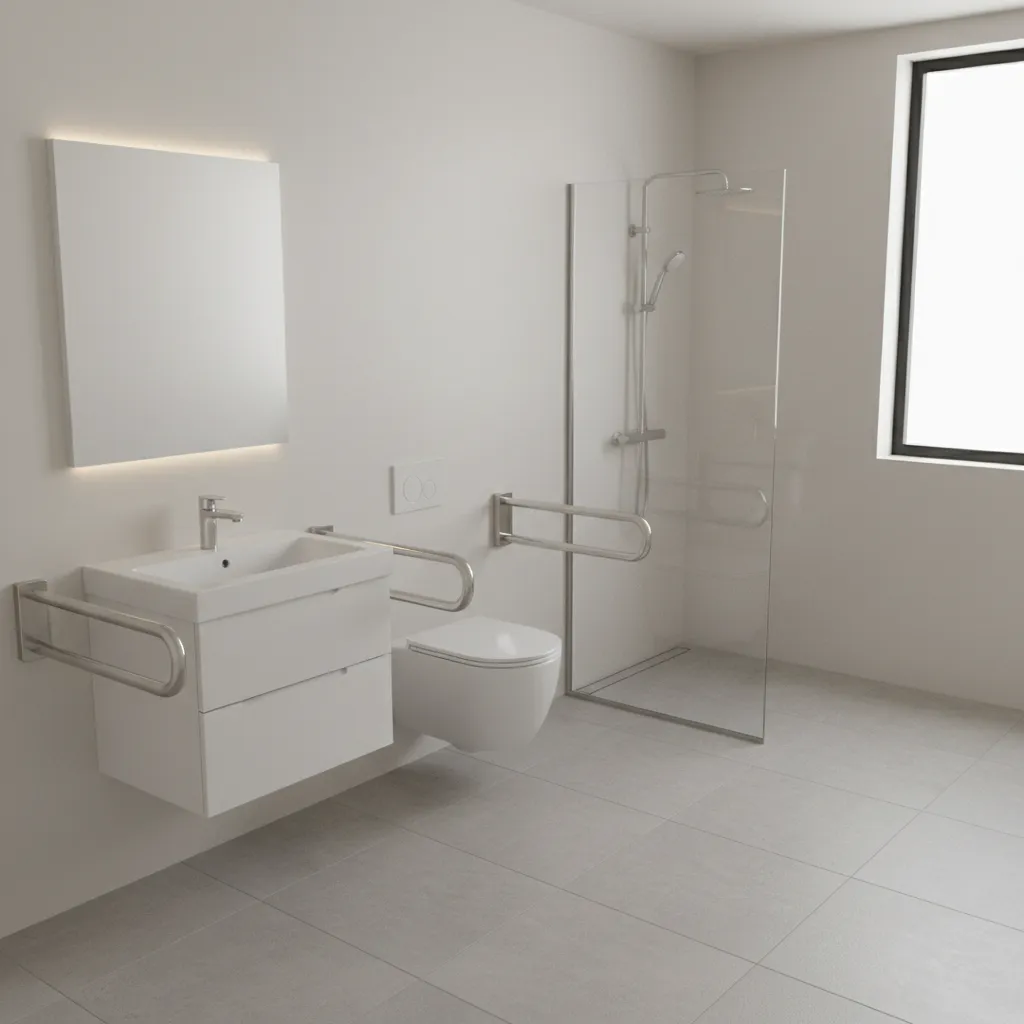

Compact Layout Strategies for Toilets and Sinks

Key Insight: Aligning the toilet, sink, and storage along a single wall dramatically increases maneuvering room.

This layout strategy appears frequently in my small renovation projects because it frees the entire opposite side of the bathroom for wheelchair movement.

Effective configurations include:

1. Linear wall layout – sink, toilet, and grab bars along one wall
2. Corner sink placement – opens additional turning space
3. Floating vanity – provides wheelchair knee clearance
4. Wall-mounted storage – prevents floor clutter

A mistake I often see online is oversized vanities in accessible bathrooms. Large cabinets consume valuable maneuvering space. Floating sinks or compact wall-mounted units typically perform better in tight layouts.

save pin

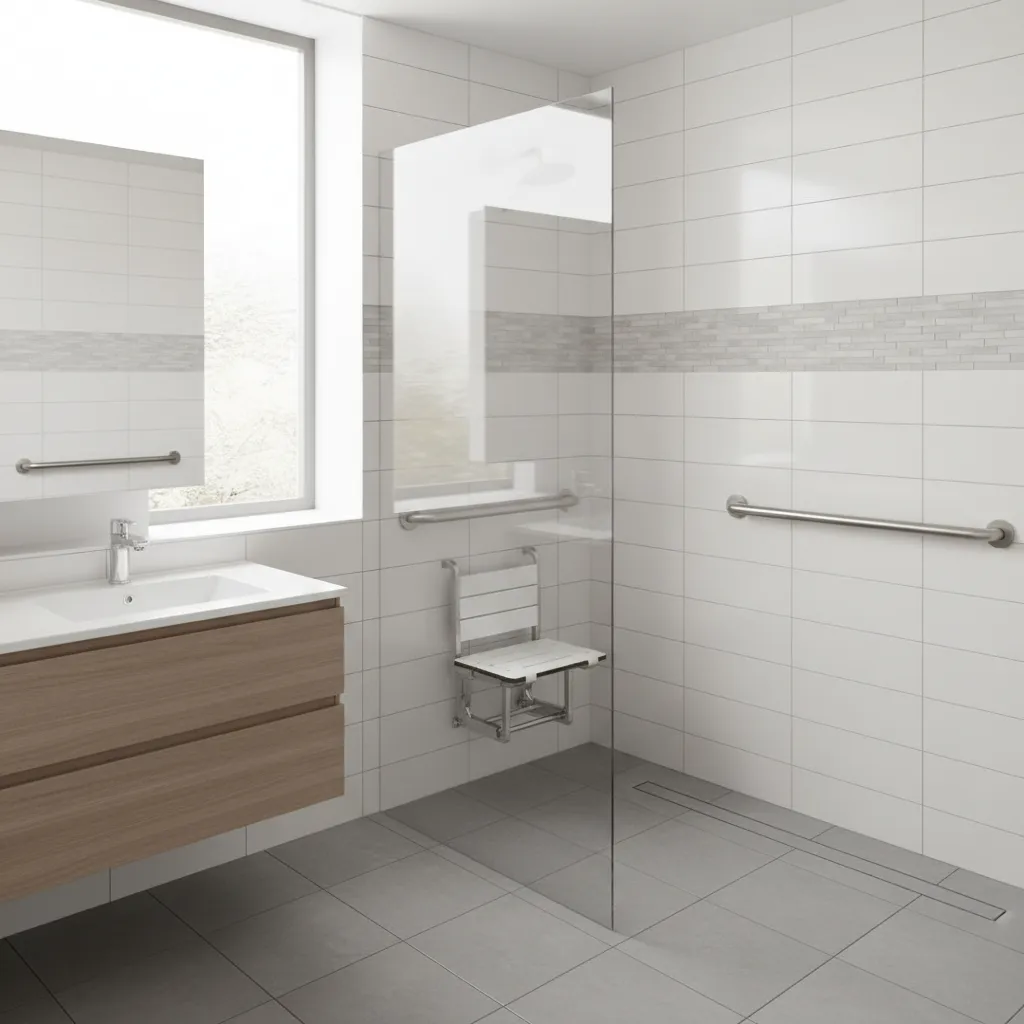

Space Saving Shower and Wet Room Designs

Key Insight: Removing shower barriers often adds more usable space than enlarging the bathroom.

The biggest upgrade for small accessible bathrooms is converting a traditional shower stall into a roll-in shower or wet room.

Here are the designs that consistently work in small spaces:

1. Roll-in shower – open entry with trench drain
2. Wet room layout – entire floor waterproofed
3. Fold-down shower seat – preserves floor space
4. Wall-mounted handheld shower – flexible positioning

Wet rooms are especially powerful in tiny bathrooms because they eliminate glass doors, curbs, and partitions that interrupt circulation.

save pin

Answer Box

The most effective small wheelchair bathroom floor plans keep the center open and push fixtures to the perimeter. A 60-inch turning zone, barrier-free shower, and sliding entry door typically make even compact bathrooms accessible.

Sliding Doors and Entry Optimization

Key Insight: Replacing a swing door with a sliding door can reclaim up to 9 square feet of maneuvering space.

Standard hinged doors often swing directly into the turning circle, which makes wheelchair movement extremely difficult.

Better entry options include:

1. Pocket doors
2. Surface-mounted sliding barn doors
3. Out-swing bathroom doors

In tight renovation projects, simply switching to a pocket door has solved accessibility issues without expanding the bathroom footprint.

Example Small Accessible Bathroom Floor Plans

Key Insight: Even bathrooms between 35 and 45 square feet can work when circulation space is protected.

Here are three compact layouts I frequently recommend:

1. Linear wall layout: sink → toilet → roll-in shower along one wall
2. Corner toilet layout: toilet placed diagonally to preserve turning circle
3. Wet room plan: open floor with wall-mounted fixtures

If you want to experiment with these configurations yourself, try sketching layouts with a visual bathroom layout tool that simulates accessible spacing. Seeing the turning radius drawn on the floor plan immediately reveals whether a layout will work.

Final Summary

1. Wheelchair bathrooms depend more on layout efficiency than overall size.
2. Maintaining a 60-inch turning space is the most critical rule.
3. Linear fixture layouts maximize maneuverability.
4. Barrier-free showers dramatically improve accessibility.
5. Sliding doors are one of the easiest space-saving upgrades.

FAQ

What is the minimum bathroom size for wheelchair access?

A bathroom around 36–40 square feet can work if it maintains a 60-inch turning circle and proper fixture clearance.

Can a small bathroom be wheelchair accessible?

Yes. A well-designed small wheelchair accessible bathroom layout can function efficiently by aligning fixtures along one wall and removing barriers.

How wide should a wheelchair bathroom door be?

A clear opening of at least 32 inches is recommended for wheelchair entry.

Do wheelchair bathrooms require a turning circle?

Most accessible designs include a 60-inch turning radius to allow full wheelchair rotation.

What type of shower is best for accessible bathrooms?

Roll-in showers or wet rooms work best because they eliminate curbs and thresholds.

Is a bathtub compatible with wheelchair accessibility?

Bathtubs are rarely ideal in compact accessible bathrooms because transfers are difficult.

What sink works best in wheelchair bathrooms?

Wall-mounted or floating sinks provide knee clearance and easier approach angles.

How do you design a tiny wheelchair friendly bathroom plan?

Focus on open floor space, compact fixtures, sliding doors, and a barrier‑free shower to keep the layout maneuverable.
