How to Optimize AutoCAD Performance When Modeling Large Floor Plans: Practical techniques architects use to keep AutoCAD fast when handling complex building layouts and heavy 3D floor plan models.

Direct Answer

Large floor plan models slow AutoCAD because heavy geometry, excessive layers, complex blocks, and unoptimized display settings overload memory and graphics processing. The most effective way to optimize AutoCAD performance is to simplify geometry, organize layers intelligently, rely on blocks and external references, and tune hardware and graphics settings specifically for large architectural models.

Quick Takeaways

1. Large AutoCAD floor plan files slow down mainly due to excessive geometry and poorly managed layers.
2. Using blocks and external references reduces file size and improves drawing responsiveness.
3. Lowering visual complexity during modeling dramatically improves navigation speed.
4. Clean layer structures and simplified 3D objects prevent lag in large building models.
5. Graphics settings and GPU acceleration can significantly improve AutoCAD performance.

Introduction

After working on dozens of residential developments and multi‑story commercial projects, I can say one thing with certainty: large floor plan models can make even powerful machines struggle if the AutoCAD file isn't structured properly.

Many designers assume performance problems are purely hardware-related. In reality, most slow AutoCAD files come from inefficient modeling habits—thousands of unnecessary objects, messy layer systems, or over-detailed geometry that doesn't add real design value.

When teams start modeling entire buildings in 3D, those issues multiply quickly. If you want to understand the workflow behind building complex layouts before optimizing them, it helps to review a practical walkthrough of creating detailed architectural floor plans in 3Dand how large models are typically structured.

In this guide, I'll break down the same optimization strategies I use in professional architectural projects to keep AutoCAD responsive—even with multi‑level buildings and detailed interior layouts.

save pin

Why Large 3D Floor Plan Models Slow Down AutoCAD

Key Insight: AutoCAD performance drops when the drawing contains too many editable objects, overly detailed geometry, and poorly structured references.

The biggest misconception I see among new architectural modelers is believing that more detail automatically means better drawings. In reality, unnecessary detail is the fastest way to slow AutoCAD down.

Large architectural models usually become sluggish for three main reasons:

1. Excessive 3D geometry such as detailed furniture or imported meshes
2. Thousands of independent line objects instead of reusable blocks
3. Too many active layers loaded simultaneously

Autodesk documentation consistently notes that complex meshes and imported models dramatically increase processing load. When a model includes hundreds of high‑poly objects—especially from external libraries—AutoCAD must continuously recalculate those shapes while you pan, zoom, or orbit.

The practical takeaway: architectural models should prioritize structural clarity over microscopic detail.

Best Layer Management Practices for Architectural Models

Key Insight: A disciplined layer system reduces redraw time and keeps large building models manageable.

On larger projects, layer chaos becomes a silent performance killer. I've opened project files where over 400 layers were active at once—many of them unused or duplicated.

A cleaner layer structure dramatically improves navigation speed.

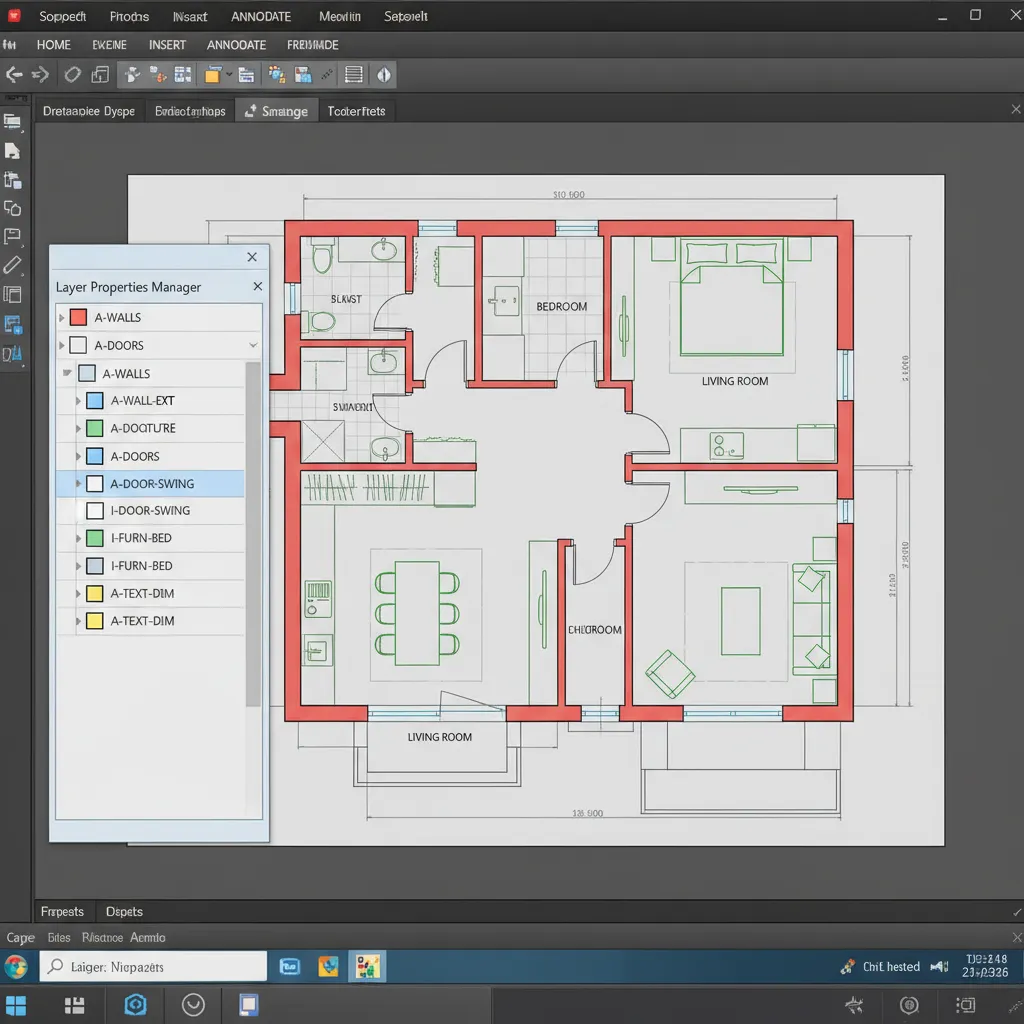

Recommended architectural layer structure:

1. Architecture walls
2. Doors and windows
3. Furniture and fixtures
4. Electrical and lighting
5. Annotations and dimensions
6. Reference geometry

Practical workflow tips:

1. Freeze layers you don't actively edit
2. Use layer states to switch between modeling and documentation views
3. Remove unused layers with PURGE regularly

In large office building models I've worked on, freezing unused layers alone reduced navigation lag by nearly half.

save pin

Reducing Geometry Complexity in 3D Floor Plans

Key Insight: Simplified geometry performs better than hyper‑detailed models in architectural workflows.

One hidden mistake I see often is importing highly detailed furniture or décor objects from external libraries. These models are typically built for rendering engines—not drafting software.

For example:

1. A simplified chair model may contain 200 faces
2. A rendering-ready chair may contain 20,000 faces

Multiply that difference across dozens of rooms and the performance impact becomes obvious.

Best practices for reducing geometry load:

1. Replace detailed furniture meshes with simplified blocks
2. Use symbolic 2D furniture during early design stages
3. Avoid importing entire product catalogs into the working file
4. Convert complex geometry into blocks whenever possible

If your goal is visualization rather than drafting performance, you can export the final layout into dedicated rendering workflows like generating realistic architectural interior renders instead of keeping heavy geometry inside AutoCAD.

Using Blocks and External References Efficiently

Key Insight: Blocks and Xrefs are essential for keeping large architectural files lightweight.

Blocks allow AutoCAD to reuse a single piece of geometry many times without increasing file complexity. Instead of storing hundreds of separate objects, the program references a single definition.

This matters enormously in large buildings.

Common architectural elements that should always be blocks:

1. Doors
2. Windows
3. Furniture
4. Bathroom fixtures
5. Lighting symbols

External references (Xrefs) take this concept further by separating building sections into multiple files.

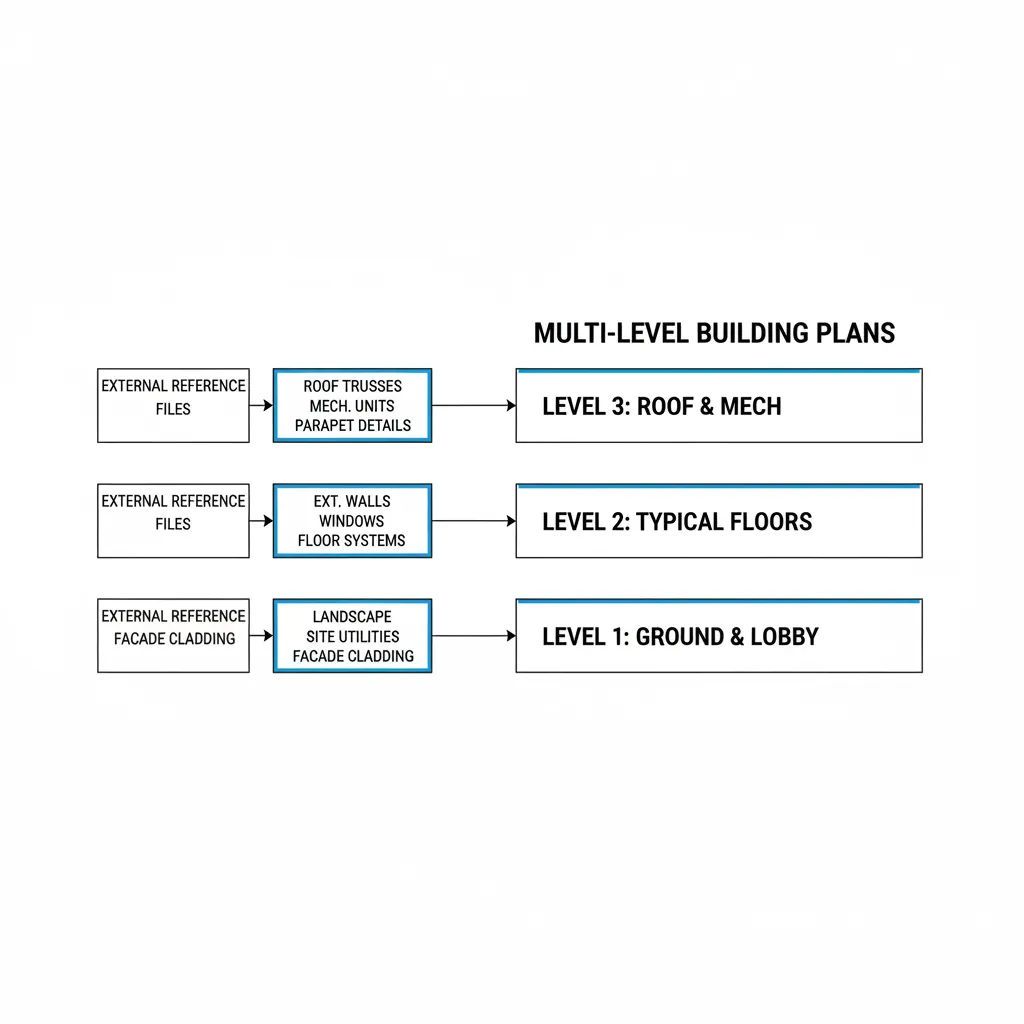

Example multi‑level workflow:

1. Main site file
2. Level 1 floor plan
3. Level 2 floor plan
4. Roof plan
5. Furniture layouts

Each level loads as a reference instead of a massive single drawing file.

Many architects now pair this approach with dedicated layout tools when testing configurations, such as exploring different room arrangements with an interactive layout planning workflow for complex interiors before importing finalized structures into AutoCAD.

Graphics and Hardware Settings for Better Performance

Key Insight: AutoCAD performance improves significantly when display settings prioritize modeling speed over visual detail.

Even strong hardware struggles if AutoCAD is configured for maximum visual fidelity during editing.

Settings I routinely adjust when working with large architectural models:

1. Enable hardware acceleration
2. Lower visual styles while modeling
3. Disable unnecessary shadows and reflections
4. Use wireframe or shaded modes instead of realistic view

Hardware also matters. According to Autodesk guidance, AutoCAD benefits more from strong single‑core CPU performance and a dedicated GPU than from extremely high RAM alone.

A balanced workstation for architectural modeling typically includes:

1. High‑frequency CPU
2. 16–32 GB RAM
3. Professional or mid‑range GPU

save pin

Workflow Tips for Handling Multi-Level Building Plans

Key Insight: Large buildings should never be modeled as one massive file.

One of the biggest hidden workflow mistakes is combining every floor, system, and detail into a single AutoCAD drawing.

In professional practice, we almost always split projects by levels and disciplines.

Recommended workflow structure:

1. Separate files for each building level
2. Independent files for structure, architecture, and interiors
3. Reference files assembled only when needed

This approach keeps each working file smaller, easier to edit, and significantly faster to load.

save pin

Answer Box

The fastest way to improve AutoCAD performance with large floor plans is to reduce geometry complexity, organize layers carefully, use blocks and Xrefs extensively, and simplify graphics settings during modeling.

Final Summary

1. Large AutoCAD models slow down mainly due to excessive geometry and poor file structure.
2. Simplified objects and reusable blocks dramatically improve drawing performance.
3. Layer management and freezing unused layers reduce redraw load.
4. External references keep multi‑level building projects manageable.
5. Optimized graphics settings improve navigation in complex 3D floor plans.

FAQ

Why does AutoCAD lag when working with large floor plans?

Lag usually comes from excessive geometry, high‑poly objects, too many layers, or large imported meshes inside the drawing.

How can I speed up AutoCAD with large floor plans?

Simplify geometry, use blocks, freeze unused layers, reduce visual detail, and split large buildings into multiple reference files.

What are the best AutoCAD settings for large building models?

Enable hardware acceleration, use simpler visual styles, disable shadows, and reduce real‑time visual effects while modeling.

Do blocks really improve AutoCAD performance?

Yes. Blocks reuse geometry definitions instead of duplicating objects, which significantly reduces file size and processing load.

Is AutoCAD good for large 3D architecture models?

Yes, but performance depends heavily on model structure and optimization techniques.

How do professionals reduce lag in AutoCAD 3D modeling?

They simplify objects, rely on Xrefs for building levels, and avoid keeping rendering‑level detail inside drafting files.

How many layers are too many in AutoCAD?

There is no strict limit, but poorly organized hundreds of layers can slow performance and make large floor plans difficult to manage.

Should I model furniture in detail inside AutoCAD?

Usually no. Simplified blocks are better for drafting. Detailed models are better used later in rendering workflows.
