Direct Answer

Optimizing rock light wiring for off‑road durability means using the correct wire gauge, sealed waterproof connectors, protected routing, and abrasion‑resistant looms. Most failures happen not at the lights themselves, but where wiring is exposed to heat, vibration, mud, or suspension movement.

A durable setup combines proper electrical sizing with physical protection—routing wires along safe chassis paths, sealing connections, and shielding cables from debris and moisture.

Quick Takeaways

1. Most rock light failures come from exposed wiring, not the LED lights.
2. Use thicker wire gauges than the minimum to handle vibration and voltage drop.
3. Waterproof connectors and adhesive heat shrink dramatically extend lifespan.
4. Routing wires along frame rails prevents suspension damage.
5. Protective loom and conduit are essential for mud and debris protection.

Introduction

After working on dozens of off‑road lighting installs over the past decade, I’ve noticed something interesting: rock light wiring fails far more often than the lights themselves.

LED rock lights are usually built tough. But the wiring that powers them runs through one of the harshest environments on a vehicle—exposed to mud, water crossings, rocks, suspension travel, and constant vibration. If the wiring isn't optimized for those conditions, problems show up fast.

I’ve seen brand‑new lighting systems fail on their first trail run simply because wires were routed too close to the exhaust or left hanging near control arms. On the other hand, properly protected wiring can last for years with almost no maintenance.

If you’re planning an installation or upgrading an existing setup, it helps to first understand the basics of wiring. Many installers start with guides that explain step‑by‑step rock light wiring from battery to LED system, then move on to durability improvements like the ones covered here.

This guide walks through the most practical ways to optimize rock light wiring for serious off‑road use—from wire gauge choices to routing strategies that prevent real‑world failures.

save pin

Why Rock Light Wiring Fails in Off‑Road Environments

Key Insight: Rock light wiring typically fails because of physical damage—not electrical overload.

In trail environments, wiring is constantly exposed to mechanical stress. Heat, debris, and suspension movement gradually break down insulation and connections.

The most common failure points I see in installations include:

1. Unprotected wires rubbing against metal frame edges
2. Connections exposed to mud or standing water
3. Loose wiring caught by suspension travel
4. Cheap crimp connectors corroding after water crossings
5. Wires routed too close to exhaust components

According to off‑road accessory installers and vehicle lighting manufacturers, environmental damage is the leading cause of auxiliary light system failure—especially on trucks used in mud, snow, or desert conditions.

One hidden mistake many DIY installers make is running wires along the shortest route instead of the safest route. In off‑road builds, durability always beats convenience.

Choosing the Right Wire Gauge for Rock Lights

Key Insight: Using a slightly thicker wire gauge than required improves reliability and reduces voltage drop.

Most LED rock lights draw relatively low power, but wiring length and environmental stress still matter.

In many installs, I recommend stepping one gauge thicker than the theoretical requirement. The extra copper helps compensate for voltage drop across long chassis runs and reduces heat buildup.

Typical recommendations:

1. 18 AWG – short runs with only a few lights
2. 16 AWG – common for most rock light systems
3. 14 AWG – ideal for large multi‑light setups

Example scenario:

1. 4 rock lights: 18–16 AWG acceptable
2. 6–8 rock lights: 16 AWG recommended
3. 8+ rock lights or long truck frames: 14 AWG best

Thicker wiring also resists vibration damage better, which is one reason professional off‑road installers rarely use the minimum gauge.

Best Waterproof Connectors and Heat Shrink Methods

Key Insight: Sealed connections are the single biggest durability upgrade you can make.

Water intrusion destroys wiring systems faster than almost anything else. Standard automotive crimp connectors simply aren't designed for constant exposure to mud and water crossings.

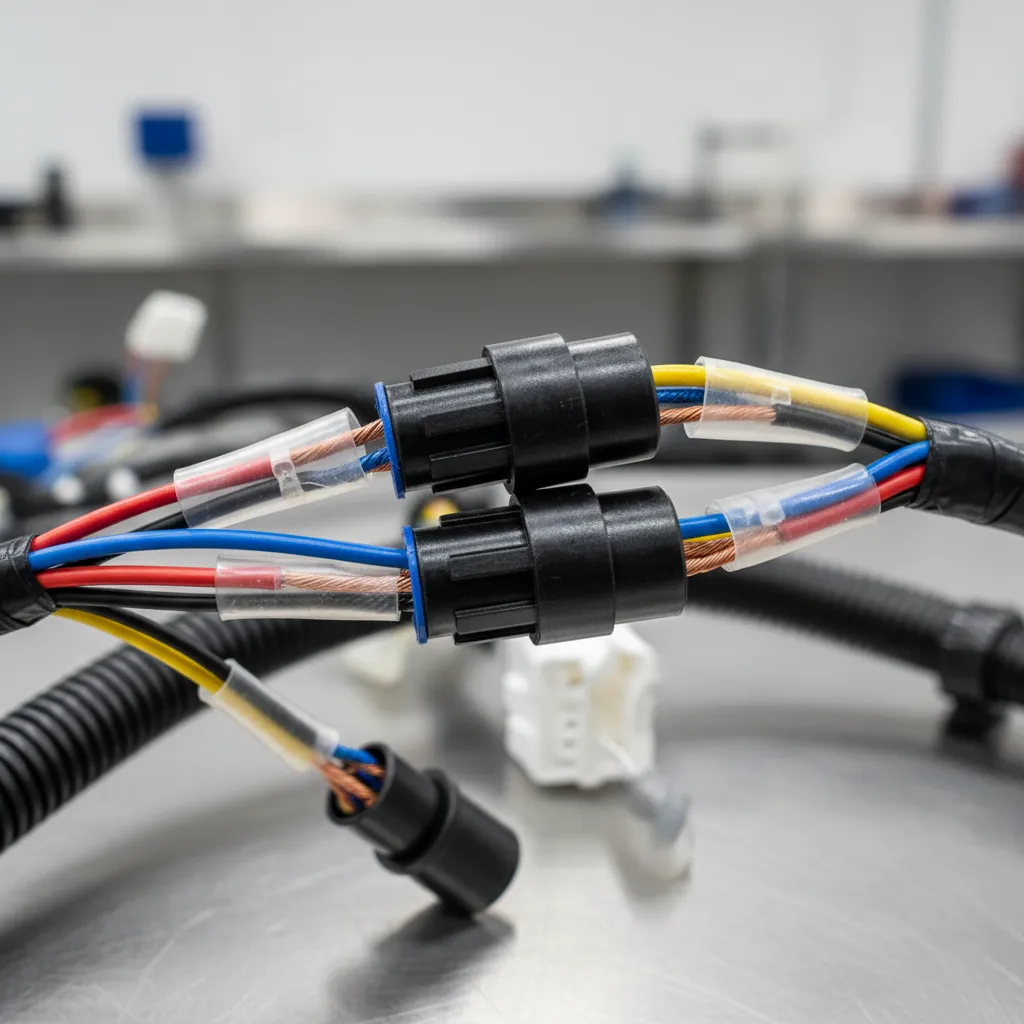

The most reliable connection methods include:

1. Marine‑grade heat shrink butt connectors
2. Deutsch DT sealed connectors
3. Weatherpack connectors
4. Soldered connections with adhesive heat shrink tubing

My personal preference for off‑road builds is adhesive‑lined heat shrink connectors. When heated, they seal the wire insulation and prevent moisture from entering.

Professional installers often pair these connectors with structured wiring layouts like those used in visual vehicle wiring route planning before installation, which helps avoid unnecessary splice points.

save pin

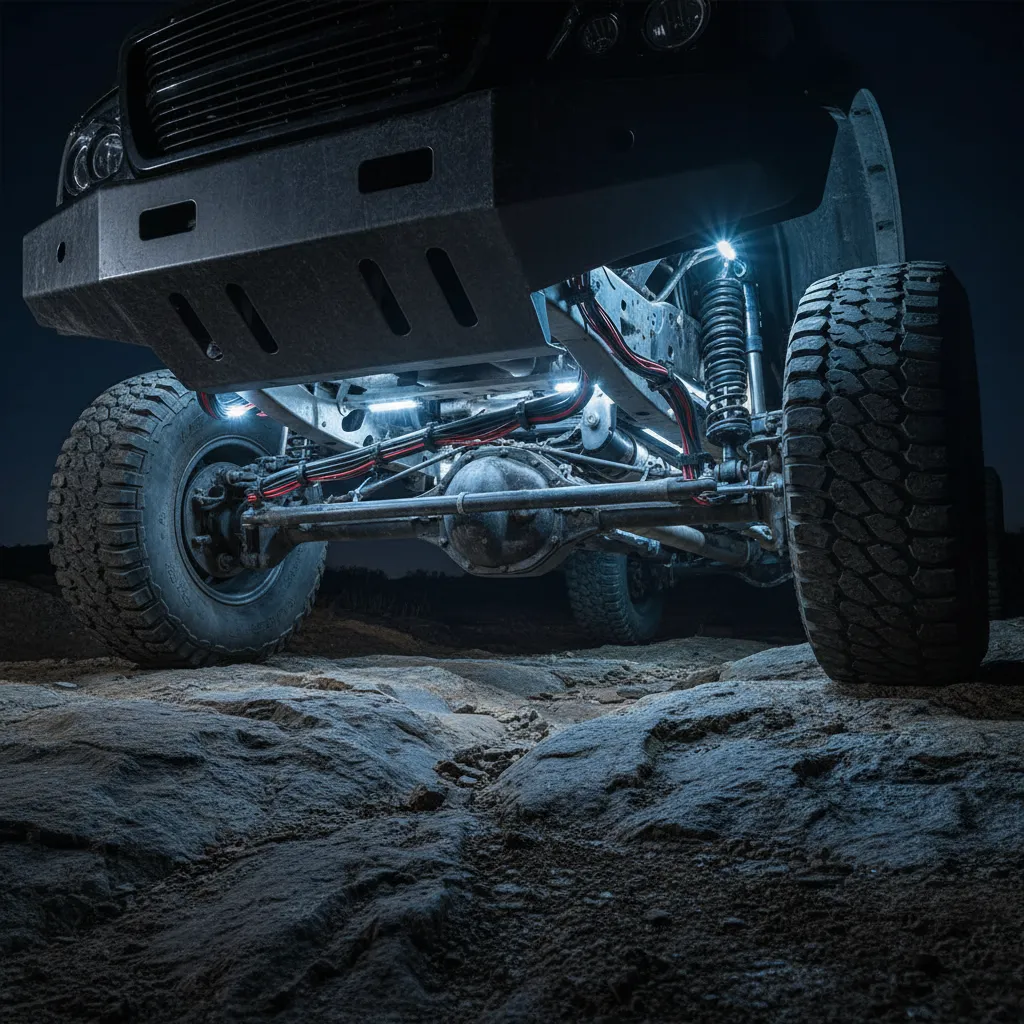

Routing Wires to Avoid Heat and Suspension Damage

Key Insight: Smart routing prevents 80% of long‑term wiring failures.

Even perfect wiring and connectors will fail if the cable path runs through dangerous areas.

Safe routing guidelines I recommend:

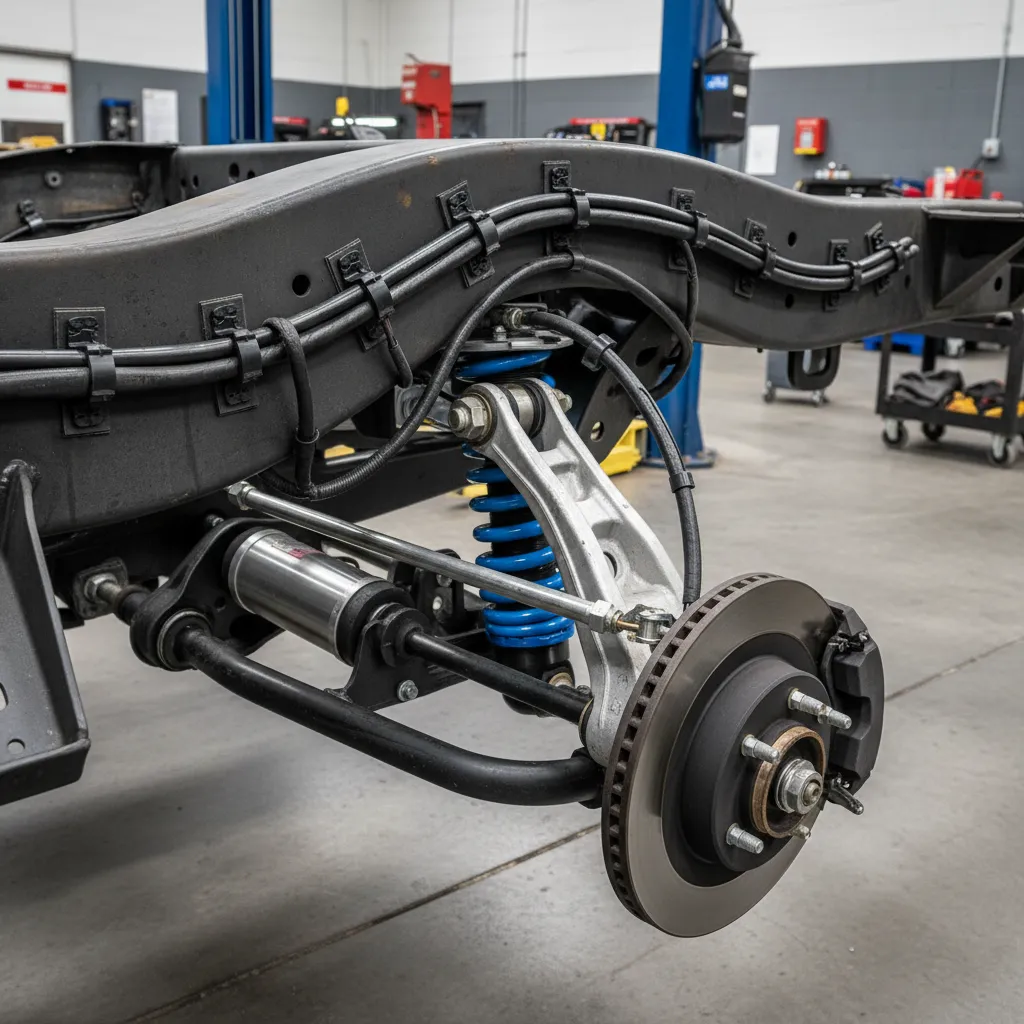

1. Follow frame rails whenever possible
2. Avoid control arms, driveshafts, and moving suspension parts
3. Maintain distance from exhaust pipes and catalytic converters
4. Secure wires every 12–18 inches with clips or zip ties
5. Leave slack near suspension articulation points

One overlooked trick: always simulate full suspension travel during installation. Jacking the axle up and down reveals where wires might stretch or rub.

save pin

Protecting Wiring with Looms and Conduit

Key Insight: Physical protection is just as important as electrical protection.

Off‑road wiring should never be left exposed. Protective coverings prevent abrasion from rocks, mud buildup, and debris.

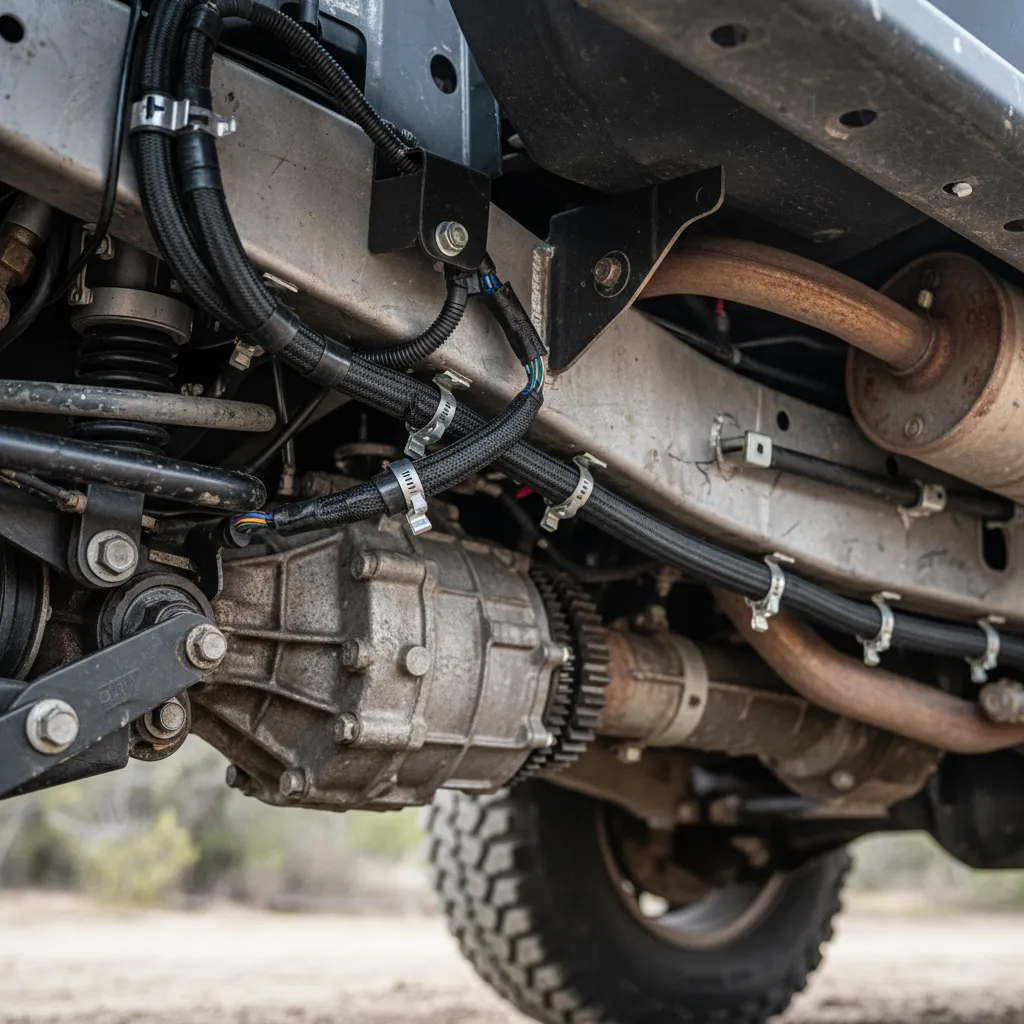

Common protective options include:

1. Split braided wire loom
2. Corrugated plastic conduit
3. High‑temperature fiberglass sleeve
4. Rubber grommets at frame pass‑through points

Many installers underestimate how quickly trail debris can wear through insulation. I've personally seen exposed wiring fail after just a few rocky trail runs.

Even basic protective loom can extend wiring life dramatically.

Answer Box

The most durable rock light wiring systems combine three things: thicker wire gauge, sealed waterproof connectors, and protected routing along the vehicle frame.

When wiring is properly sealed and physically protected from heat, suspension movement, and debris, rock lights can remain reliable for many years of off‑road use.

Long‑Term Maintenance Tips for Rock Light Systems

Key Insight: Occasional inspections prevent small wiring issues from turning into trail‑side failures.

Even a well‑built system benefits from periodic checks, especially after heavy off‑road trips.

Maintenance checklist:

1. Inspect connectors for corrosion
2. Check loom for abrasion or tears
3. Confirm zip ties or clips remain secure
4. Test lights after water crossings
5. Look for insulation wear near suspension points

Many off‑road enthusiasts incorporate lighting inspections into the same routine used when planning vehicle layouts or accessory upgrades with tools that help visualize custom vehicle lighting placement and layout.

save pin

Final Summary

1. Rock light reliability depends more on wiring protection than the lights themselves.
2. Using thicker wire gauges improves voltage stability and durability.
3. Waterproof connectors prevent corrosion and electrical failures.
4. Frame‑rail routing keeps wiring away from suspension and heat.
5. Protective loom dramatically increases off‑road wiring lifespan.

FAQ

What wire gauge is best for rock light wiring?

16 AWG works for most installations, while 14 AWG is better for large systems with many lights or long wire runs.

Do rock lights need waterproof connectors?

Yes. Waterproof connectors prevent corrosion and electrical shorts caused by mud, water crossings, and road salt.

How do you protect rock light wiring off road?

Use protective loom, route wires along frame rails, seal all connections, and keep cables away from moving suspension parts.

Can mud damage rock light wiring?

Yes. Mud traps moisture and debris, which can wear through insulation and cause corrosion in connectors.

Should rock light wires run inside or outside the frame?

Inside the frame rail is usually safer because it protects wires from rocks and trail debris.

How often should rock light wiring be inspected?

After major off‑road trips or every few months for vehicles regularly driven on trails.

Is thicker wire better for LED rock lights?

Slightly thicker wiring improves durability and reduces voltage drop in rock light wiring systems.

What causes rock light wiring to fail most often?

Physical damage from debris, suspension movement, or heat exposure is the most common cause.
