How to Optimize Terrain Meshes for Real-Time Engines: Practical terrain optimization techniques that reduce polygon load while preserving visual fidelity in modern game engines.

Direct Answer

To optimize terrain meshes for real-time engines, reduce polygon density through controlled decimation, implement LOD systems, streamline textures and materials, and prepare terrain assets for engine streaming. The key is preserving silhouette and macro shape while simplifying unseen geometry.

Professional pipelines focus on balancing visual fidelity with frame‑time stability rather than simply lowering polygon counts.

Quick Takeaways

1. Most terrain performance issues come from inefficient LOD transitions rather than raw polygon count.
2. Decimate terrain while preserving silhouette edges and gameplay-critical geometry.
3. Texture memory often limits terrain performance more than mesh density.
4. Chunk-based streaming dramatically improves large-world terrain performance.
5. Consistent terrain scale and grid alignment simplify engine optimization.

Introduction

After working on several large-scale environment projects, I’ve learned that terrain meshes are often the silent performance killer in real‑time scenes. Developers tend to focus on characters or props, but a poorly optimized terrain can quietly consume millions of unnecessary triangles and massive texture memory.

When teams attempt to optimize terrain meshes for real-time engines, the first instinct is usually aggressive polygon reduction. That approach rarely works well. You end up with broken silhouettes, visible terrain seams, and lighting artifacts that destroy the illusion of a natural landscape.

The real solution is more systematic. Terrain optimization is a layered process involving mesh density control, LOD strategies, texture management, and streaming preparation. In modern production pipelines, even layout planning tools used during early environment planning—such as workflows demonstrated in this interactive layout planning workflow for complex spaces—highlight how early structural decisions dramatically affect later optimization.

In this guide, I’ll walk through the techniques environment artists and technical designers actually use to reduce terrain complexity without sacrificing visual quality.

save pin

Why Terrain Optimization Matters in Real-Time Rendering

Key Insight: Terrain assets are usually the largest continuous geometry in a scene, meaning small inefficiencies multiply across massive surface areas.

In real-time engines like Unreal or Unity, terrain systems often span kilometers of virtual space. Even moderate polygon density quickly becomes expensive when multiplied across that scale.

Common performance costs include:

1. Excess vertex processing
2. Large shadow casting surfaces
3. Heavy texture sampling
4. High draw call counts for terrain materials

According to Epic Games’ environment guidelines for Unreal Engine, large landscapes should rely heavily on LOD and streaming systems rather than maintaining uniform mesh density across the entire terrain.

In practice, the goal is not the lowest triangle count—it’s stable frame performance during movement across the world.

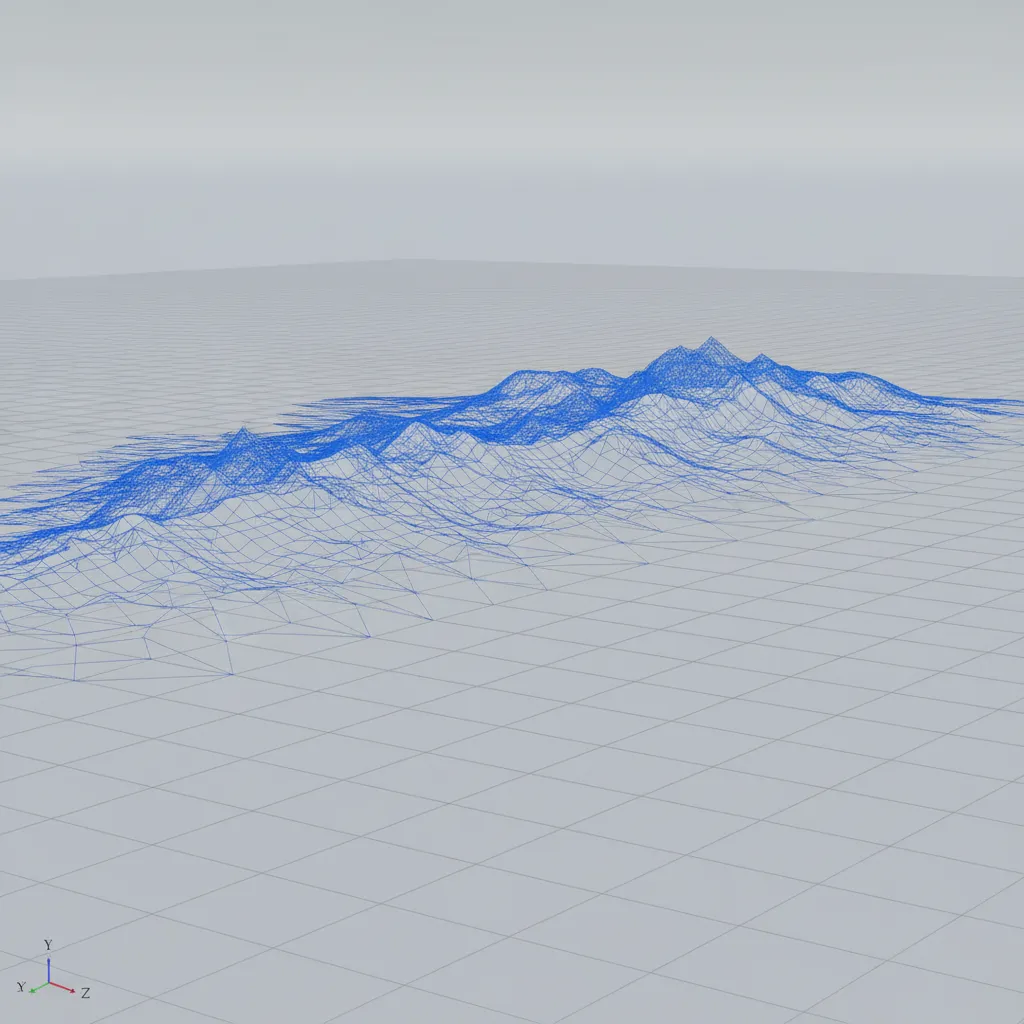

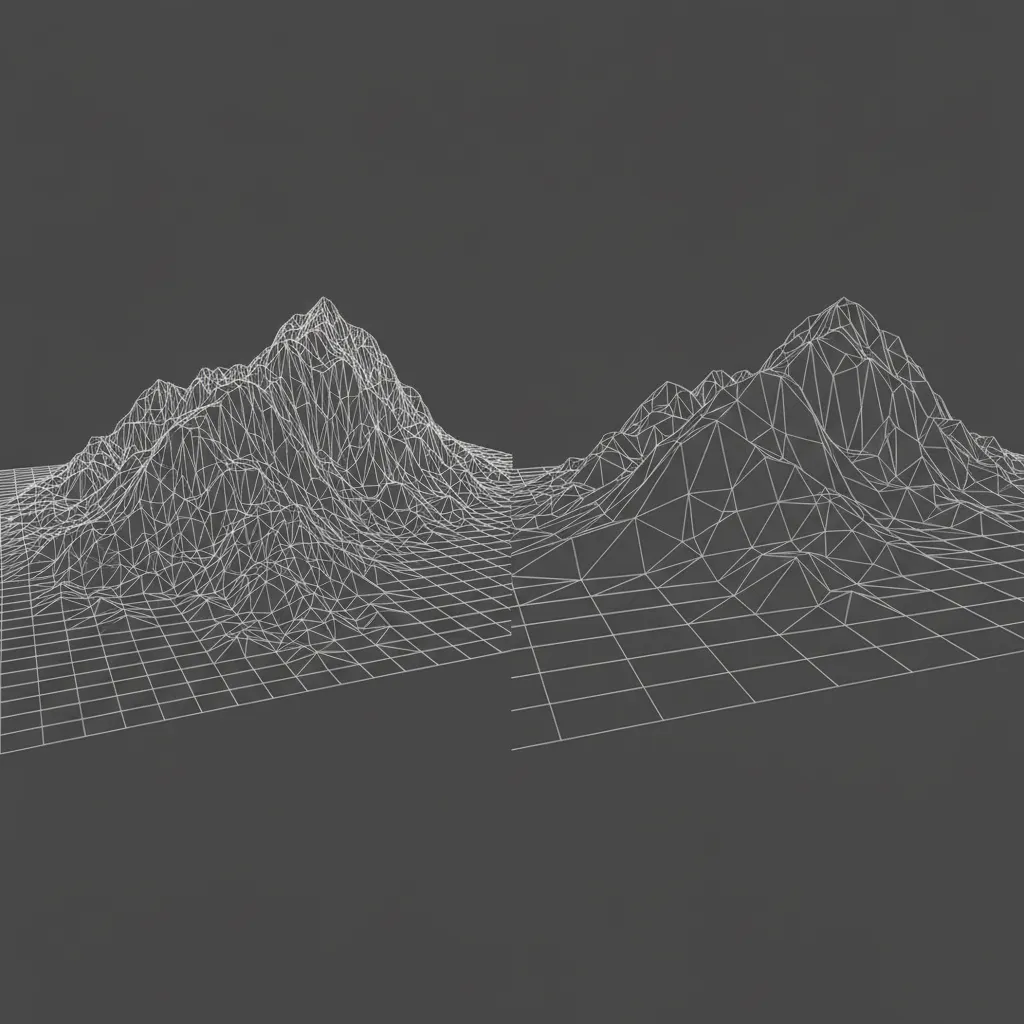

Reducing Terrain Polygon Density Safely

Key Insight: The safest way to reduce terrain polygons is silhouette-preserving decimation rather than uniform reduction.

A mistake I see frequently is artists applying automatic decimation tools that treat every polygon equally. Natural terrain doesn’t behave that way. Ridges, cliffs, and skyline silhouettes carry far more visual weight than flat plains.

A safer workflow typically looks like this:

1. Identify silhouette edges and steep slope regions.
2. Protect these regions with higher topology density.
3. Apply stronger decimation to flat areas.
4. Rebuild smoothing groups or normals afterward.

This selective reduction often cuts terrain polygon counts by 40–70% without visible quality loss.

Another overlooked factor is grid consistency. When terrain sections follow predictable grid structures—similar to methods used in structured spatial layout planning for complex environments—optimization tools and LOD systems behave far more reliably.

save pin

Using LOD Systems for Large Terrain Meshes

Key Insight: Level of Detail systems provide the largest performance gain for expansive terrains.

Rather than relying on a single mesh resolution, LOD systems dynamically swap terrain meshes depending on camera distance.

A typical terrain LOD hierarchy:

1. LOD0 – Full resolution near player
2. LOD1 – 50% polygon reduction
3. LOD2 – 75% polygon reduction
4. LOD3 – Extremely simplified distant terrain

Professional pipelines also add geomorphing or crossfade transitions to prevent visible "popping" during LOD swaps.

Modern engines also support:

1. Continuous LOD (CDLOD)
2. Chunk-based terrain tessellation
3. Distance-based displacement disabling

In my experience, well-configured LOD systems can reduce terrain rendering cost by over 80% in open-world scenes.

save pin

Terrain Texture and Material Optimization

Key Insight: Texture memory and shader complexity often limit terrain performance more than geometry.

Many terrains rely on layered materials containing multiple high-resolution textures. While visually impressive, these shaders can become extremely expensive.

Key optimization strategies include:

1. Texture atlasing to reduce draw calls
2. Shared material instances
3. Distance-based texture blending
4. Normal map reduction on distant terrain

A good rule of thumb used by many studios is:

1. 4 texture layers maximum for mid-distance terrain
2. 2 layers for far LOD terrain

This approach dramatically reduces shader cost while maintaining visual variety.

Balancing Detail and Performance in Terrain Assets

Key Insight: High-frequency detail should come from materials and props, not terrain geometry.

A terrain mesh should define large landforms—not tiny surface details. If small features like rocks, cracks, or erosion patterns are modeled directly into the terrain mesh, performance suffers quickly.

A better production approach separates detail layers:

1. Terrain mesh → large shapes and slopes
2. Material maps → surface patterns
3. Props and decals → localized detail

For example, cliffs often look better when represented as modular rock assets rather than extremely dense terrain meshes.

Many visualization workflows that focus on high-quality spatial rendering—such as techniques used in high‑quality architectural scene visualization pipelines—follow the same principle: geometry for structure, materials for detail.

save pin

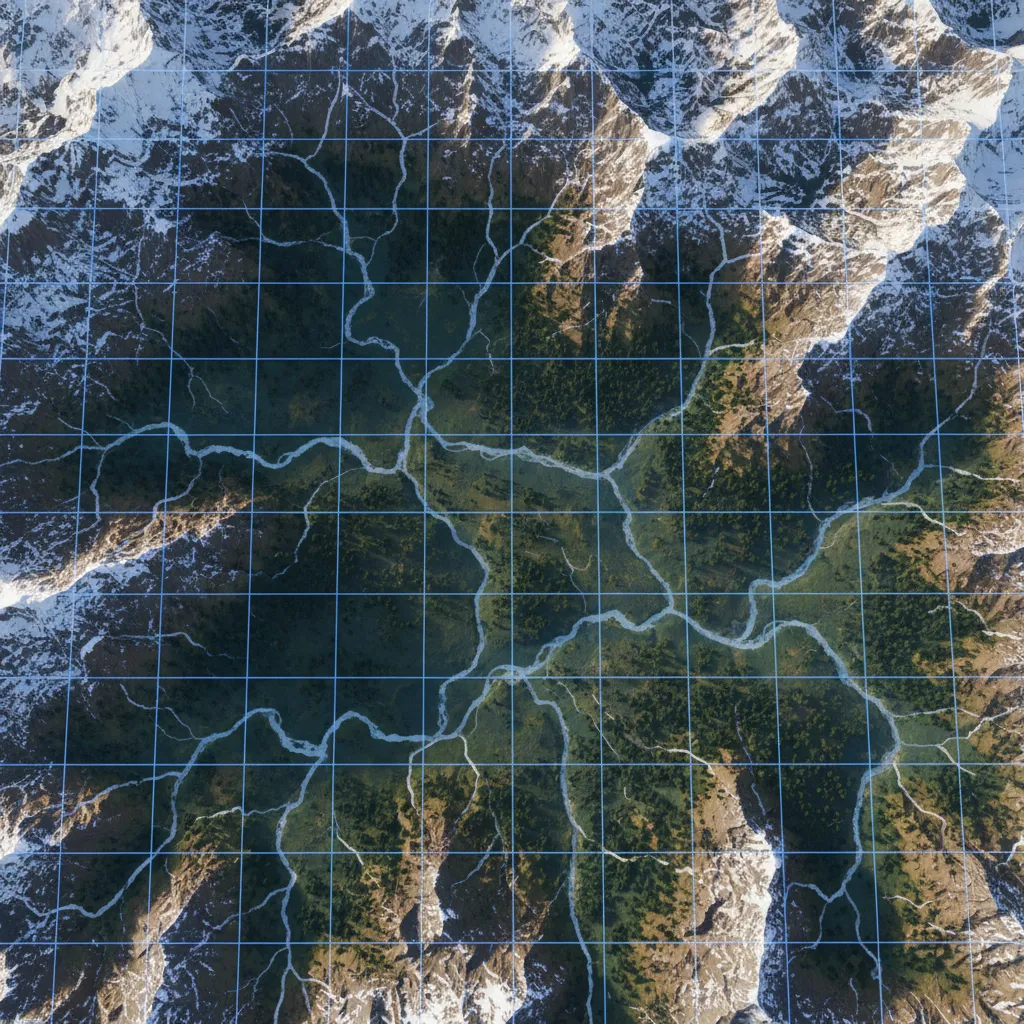

Preparing Terrain for Game Engine Streaming Systems

Key Insight: Large terrains should be divided into streaming chunks so the engine only loads nearby geometry.

Streaming systems are essential for open-world environments.

Instead of loading an entire terrain at once, the engine loads smaller sections dynamically as the player moves.

Typical terrain streaming setup:

1. Terrain split into grid tiles
2. Each tile contains its own LOD chain
3. Streaming distance determines load priority
4. Distant terrain represented by proxy meshes

This approach drastically reduces memory consumption and prevents frame drops during exploration.

Answer Box

The most effective way to optimize terrain meshes for real-time engines is combining controlled polygon reduction, LOD systems, texture simplification, and chunk-based streaming. Geometry optimization alone is rarely enough—modern terrain performance depends on the entire rendering pipeline.

Final Summary

1. Terrain optimization is primarily about efficient LOD and streaming systems.
2. Silhouette-preserving decimation keeps terrain visually accurate.
3. Texture layers often impact performance more than geometry.
4. Use props and materials for detail instead of dense terrain meshes.
5. Streaming tiles are essential for large open-world environments.

FAQ

How many polygons should a terrain mesh have?

There is no universal number. Instead, rely on LOD systems so nearby terrain stays detailed while distant terrain uses simplified meshes.

What is the best way to optimize terrain meshes for real-time engines?

Use silhouette-preserving decimation, multi-level LOD systems, and terrain streaming. Combining these techniques delivers the best performance gains.

Do terrain textures affect performance?

Yes. Terrain materials with many layered textures can significantly increase shader cost and memory usage.

How do LOD systems help terrain performance?

They reduce polygon counts based on camera distance, allowing distant terrain to render using far fewer triangles.

Should terrain include small details like rocks?

No. Small details should come from props, decals, or materials rather than terrain geometry.

What engines require terrain optimization?

All real-time engines benefit from it, including Unreal Engine, Unity, and proprietary simulation engines.

Can you reduce terrain polygons without losing detail?

Yes. Protect silhouette areas while simplifying flat surfaces and low-visibility regions.

What is terrain mesh optimization for Unreal Engine?

It involves LOD landscapes, virtual textures, and world partition streaming to maintain performance in large environments.
