How to Size a Gooseneck Roof Vent for Maximum Airflow: Learn how to calculate the right vent diameter, match duct size, and avoid airflow bottlenecks in roof exhaust systems.

Direct Answer

To size a gooseneck roof vent for maximum airflow, match the vent diameter to the exhaust duct size and calculate airflow requirements based on CFM (cubic feet per minute). In most residential systems, a 4–8 inch gooseneck vent handles bathroom or kitchen exhaust, while larger mechanical systems may require 10–14 inches.

The key is ensuring the vent opening is never smaller than the duct and that airflow demand, duct length, and roof placement are all considered.

Quick Takeaways

1. The gooseneck vent diameter should never be smaller than the connected duct.
2. Bathroom exhaust typically requires 4–6 inch vents, while kitchen systems often need 6–8 inches.
3. Airflow demand is calculated in CFM and determines the correct vent size.
4. Poor placement or undersized vents dramatically reduce exhaust efficiency.
5. Oversizing slightly is usually safer than undersizing.

Introduction

In more than a decade working on residential ventilation design, one question comes up constantly: how to size a gooseneck roof vent correctly so the exhaust system actually performs the way it's supposed to.

Most homeowners assume any roof vent that fits the duct will work. In practice, I’ve seen countless projects where a vent technically “fit” but still choked airflow because the hood design, duct length, or roof placement wasn't considered.

Proper sizing matters more than people think. A vent that’s too small increases back pressure, traps moisture, and shortens the life of fans. One that’s properly sized allows the system to move air efficiently and quietly.

Before installing vents, I always recommend mapping the roof penetrations and duct paths carefully. Even a simple planning sketch helps avoid conflicts between structure, rafters, and mechanical runs. Many homeowners now use visual planning tools when mapping ventilation routes and roof penetrations in a home layout, which makes coordination with contractors significantly easier.

In this guide, I’ll walk through the practical sizing rules professionals use, including airflow calculations, duct matching, and the most common mistakes that quietly ruin ventilation performance.

save pin

Why Proper Vent Sizing Matters for Roof Ventilation

Key Insight: The performance of a roof exhaust system is limited by its smallest opening, which is often the roof vent itself.

Even if a fan is rated for 110 CFM or more, airflow will drop dramatically if the roof vent is undersized. This happens because smaller openings increase static pressure, forcing the fan to work harder while moving less air.

In real-world remodeling projects, I often see this issue when a contractor replaces a fan but leaves the original 4-inch roof vent in place. The result is a louder system that removes less moisture.

Why correct sizing matters:

1. Prevents moisture buildup in bathrooms and attics
2. Reduces fan noise and vibration
3. Improves airflow efficiency
4. Extends the life of ventilation equipment

According to guidance from the Home Ventilating Institute (HVI), exhaust systems operate most efficiently when duct runs are short, straight, and matched to the correct vent diameter.

Standard Inch Sizes for Gooseneck Roof Vents

Key Insight: Most residential gooseneck roof vents range from 4 to 8 inches in diameter, matching common HVAC duct sizes.

Vent manufacturers standardize sizes to align with round ducting used in residential construction.

Typical sizing reference:

1. 4 inch – small bathroom exhaust fans
2. 5 inch – higher capacity bathroom ventilation
3. 6 inch – kitchen range hoods and powerful bath fans
4. 8 inch – large kitchen or multi-room ventilation
5. 10–14 inch – commercial or whole-house systems

However, diameter alone isn’t the whole story. The hood shape, internal screen, and backdraft damper also affect airflow resistance.

This is why two vents with the same diameter can perform very differently.

save pin

Calculating Required Airflow for Exhaust Systems

Key Insight: Vent sizing should be based on required airflow (CFM), not guesswork or visual estimates.

Every ventilation system is designed around airflow demand. Bathrooms, kitchens, laundry rooms, and mechanical equipment all have recommended CFM values.

Typical airflow targets:

1. Bathroom fan: 50–110 CFM
2. Large bathroom with tub: 100–150 CFM
3. Kitchen range hood: 200–600 CFM
4. Laundry room exhaust: 100–200 CFM

Once airflow demand is known, the duct and vent must accommodate that volume without creating excessive static pressure.

A simplified airflow guideline used by many HVAC installers:

1. 4 inch duct: up to ~70 CFM
2. 5 inch duct: up to ~110 CFM
3. 6 inch duct: up to ~180 CFM
4. 8 inch duct: up to ~400 CFM

If the airflow demand exceeds the capacity of the vent diameter, airflow performance drops quickly.

Matching Duct Size to Gooseneck Vent Diameter

Key Insight: The vent diameter should always match or exceed the duct diameter to prevent airflow restriction.

One of the most common field mistakes is reducing the duct size right before the roof vent. Installers sometimes do this because a smaller roof penetration is easier to cut.

That shortcut almost always causes problems.

Best practice rules:

1. Never reduce duct size before the roof vent
2. Avoid sudden diameter transitions
3. Use smooth rigid ducts whenever possible
4. Keep total duct length under 25 feet if possible

In renovation projects where multiple systems compete for roof space, planning mechanical paths early becomes critical. I’ve seen designers coordinate these routes effectively when visualizing mechanical layouts alongside structural elements, which prevents duct conflicts later during installation.

save pin

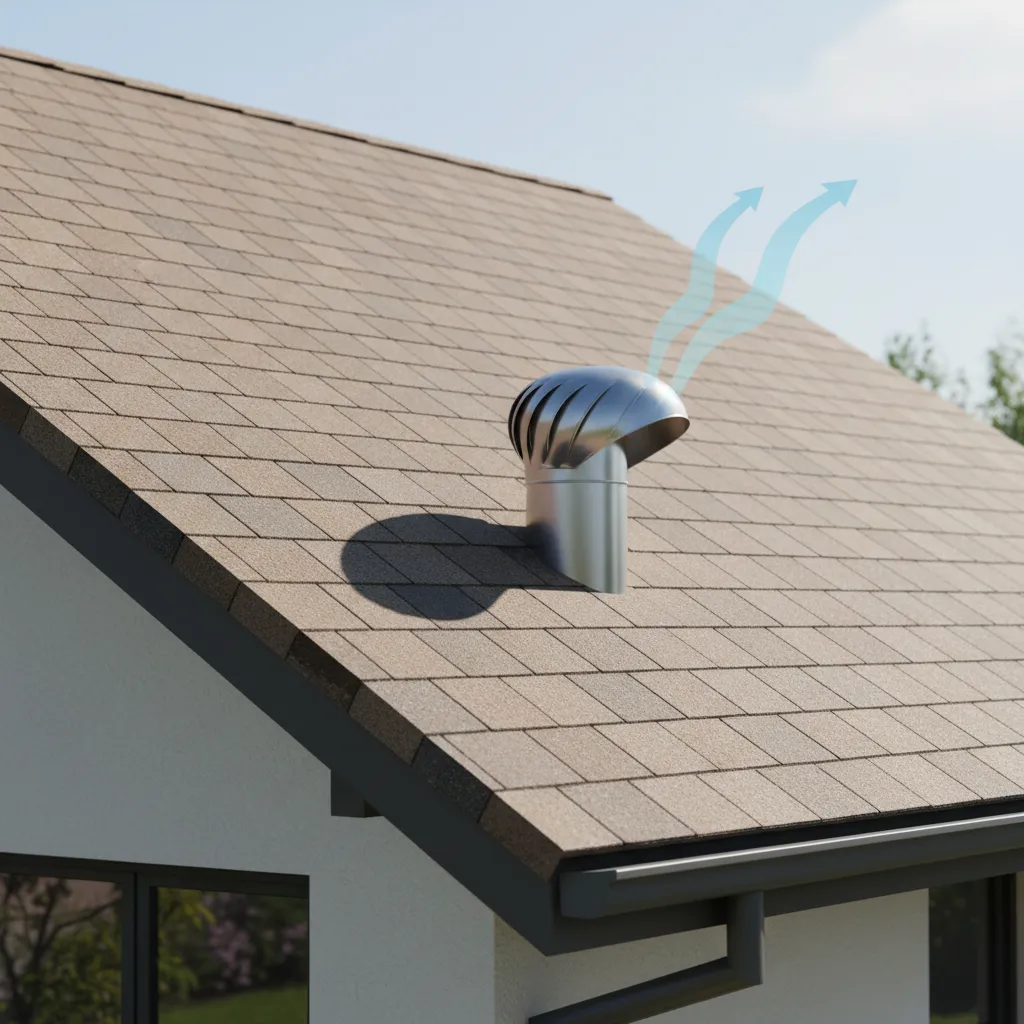

Placement Strategies to Improve Roof Vent Performance

Key Insight: Even correctly sized vents perform poorly when placed in the wrong roof location.

Placement influences airflow resistance, weather exposure, and maintenance accessibility.

Recommended placement practices:

1. Install vents near the ridge whenever possible
2. Avoid placing vents below roof valleys
3. Maintain clearance from intake vents
4. Keep ducts as vertical as possible

A vent located too low on the roof often requires longer duct runs, which increases airflow resistance.

In several remodels I’ve consulted on, simply relocating the vent closer to the ridge improved airflow more than upgrading the fan itself.

Answer Box

The correct way to size a gooseneck roof vent is to match or exceed the connected duct diameter and ensure it supports the required CFM airflow. Undersized vents restrict airflow and reduce ventilation efficiency, even when the fan itself is properly rated.

save pin

Common Sizing Mistakes to Avoid

Key Insight: Most ventilation problems come from small design shortcuts rather than major mechanical failures.

Over the years, I’ve noticed several mistakes repeated across both DIY and professional installations.

The most common sizing errors include:

1. Using a 4 inch vent for high-CFM bathroom fans
2. Reducing duct size near the roof penetration
3. Ignoring airflow resistance from vent caps
4. Installing vents too far from the exhaust fan
5. Adding mesh screens that clog with debris

Another overlooked issue is roof congestion. Mechanical vents, plumbing stacks, and attic vents often compete for space. Planning these elements early—especially when exploring full home design layouts during renovation planning—helps avoid airflow compromises later.

Final Summary

1. Match the gooseneck vent diameter to the duct size.
2. Calculate airflow needs using CFM requirements.
3. Keep duct runs short and straight whenever possible.
4. Vent placement on the roof significantly affects performance.
5. Undersized vents are the most common cause of weak airflow.

FAQ

What size gooseneck roof vent do I need for a bathroom fan?

Most bathroom fans use a 4 or 5 inch gooseneck roof vent depending on the fan’s CFM rating.

How to size a gooseneck roof vent for kitchen exhaust?

Kitchen range hoods often require 6–8 inch vents because airflow can exceed 300 CFM.

Can a roof vent be larger than the duct?

Yes. A slightly larger vent diameter is acceptable and often improves airflow efficiency.

Does duct length affect roof vent sizing?

Yes. Longer duct runs increase resistance and may require larger vent diameters.

Is a 4 inch roof vent enough for a 110 CFM fan?

It may work but often restricts airflow. Many installers upgrade to a 5 or 6 inch vent.

Do gooseneck vents reduce rain entry?

Yes. Their curved hood design protects ducts from rain and snow intrusion.

How to calculate roof vent airflow capacity?

Use duct diameter airflow charts and match them with the fan’s required CFM.

What happens if a gooseneck roof vent is too small?

Airflow drops, fan noise increases, and moisture removal becomes less effective.

References

1. Home Ventilating Institute Ventilation Guidelines
2. ASHRAE Residential Ventilation Standards
3. International Residential Code Mechanical Ventilation Requirements
