HVAC Systems Designed for Manufactured and Mobile Homes: How mobile home HVAC systems differ, what HUD regulations require, and which cooling technologies work best in manufactured housing.

Direct Answer

HVAC systems for manufactured and mobile homes are specially designed units built for smaller duct cavities, downflow airflow direction, and strict HUD construction standards. Unlike conventional residential systems, these units must fit compact mechanical spaces and connect to floor ductwork commonly used in manufactured housing.

Because of these structural differences, standard residential HVAC equipment often cannot be installed safely or legally in a mobile home without modification.

Quick Takeaways

1. Manufactured homes typically require downflow HVAC systems that push air through floor ducts.
2. HUD regulations restrict which HVAC systems can be installed in mobile homes.
3. Compact AC units are designed to fit smaller closets and utility spaces.
4. Several HVAC brands manufacture models specifically labeled for manufactured housing.
5. Future systems are shifting toward inverter mini‑splits and high‑efficiency compact units.

Introduction

After designing HVAC layouts for dozens of manufactured housing projects, one pattern keeps showing up: homeowners assume any residential air conditioner will work in a mobile home. In reality, HVAC systems for manufactured homes are built around structural constraints that traditional houses simply don't have.

Most manufactured homes rely on narrow floor duct trunks, shallow mechanical closets, and airflow designed to move downward rather than upward. Install a standard upflow furnace or central AC in that environment and you can create airflow problems, safety issues, or even fail inspection.

If you're evaluating cooling options for a manufactured home, it's worth understanding the equipment that was engineered specifically for this housing type. I usually recommend starting with this detailed guide to choosing the right AC size and system for a typical 1200 sq ft mobile home, because sizing and airflow design are closely connected.

In this article I'll break down what makes these HVAC systems different, the regulations that shape them, and which technologies are becoming the new standard for manufactured housing.

save pin

What Makes Mobile Home HVAC Systems Different

Key Insight: The biggest difference is airflow direction and space constraints—most manufactured homes require downflow HVAC systems designed for floor duct distribution.

Traditional homes typically use upflow or horizontal systems located in basements or attics. Manufactured homes rarely have either. Instead, conditioned air travels through a central floor duct trunk running beneath the home.

Because of that layout, HVAC equipment must push air downward into the floor cavity.

Structural Differences in Manufactured Homes

1. Floor duct trunk instead of attic ducts
2. Smaller mechanical closets
3. Lower ceiling cavities
4. Higher static pressure from narrow ducts

From my project experience, the airflow restriction is the hidden challenge most installers underestimate. Standard systems designed for large attic ducts often struggle to maintain proper airflow in manufactured housing.

The Air Conditioning Contractors of America (ACCA) also notes that manufactured homes frequently require specialized duct calculations because of their compact trunk systems.

HUD Regulations for Manufactured Home HVAC

Key Insight: HVAC systems installed in manufactured homes must meet HUD code requirements that differ from traditional residential building codes.

Manufactured homes in the United States are regulated under the HUD Manufactured Home Construction and Safety Standards (24 CFR Part 3280). These rules directly affect HVAC installation.

Key HUD HVAC Requirements

1. Equipment must be approved for manufactured housing use
2. Duct systems must meet airflow and insulation standards
3. Combustion appliances require sealed combustion or outside air
4. Clearances are strictly regulated for closet installations

A common mistake I see in retrofit projects is installing a standard furnace that isn't labeled for manufactured housing. Even if it technically works, inspectors may reject it because it lacks HUD approval.

Manufacturers typically mark compliant equipment with labels such as:

1. "Approved for Manufactured Housing"
2. "HUD Compliant"
3. "Mobile Home Rated"

save pin

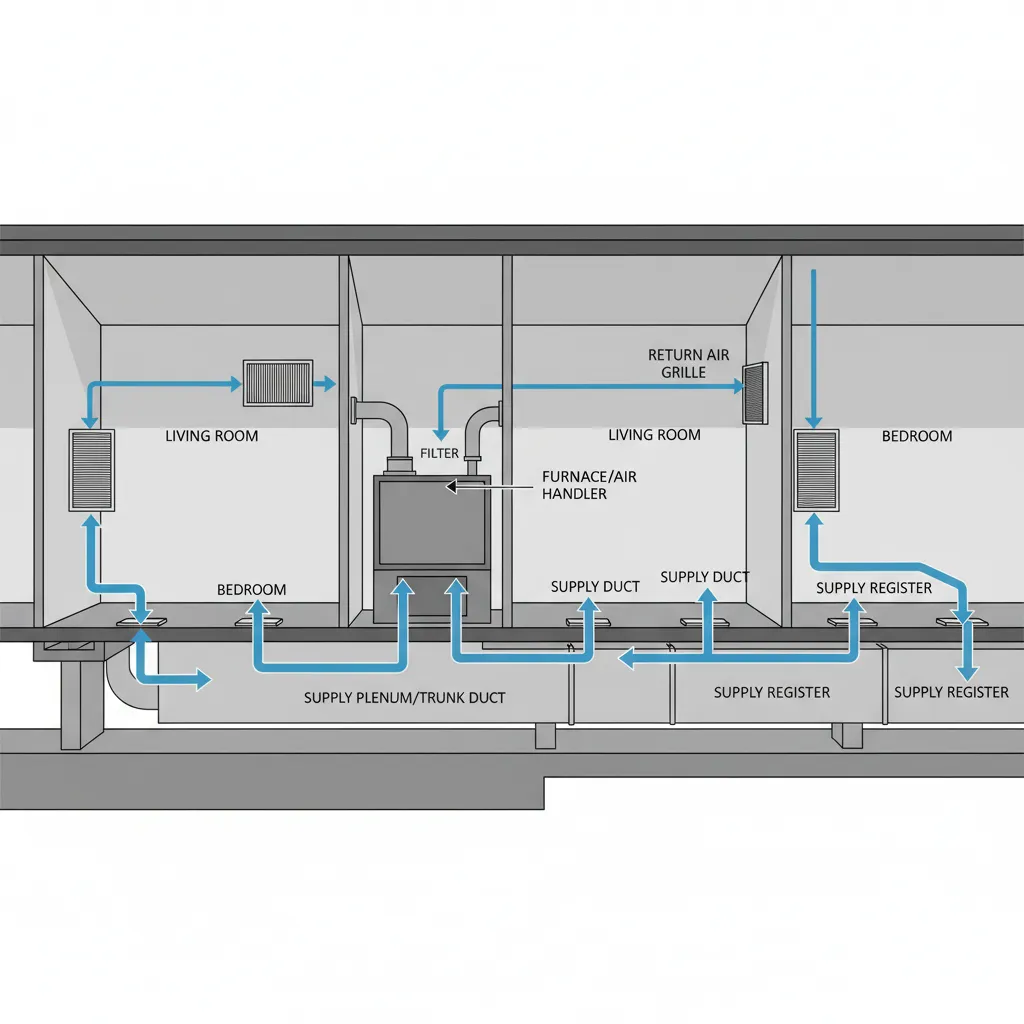

Downflow and Compact AC Systems Explained

Key Insight: Downflow systems dominate manufactured housing because they match the vertical airflow required by floor duct systems.

In a downflow configuration, the blower pushes conditioned air downward through the coil and into the floor duct network.

Common Mobile Home HVAC System Types

1. Downflow gas furnace with central AC coil
2. Electric furnace with split air conditioner
3. Packaged HVAC units
4. Ducted mini‑split systems

Compact packaged systems are particularly popular in smaller homes because they combine heating and cooling into one outdoor cabinet.

Another trend I’m seeing is ducted mini‑split installations. These systems can handle high static pressure better than some older manufactured‑home blowers.

If you're comparing cooling approaches, it's helpful to review how window units, mini splits, and central AC systems perform in mobile homesbefore choosing equipment.

save pin

Popular HVAC Brands for Mobile Homes

Key Insight: A small group of manufacturers dominates the manufactured housing HVAC market because their equipment is specifically certified for HUD installations.

Manufactured Home HVAC Brands Frequently Used

1. Nordyne (Miller / Intertherm)
2. Revolv
3. Coleman Manufactured Housing
4. Style Crest
5. Goodman manufactured‑home series

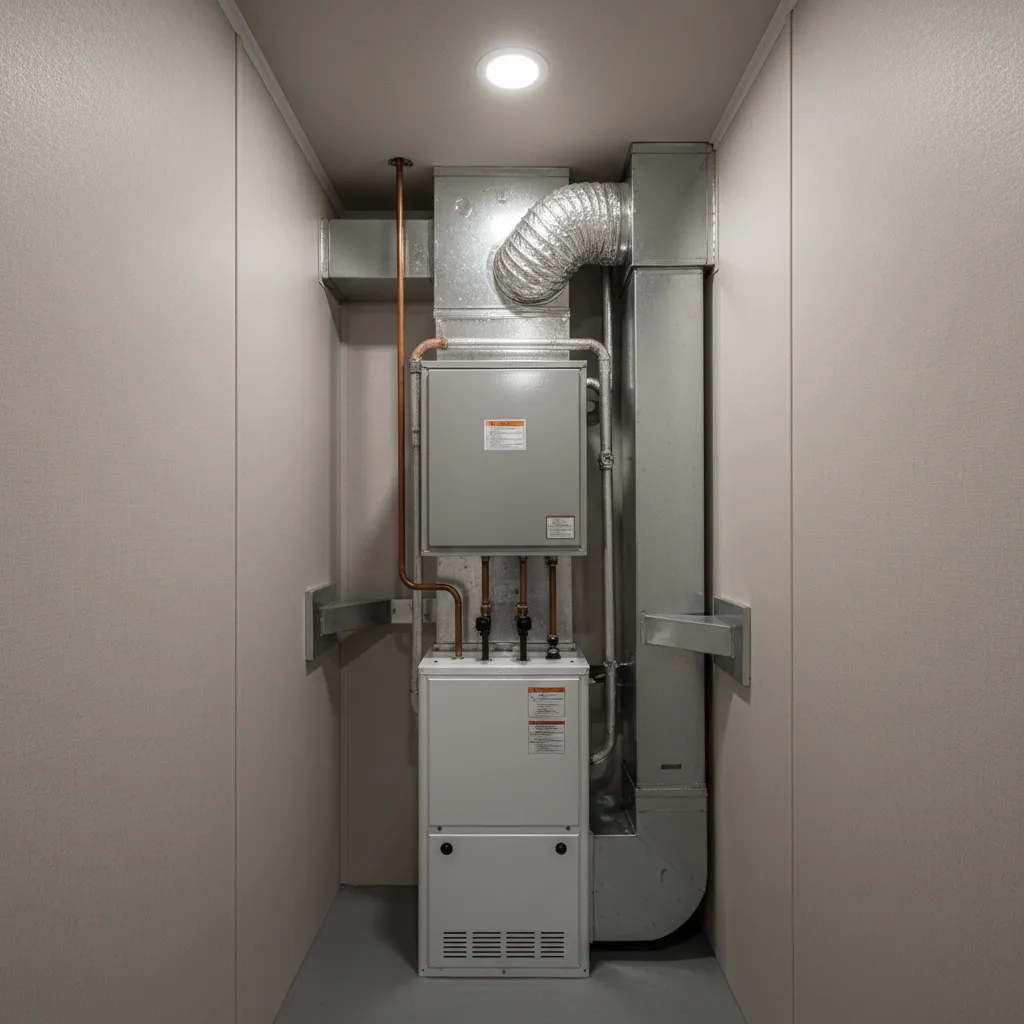

Nordyne brands like Miller and Intertherm appear in many factory‑installed systems. These units are engineered to fit the tight utility closets common in manufactured homes.

In retrofit projects, Goodman’s manufactured housing models are often chosen because replacement parts are widely available.

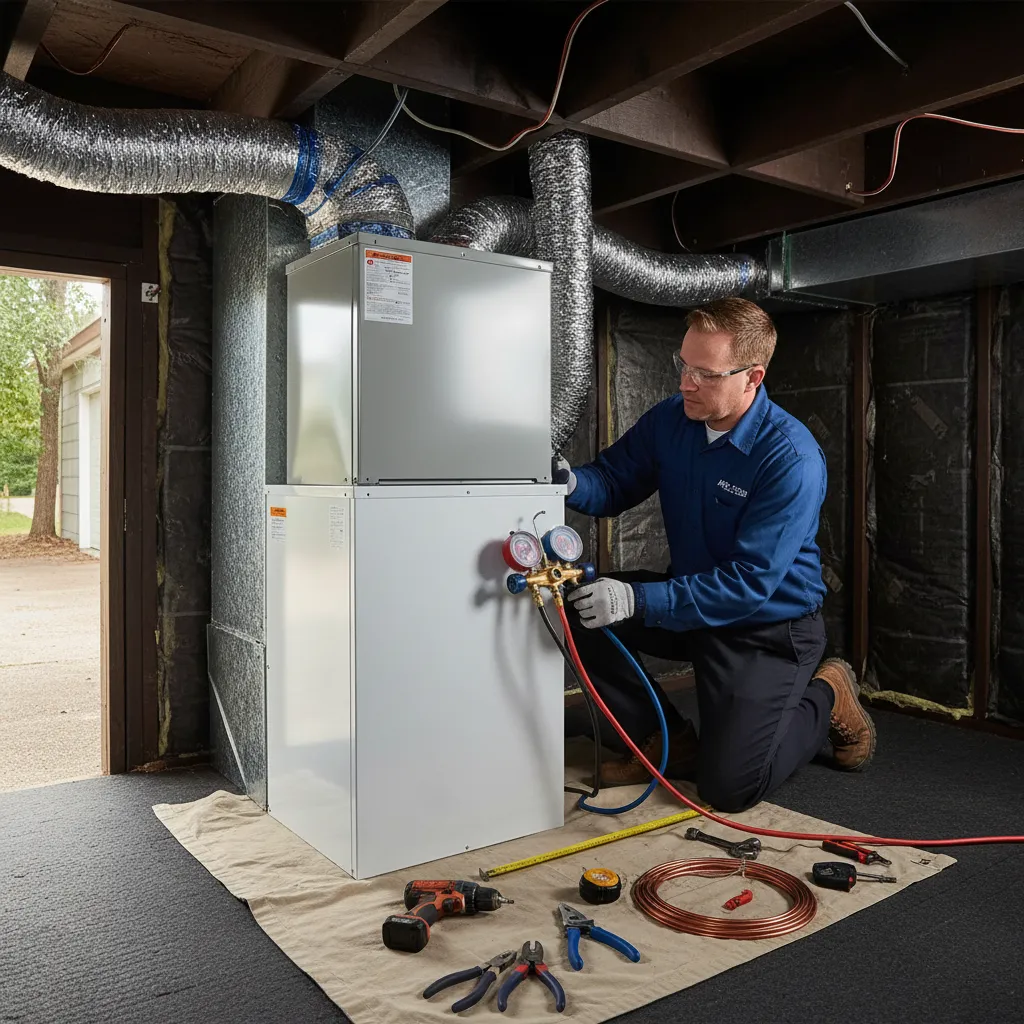

Installation Constraints Unique to Manufactured Housing

Key Insight: Space limitations and duct design make installation more restrictive than in traditional houses.

One of the biggest design mistakes I see is ignoring mechanical clearance requirements.

Common Installation Challenges

1. Narrow equipment closets
2. Limited return air pathways
3. Restricted duct diameters
4. Higher static pressure

Another overlooked factor is BTU sizing. Manufactured homes often require slightly different load calculations because of insulation types and ceiling height.

If you're unsure how to size a system correctly, this guide explains how to calculate the correct BTU capacity for a mobile home AC system.

Answer Box

Manufactured home HVAC systems are specialized units designed for downflow airflow, compact installation spaces, and HUD regulatory compliance. Standard residential HVAC equipment often cannot be installed without modifications because manufactured homes use floor duct systems and tighter mechanical clearances.

Future Trends in Mobile Home Cooling Technology

Key Insight: The future of manufactured home cooling is moving toward inverter heat pumps and ducted mini‑split systems.

Several trends are reshaping HVAC design for manufactured housing.

Emerging Technologies

1. Inverter heat pump systems
2. High‑efficiency packaged units
3. Ducted mini‑split solutions
4. Smart thermostat integration

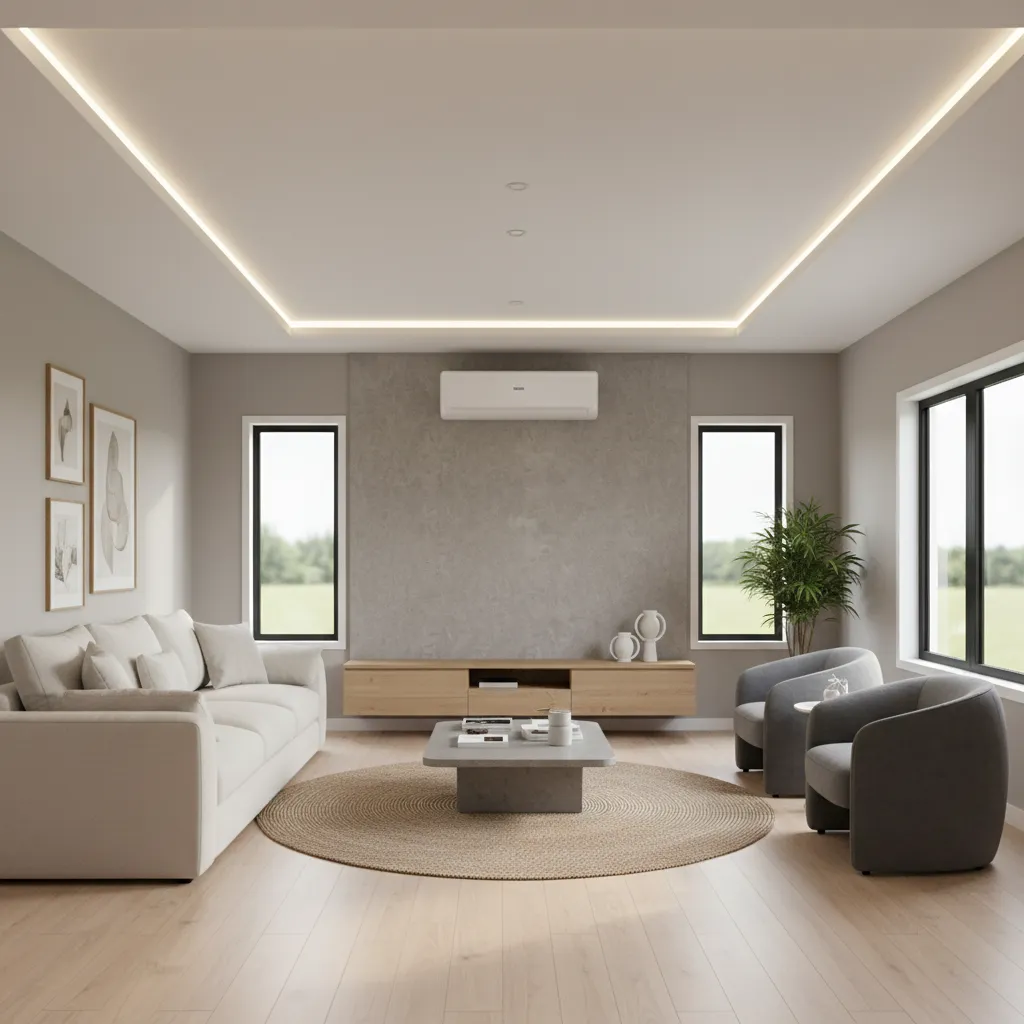

Mini‑split systems are especially promising because they reduce duct losses—one of the biggest efficiency issues in manufactured housing.

According to the U.S. Department of Energy, duct losses in traditional systems can reach 20–30% of conditioned air. Systems with shorter ducts or ductless configurations significantly improve efficiency.

save pin

Final Summary

1. Manufactured homes require HVAC systems designed for downflow airflow.
2. HUD regulations restrict which HVAC equipment can be installed.
3. Compact systems fit the smaller mechanical spaces common in mobile homes.
4. Brands like Nordyne and Coleman dominate the manufactured housing market.
5. Future cooling systems will increasingly rely on inverter heat pumps.

FAQ

1. Can you install a regular HVAC system in a mobile home?

Sometimes, but most manufactured homes require systems specifically approved for manufactured housing to meet HUD safety regulations.

2. What type of HVAC system is used in manufactured homes?

Most manufactured homes use downflow HVAC systems connected to floor ductwork.

3. What does HUD approved HVAC mean?

It means the equipment meets HUD Manufactured Home Construction and Safety Standards for installation in factory‑built housing.

4. Are mini splits good for manufactured homes?

Yes. Mini‑split systems can be very efficient for manufactured home cooling, especially when duct losses are high.

5. What is a downflow air conditioner?

A downflow air conditioner pushes conditioned air downward into floor ducts, which is typical for manufactured home HVAC systems.

6. Which HVAC brands make systems for mobile homes?

Common brands include Nordyne (Miller and Intertherm), Coleman, Revolv, and Goodman.

7. Do mobile homes require smaller HVAC units?

Often yes, because ductwork and mechanical closets are smaller than those in site‑built homes.

8. How long do manufactured home HVAC systems last?

Most systems last 12–18 years depending on climate, maintenance, and installation quality.

References

1. U.S. Department of Housing and Urban Development — Manufactured Home Construction and Safety Standards
2. U.S. Department of Energy — Residential HVAC Efficiency Resources
3. Air Conditioning Contractors of America (ACCA) Manual J and D Guidelines
