Industry Standards for Minimum Small Bathroom Dimensions: Understand professional guidelines and building code recommendations for planning safe and functional small bathrooms including common 6x5 layouts.

Direct Answer

Industry guidelines generally recommend at least 30 inches of clear width for a toilet area and about 21 inches of clearance in front of fixtures. In practice, many residential bathrooms function at around 5 by 6 feet, which aligns closely with minimum bathroom size code requirements in many jurisdictions.

A 6x5 bathroom is therefore not unusual in residential design, but it only works when fixture clearances, door swing, and circulation space are carefully planned.

Quick Takeaways

1. Most functional small bathrooms start around 30 square feet.
2. Toilets usually require 15 inches clearance from centerline to each side.
3. At least 21 inches of front clearance is recommended for most fixtures.
4. A 6x5 layout fits industry standards but leaves little margin for poor planning.
5. Smart fixture selection often matters more than raw room size.

Introduction

After working on dozens of compact renovations over the past decade, I can tell you that small bathrooms fail more often because of layout mistakes than because of size. Homeowners frequently ask whether their space meets the minimum bathroom size code, especially when dealing with tight footprints like 6 by 5 feet.

What surprises many clients is that building codes rarely define a single universal "minimum bathroom size." Instead, they regulate clearances around fixtures. That means a tiny bathroom can still meet code if the layout respects those clearance rules.

If you're trying to visualize how those rules translate into an actual plan, this practical walkthrough of how homeowners quickly map accurate bathroom floor plans before remodelingshows how designers test dimensions before construction.

In this guide, I'll break down real industry standards, explain how a 6x5 bathroom fits into them, and highlight design mistakes that quietly push many small bathrooms out of compliance.

save pin

Minimum Bathroom Size Standards in Residential Design

Key Insight: Building codes rarely set a strict minimum room size; instead, they regulate the clearance space required around each fixture.

In professional residential design, we focus less on square footage and more on spatial allowances around toilets, sinks, and showers. Codes such as the International Residential Code (IRC) and International Plumbing Code (IPC) emphasize usability and safety rather than the total size of the room.

Typical functional ranges designers work with:

1. Half bathroom: 3x6 to 4x6 feet
2. Small full bathroom: 5x6 to 5x8 feet
3. Comfortable full bathroom: 6x8 feet or larger

The widely discussed small bathroom dimensions standard of around 30 square feet exists mainly because that footprint allows the required clearances to fit logically.

Evidence LayerThe International Residential Code requires minimum fixture clearances but does not specify a universal bathroom size. Instead, it requires specific spacing around plumbing fixtures (IRC Section R307).

save pin

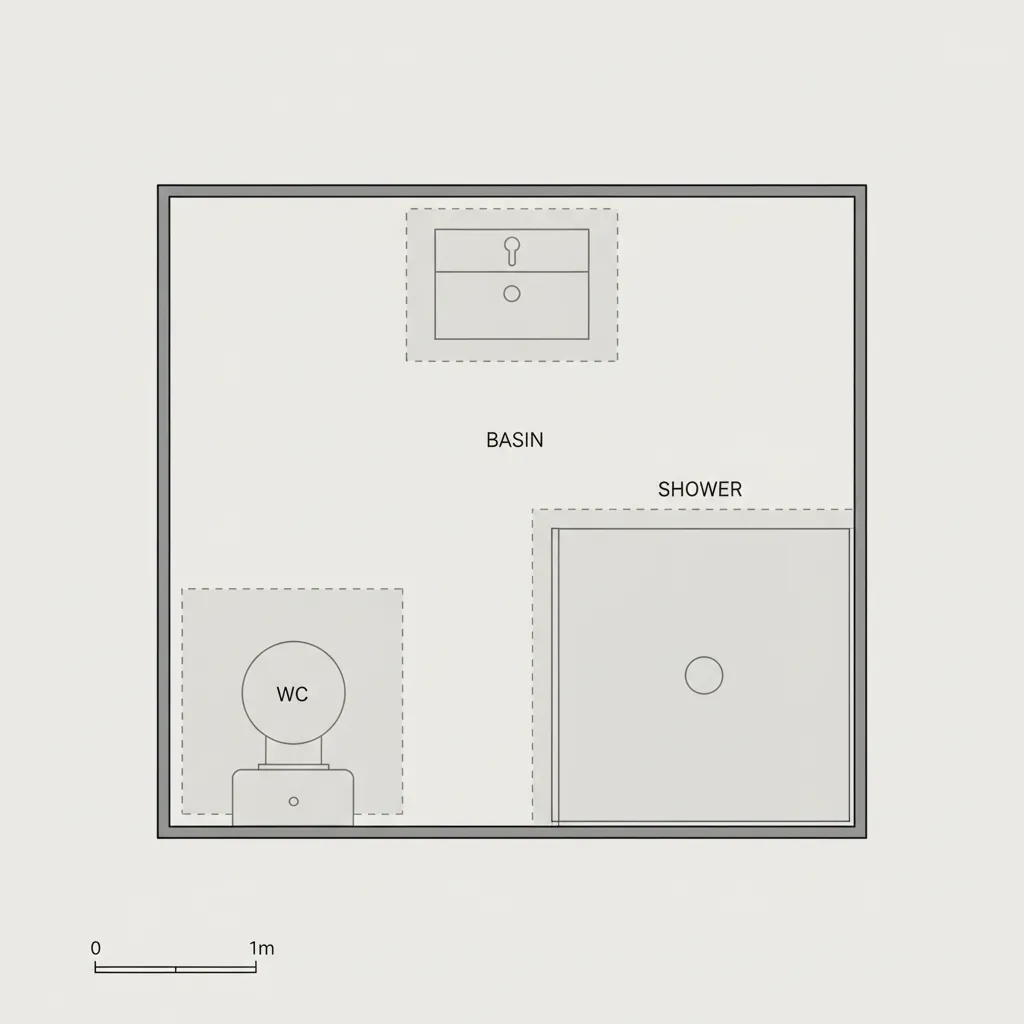

Recommended Clearance for Toilets Sinks and Showers

Key Insight: Most small bathrooms succeed or fail based on three measurements: toilet side clearance, fixture front clearance, and shower entry space.

When designers evaluate a compact bathroom layout, we check these dimensions first:

1. Toilet side clearance: minimum 15 inches from centerline to wall or fixture
2. Front clearance: at least 21 inches in front of toilet and sink
3. Shower size: minimum 30x30 inches interior space
4. Lavatory spacing: 20–24 inches width recommended

In reality, experienced designers try to exceed these numbers whenever possible. Code minimums keep the room legal, but they don't always create comfort.

A common mistake I see is squeezing fixtures too tightly to fit decorative vanities or oversized doors. Ironically, a smaller vanity often improves usability.

Testing layouts digitally using a visual planning environment designers use to experiment with fixture spacingcan reveal clearance conflicts before construction starts.

save pin

Building Code Considerations for Small Bathrooms

Key Insight: Passing inspection requires more than floor space; ventilation, door clearance, and fixture placement all affect compliance.

Even when a bathroom technically meets dimensional standards, inspectors often flag problems related to:

1. Improper door swing blocking fixture clearance
2. Insufficient ventilation
3. Electrical outlet placement near sinks
4. Shower waterproofing requirements

Ventilation is especially overlooked. The IRC requires either a window or mechanical exhaust fan for bathrooms without natural ventilation.

Hidden Cost Designers See Often

When layouts violate clearance rules, contractors may need to relocate plumbing lines after demolition. That adjustment alone can add thousands of dollars to a renovation budget.

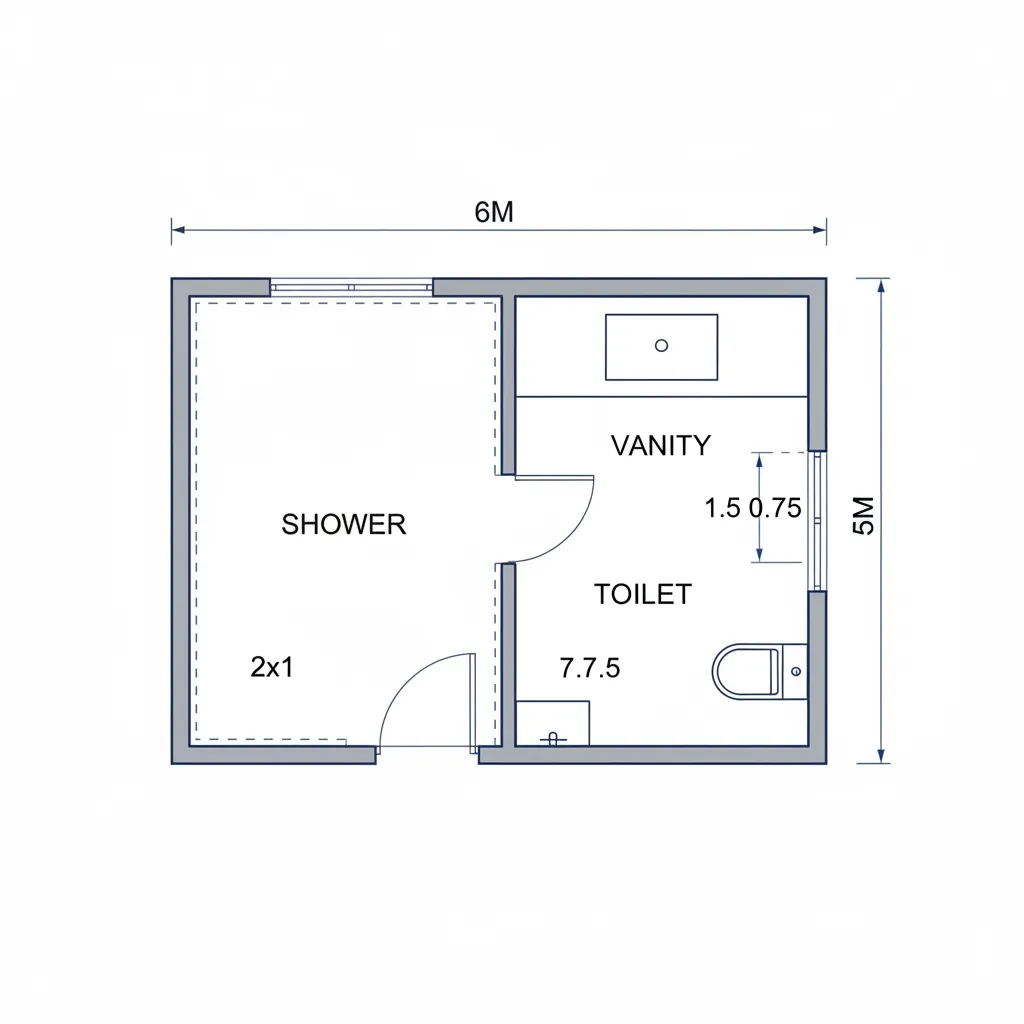

How a 6x5 Bathroom Fits Within Industry Guidelines

Key Insight: A 6x5 bathroom sits right at the threshold where industry standards become possible but design efficiency becomes critical.

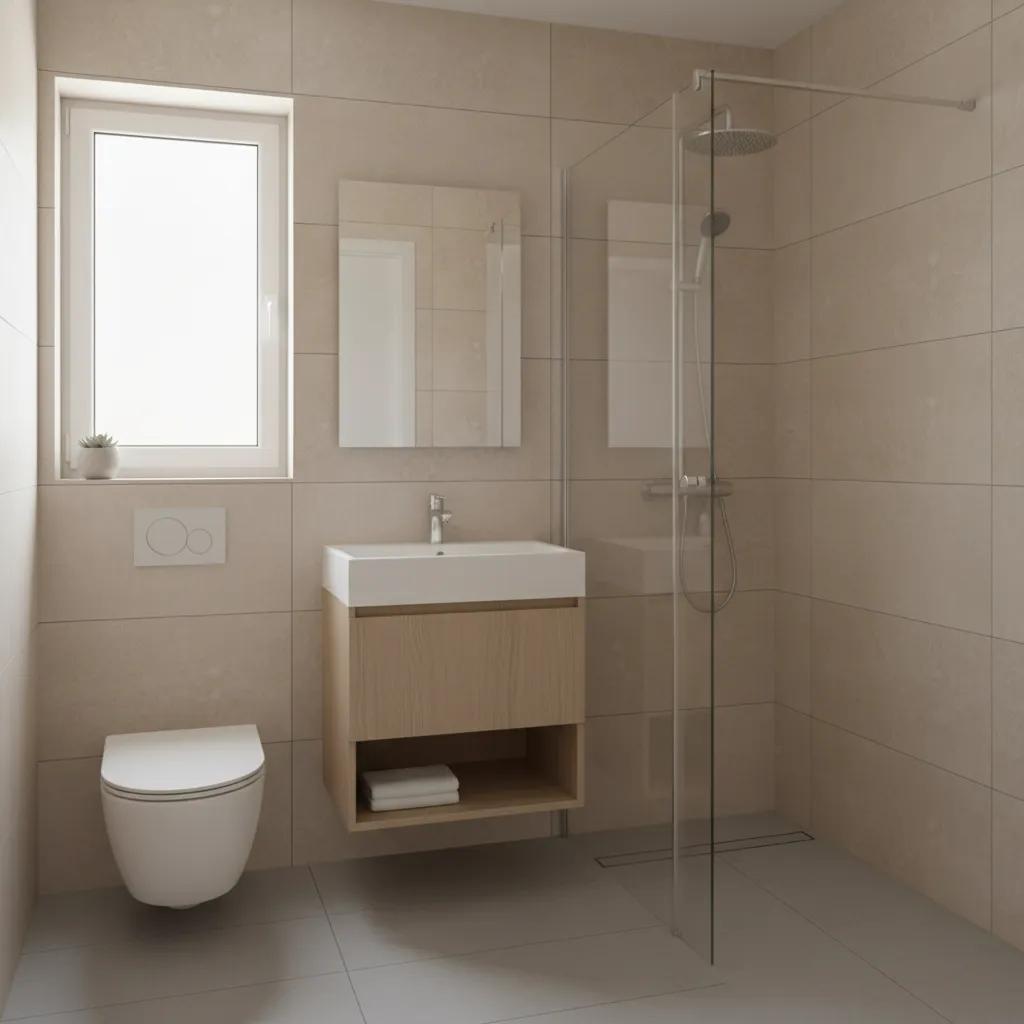

A typical 6x5 configuration includes:

1. Standard toilet
2. 24 inch vanity
3. 30–32 inch shower

The layout works because the 6‑foot wall usually accommodates the vanity and toilet while maintaining side clearances.

However, here is the detail many online guides miss: door placement often determines whether the layout works at all.

In many remodels, switching from a swing door to a pocket door instantly solves clearance conflicts. That single adjustment often determines whether the space passes inspection.

save pin

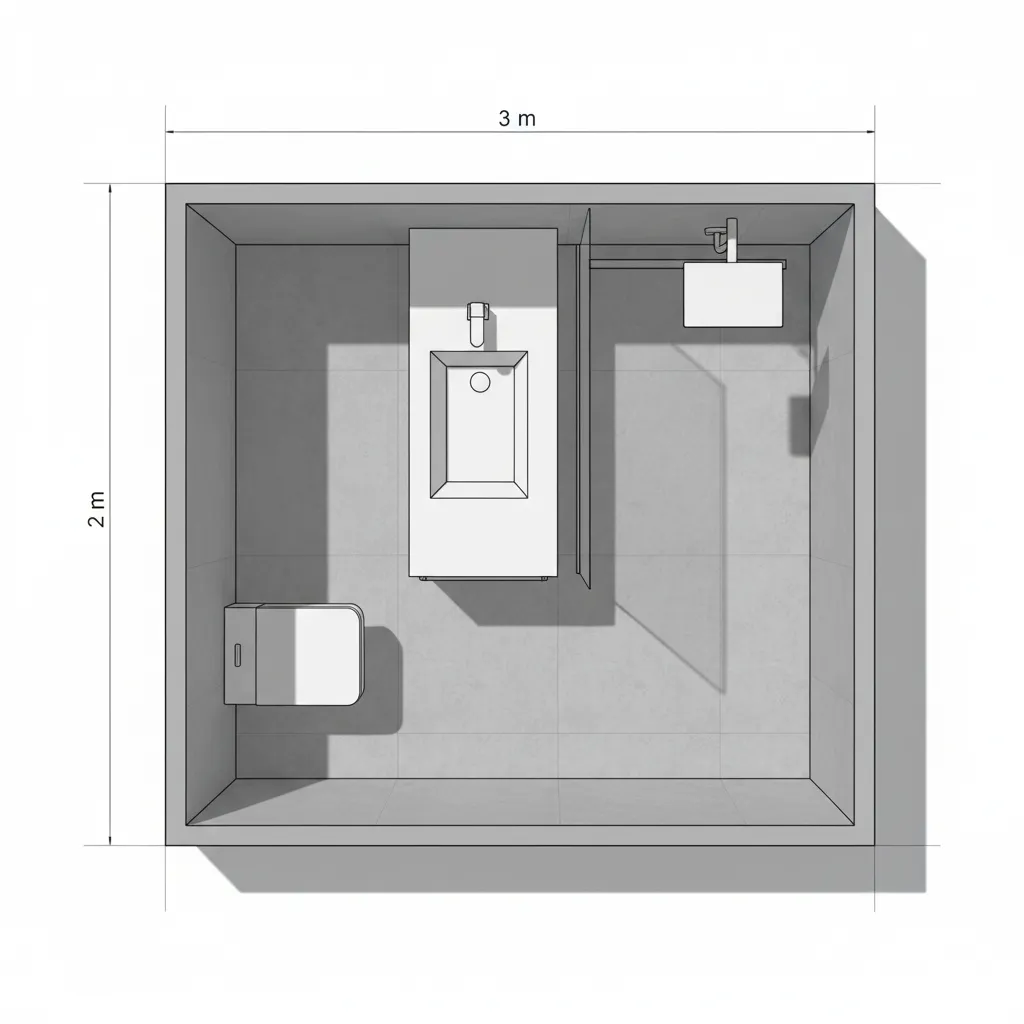

Professional Design Tips for Code Compliant Small Bathrooms

Key Insight: The smartest small bathrooms prioritize circulation space before aesthetic upgrades.

After years designing compact bathrooms, these strategies consistently improve both compliance and usability:

1. Use wall mounted sinks in extremely tight spaces
2. Choose sliding or pocket doors
3. Install corner showers instead of square units
4. Keep vanity depth under 21 inches when space is tight
5. Avoid oversized mirrors or cabinets that project too far

If you're experimenting with layouts, many homeowners start by reviewing realistic examples of compact bathroom layouts visualized in three dimensions before committing to construction drawings.

Answer Box

The most important industry rule for small bathrooms is fixture clearance, not total room size. A bathroom as small as 5x6 feet can meet building standards if toilet spacing, front clearance, and shower dimensions follow code guidelines.

Final Summary

1. Most functional small bathrooms range between 30 and 40 square feet.
2. Clearance around fixtures determines code compliance.
3. A 6x5 bathroom can meet industry standards with careful planning.
4. Door placement often determines whether layouts succeed.
5. Compact fixtures dramatically improve usability.

FAQ

What is the minimum bathroom size code in most homes?

Codes typically regulate fixture clearances rather than total room size. Bathrooms around 30 square feet often meet minimum bathroom size code requirements if clearances are respected.

Is a 6x5 bathroom big enough for a shower?

Yes. A 6x5 bathroom usually fits a 30 inch shower, toilet, and small vanity when arranged efficiently.

What is the minimum clearance for a toilet?

Most building codes require 15 inches from the toilet centerline to each side wall or fixture.

How much space should be in front of a bathroom sink?

At least 21 inches of clear space is recommended in front of sinks and toilets.

What are typical small bathroom dimensions standard in homes?

Many compact full bathrooms fall between 5x6 and 5x8 feet depending on the fixture layout.

Can a bathroom be smaller than 5x6?

Half bathrooms often are. Powder rooms can be as small as 3x6 feet if they contain only a toilet and sink.

Do all states follow the same bathroom codes?

No. Many regions adapt the International Residential Code but local regulations may vary.

Why do small bathrooms fail inspections?

The most common issues are inadequate toilet clearance, blocked door swing space, and insufficient ventilation.

References

1. International Residential Code Section R307 Plumbing Fixtures
2. International Plumbing Code Fixture Clearance Standards
3. National Kitchen and Bath Association Planning Guidelines
