Industry Standards for Residential Laundry Room Ventilation and Drain Venting: Professional guidelines, plumbing codes, and HVAC placement rules that prevent odors, moisture buildup, and drainage issues in modern laundry rooms.

Direct Answer

Residential laundry rooms must follow specific ventilation and plumbing venting standards to prevent sewer gases, moisture buildup, and drainage failures. Industry best practices require a properly vented washing machine drain, correctly placed HVAC vents, and airflow management that keeps humid air and plumbing gases from accumulating indoors.

Quick Takeaways

1. Washing machines require a properly vented standpipe tied into the home’s plumbing vent stack.
2. Laundry rooms need both plumbing venting and adequate air circulation to avoid odors.
3. Improper HVAC vent placement can spread sewer gas smells throughout the house.
4. Most building codes require specific pipe diameters, vent distances, and trap configurations.
5. Professional inspections often reveal hidden vent blockages or incorrectly sized drains.

Introduction

Laundry room ventilation sounds like a small technical detail—until it goes wrong. Over the past decade working on residential renovations and utility room layouts, I’ve seen countless laundry spaces that technically “worked” but constantly smelled like damp fabric or sewer gas.

The root problem is usually a misunderstanding of laundry room ventilation building code requirements. Many homeowners assume the dryer vent is the only system involved. In reality, three different systems interact in the same space: plumbing vent stacks, washing machine drain design, and HVAC air distribution.

When these systems are designed together, the room stays dry, odor‑free, and easy to maintain. When they aren't, homeowners end up chasing strange smells and slow drains for years.

If you're planning a new layout or renovating a utility space, mapping airflow early matters. I often recommend starting with a simple visual floor plan layout for laundry and utility spacesso plumbing stacks, ducting, and appliance clearances are coordinated before installation.

In this guide, I’ll walk through the real industry standards contractors and inspectors follow—and some overlooked mistakes that even experienced builders occasionally miss.

save pin

Why Ventilation Standards Matter in Laundry Rooms

Key Insight: Laundry rooms concentrate humidity, heat, and wastewater drainage in one compact area, making ventilation standards essential for both air quality and plumbing function.

Every wash cycle releases warm moisture into the air while simultaneously sending large volumes of wastewater into the drain system. Without proper venting and airflow, two problems develop quickly:

1. Moisture accumulates and causes mold or mildew.
2. Drain traps lose pressure balance, allowing sewer gases to escape.

Modern homes are also much tighter than houses built 30 years ago. Improved insulation and sealed envelopes mean less natural air leakage, which makes mechanical ventilation design more important than ever.

According to the International Residential Code (IRC), plumbing systems must be vented so that traps remain sealed and wastewater flows freely. Without adequate venting, negative pressure forms inside pipes and siphons water out of traps.

Once that happens, sewer gases have a direct path into the laundry room.

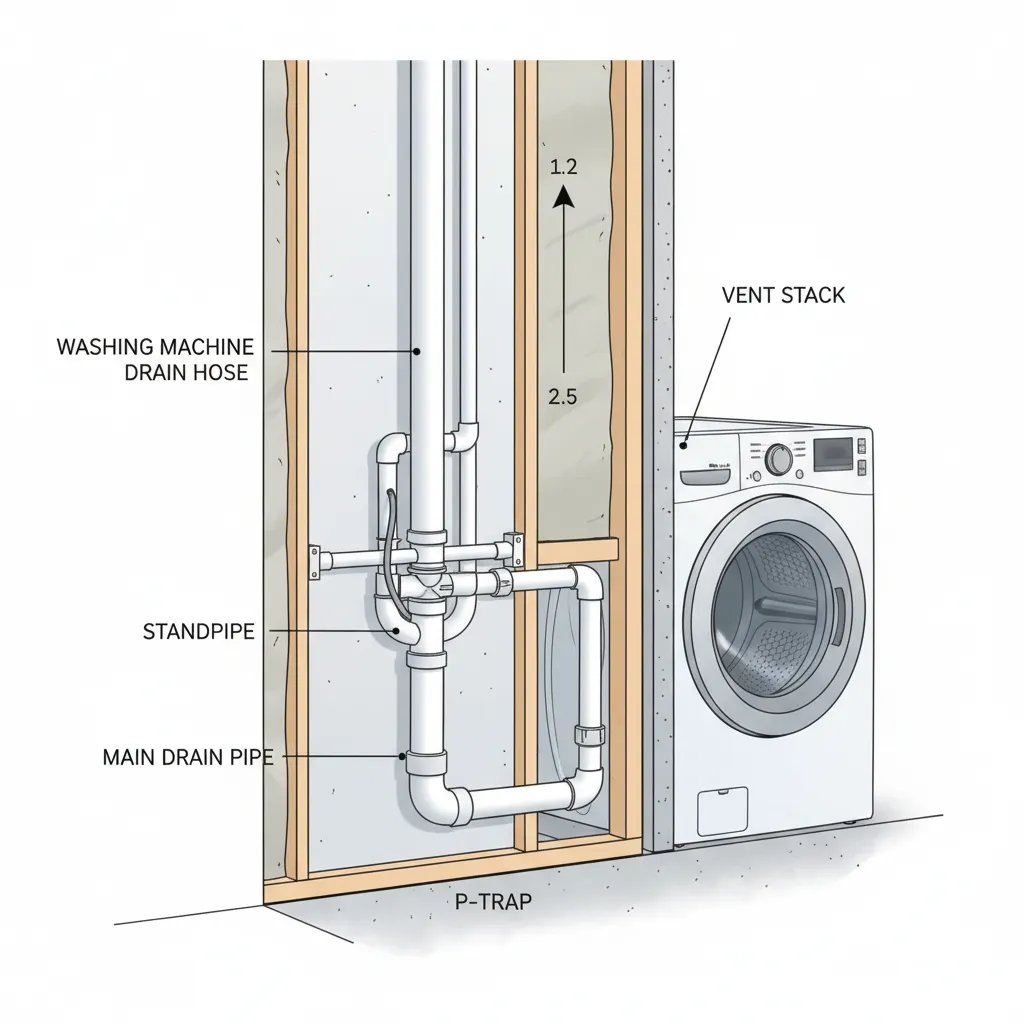

Plumbing Vent Requirements for Washing Machine Drains

Key Insight: Washing machines require a dedicated standpipe and trap connected to a properly sized vent stack to maintain drainage pressure balance.

The washing machine drain system is one of the most commonly misconfigured plumbing setups in residential construction.

Typical code‑compliant components include:

1. Standpipe height: usually 18–30 inches
2. Minimum pipe diameter: 2 inches
3. P‑trap installed below the standpipe
4. Vent connection within the allowed distance from the trap

The vent connection is critical. If the vent is too far away, the rapid water discharge from modern washers can create suction inside the pipe.

This leads to several symptoms homeowners often misinterpret:

1. Gurgling drains
2. Slow water discharge
3. Occasional sewer odor
4. Water backup during heavy cycles

The Uniform Plumbing Code and IRC both specify maximum trap‑to‑vent distances based on pipe diameter. For a typical 2‑inch drain, the vent usually must connect within about 5 feet.

This is a detail frequently missed in DIY installations.

save pin

HVAC Vent Placement Guidelines Near Laundry Areas

Key Insight: HVAC supply vents should not pull air directly from plumbing fixtures or floor drains because airflow can distribute odors throughout the home.

Many people assume laundry room smells come from the washing machine itself. In reality, HVAC airflow can amplify minor plumbing odors.

Poor placement creates a subtle but powerful airflow loop:

1. Supply vent pushes air across floor drains or standpipes
2. Air picks up sewer gases or humidity
3. Return ducts distribute odors through the house

Professional HVAC designers follow several placement guidelines:

1. Avoid supply vents directly above floor drains
2. Maintain airflow away from plumbing traps
3. Provide return air pathways outside the utility space
4. Ensure dryer exhaust does not interact with HVAC supply air

When planning layouts, I often coordinate ducting and appliances using a 3D planning layout that maps appliance clearances and airflow paths. Seeing ducts, appliances, and drains together prevents airflow conflicts before construction starts.

Building Code Considerations for Laundry Ventilation

Key Insight: Residential laundry ventilation standards combine plumbing codes, mechanical ventilation rules, and moisture management requirements.

Several building standards apply simultaneously to laundry rooms:

1. International Residential Code (IRC)
2. Uniform Plumbing Code (UPC)
3. Local mechanical ventilation codes

Typical code requirements include:

1. Dryer exhaust ducts vented outdoors
2. Minimum duct diameter of 4 inches
3. Maximum duct length limits
4. Accessible cleanout points for drains
5. Properly vented standpipe systems

One overlooked requirement is combustion air. In homes where gas dryers operate in small laundry rooms, codes often require dedicated air supply openings or louvered doors.

Without that airflow, combustion appliances can operate inefficiently and even create back‑drafting risks.

Answer Box

Proper laundry room ventilation depends on three coordinated systems: plumbing vent stacks, HVAC airflow management, and dryer exhaust ventilation. When these systems follow building codes and are positioned correctly, they prevent odors, moisture damage, and drainage problems.

Common Design Mistakes That Lead to Odor Problems

Key Insight: Most persistent laundry room odors are caused by small venting errors rather than major plumbing failures.

Across dozens of renovation projects, I’ve noticed several recurring design mistakes.

1. Improper trap installation beneath washing machine standpipes
2. Vent stacks located too far from the drain line
3. HVAC supply vents blowing directly toward plumbing fixtures
4. Dryer vents that leak humid air inside wall cavities
5. Floor drains installed without proper trap primers

The trap primer issue is especially overlooked. Floor drains that rarely receive water can dry out, allowing sewer gases to enter the room.

Many modern homes install automatic trap primers that periodically add water to keep the seal intact.

save pin

Professional Inspection Checklist for Vent Systems

Key Insight: A structured inspection of plumbing and airflow systems can identify nearly all laundry room odor issues before they become long‑term problems.

When evaluating a residential laundry space, inspectors typically check the following areas:

1. Standpipe height and diameter
2. P‑trap presence and condition
3. Distance between trap and vent stack
4. Dryer vent routing and exterior termination
5. HVAC vent placement relative to plumbing fixtures
6. Presence of trap primers on floor drains

In renovation projects, mapping these systems visually makes inspection easier. A detailed interactive interior layout showing mechanical zones and appliance placement can reveal airflow conflicts or plumbing spacing problems early in the design phase.

Final Summary

1. Laundry rooms require coordinated plumbing, HVAC, and exhaust ventilation systems.
2. Washing machine drains must connect to properly sized vent stacks.
3. HVAC vents should avoid airflow paths over plumbing traps.
4. Most odor issues come from small vent placement mistakes.
5. Professional inspection checklists catch hidden drainage and airflow issues.

FAQ

Do washing machines require a plumbing vent?

Yes. Plumbing codes require washing machine drains to connect to a vented drainage system to prevent trap siphoning and sewer gas leaks.

What is the correct standpipe height for a washing machine?

Most building codes require a standpipe between 18 and 30 inches tall with a 2‑inch diameter pipe.

Can poor HVAC vent placement cause laundry room odors?

Yes. HVAC vents can distribute sewer gas odors if airflow pulls air from plumbing fixtures or floor drains.

What are common laundry room ventilation building code requirements?

Codes typically require outdoor dryer venting, properly vented drain lines, accessible cleanouts, and adequate combustion air for gas appliances.

Why does my washing machine drain gurgle?

Gurgling usually indicates a venting problem where negative pressure forms in the drain line.

How far can a washing machine drain be from a vent?

For a 2‑inch drain pipe, most codes limit the trap‑to‑vent distance to around five feet.

Do laundry room floor drains need a trap?

Yes. Every floor drain must include a trap to block sewer gases from entering the home.

What is included in a home inspection laundry ventilation checklist?

Inspectors check standpipes, traps, vent stacks, HVAC airflow, dryer vents, and drainage performance.
