Jali Facade Design in Modern Commercial and Hospitality Architecture: How architects use jali facades to control light, climate, and visual identity in contemporary commercial buildings

Direct Answer

Jali facade design is widely used in modern commercial and hospitality architecture to control sunlight, improve natural ventilation, and create a distinctive architectural identity. By translating traditional perforated patterns into contemporary materials and scales, architects use jali systems to balance climate performance with strong visual branding.

Quick Takeaways

1. Jali facades reduce solar heat gain while allowing daylight and airflow.
2. Hotels and resorts use jali screens to create privacy without blocking views.
3. Commercial buildings often use large-scale parametric jali panels for branding.
4. Material choice strongly affects maintenance cost and durability.
5. Successful projects treat jali as a climate strategy, not just decoration.

Introduction

Over the past decade, I’ve worked on several projects where clients requested some version of jali facade design. Sometimes it came from cultural inspiration, sometimes from sustainability goals, and occasionally from pure aesthetics. But once we started analyzing performance, it became clear that jali systems solve multiple architectural problems at once.

In hot climates especially, a well‑designed perforated facade can reduce glare, soften daylight, and improve airflow without relying entirely on mechanical cooling. When we model these systems early in the design process, the facade often becomes both a climate filter and a branding element for the building.

For architects exploring early concept development, many teams begin by visualizing massing and shading patterns using tools like this visual workflow architects use to preview architectural lighting and facade effects. It allows designers to test how patterned facades influence interior lighting before construction drawings begin.

In this article, I’ll walk through how jali facade systems are used in hotels, office buildings, and public commercial architecture—and what design decisions actually make them work.

save pin

Why Jali Facades Are Popular in Modern Architecture

Key Insight: The modern appeal of jali facades comes from their ability to combine climate performance with cultural identity.

Traditional jali screens originated as stone lattice systems used across South Asian and Middle Eastern architecture. Their main purpose was environmental control: filtering harsh sunlight while allowing air movement.

Modern architects adapt this logic using contemporary materials and computational pattern design.

Why architects still choose jali systems:

1. Passive solar shading
2. Daylight diffusion
3. Privacy without solid walls
4. Strong architectural identity
5. Opportunities for parametric design

However, one mistake I often see in commercial projects is treating jali purely as decoration. If the pattern density isn’t tuned to solar orientation, the facade becomes expensive ornament rather than functional architecture.

Studies from climate-responsive architecture research at the Architectural Association in London highlight that perforated facades can reduce direct solar radiation by more than 30% depending on pattern density and orientation.

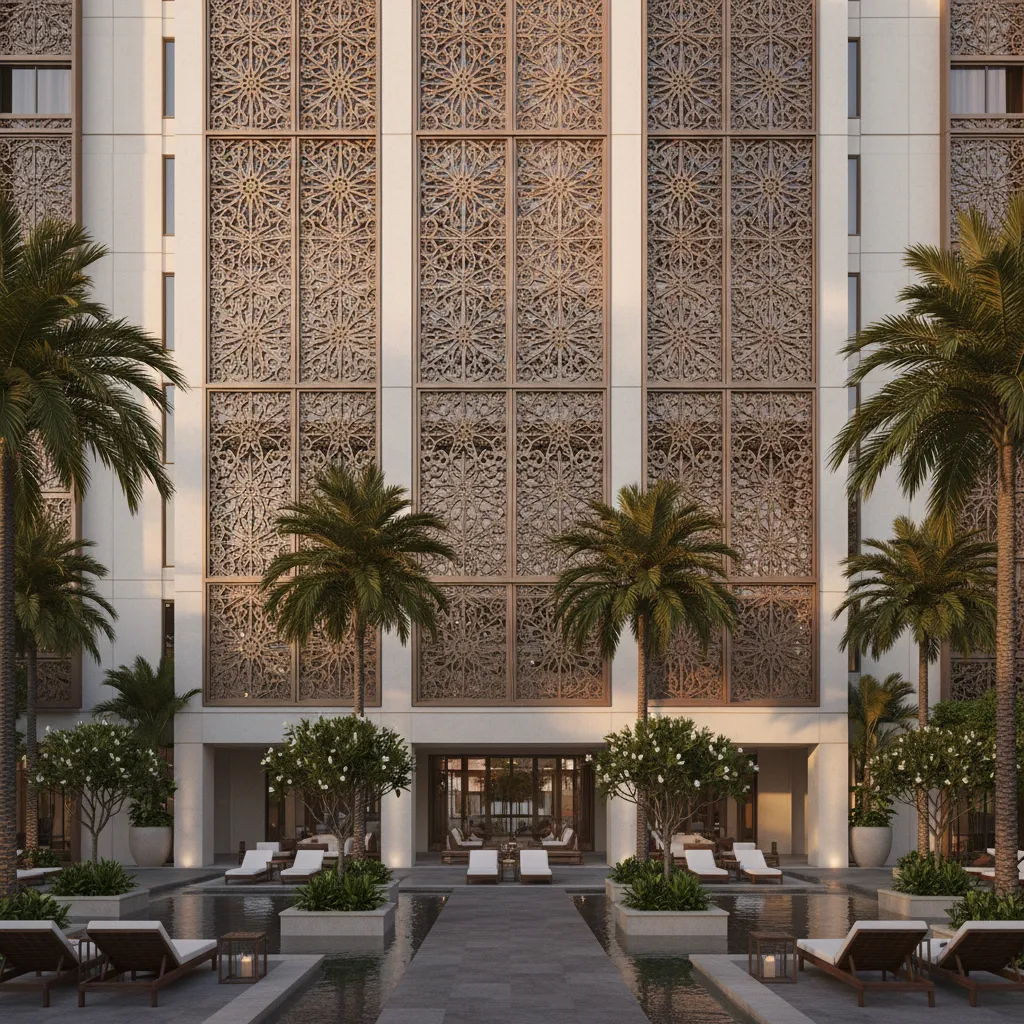

Jali Screens in Hotels and Resorts

Key Insight: In hospitality architecture, jali screens create privacy and atmosphere while preserving outdoor views.

Hotels often need to balance openness with privacy. Guests want daylight and views, but they don’t want direct exposure to neighboring buildings or walkways.

Jali facade systems solve this problem elegantly.

Typical hospitality applications include:

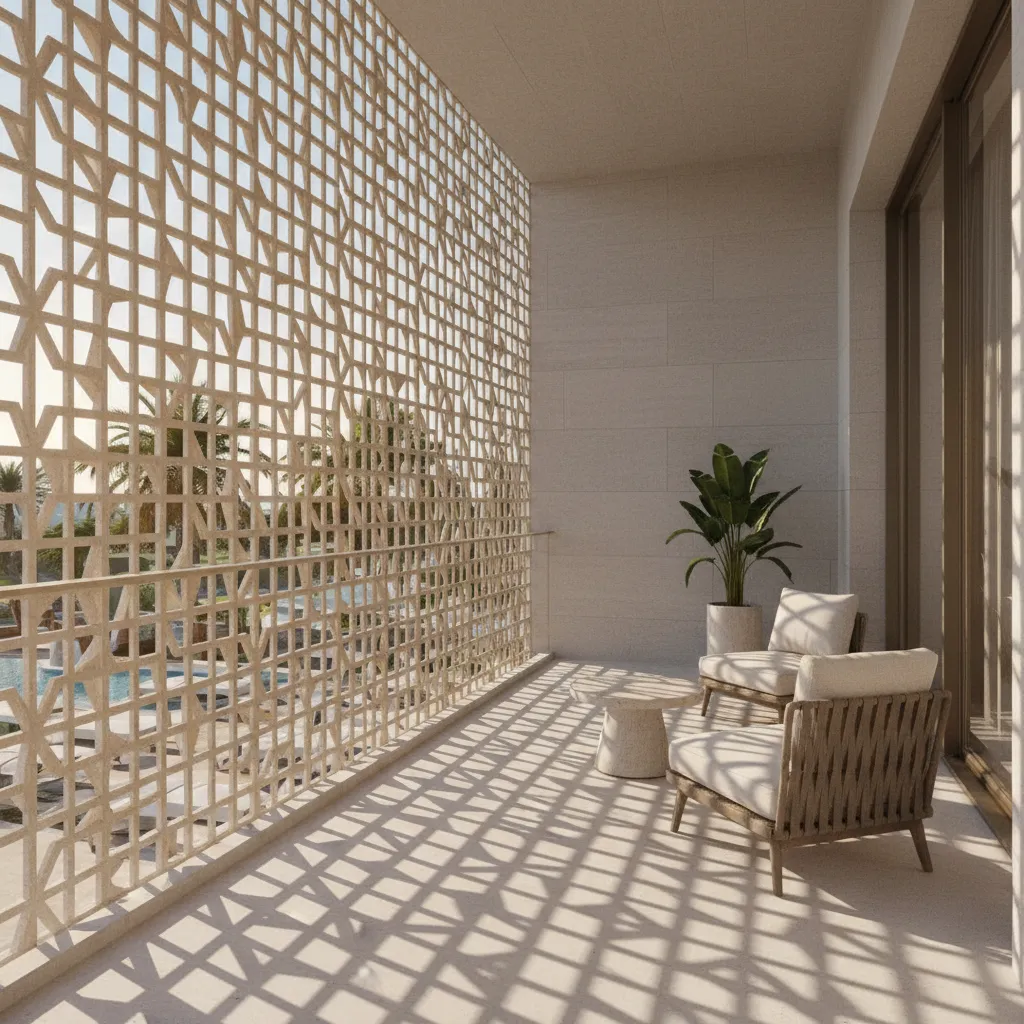

1. Balcony privacy screens
2. Poolside shading pavilions
3. Lobby feature facades
4. Corridor shading walls

In several resort projects across Southeast Asia, designers combine metal jali panels with warm lighting to create dramatic nighttime facades. During the day, the perforations soften tropical sunlight. At night, the facade glows like a lantern.

But there’s also a hidden operational factor: maintenance. Stone or concrete jali panels require almost no upkeep, while powder‑coated metal panels may need repainting after several years in coastal environments.

save pin

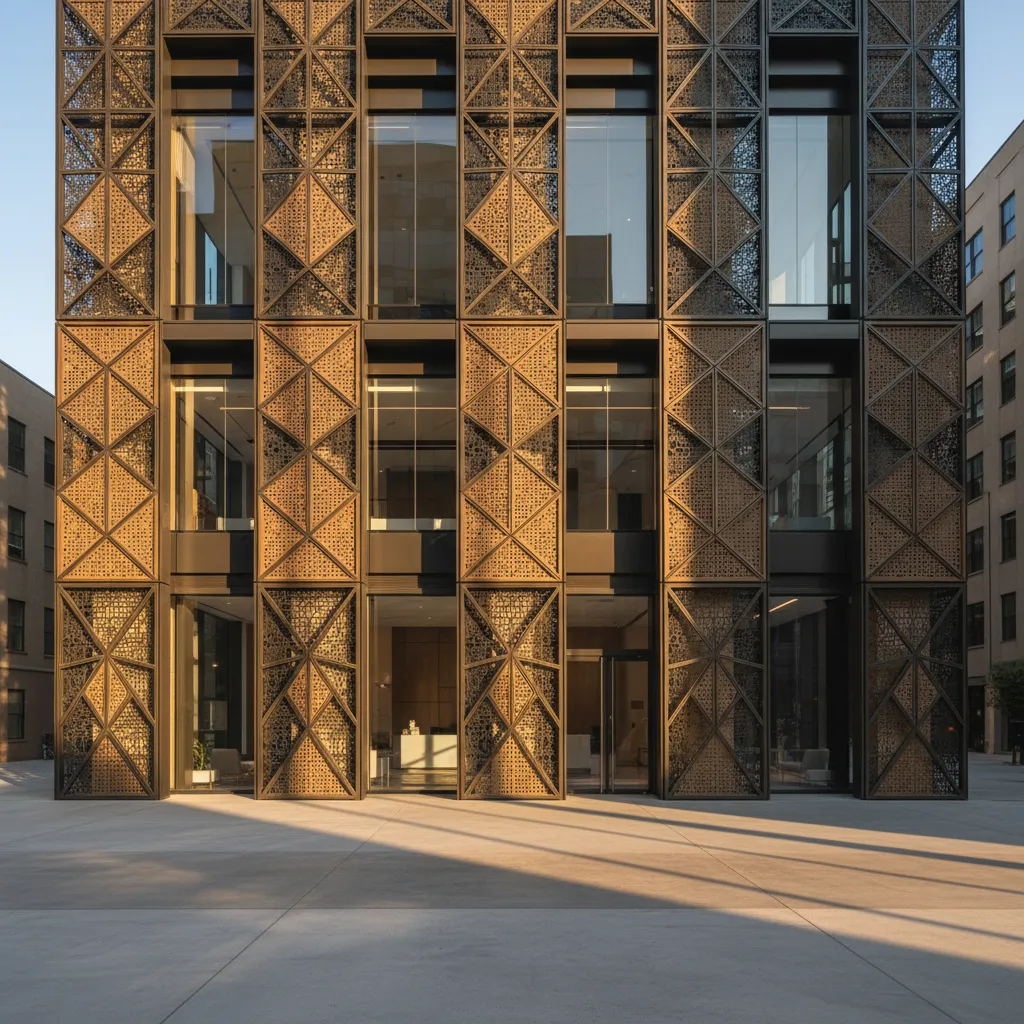

Commercial Office Buildings Using Jali Facades

Key Insight: Office buildings use jali facades primarily as solar shading systems that reduce cooling loads.

Modern office buildings often feature large glass surfaces. While glass provides daylight and views, it also increases heat gain.

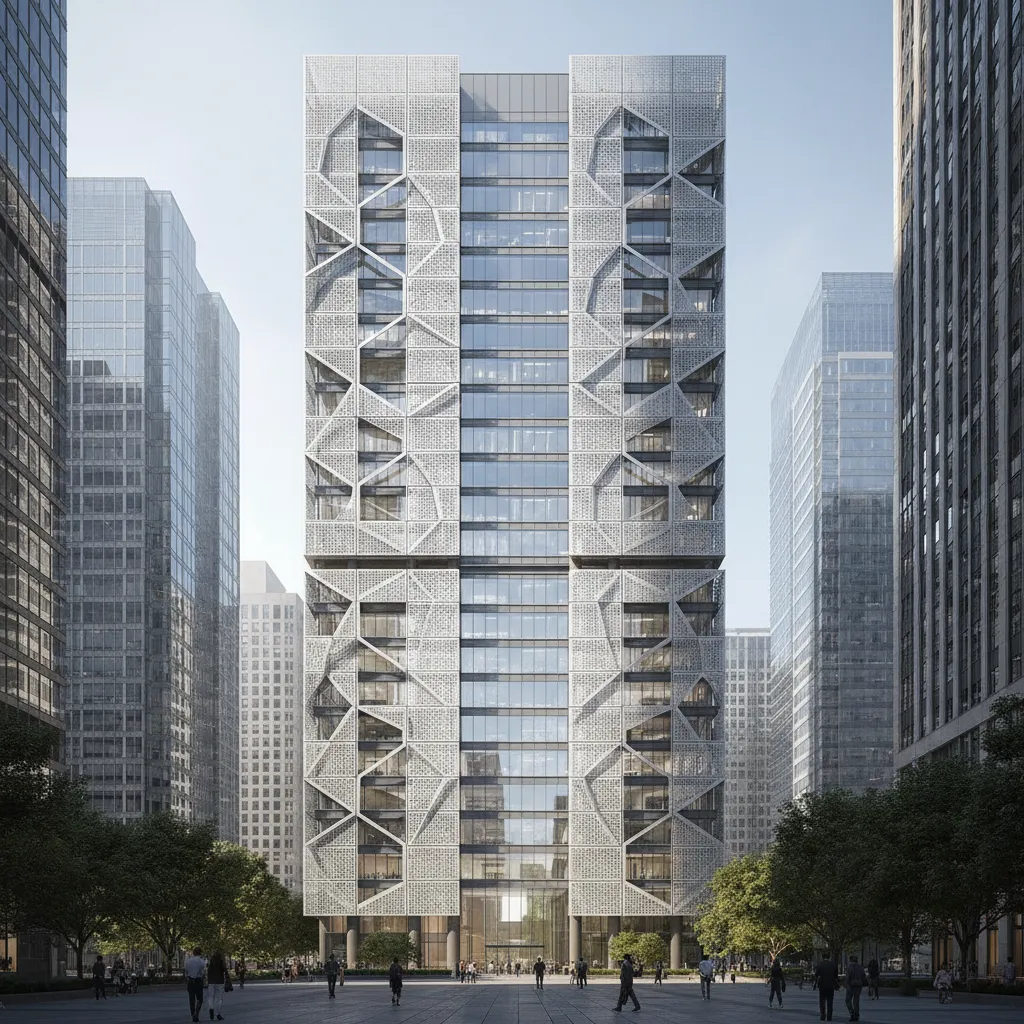

Adding a secondary perforated facade layer creates what architects call a double skin shading system.

Typical office facade strategies include:

1. Aluminum perforated panels
2. GFRC patterned screens
3. Laser‑cut steel facade grids
4. Parametric aluminum mashrabiya systems

Many architecture firms now test shading density during early design stages using layout modeling tools such as this interactive workspace planning environment used to simulate spatial layouts and facade light patterns.

In hot regions like Dubai and Ahmedabad, jali systems dramatically reduce interior glare, which improves occupant comfort while lowering HVAC demand.

The key design variables architects adjust include:

save pin

1. Pattern density
2. Panel depth
3. Distance from glazing
4. Facade orientation

Shopping Mall and Public Space Jali Installations

Key Insight: Large public buildings use oversized jali patterns as both shading systems and visual landmarks.

Shopping malls and transportation hubs often use jali patterns at a much larger scale than residential architecture.

Instead of small decorative panels, the facade becomes a giant geometric screen.

Common design approaches include:

1. Parametric geometric patterns
2. Large precast concrete lattice walls
3. Structural steel lattice facades
4. Illuminated perforated aluminum skins

One advantage of these large systems is that they allow architects to control sunlight entering atriums and circulation spaces while maintaining a visually open facade.

For concept visualization, designers often prototype spatial flow and facade rhythm through tools that allow interactive layout exploration for large interior public spaces, which helps coordinate facade patterns with interior circulation.

Answer Box

Jali facade design works best in commercial architecture when treated as an environmental system rather than decoration. Pattern density, orientation, and material selection determine how effectively the facade controls light, heat, and airflow.

Blending Traditional Jali with Contemporary Architecture

Key Insight: The most successful modern jali facades reinterpret traditional geometry rather than copying historical patterns directly.

Many projects attempt to replicate Mughal or Islamic lattice designs exactly. While visually appealing, this approach can feel disconnected from modern architectural forms.

Instead, contemporary architects typically:

1. Abstract traditional geometric motifs
2. Scale patterns to building massing
3. Use parametric design tools
4. Integrate lighting into the facade system

Materials have also expanded beyond carved stone:

1. GFRC panels
2. Aluminum screens
3. Weathering steel
4. Laser‑cut composite panels

Each material dramatically changes cost, installation method, and maintenance requirements.

Case Study Inspired Design Approaches

Key Insight: The best commercial jali facades combine climate logic, structural feasibility, and branding strategy.

Across several global projects, successful implementations usually follow a similar process:

1. Analyze solar orientation and heat exposure.
2. Define pattern density based on shading targets.
3. Choose materials aligned with maintenance budgets.
4. Integrate lighting for nighttime identity.
5. Coordinate pattern rhythm with structural grid.

Architects who skip early environmental analysis often end up redesigning the facade later, which dramatically increases project costs.

Final Summary

1. Jali facades combine passive climate control with strong architectural identity.
2. Hotels use them for privacy and atmosphere.
3. Office buildings rely on them for solar shading.
4. Public buildings scale them into large landmark structures.
5. Performance-driven design always beats purely decorative use.

FAQ

1. What is a jali facade design?

A jali facade design uses perforated screens or lattice panels on building exteriors to filter sunlight, allow airflow, and add decorative geometry.

2. Why are jali facades used in commercial buildings?

They reduce heat gain, improve daylight quality, and create a visually distinctive exterior that supports branding and architectural identity.

3. What materials are commonly used for jali facades?

Common materials include aluminum, precast concrete, GFRC, stone, steel, and laser‑cut metal composite panels.

4. Are jali facades suitable for office buildings?

Yes. A well‑designed jali facade design can act as an external shading system that lowers cooling loads and reduces glare inside offices.

5. Do jali facades help with ventilation?

Yes. Perforated panels allow airflow while still providing privacy and solar control.

6. Are jali systems expensive to build?

Costs vary widely. Simple concrete screens are affordable, while custom parametric metal facades can be expensive.

7. What climates benefit most from jali facades?

Hot and sunny climates benefit most because the facade filters harsh sunlight while maintaining ventilation.

8. Can modern architecture use traditional jali patterns?

Yes, but many architects reinterpret traditional geometry into contemporary patterns that better match modern building forms.
