Jayco Class C Motorhome: Four-Slide Spatial Interface: How a compact chassis becomes a future-ready living system

Future living keeps shrinking the hardware while expanding the software of daily life, and RVs expose that tension faster than houses. Data from NAHB still shows buyers ranking flexible living zones above sheer square footage, so the four-slide Jayco Class C becomes a lab for precision. spatial reasoning toolkit sits quietly behind my choices, and in this jayco class c motorhome floor plans with 4 slides, I design for bandwidth, not bragging rights. The pain point is familiar: too many functions colliding in too little volume—yet the future already asks for multi-mode routines.

Front Lounge + Convertible Dinette

Design Logic： The front lounge loads first like a boot sequence, giving social tasks a stable kernel while slides expand orthogonal seating to avoid collision.

Flow： Entry to cockpit, then dinette, then galley—an if-then path that keeps cook traffic off the conversation loop.

Sightlines： Panoramic through windshield, lateral to the slide windows, and a soft occlusion to the galley to keep visual noise low.

Storage： Overhead bins as distributed cache, under-dinette drawers for bulk, and a slim pantry beside the fridge as a fast-access buffer.

Furniture Fit： Dinette benches at 19" seat height, 24" deep; swivel chairs clear 30" circulation arcs when slides are deployed.

Verdict： The lounge becomes a multi-threaded hub—hosting, eating, working—future-proofed for flexible routines across the next five travel seasons.

save pinOpen in 3D Planner Processing...

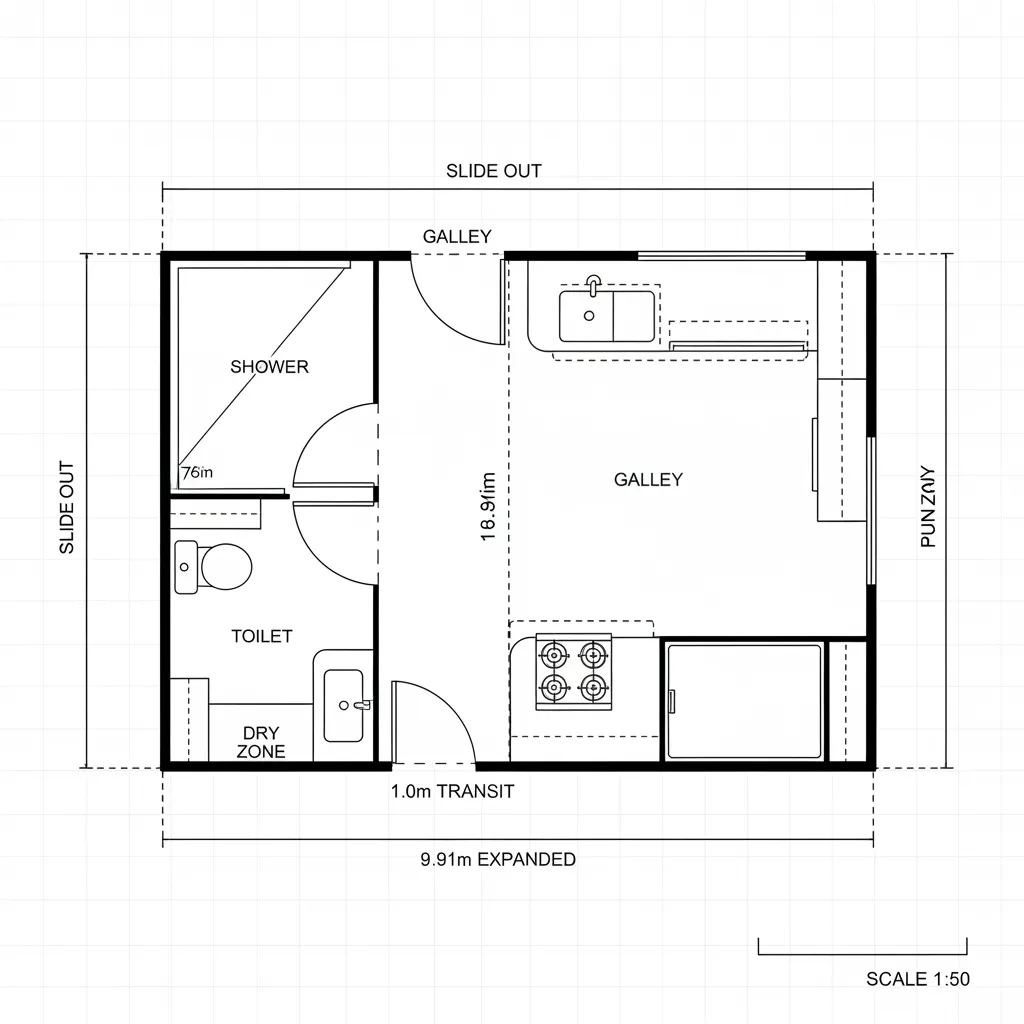

Mid Galley + Split Bath Spine

Design Logic： Centralized utilities anchor weight and wiring, while opposing slides open a service corridor that behaves like a stable bus line.

Flow： Cook line on curbside, bath modules on driver side—users pass through in a linear read, minimizing cross-traffic deadlocks.

Sightlines： Partial reveals: galley surfaces as status bars, bath door as a subtle privacy toggle, keeping UI hierarchy calm.

Storage： Deep base cabinets as cold cache, overheads for light, high-frequency items; a tall pull-out for spices and slim cookware.

Furniture Fit： 24" galley modules, 36" aisle when slides out; shower at 30" x 36" to maintain ergonomic tolerances on a compact wheelbase.

Verdict： This spine reads like code: utilities compiled, human tasks sequenced—stable under motion and generous when parked.

save pinOpen in 3D Planner Processing...

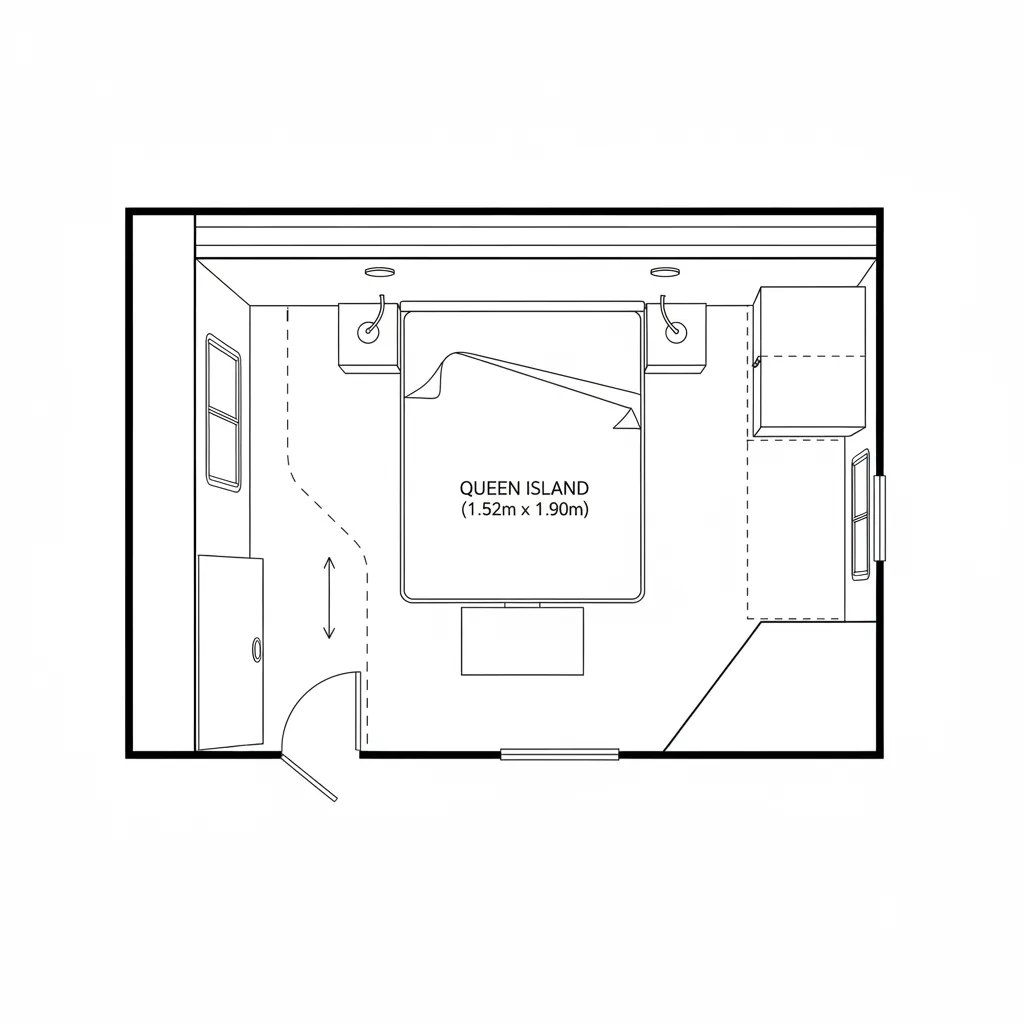

Rear Bedroom + Wardrobe Slide

Design Logic： The rear slide grants width to a queen island bed, turning sleep into a protected process with quick-access routines along the wardrobe edge.

Flow： Bed centerline to wardrobe, then to side tables—movement defined by nightly scripts: stow, charge, dim, sleep.

Sightlines： Lateral windows frame horizon scans; headboard niche acts as a calm UI, limiting visual inputs to essentials.

Storage： Wardrobe slide as long-term cache, under-bed for bulky payloads, night niches for micro storage with charging nodes.

Furniture Fit： 60" x 75" bed clearance, 24" wardrobe depth; passage holds at 22–24" when slides are in, expanding to 30" out.

Verdict： A compact sanctuary: sleep bandwidth is protected, and the system adapts from transit mode to retreat mode without friction.

save pinOpen in 3D Planner Processing...

Final Takeaway

jayco class c motorhome floor plans with 4 slides prove that small footprints can carry large lifestyles when the interface is disciplined. In this rolling home, four coordinated slides act like version updates: they unlock functions without bloating the chassis. For RV living, modular zones, clean flow, and precise storage are the semantic variants that keep travel life stable. In my experience, the smartest homes of the future won’t be larger—only more intentional.
