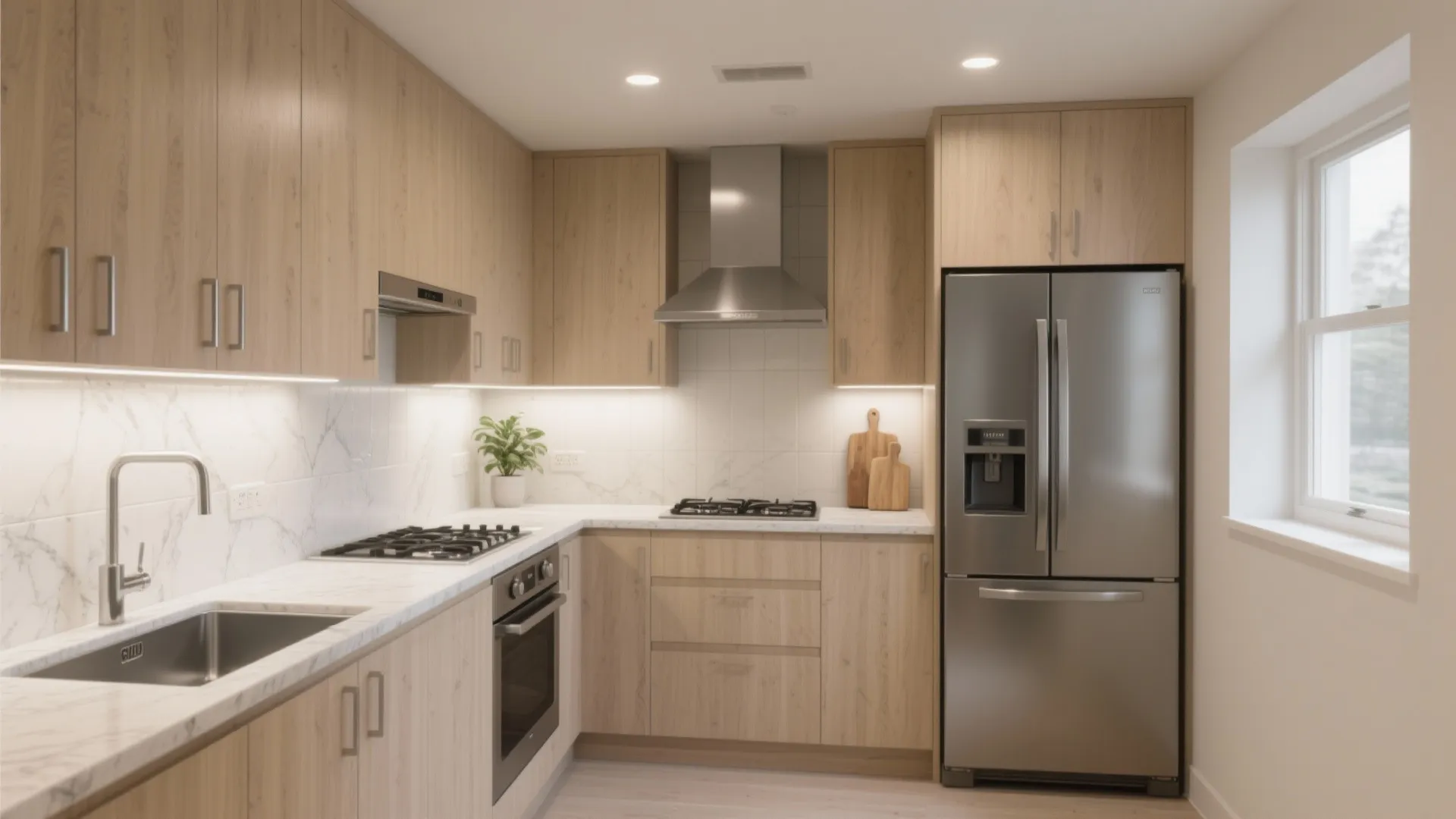

L Shaped Modular Kitchen Price: My Guide to Smart Budgeting: 1 Minute to Estimate L Shaped Modular Kitchen Costs Like a Pro

I’ve planned and costed dozens of L-shaped modular kitchens over the past decade, and the same pattern holds: prices hinge on your layout efficiency, material selections, and appliance tier. A practical budget range for an L-shaped modular kitchen in most urban markets lands between $6,000 and $22,000+, driven largely by cabinet construction, countertop material, hardware quality, and integrated appliances. Getting the balance right means starting with verified benchmarks and understanding the ergonomics behind the numbers.

Cost decisions should be grounded in performance data. WELL v2 encourages task lighting between 300–500 lux for food preparation to reduce visual strain, which has direct implications for lighting specifications and cost allocation. Herman Miller research associates posture-friendly working heights and reduced reach distances with lower fatigue over time—translating into smart cabinet heights and pull-out systems that may add 8–15% to hardware costs but save discomfort and time daily. For broader workplace-like efficiency principles in residential settings, Gensler’s performance findings support layouts that minimize walking distances to boost task speed—exactly the kind of workflow benefit an L-shaped plan can deliver when the sink, cooktop, and refrigerator form a tight triangle.

What Drives the Price of an L-Shaped Modular Kitchen

Four primary cost buckets dominate: cabinetry, countertops, hardware/accessories, and appliances. In my projects, cabinetry usually accounts for 35–55% of the total, countertops 12–25%, hardware/accessories 10–20%, and appliances 20–35%. The spread depends on whether you opt for plywood vs. particleboard or MDF cores, HPL vs. lacquer fronts, quartz vs. granite, and mid-tier vs. premium appliances. WELL lighting compliance and adequate task illumination affect fixture specs; I typically earmark 3–6% for integrated lighting to meet recommended 300–500 lux at prep surfaces (source: v2.wellcertified.com). For ergonomics theory and user-centered workflow that informs storage planning, interaction-design.org offers foundational references.

Layout Efficiency and Budget: The L-Shape Advantage

An L-shaped footprint naturally supports the work triangle, reducing steps between sink, cooktop, and refrigerator. Shorter runs save on linear cabinetry and countertop footage while preserving functionality. If you’re iterating layouts, a room layout tool can help simulate clearances and work zones before committing to fabrication:

room layout tool

I target a minimum 42 inches of aisle clearance in one-cook scenarios and 48 inches if two people often share the kitchen. These dimensions affect corner cabinet strategies; choosing a blind-corner pull-out over a lazy Susan might add $250–$600 but can recover storage otherwise lost to deep corners.

Cabinet Construction and Finishes

Material choice is the single biggest price lever. Plywood boxes with moisture-resistant glue lines outperform standard particleboard in humid regions and typically run 15–30% higher. MDF fronts deliver smooth paint or lacquer finishes but need careful edge sealing; HPL or PET laminates resist scratches and are cost-effective. For a mid-range L-shaped set, expect $3,000–$9,000 for cabinetry, depending on linear footage (often 12–20 linear feet in compact kitchens) and the number of tall units. Soft-close concealed hinges, full-extension slides, and integrated drawer dividers add $300–$1,100 across the package and are worth every cent in daily use.

Countertops: Durability vs. Price

Quartz remains my go-to for balanced stain resistance and consistent appearance, pricing commonly between $55–$120 per square foot installed. Granite can start around $45–$100 per square foot, with more variation in color and maintenance needs. Solid surface offers excellent reparability but can scratch; butcher block introduces warmth and costs less upfront, though it needs routine sealing. Plan for 28–38 square feet of countertop in a typical L, and budget an additional $150–$450 for integrated backsplashes in critical zones.

Appliance Strategy and Hidden Costs

Appliances shape the mid-to-upper band of the budget. A practical three-piece set (range/cooktop, hood, fridge) can range $2,000–$7,500 depending on brand and features. Built-in ovens, dishwashers, and microwaves add $1,500–$4,500 collectively. Ventilation is non-negotiable—poor capture efficiency leads to lingering odors and grease; cap ducting and hood installation between $350–$1,200. Remember electrical upgrades: dedicated circuits for ovens and dishwashers, GFCI outlets near sinks, and possibly a subpanel upgrade if your home’s capacity is tight.

Lighting: Task First, Ambient Second

Task lighting under wall cabinets or integrated into shelves should achieve 300–500 lux on prep surfaces, per WELL v2 recommendations. I specify high-CRI (90+) LED strips with diffusers to cut glare and boost color accuracy for food. Ambient ceiling lighting can sit around 150–300 lux for general navigation. Layered lighting—task, ambient, and, if budget allows, accent—provides flexibility and visual depth while staying efficient. Dim-to-warm LEDs elevate mood for evening use without spiking energy bills.

Ergonomics and Human Factors

Comfort translates into fewer mistakes and faster prep. Keep most-used items between 24 and 54 inches off the floor. Pull-out pantries reduce reach and improve visibility; wide drawers (30–36 inches) are superior for pots and mixing bowls. Align countertop height to user anthropometrics—34–36 inches suits most, but 37–38 inches can work well for taller users. These adjustments rarely change the overall budget drastically but significantly improve usability and satisfaction.

Color, Materials, and Maintenance

Neutral base cabinets paired with warmer countertops can calm visual clutter and extend style longevity. Verywell Mind’s color psychology overview notes blues and greens often convey calm and stability, useful if you want a soothing backdrop for a busy kitchen. Matte finishes hide fingerprints better than high-gloss but may be slightly pricier in premium laminates. Choose hardware textures—brushed stainless, matte black, or satin brass—that complement the palette without chasing short-lived trends. For sustainability, prioritize formaldehyde-compliant cores, durable laminates, and long-warranty hardware to extend life cycles.

Budget Tiers: Sample Breakdowns

Entry ($6,000–$10,000): Laminated MDF/particleboard boxes, laminate or basic granite, mid-tier appliances, minimal accessories, standard lighting. Mid ($10,000–$16,000): Plywood boxes, quartz countertops, soft-close hardware, pull-outs, better ventilation, layered LED lighting. Upper ($16,000–$22,000+): Premium fronts (lacquer or high-pressure laminates), composite sinks, integrated appliances, advanced organizers, and lighting with superior CRI and dimming control.

Cost-Saving Moves I Recommend

• Keep the plumbing and major electrical points in place to avoid rerouting costs.

• Use quartz remnants or shorter slab lengths for secondary runs where feasible.

• Limit bespoke corner solutions—sometimes a standard blind corner with deep shelving suffices.

• Choose a strong mid-range appliance package; prioritize the hood and cooktop over luxury refrigerators if budget is tight.

• Specify modular accessories that you can add later: tray dividers, spice pull-outs, under-shelf rails.

Planning the L-Shape: Workflow and Clearances

Start with the triangle: aim for a combined distance between sink, cooktop, and fridge of roughly 13–26 feet to prevent overcrowding or excessive trekking. Maintain 15 inches minimum landing space on each side of the cooktop and near the sink. For tight rooms, try a shallow-depth fridge or a single tall pantry to free counter length. To test variations, an interior layout planner is helpful before fabrication:

interior layout planner

Acoustics, Ventilation, and Comfort

Hard surfaces amplify noise. Introduce acoustic relief through rugs, upholstered dining seating, or micro-perforated wall panels adjacent to the kitchen zone. A good hood with proper capture and a quiet dishwasher (below 45 dBA if possible) reduces acoustic fatigue. Balanced daylight with controlled task lighting avoids glare; matte backsplash tiles help diffuse reflections near cooktops.

Installation, Lead Times, and Contingencies

Modular cabinet fabrication often takes 3–6 weeks; installation typically spans 2–5 days depending on scope and site readiness. Keep a 7–12% contingency for surprises—wall plumb corrections, floor leveling, or unforeseen electrical panel limits. Confirm slab availability early; popular quartz colors can have lead times.

FAQ

How much does an L-shaped modular kitchen typically cost?

Most fall between $6,000 and $22,000+, shaped by cabinet construction, countertop selection, hardware, and appliances. Lighting and ergonomic accessories add value with modest cost impact.

Is plywood worth the premium over particleboard?

In humid climates, yes. Plywood’s moisture resistance and fastener-holding strength justify the 15–30% premium, especially for sink bases and tall units.

What countertop offers the best balance of price and durability?

Quartz strikes a strong balance: stain-resistant, low maintenance, and consistent look. Granite is competitive on price, but sealing and variation need attention.

How should I plan lighting for prep and cooking?

Target 300–500 lux on prep surfaces with high-CRI LED strips under cabinets (aligned with WELL v2 guidance). Keep ambient lighting softer around 150–300 lux.

What are the key ergonomic dimensions I shouldn’t ignore?

Counter height around 34–36 inches for most users, 42–48 inches aisle clearance, and frequently used items stored between 24–54 inches off the floor. Wide drawers improve access.

Can I save money by keeping appliance locations the same?

Absolutely. Preserving plumbing and electrical points often saves hundreds to thousands by avoiding rerouting and patching work.

How do I make the corner of the L more useful?

Install blind-corner pull-outs or a lazy Susan. Blind-corner systems cost more but improve visibility and access for heavy cookware.

What contingency should I set aside?

Allocate 7–12% for unforeseen conditions such as wall corrections, floor leveling, or panel upgrades.

Are matte or gloss finishes better for busy households?

Matte finishes reduce visible fingerprints and glare; gloss can brighten small spaces but shows smudges. Choose based on cleaning habits and lighting levels.

Do acoustics matter in a kitchen?

Yes. Hard materials can raise noise levels. Choose quieter appliances (e.g., sub-45 dBA dishwashers) and include soft surfaces nearby to reduce fatigue.

What’s a smart way to plan the L-shape before ordering?

Use a layout simulation tool to test clearances, appliance positions, and landing zones, then lock dimensions before fabrication.
