Laboratory Layout Safety Planning and Risk Control Strategies: Design laboratory floor plans that reduce hazards, improve emergency response, and meet modern safety compliance standards.

Direct Answer

Laboratory layout safety planning integrates hazard zoning, emergency circulation, ventilation control, and regulatory compliance into the physical floor plan. A well‑designed laboratory layout separates risk levels, ensures rapid evacuation access, and positions hazardous materials where exposure risks are minimized. In practice, effective lab floor plan risk control reduces accidents, improves workflow safety, and simplifies compliance with safety standards.

Quick Takeaways

1. Laboratory safety planning starts with separating high‑risk zones from routine work areas.
2. Emergency exits and clear circulation paths must remain unobstructed and visible.
3. Hazardous materials should be stored near containment infrastructure, not general workstations.
4. Ventilation design directly influences laboratory exposure risk.
5. Compliance requirements should shape the layout from the beginning, not after construction.

Introduction

After working on multiple research facility projects, one pattern becomes obvious: many safety issues originate from poor spatial planning rather than unsafe procedures. Laboratory layout safety planning is often treated as a compliance checklist instead of a design foundation. That approach creates hidden risks that only appear once the lab is operational.

In several projects I reviewed, chemical storage rooms were located across main corridors from wet labs, forcing staff to transport hazardous materials through high‑traffic zones. Technically compliant, but practically risky. The floor plan simply didn’t reflect real laboratory workflows.

Modern planning tools make it easier to model safer environments early. When teams experiment with layouts using tools designed for visualizing complex workspace floor plans before construction, design flaws often appear immediately—blocked evacuation paths, poorly located containment areas, or unsafe equipment clustering.

This guide explains how experienced lab planners integrate safety zones, hazard control, and regulatory considerations directly into the laboratory floor plan design process.

save pin

Why Safety Planning Is Critical in Laboratory Layout Design

Key Insight: Most laboratory accidents are influenced by spatial layout decisions made long before the lab opens.

Safety protocols matter, but the physical environment determines whether those protocols are easy—or impossible—to follow. If emergency showers are hidden behind equipment or chemical storage sits in a busy corridor, even well‑trained researchers face unnecessary risk.

Over the years, I’ve seen three layout mistakes appear repeatedly in poorly planned labs:

1. Hazardous workstations placed near high‑traffic circulation paths
2. Emergency exits partially blocked by equipment or storage
3. Inadequate buffer zones between chemical and biological work areas

Organizations such as the CDC and OSHA emphasize facility design as a primary layer of laboratory risk control. According to CDC biosafety guidance, spatial separation between risk categories significantly reduces exposure incidents.

When the floor plan reflects safety logic, compliance becomes easier and day‑to‑day operations become safer without constant enforcement.

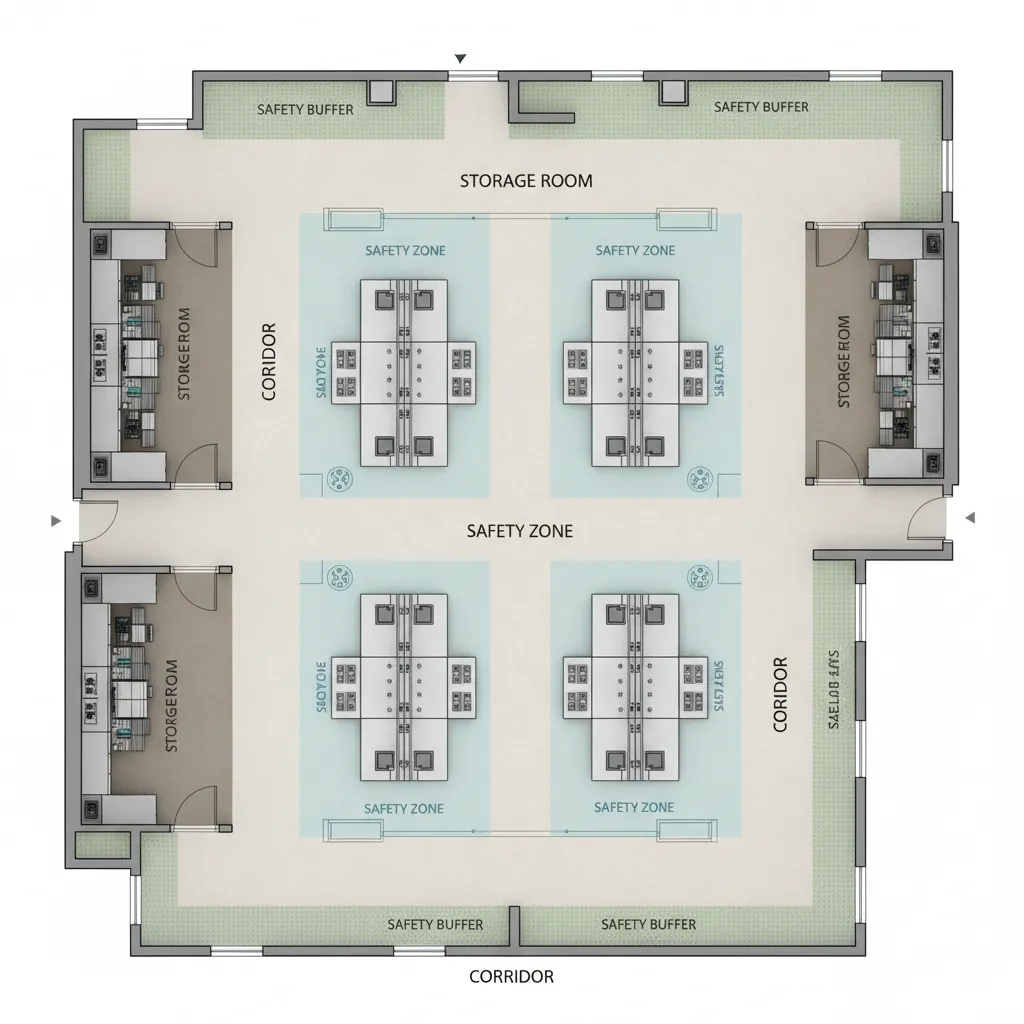

Risk Zoning in Modern Laboratory Floor Plans

Key Insight: Effective laboratory layouts organize the entire facility around risk zones rather than departments.

Traditional labs often group spaces by research team or discipline. Safer facilities group spaces by hazard level instead. This zoning approach ensures that containment infrastructure and safety controls match the level of risk present in each area.

Typical laboratory safety zoning includes:

1. Low‑risk zones – offices, meeting rooms, data analysis areas
2. Moderate‑risk zones – standard wet labs and equipment rooms
3. High‑risk zones – chemical storage, pathogen research, or containment labs
4. Support zones – waste management, sterilization, equipment maintenance

The most effective floor plans create buffer spaces between risk levels. For example:

1. Transition corridors
2. Equipment preparation rooms
3. PPE changing areas

Designers increasingly test these zoning strategies using simulation‑based planning environments such as platforms built for building and testing detailed facility floor plans, which allow teams to validate spatial safety logic before construction.

save pin

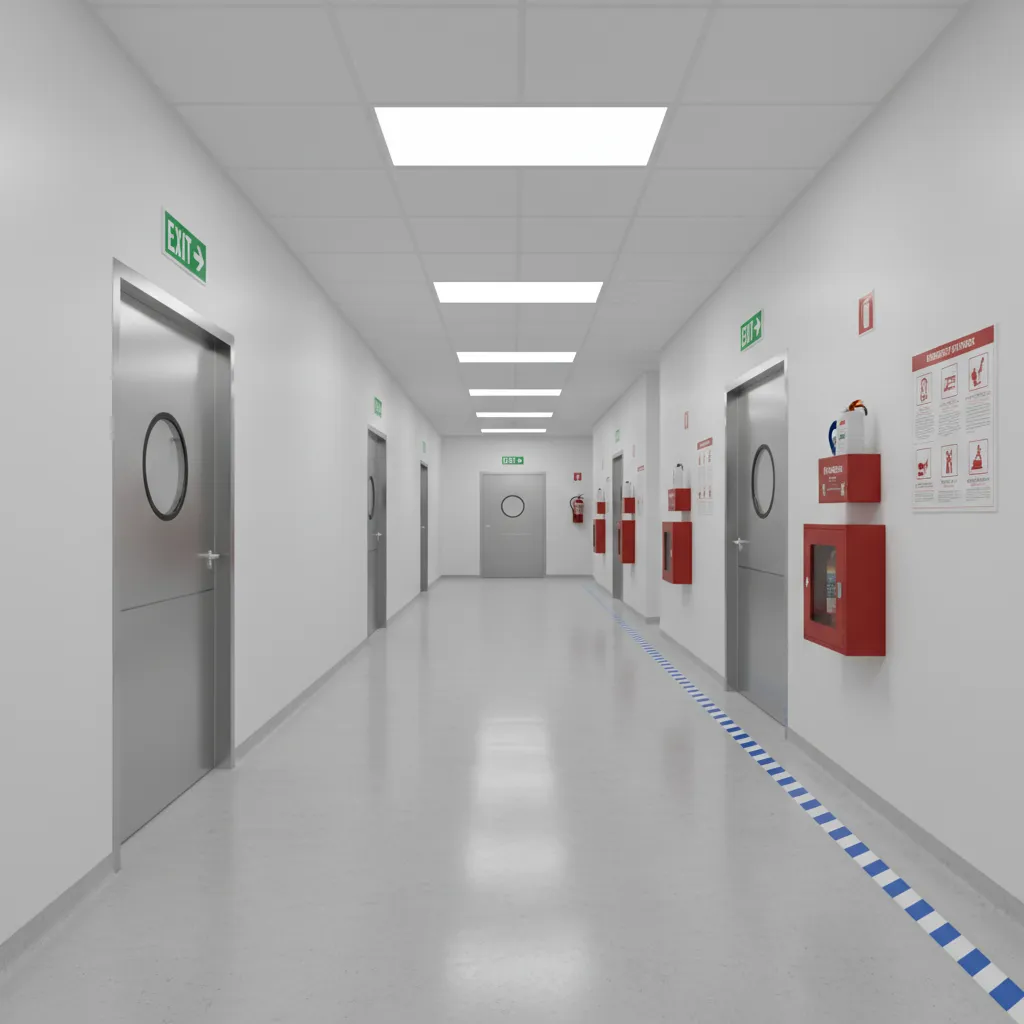

Emergency Access and Evacuation Path Design

Key Insight: Emergency evacuation routes should follow natural movement patterns rather than forcing unfamiliar navigation.

One overlooked issue in laboratory layout design is the difference between theoretical evacuation paths and real human behavior during emergencies.

People rarely follow complex routes under stress. Instead, they exit using the same paths they normally use throughout the day.

Effective emergency access planning therefore prioritizes:

1. Direct exit visibility from major lab zones
2. Multiple escape routes from high‑risk areas
3. Wide, unobstructed circulation corridors
4. Clear separation between evacuation routes and equipment storage

Fire safety guidelines from the National Fire Protection Association (NFPA) emphasize that laboratory evacuation routes must remain permanently unobstructed and clearly marked.

Designers should also consider emergency equipment placement:

1. Eye wash stations within 10 seconds of hazardous work areas
2. Safety showers along major circulation paths
3. Fire extinguishers visible from all lab zones

save pin

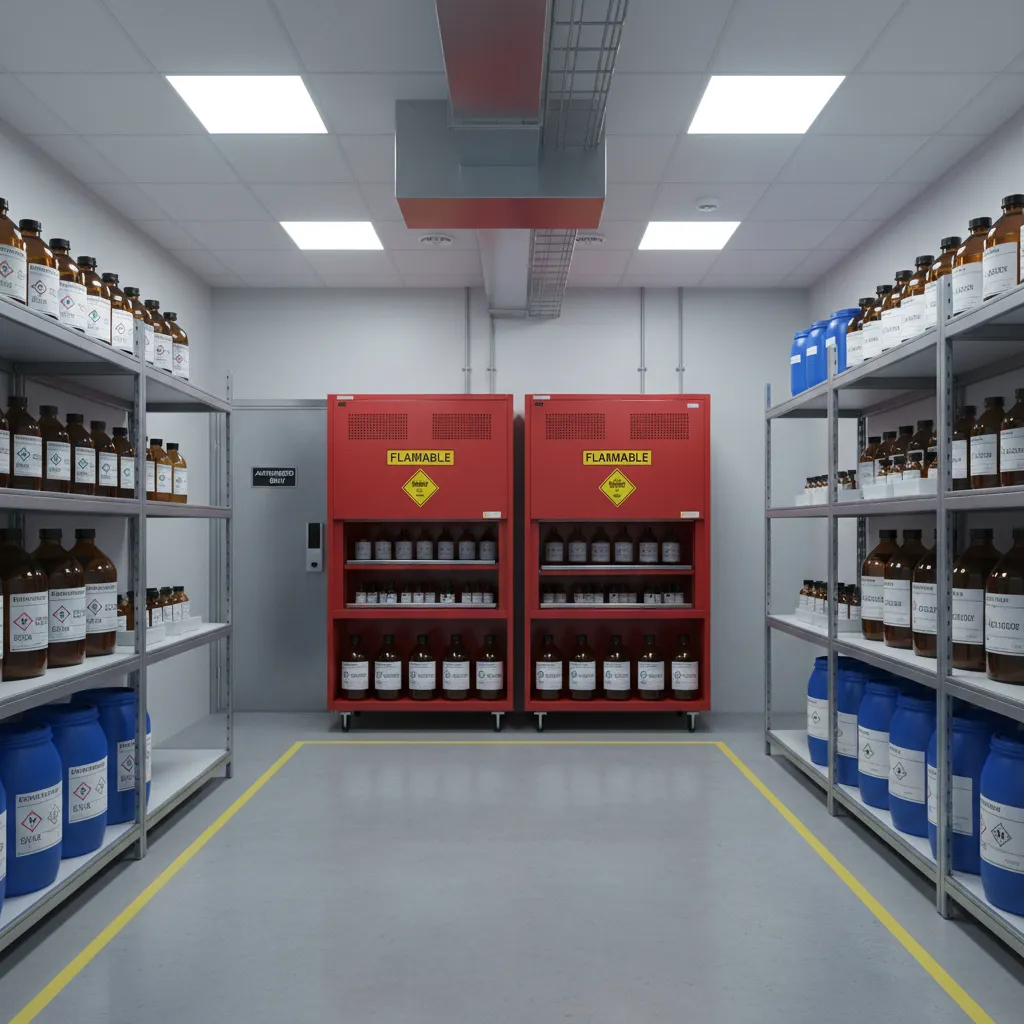

Hazardous Material Storage Placement Strategies

Key Insight: Hazardous materials should be stored based on containment infrastructure rather than convenience.

One of the most common hidden risks in laboratory layout safety planning is convenient—but unsafe—chemical storage.

Researchers often request storage close to their workstations. But placing hazardous materials near primary work areas increases exposure risks and complicates containment during incidents.

Safer placement strategies include:

1. Dedicated chemical storage rooms separated from main lab spaces
2. Fire‑rated storage cabinets positioned near containment infrastructure
3. Segregated storage for incompatible chemicals
4. Controlled access areas for high‑risk substances

According to OSHA laboratory safety guidelines, incompatible chemicals should never share storage environments without physical separation or specialized containment systems.

Answer Box

Laboratory safety planning works best when hazard zones, evacuation paths, ventilation control, and storage areas are designed together. Treating safety as a layout principle—not a checklist—dramatically reduces operational risk.

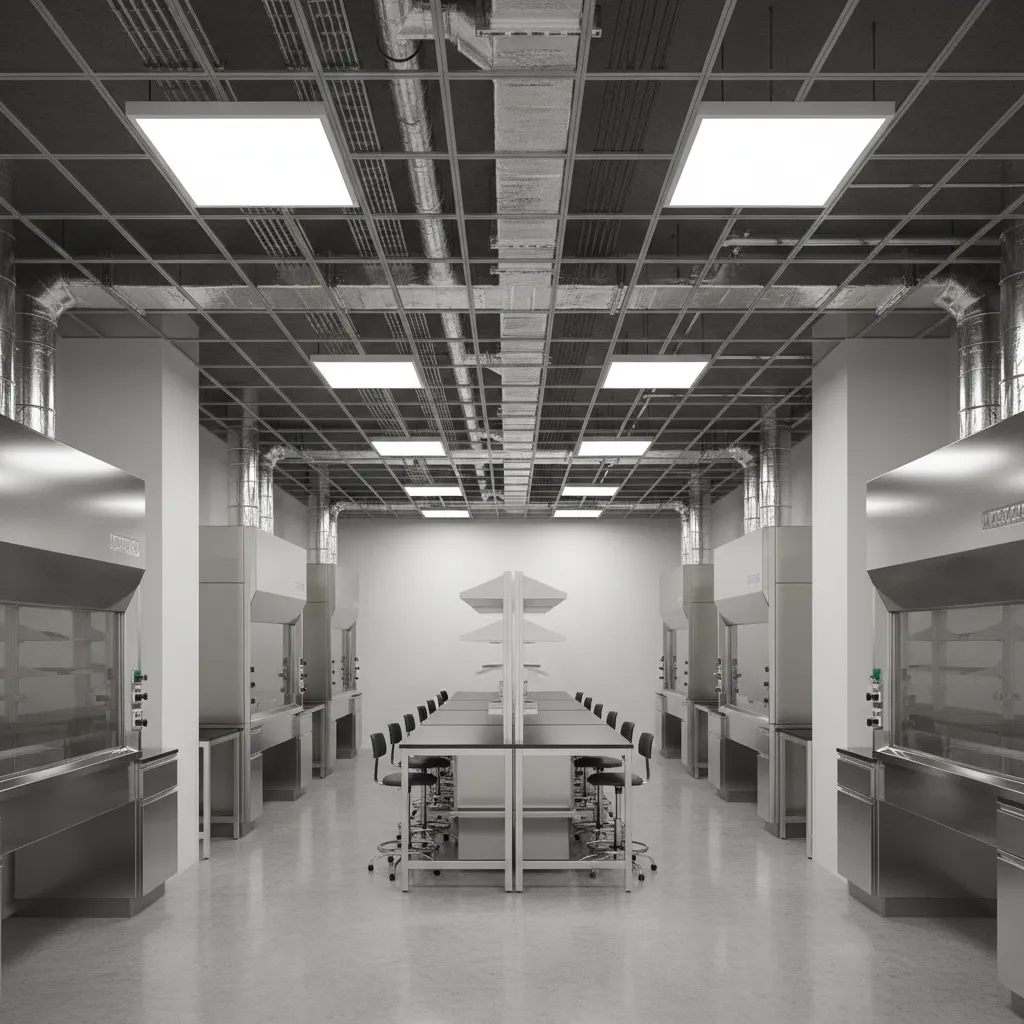

Ventilation and Containment Area Layout Planning

Key Insight: Ventilation systems shape the laboratory layout more than most teams initially expect.

Airflow direction determines contamination risk. In biosafety labs, air pressure gradients control the movement of airborne hazards.

That means floor plan design must account for:

1. Fume hood placement
2. Air pressure containment zones
3. Equipment heat loads
4. Air supply and exhaust paths

For example, fume hoods should never sit near doors or high‑traffic corridors. Turbulent air disrupts containment performance and increases exposure risk.

Experienced planners often map airflow patterns while developing layouts using visualization tools for testing spatial arrangements of complex work environments, ensuring equipment placement supports ventilation design.

save pin

Regulatory and Compliance Considerations in Lab Layouts

Key Insight: Compliance requirements influence laboratory layout earlier than most teams realize.

Major laboratory design regulations affect spatial planning long before construction begins.

Key regulatory influences include:

1. OSHA Laboratory Standard
2. NFPA fire safety codes
3. CDC biosafety laboratory guidelines
4. ANSI laboratory ventilation standards

These frameworks define requirements such as:

1. Minimum corridor widths
2. Exit access distances
3. Chemical storage limits
4. Ventilation performance standards

Ignoring these constraints early often leads to costly redesigns later in the project. In large research facilities, layout revisions caused by late compliance reviews can delay construction timelines by months.

Final Summary

1. Laboratory safety planning must guide floor plan design from the start.
2. Risk zoning separates hazard levels and improves containment.
3. Evacuation routes should follow natural daily circulation paths.
4. Ventilation and storage systems heavily influence layout decisions.
5. Regulatory compliance is easier when built directly into spatial design.

FAQ

What is laboratory layout safety planning?

Laboratory layout safety planning integrates hazard zoning, emergency access, ventilation control, and compliance rules into the design of a laboratory floor plan.

Why is zoning important in laboratory floor plans?

Zoning separates low‑risk and high‑risk activities, reducing cross‑contamination and improving safety control within laboratory environments.

What are the key elements of safe laboratory layout design?

Critical elements include risk zoning, ventilation planning, emergency exits, hazardous material storage, and unobstructed circulation paths.

How wide should laboratory evacuation corridors be?

Guidelines vary by building code, but research facilities typically require wider corridors to allow rapid evacuation and equipment movement.

Where should hazardous materials be stored in a laboratory?

Hazardous materials should be stored in dedicated containment areas or fire‑rated cabinets away from primary workspaces.

How does ventilation affect laboratory layout safety planning?

Ventilation systems determine airflow direction and containment effectiveness, influencing equipment placement and zoning decisions.

What regulations affect laboratory floor plan risk control design?

OSHA standards, NFPA fire codes, CDC biosafety guidelines, and ANSI ventilation standards commonly shape laboratory layout requirements.

Can digital tools help design safer laboratory layouts?

Yes. Simulation and visualization tools allow teams to test layouts, verify safety zones, and identify evacuation or airflow problems early.

References

1. CDC Biosafety in Microbiological and Biomedical Laboratories (BMBL)
2. OSHA Occupational Exposure to Hazardous Chemicals in Laboratories
3. NFPA Life Safety Code
4. ANSI Laboratory Ventilation Standards
