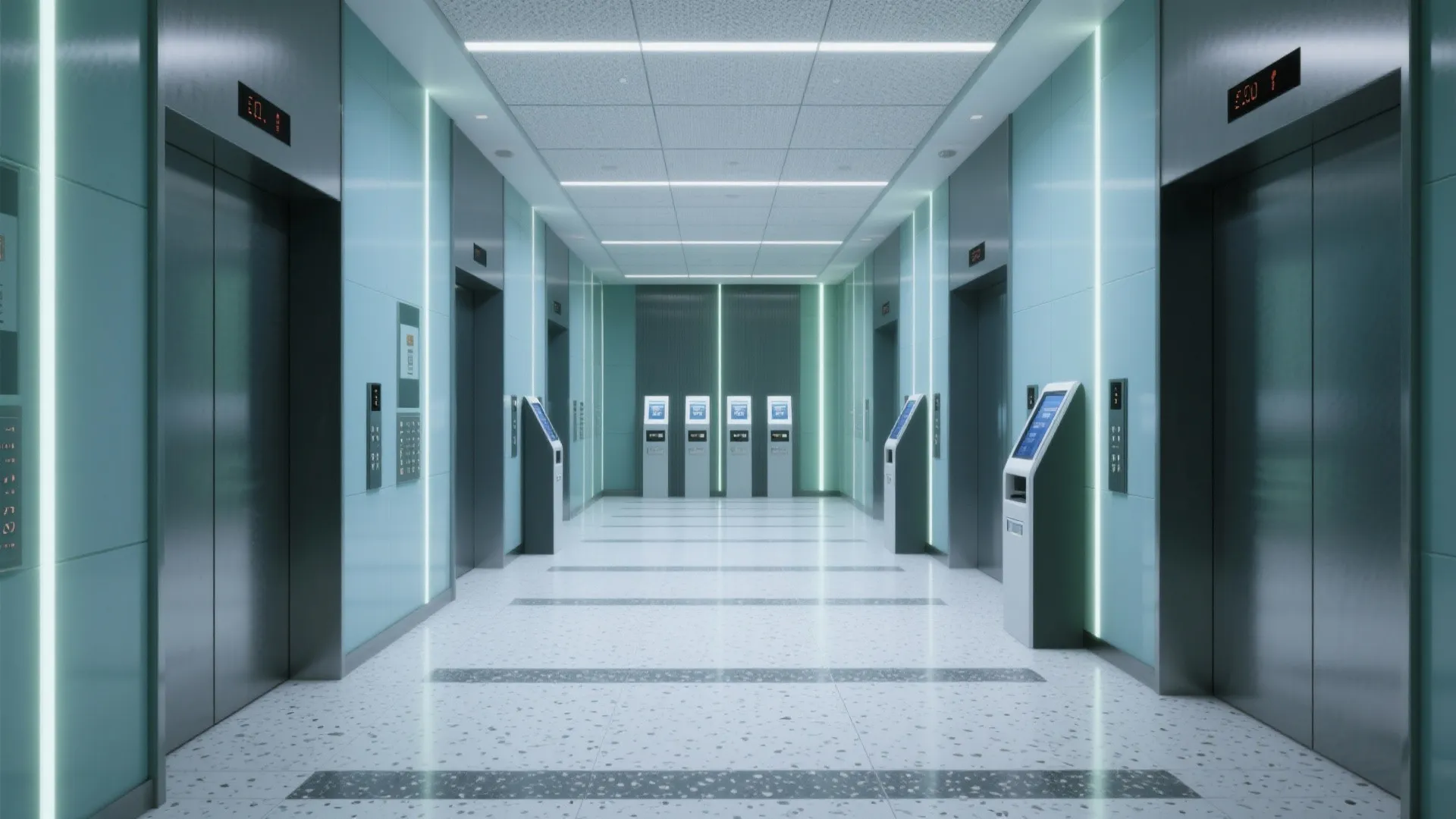

Lift Room Design: How to Maximize Vertical Space: Fast-Track Guide to Creating a Functional Lift Room Layout

I approach lift room design as the connective tissue of a building—high traffic, high stakes, and often overlooked. When vertical circulation is tight, every inch must carry purpose. My goal is to create clarity at first glance, intuitive movement under pressure, and comfort even during peak traffic. That requires proportion, light, acoustics, and materials to work together with the flow of people and code constraints.

Real-world data reinforces what I see on projects: people make decisions in seconds, and the environment heavily influences behavior. Gensler’s 2024 research notes that great arrival and circulation spaces correlate with higher workplace experience scores, particularly through clear wayfinding and visibility. On lighting, the IES recommends 100–200 lux for circulation areas and up to 300 lux for task-adjacent zones; lift call panels and queueing lines benefit from 200–300 lux on vertical planes to ensure legibility and safety (IES standards). Color and psychology matter too—Verywell Mind highlights that cooler hues can feel more spacious and calm, while high-contrast edges sharpen perceived clarity in small spaces.

Comfort supports performance. In WELL v2, the Light concept encourages glare control and color quality (R9 and fidelity) that reduce eye strain, while the Movement and Mind concepts underscore the connection between ease of navigation and perceived wellbeing. Steelcase research further links acoustic control to reduced cognitive load—critical during peak elevator banks where announcements, footsteps, and conversations amplify stress. When these elements align, even a compact lift lobby reads as legible, dignified, and fast.

Define the Spatial Ratios First

I start by establishing a clear front-of-house to back-of-house ratio: 60–70% of the lobby area devoted to public queueing and circulation, 30–40% for service or maintenance clearances and panel access. Maintain no less than 1.8–2.2 m of clear path in front of elevator doors for two-directional flow; expand to 2.5 m minimum where multiple cars open simultaneously. Sightlines are non-negotiable—keep a 10–15 m unobstructed view to the primary call panels and directory so users immediately locate the decision point.

If you’re testing queue depths and pinch points, a layout simulation tool helps validate assumptions before construction. I’ll iterate options quickly using a room layout tool to stress-test flow during peak demand and confirm furniture or signage doesn’t create bottlenecks.

Light That Shapes Perception and Movement

Light sets tempo. I use layered illumination: 200–300 lux on vertical surfaces near call panels and signage, 100–200 lux ambient across the lobby, and accent lighting to frame door reveals. A 3000–3500K color temperature keeps the space warm enough for hospitality but neutral enough for clarity. To prevent glare on stainless elevator doors, I avoid specular downlight cones directly in front of openings; linear grazers or wallwashers aligned to sidewalls provide soft legibility without reflections. For visual rhythm, bracket luminaires centered on each door bay reinforce destination cues.

Glare control is essential. Include UGR ≤ 19 in primary view directions and matte finishes around indicator displays. If the lobby connects to daylight, use low-reflectance floors (LRV 20–35) to minimize bounce glare and a 0.6–0.8 ceiling reflectance to keep ambient levels efficient.

Color Psychology and Visual Compression

In compact lift rooms, color can “give back” volume. Cooler neutrals with a subtle undertone—blue-gray or desaturated green—calm queue anxiety and visually push the walls outward. High-contrast skirting and door reveals act as edge definition, improving spatial legibility from a distance. I reserve saturated colors for wayfinding bands or a single feature wall opposite the elevator line to draw the eye forward without crowding the field of view.

Material Strategy: Durability, Cleanability, and Acoustic Softness

These areas take abuse. I specify impact-resistant wall cladding up to 1.1–1.2 m, then transition to an acoustic finish above to soften reverberation. Porcelain or terrazzo floors with slip resistance (R10–R11) handle traffic; entrance matting at lobby thresholds reduces grit and noise. Door surrounds benefit from stone or compact laminate to resist trolley strikes. On sustainability, I favor low-VOC adhesives and surfaces with Environmental Product Declarations and recycled content where budgets allow. Ceiling clouds or microperforated metal with acoustic backing bring the RT60 down toward 0.6–0.8 seconds—a sweet spot for announcements and everyday conversation without harshness.

Acoustic Comfort in High-Traffic Cores

Echo amplifies stress. I target a balanced soundscape: sound-absorbent ceilings, soft-wall panels strategically placed opposite hard elevator banks, and localized sound masking where open office areas spill into the lobby. Rubber underlayment below tile reduces impact noise from luggage and carts. Keep mechanical noise from machine rooms below NC-35 for lobbies; seal and isolate equipment mounts to prevent structure-borne vibration.

Ergonomics at the Call Panel

Call buttons and screens should meet a diverse set of users. Mount centerlines 900–1200 mm above finished floor for reach range, with clear floor space 1500 mm diameter for turning where possible. Illuminate the panel face to ~200–300 lux with no specular glare. Tactile and high-contrast labeling improves accessibility, and audible signals should be distinct without exceeding 60–65 dBA at 1 m. If destination-dispatch is used, position kiosks outside the immediate door swing zone and angle them 10–15 degrees toward the primary approach to reduce side-loading conflicts.

Circulation Patterns and Queuing Logic

I map three flows: approach, wait, disperse. Approaches should taper gently—1:10 funneling into the queue area—so people self-organize. Waiting zones need visual anchors: lighting bays, floor patterning, or subtle rails that suggest lanes without feeling like a turnstile. Disperse paths must be the widest and cleanest, free of furniture, signs, or plants. For banks of four or more cars, consider a central decision island with signage above 2100 mm head height and a low-profile base that doesn’t disrupt ADA paths.

For complex multi-bank cores, I test multiple queue algorithms and emergency egress overlays using an interior layout planner to confirm best- and worst-case scenarios at peak load.

Wayfinding That Reduces Cognitive Load

People move faster when information is obvious. I place primary signage at eye level on approach, secondary indicators above door heads, and reassurance cues on sidewalls after the decision point. Numbering should be large, high-contrast, and consistently located. A simple floor pattern—perpendicular bands leading to each door—quietly guides feet without adding clutter. Dynamic displays that show car assignments and average wait times promote trust and reduce backtracking.

Lighting Controls and Energy

Occupancy sensors with time-delay dimming maintain safety while cutting energy use during off-peak hours. I program a 20–30% standby scene that jumps to full when occupancy is detected, and a late-night 2700–3000K scene for comfort. Consistent color rendering (CRI ≥ 90) keeps finishes honest and faces readable on camera for security. Integrate emergency lighting neatly within the ceiling rhythm so drills and real events feel guided rather than chaotic.

Safety, Code, and Maintenance Access

Never sacrifice clearances for aesthetics. Keep electrical panels, shutoffs, and rescue tools accessible with labeled panels. Handrails near long queues help those who need support without advertising a barrier. Floor transitions must be flush; metal reveals should not catch wheels. For fire scenarios, maintain clear, lit paths away from cars and ensure signage is readable under emergency lighting levels.

2024–2025 Finishing Touches and Trends

Current projects are leaning toward matte metallics, microtexture wall panels that absorb sound, subtle biophilic moments (planters with integrated bump rails), and destination-dispatch kiosks with intuitive UI. I’m also seeing wider door reveals with integrated linear lighting, making each car feel like a clear portal. The best spaces are quiet, glare-free, and obvious at a glance.

Typical Dimensions and Quick Reference

- Minimum clear waiting depth in front of doors: 1.8–2.2 m (expand for multi-car banks)

- Queue width per lane: 900–1000 mm

- Call panel mounting: 900–1200 mm AFF to controls

- Vertical illuminance at panels/signage: 200–300 lux

- Ambient illuminance: 100–200 lux

- Reverberation time target (lobby): 0.6–0.8 s

- Color temperature: 3000–3500K (2700–3000K after-hours scene)

Case Notes: Small Footprint, Big Clarity

On a recent retrofit, we inherited a 3.6 m wide lift lobby with three cars. By aligning a wallwash on the sidewalls, adding high-contrast door reveals, and moving the destination-dispatch kiosks 1.2 m off-axis, perceived congestion dropped immediately. We introduced a matte acoustic panel above the impact zone and cut reverberation by roughly 35% after commissioning. A simple floor banding aligned to each door stabilized queues without adding rails.

Checklist Before You Sign Off

- Are call panels visible within 10–15 m on approach?

- Do lighting levels meet IES circulation guidance, with vertical emphasis at information points?

- Is there a 1.8–2.2 m clear waiting zone, with wider egress paths?

- Are glare sources controlled at stainless doors and displays?

- Are acoustics softened above the impact zone?

- Are materials specified for both impact resistance and easy maintenance?

- Do controls provide an after-hours scene and standby dimming?

- Is wayfinding consistent, readable, and reinforced by architecture?

FAQ

Q1. What lighting levels work best for a lift lobby?

A1. Target 100–200 lux ambient and 200–300 lux on vertical surfaces at call panels and signage, following IES circulation guidance. This balance improves legibility without glare.

Q2. How do I reduce queue stress in a small elevator bank?

A2. Use layered lighting, high-contrast reveals, and subtle floor banding to define lanes. Provide 1.8–2.2 m clear waiting depth and keep decision points visible 10–15 m away.

Q3. Which materials are most durable in a high-traffic lift room?

A3. Porcelain or terrazzo floors with R10–R11 slip ratings, impact-resistant lower wall cladding up to 1.1–1.2 m, and acoustic finishes above to cut reverberation. Matte metals at door reveals resist fingerprints and glare.

Q4. What color palette makes compact lift lobbies feel larger?

A4. Cooler neutrals (blue-gray, desaturated green) with high-contrast edges. Keep saturation low on large surfaces and reserve bold color for wayfinding elements to avoid visual clutter.

Q5. How can I improve acoustics without a heavy look?

A5. Use microperforated metal ceilings with acoustic backing, fabric or PET wall panels above impact zones, and rubber underlayment below tile. Aim for RT60 around 0.6–0.8 seconds.

Q6. What are best practices for call panel ergonomics?

A6. Mount controls 900–1200 mm AFF, ensure a 1500 mm turning circle where possible, provide 200–300 lux vertical light on the panel, and use high-contrast tactile labeling with gentle audible cues (60–65 dBA).

Q7. How do lighting controls support energy savings?

A7. Use occupancy sensing with a 20–30% standby scene, step to full on detection, and a warmer late-night scene. Keep CRI ≥ 90 for accurate color and security camera readability.

Q8. What’s the ideal layout for multiple elevator cars?

A8. Maintain a central decision zone with clear sightlines, keep kiosks out of door swing paths, and widen egress routes. Validate queue depths and pinch points with a layout simulation tool before build-out.

Q9. How should signage be organized?

A9. Primary at eye level on approach, secondary above door heads, and reassurance cues after the decision point. Use large, high-contrast numbers consistently positioned across the bank.

Q10. How do I handle glare from stainless steel doors?

A10. Avoid direct downlights in front of doors; use sidewall wallwashers or linear grazers, specify matte adjacent finishes, and maintain UGR ≤ 19 along main view angles.

Q11. Are there wellness standards relevant to lift rooms?

A11. WELL v2 provides direction on glare control, light quality, and movement/wayfinding that support comfort and stress reduction—useful benchmarks for design intent.

Q12. What trend should I adopt for 2024–2025 without dating the space?

A12. Integrated linear reveals at door portals, destination-dispatch with intuitive UI, and microtexture acoustic wall panels. These improve performance and age gracefully.
