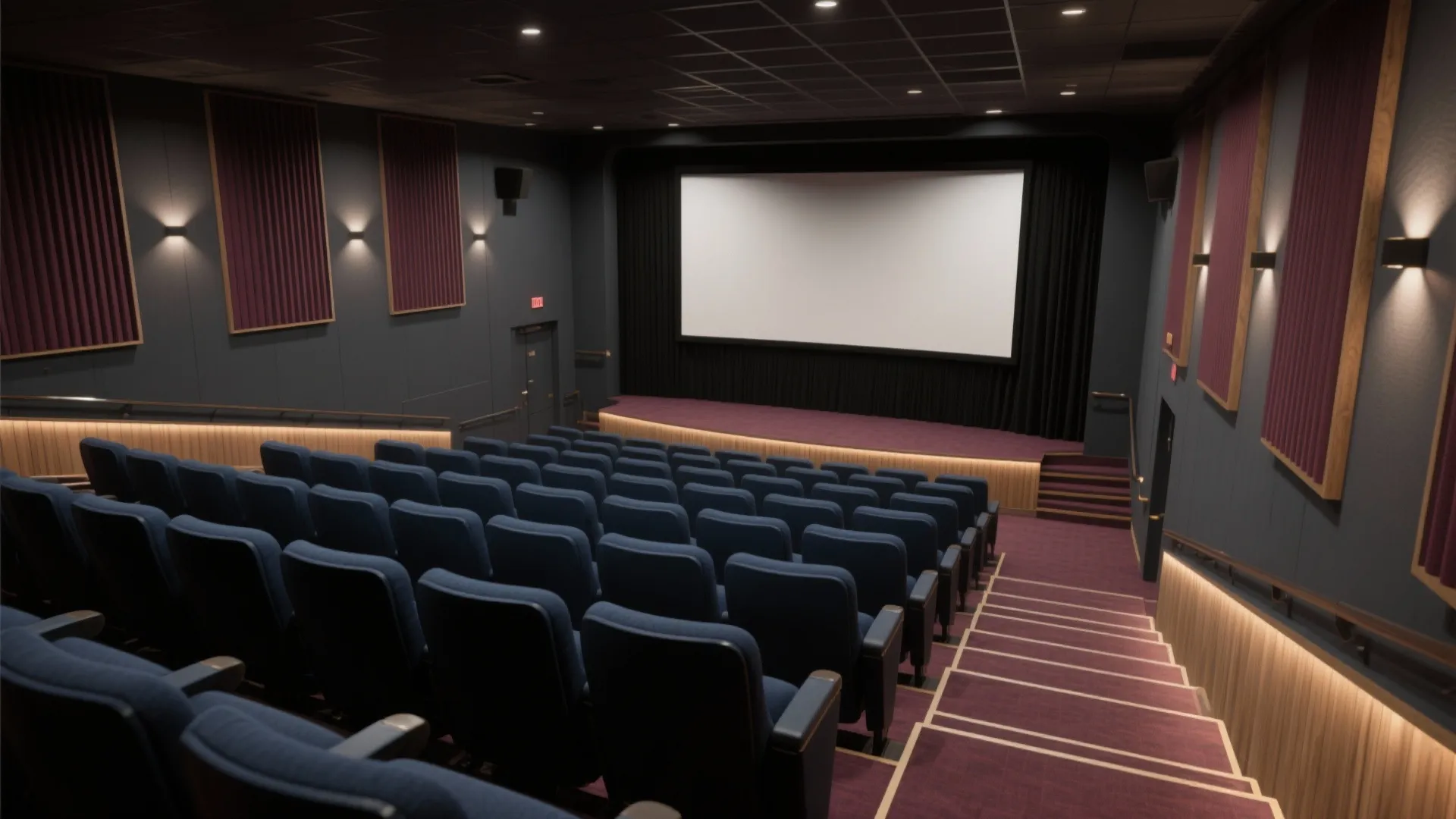

Lipi Cinema Hall Design Guide: Maximizing Small Theater Spaces: 1 Minute to Smart Seating & Stylish Theater Upgrades

I’ve designed compact theaters in community hubs, boutique hotels, and academic campuses where every square foot has to pull double duty. A small cinema thrives when sightlines, acoustic control, and seating ergonomics are tuned with precision—because modest volumes magnify every success and every mistake.

Data consistently backs a human-centered approach. WELL v2 recommends maintained illuminance in circulation zones around 100–150 lux and task levels between 300–500 lux to support visual comfort in transition and operational tasks, while limiting glare and high-contrast hotspots (v2.wellcertified.com). Steelcase research has shown that discomfort—especially poor seating and inadequate posture support—can reduce attention and engagement measurably within 20–30 minutes in seated environments; that endurance window is critical for single-feature screenings. I use those thresholds to calibrate seat pitch, lumbar support, and the light envelope so audiences stay attentive from trailers to credits.

Color psychology also plays a role in small theaters. Verywell Mind notes that warm, darker hues can reduce visual stimulation and promote calm, which aids cinematic focus in constrained rooms (verywellmind.com/color-psychology). Deep neutrals with low reflectance (LRV 5–15) keep eyes on the screen, while muted accent bands help orientation without reflecting spill light.

Spatial Ratios and Sightline Geometry

In compact auditoria (60–120 seats), I aim for a screen-to-first-row distance that preserves a 36–40° horizontal viewing angle and a 12–15° vertical offset maximum. That keeps neck inclination within comfortable limits for the majority of viewers over 90 minutes. Stadium stepping should target a 12–16 cm eye-height difference per row with 90–110 cm row spacing; it’s the sweet spot for legroom without compromising capacity. If you’re planning from scratch, a room layout tool can help iterate riser heights, aisle positions, and ADA seating without guesswork:

interior layout planner

Acoustic Comfort in Small Volumes

Small rooms are unforgiving with flutter echoes and low-frequency buildup. I balance absorption and diffusion to land a mid-band RT60 around 0.4–0.6 seconds for intimate cinemas, keeping dialogue intelligible while preserving cinematic envelopment. Perimeter bass traps (150–300 mm deep), mid-frequency absorbers at first reflection points, and quadratic diffusers at the rear prevent a dead room feel. Seating fabrics with NRC 0.4–0.6 add distributed absorption as the audience enters, stabilizing the acoustic signature between half-full and sold-out screenings.

Lighting Layers: From Entry to Credits

Following WELL v2 and IES guidance, I keep pre-show ambient levels around 50–80 lux in seating areas, then dim to 5–15 lux during features with low-glare, indirect sources. Aisle markers and step-edge illumination should remain readable at 1–5 lux without creating veiling reflections on the screen. Color temperature at 2700–3000K avoids blue-shifted distraction and supports relaxation. Dimming curves must be smooth; abrupt shifts break immersion and spike pupil response. For pre- and post-show lighting, I use zoned circuits and DMX profiles to modulate entrance, aisle, and wall-wash layers independently.

Seating Ergonomics and Comfort

Attention drifts when posture falters. Inspired by workplace research from Steelcase and Herman Miller, I prioritize lumbar support, 100–105° back angles, and seat pans with waterfall fronts. In compact halls, armrest width and shared armrest policies impact perceived privacy more than you might think—alternating offsets or double armrests per pair can reduce micro-conflicts. Row clearance of 45–50 cm in front of knees minimizes disturbances when late arrivals pass, and ADA positions should integrate sightline parity, not banish to corners.

Screen, Projection, and Reflectance Management

Use screen gains appropriate to throw distance and seating distribution; in compact rooms, a 1.0–1.3 gain often balances brightness without hotspotting. Control wall and ceiling reflectance: keep surfaces adjacent to the screen at low LRV and use micro-textures to break specular reflection. Black masking around the screen frame helps perceived contrast, while ceiling coffers capture stray light from projectors. Equipment hush boxes with lined mass-loaded vinyl and forced ventilation prevent fan noise from competing with quiet scenes.

Circulation, Aisles, and ADA Strategy

Two side aisles with 90–110 cm width let patrons move without casting shadows across the screen. If a central aisle is unavoidable, align it with screen centerline but raise light levels subtly at 1–2 lux so movement doesn’t distract. ADA seating should have clear path access, companion seats, and equivalent viewing angles. Stagger wheelchair positions across front-mid-rear zones to provide choice. Use tactile step indicators at risers and handrail returns that terminate into walls to avoid snag points.

Materials, Sustainability, and Maintenance

Opt for low-VOC finishes and seat fabrics with high abrasion ratings (≥100,000 double rubs) and stain resistance. Carpets with dense cut piles dampen footfall and squeaks, while recycled acoustic panels reduce embodied carbon. I select darker, matte finishes with >0.7 sound absorption at target bands where needed and anti-microbial surfaces for high-touch areas. Keep serviceability in mind: removable panel systems behind screens and accessible cable trays cut downtime when technicians need to adjust projection or audio.

Behavioral Patterns and Programming

Small theaters benefit from flexible programming—live Q&A, indie festivals, and community screenings. That means designing for variable audience density. I use movable soft dividers on rear platforms to create micro-zones and deploy additional diffusers when the front rows are lightly occupied to keep reverberation consistent. Wayfinding graphics placed at shoulder height reduce pre-show congestion. Concession placement should avoid direct sightlines to the screen to prevent glare and motion distractions.

Visual Rhythm and Identity

Compact spaces gain stature through rhythm: repeating acoustic panel modules, concealed linear lighting, and matte accent bands create continuity. A restrained palette—deep charcoal, muted burgundy, or inky navy—builds identity without bright reflections. Use one signature material at touchpoints (e.g., ribbed timber or perforated metal) to link lobby and hall; consistency lowers cognitive load so audiences focus on the story.

Technology Integration and Controls

Centralize lighting, audio, and projection controls with scene presets: pre-show, trailers, feature, intermission, cleaning. Include measurable feedback—lux sensors and SPL meters—to verify performance. Emergency lighting should fail-safe to code levels without washing the screen. Cable management is non-negotiable in small rooms; run power and signal paths separately to reduce hum, and isolate projector mounts from structural vibration.

Pre-Design Checklist for Small Cinema Projects

- Target viewing angles: 36–40° horizontal, ≤15° vertical

- Seating pitch: 12–16 cm eye-height rise; 90–110 cm row spacing

- Acoustic goal: RT60 ~0.4–0.6 s, broadband control

- Light levels: 50–80 lux pre-show; 5–15 lux feature; 2700–3000K

- Circulation: dual side aisles; 90–110 cm width

- ADA: equivalent sightlines, companion seating, multi-zone placement

- Materials: low-VOC, high abrasion fabrics, matte low-LRV near screen

- Controls: zoned dimming, hush boxes, sensor feedback

Tips 1: Sightline Tuning

Mock-up the first three rows with temporary platforms and chairs. Validate neck angles with a laser level and record eye heights; adjust risers before building fixed steps.

Tips 2: Quiet HVAC Is Half the Experience

Use oversized ducts, low-velocity diffusers, and decoupled equipment mounts. Position returns behind acoustic treatment to reduce audible airflow.

Tips 3: Glare-Proof the Walkways

Shield aisle LEDs with baffles and choose low-reflectance finishes on nosings. Test legibility at 1–2 lux during final commissioning.

Tips 4: Flexible Seating Blocks

Create removable pairs in the rear section for wheelchair users or group events. Sightlines stay intact when those seats are temporarily removed.

Tips 5: Calibrate the Color Journey

Warm, dim lobby lighting primes relaxation; a brief ramp-down to feature levels avoids startling the audience.

FAQ

1) What screen size works best for a small cinema hall?

Choose a size that delivers a 36–40° horizontal viewing angle from the primary seating band. In rooms 8–12 m deep, screens around 4–6 m wide often suit, adjusted for projector throw and gain.

2) How bright should the room be during a feature?

Keep ambient levels at 5–15 lux with indirect, low-glare sources. Maintain readable aisle markers at 1–5 lux without casting light onto the screen.

3) What reverberation time should I target?

For intimate venues, aim for RT60 around 0.4–0.6 seconds. Use a mix of bass trapping, mid-frequency absorption, and rear diffusion to achieve clarity without deadening the room.

4) How do I prevent seat-to-seat sightline conflicts?

Set riser heights to achieve 12–16 cm eye-height differences per row and limit vertical viewing offset to 12–15°. Confirm with full-scale mock-ups.

5) Which colors reduce distraction near the screen?

Low-LRV deep neutrals—charcoal, navy, muted burgundy—minimize reflections. Color psychology research highlights darker, warm tones for calm focus.

6) What are the best practices for ADA seating in small theaters?

Provide equivalent sightlines, companion seats, and clear access paths. Distribute wheelchair positions across front, mid, and rear zones to offer real choice.

7) How can I manage projector and equipment noise?

Use hush boxes with lined mass-loaded vinyl, decouple mounts, and design slow, quiet HVAC paths. Separate power and signal runs to reduce electrical hum.

8) Do I need specialized aisle lighting?

Yes—shielded, low-reflectance fixtures with baffles prevent glare. Program smooth dimming curves and set emergency overrides that meet code without washing the screen.

9) What seating ergonomics improve attention for long features?

Lumbar support, 100–105° recline, waterfall seat fronts, and adequate knee clearance (45–50 cm) reduce physical strain and preserve engagement.

10) Can layout software help in early planning?

Absolutely. A room layout tool allows quick iteration of risers, aisles, and ADA locations, validating sightlines and circulation before construction.

11) How do I keep acoustics consistent between half-full and full shows?

Leverage seat fabric absorption (NRC 0.4–0.6), add rear diffusion, and tune bass trapping so audience presence doesn’t overly shift the room response.

12) What color temperature suits pre-show and intermission?

Use warm white at 2700–3000K to support relaxation and a gentle ramp-down to feature levels to avoid startle responses.
