LV Room Full Form: What Does LV Room Mean in Home Design?: 1 Minute to Decode LV Room in Modern Interior Design

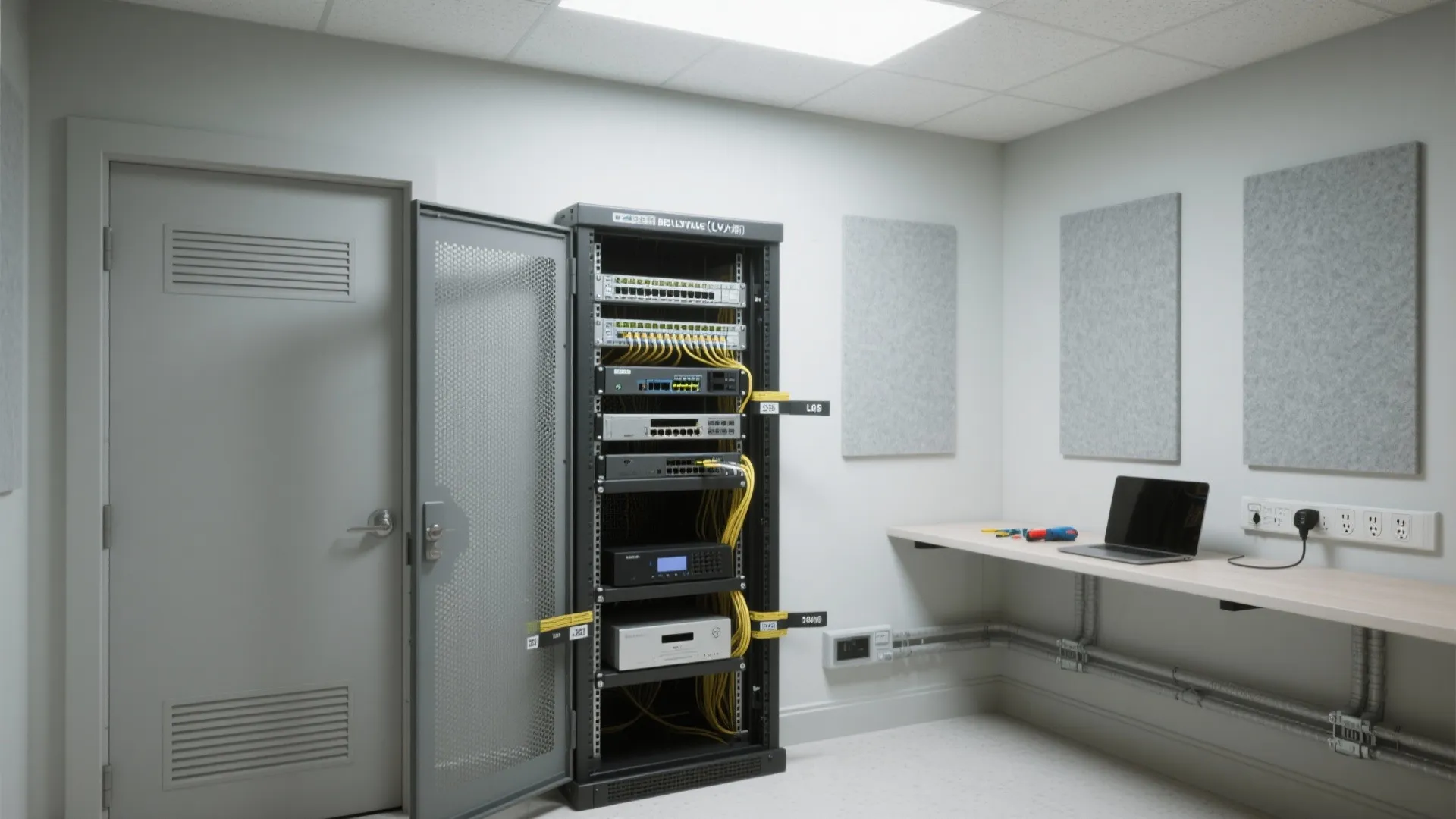

In residential plans and renovation drawings, “LV Room” typically stands for Low Voltage Room. It’s the dedicated space that houses structured cabling, routers, patch panels, AV receivers, network switches, security system hubs, and smart-home controllers—essentially the nerve center for power-limited systems. In multi-unit buildings or larger single-family homes, an LV Room consolidates devices to improve reliability, safety, and maintenance access while keeping visible clutter out of the living areas.

Designing an LV Room isn’t only about boxes and wires; it’s also about performance and occupant well-being. Thermal load from network gear and AV equipment can impact comfort and longevity, and noise from fans can migrate into adjacent rooms. Standards and research used in office environments translate neatly to homes: the WELL Building Standard highlights acoustic quality and light control as critical for performance and wellness, while its Air and Thermal Comfort concepts call for appropriate ventilation and temperature ranges for equipment rooms (see WELL v2 Feature guidance at wellcertified.com). Similarly, the Illuminating Engineering Society (IES) recommends task lighting levels in the 300–500 lux range for maintenance tasks in utility spaces (IES standards), which helps prevent wiring errors and reduces eye strain during troubleshooting.

What “Low Voltage” Covers in a Home

Low voltage in residential design typically includes data (Ethernet), coax, fiber, doorbells, intercom, security sensors, cameras, thermostats, shades, smart lighting controls, speakers, and AV distribution. Most of these operate at 12–24V DC or power-over-Ethernet (PoE). Grouping them in a single service point makes upgrades simpler and minimizes cable runs across finished areas. From a safety perspective, separating low-voltage systems from high-voltage electrical panels reduces electromagnetic interference and limits fire load around critical distribution hardware.

Location and Space Planning

I place the LV Room on a cool interior wall, avoiding direct sunlight and moisture-prone locations like unconditioned garages. In compact homes, a 24–36 inch wide structured media enclosure can suffice; for tech-heavy homes, aim for a small closet—roughly 3–6 ft² of floor area—with clearances that allow you to open rack doors fully and service the rear if possible. When you’re planning a floor plan, using a room layout tool can help visualize adjacency, airflow paths, and service clearances: room design visualization tool.

Thermal and Ventilation Strategy

Even modest gear stacks produce heat. A single prosumer router, switch, NAS, and AV receiver can add 200–500W of load. I target a setpoint of 72–78°F (22–26°C) with active exhaust or a dedicated supply/return when heat density rises. Keep intake and exhaust separated to prevent short-cycling. Provide a perforated door or transfer grille if the room uses the main HVAC. Thermal stability extends equipment life and reduces random reboots during peak summer.

Acoustic Comfort

Fans, HDDs, and AV cooling can generate 35–50 dBA within the room. To prevent noise spill, add door seals, specify solid-core doors, and line interior walls with mineral wool where possible. Avoid placing bedrooms directly adjacent to high-load LV Rooms; if unavoidable, double-stud or resilient channel assemblies maintain quiet sleep environments. The WELL approach to noise reduction—targeting lower background levels to support health—applies at home as well.

Lighting, Sightlines, and Maintainability

Service tasks need bright, even light. I specify 4000K LEDs with 300–500 lux at rack face height per IES maintenance guidance for utility areas. Add a secondary task light on a flexible arm for punch-downs and fiber terminations. Label every cable and leave service loops. A shallow work shelf at 36–38 inches high keeps patching comfortable and improves ergonomics during longer sessions.

Rack and Cable Management

Choose between wall-mount swing racks (great for tight closets) and 19-inch floor racks (deeper, more scalable). Maintain separation between power and data paths; cross at 90° to reduce interference. Use horizontal and vertical managers, plus Velcro straps instead of zip ties to avoid compression damage. Plan for at least 25–30% spare rack units and 30–50% extra patch panel capacity for future devices like PoE lighting or additional cameras.

Electrical and Power Resilience

Even low-voltage systems require robust power. Provide dedicated circuits for the LV Room and consider a small UPS for the core stack—modem, router, switch, controller—so your network and key automations stay online during brief outages. For larger homes, a rack-mounted UPS with pure sine output improves equipment longevity. Keep receptacles accessible; I like to mount a dedicated power strip with surge protection inside the rack for neatness and safety.

Network Performance and Future-Proofing

Run Cat6 or Cat6A to key locations (workstations, APs, TVs, cameras). Cat6A supports 10GbE over longer distances and handles PoE heat better in dense bundles. Provide at least two home runs per room, more at media walls and offices. Fiber to a media panel future-proofs for multi-gig service. For wireless stability, centralize access points, avoid placing them inside the LV Room if walls are dense, and plan ceiling drops in main zones.

Safety, Code, and Separation

Maintain clear separation between low-voltage and line-voltage wiring pathways as required by local codes and manufacturers. Use plenum-rated cable where ducts are shared. Firestopping at penetrations is non-negotiable. Avoid overfilling conduits; follow fill ratios to keep pull tension reasonable and future pulls feasible.

Behavioral Patterns and Access Control

The LV Room becomes a high-touch space during upgrades and troubleshooting. Keep it lockable but accessible to homeowners and integrators. Mount patch panels at eye level (around 60–66 inches) for comfortable labeling. Provide a stool or a small fold-down bench for extended sessions. Clear wayfinding and labeling reduce cognitive load and errors.

Material Selection and Sustainability

Choose low-VOC paints and finishes to maintain good air quality in a confined space. Prefer metal racks for durability and recyclability. LED lighting reduces energy use and heat. Passive cooling strategies (vent grilles, stack effect) cut fan hours, and power-managed switches reduce idle consumption.

When an LV Room Isn’t a Separate Room

In small apartments, the “room” may be a recessed cabinet or hallway closet. The same principles apply: provide ventilation, lighting, cable management, and clear labeling. A compact swing rack can make even a 12-inch-deep enclosure serviceable.

Coordination with the Rest of the Plan

Treat the LV Room like a tiny mission-critical space. On whole-home plans, I coordinate LV routes early to avoid structural conflicts and to minimize visible devices. To quickly test adjacencies and service clearances during planning, use an interior layout planner to prototype placements: layout simulation tool.

FAQ

What is the full form of LV Room in home design?

LV Room stands for Low Voltage Room. It’s the space that consolidates structured cabling, networking, AV distribution, and smart-home control equipment.

Is an LV Room necessary in a single-family home?

Not mandatory, but very helpful. Centralizing gear improves reliability, simplifies upgrades, and keeps living spaces free from visible cables and devices.

How big should an LV Room be?

For typical homes, a compact closet of 3–6 ft² works if organized with a wall-mount rack. Tech-heavy homes benefit from a small dedicated room with service clearances front and rear.

What lighting level is best for an LV Room?

Provide 300–500 lux at the rack face for maintenance tasks, ideally at 4000K neutral white. This aligns with IES utility-task guidance for safe, accurate work.

How do I keep the LV Room cool?

Plan for ventilation or dedicated HVAC. Separate intake and exhaust, avoid direct sun, and target 72–78°F (22–26°C). Monitor temperatures to protect equipment.

Should power and data be in the same conduit?

No. Keep them separate to meet code, reduce interference, and ease maintenance. Cross at 90° if paths must intersect.

What cables should I run from the LV Room?

At minimum, Cat6 to every room, Cat6A for high-performance or PoE-dense runs, coax to media points as needed, and home runs for cameras, APs, and door stations. Consider fiber to the distribution point for future service.

Can the Wi‑Fi access point live inside the LV Room?

Prefer not. Dense walls, doors, and equipment can attenuate signals. Place APs centrally in open areas and run PoE from the LV Room.

How do acoustics factor into LV Room design?

Equipment fans can transmit noise. Use solid-core doors, door seals, and acoustic insulation to reduce transfer, especially near bedrooms or offices.

What about backup power?

A small UPS for modem, router, and switch keeps connectivity during short outages. For larger stacks, a rack UPS with pure sine output protects sensitive gear.

Is there a standard rack size I should consider?

Most LV gear fits 19-inch racks. Choose wall-mount swing racks for tight spaces or floor racks for expandability. Leave 25–30% spare rack units.

Do I need special finishes or materials?

Use low-VOC paints, durable metal racks, and LED lighting. These improve indoor air quality, longevity, and energy efficiency in a compact room.
