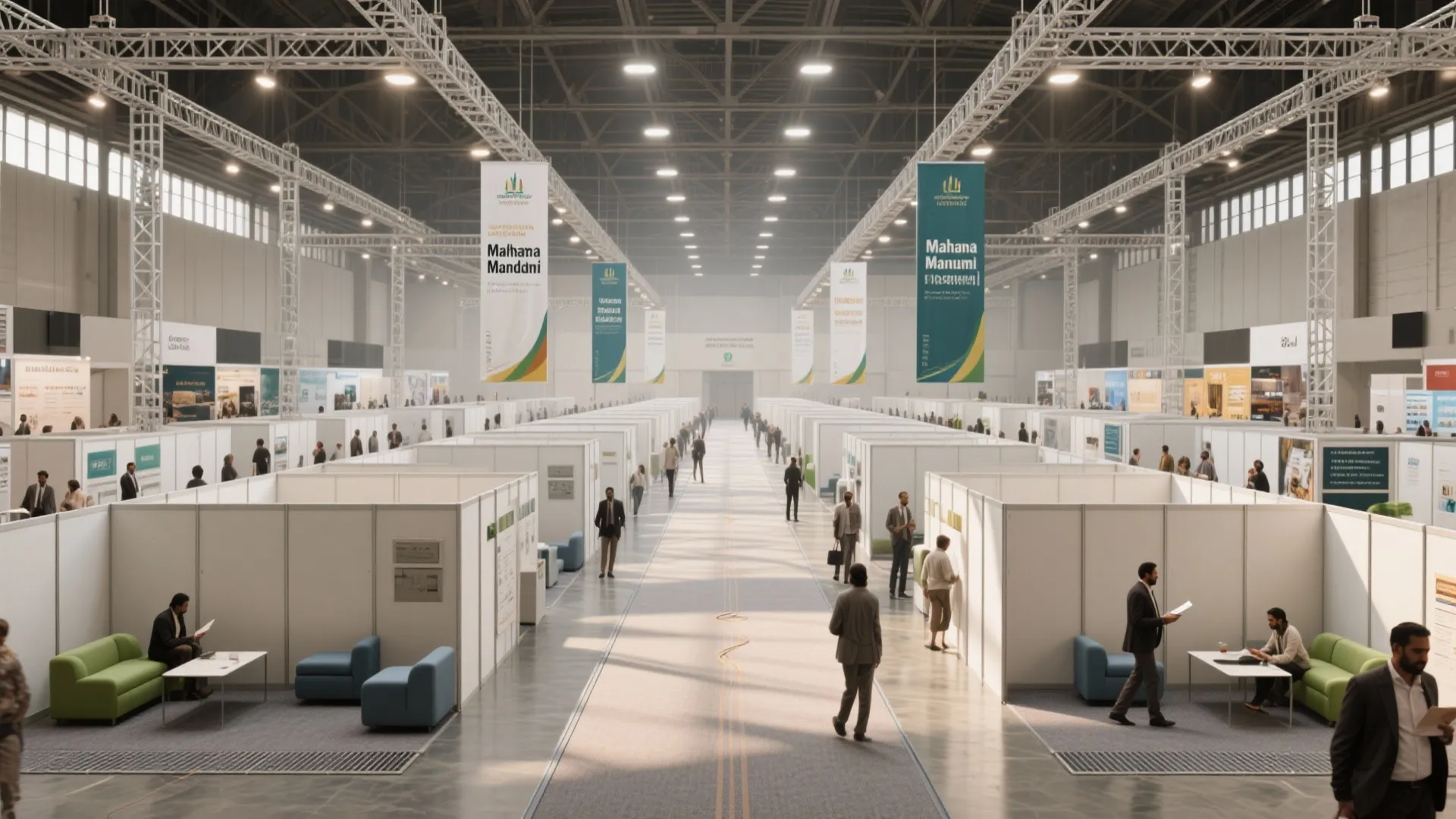

Mahatma Mandir Exhibition Hall Design: Space, Function, and Inspiration: Fast-Track Guide to Planning Large-Scale Event Spaces in 1 Minute

I first walked into Mahatma Mandir’s exhibition halls with a tape measure in one hand and a light meter in the other, focusing on how people would actually move, gather, and absorb information. Great exhibition design doesn’t start with spectacle; it starts with legible space, calibrated light, and a clear hierarchy that can flex from government summits to design fairs. That flexibility is measurable. According to Steelcase research, 87% of high-performing workplaces prioritize adaptable settings that respond to changing needs—an insight I’ve translated into modular zoning, movable partitions, and scalable services that let the hall morph without losing orientation. WELL v2 further recommends maintaining equivalent visual comfort across seating and standing zones with glare control and balanced contrast, a principle that guides fixture selection and ceiling reflectance to keep fatigue low for attendees over long event days.

Lighting is the spine of navigation and storytelling in a venue of this scale. The IES recommends 300–500 lux for general exhibition circulation with higher task levels for reading zones and product demos, while color temperatures between 3000K–4000K support color rendering without visual strain. Pairing that with color psychology helps modulate energy: research aggregated by VerywellMind on color perception shows warm neutrals promote calm, while saturated accents can drive attentional focus in short bursts—useful for wayfinding and feature installations. In larger plenaries, I maintain 150–300 lux ambient light with layered control for stage scenes, and I keep Unified Glare Rating (UGR) below 19 in seating areas to protect sightlines to digital content.

Spatial Framework: Hierarchy, Flow, and Orientation

For Mahatma Mandir’s halls, my baseline diagram uses a three-tier hierarchy: (1) primary spines that run orthogonally from main entries; (2) secondary cross-aisles every 18–24 meters for wayfinding and fire code egress; (3) tertiary pockets for lounges, press, or quick-turn activations. This rhythm creates intuitive circulation and reduces decision points. I align the main spine with high-ceiling bays to preserve vertical drama for banners and lighting trusses, while locating heavy utilities (power, data, water) along the spine to shorten cable runs and keep corridors uncluttered. When mapping booth clusters, I use alternating depths (e.g., 3×6 m and 6×6 m) to generate micro-plazas that relieve crowding at peaks.

When clients need early visualization to test booth density or visitor flow, I prototype using a room layout tool that supports furniture blocks, aisle widths, and egress overlays. For quick iteration and stakeholder buy-in, an interior layout planner with a room design visualization tool helps simulate different footfall scenarios and queuing widths; a layout simulation tool is particularly useful for entrance security lines and F&B clusters. Try the planning workflow here: room layout tool.

Light, Acoustics, and Comfort

Exhibition halls can be hostile to the senses if left untreated. I specify high-efficiency LED arrays with 90+ CRI for true color and wide beam distributions for uniformity; task accent tracks carry tighter beams (20–30°) at feature zones. To control reverberation, I combine overhead baffles with perimeter absorptive panels targeting mid frequencies (500–2000 Hz) where speech intelligibility lives. The goal is RT60 around 1.2–1.8 seconds for large halls—low enough for announcements, high enough to keep the room lively. For temporary exhibits, I use freestanding acoustic towers and heavy drape behind stage trusses; they’re fast to deploy and won’t interfere with sprinkler throw or signage lines.

Ergonomics and Human Factors

Attendee dwell time and learning quality hinge on comfort: seat pitch at 760–810 mm, aisle widths at a minimum 1.8 m in main corridors, and 1.2 m in cross aisles for smaller halls. For registration counters, a dual-height approach (760 mm and 1050 mm) accommodates wheelchair users and standing attendees, aligning with universal design principles. Rest points every 30–40 meters with perch seating let visitors regulate energy during long days. Wayfinding relies on consistent iconography and a two-line message hierarchy, placed at 1100–1600 mm to stay within average eye level and avoid crowd occlusion.

Material Strategy and Sustainability

Given Mahatma Mandir’s heavy event turnover, materials must endure while presenting a neutral canvas. I favor modular raised floors in high-utility zones for fast power/data reconfiguration, topped with low-VOC carpet tiles that can be selectively replaced after high-traffic events. Wall systems use reconfigurable aluminum frames with recyclable panel inserts—wood-look laminates for warmth, magnetic sheets for temporary branding skins. Where possible, stage platforms and fascia are standardized to reduce custom waste, and lighting loads are trimmed with occupancy sensors and daylight harvesting near glazed perimeters. Durable finishes simplify maintenance between back-to-back shows without losing the venue’s gravitas.

Color Psychology and Brand Flexibility

Permanent architecture stays neutral—stone, off-white, charcoal—so brand colors pop without clashing. In lounges, I apply muted greens and blue-grays to lower arousal and extend dwell time, while short-stay zones (photo ops, demo pods) tolerate saturated accents to spike attention. This leverages color psychology patterns summarized by VerywellMind: cooler hues tend to calm, warmer accents energize. Modular LED lines allow quick color temperature shifts for multi-brand days, keeping photos consistent across varied booth palettes.

Digital Infrastructure and Content

Today’s exhibits run on bandwidth and power discipline. I plan redundant fiber paths to main plenaries and distribute PoE for wayfinding kiosks and check-in tablets. Ceiling grids reserve zones for projectors, LED tiles, and cameras with standardized rigging points; cable trays track along major spines to keep the floor clean. For hybrid events, I create “silent broadcast pockets” with acoustic screens, diffused 3500K task light, and floor boxes with clean power, allowing live interviews without bleeding into main circulation.

Visitor Behavior: Mapping Peaks and Edges

People cluster at thresholds, anchors, and edges. I frame entries with wide reveal zones for orientation and sponsor moments, then disperse visitors using slight angular offsets in the first 12–18 meters to prevent bottlenecks. Food and coffee live at the edges, not the core; they draw circulation outward and keep aromas away from display areas. Seating islands are placed midway down the main spine to create a “heartbeat” that feels natural to return to between sessions.

Wayfinding and Storytelling

Navigation becomes memory when it’s tied to narrative. I stitch halls with thematic nodes—Gandhian quotes set in illuminated bands, craft installations by regional artisans, and tactile maps for inclusive navigation. Each node anchors one decision: turn, continue, or gather. The graphic system uses high-contrast palettes, matte finishes to cut glare, and scalable typography that remains legible from 10–30 meters depending on location.

Operations: Back-of-House and Fast Turnarounds

Loading, storage, and reset windows often define guest experience more than front-of-house finishes. I align loading docks with straight-shot access to the main spine, maintaining 4.5–5.0 m clear heights for truss carts and LED crates. Back-of-house corridors get bright, neutral 4000K lighting, non-slip epoxy floors, and corner guards. I group service cores (electrical, AV, cleaning) into hubs that can swing rapid resets between morning plenaries and evening galas.

Case-Led Lessons

In a design-tech fair I led, booth density pushed the limits. Aisle widening by 300 mm in two cross aisles relieved pressure without losing sellable area, and swapping glossy graphic panels for satin immediately reduced glare hotspots on camera. For a government summit, we embedded tactile floor strips from the entrance to key halls; delegates with visual impairments reported easier wayfinding, and the solution later became a permanent layer across major routes.

Measuring Success

My post-occupancy toolkit is simple: lux and UGR readings across time slots; RT60 and Speech Transmission Index samples during rehearsals; heatmaps from entry to anchor zones; and short intercept surveys at rest points. If visitors can find their next move without asking, read content without squinting, and choose to linger, the hall has done its job.

Authority Notes

- Adaptable settings correlate with performance: Steelcase research underscores the impact of flexible environments on engagement and outcomes. See their workplace research compendium at steelcase.com/research.

- Visual comfort and health: WELL v2 provides guidance on glare, lighting controls, and occupant comfort to support sustained attention during long events at wellcertified.com.

FAQ

1) What general illumination levels work best for exhibition circulation?

For most halls, I target 300–500 lux in circulation with 500–750 lux at reading or product interaction points. Keep glare low (UGR ≤19) in seated zones to protect sightlines.

2) How wide should aisles be to balance flow and rentable area?

Main spines at 1.8–2.4 m support bi-directional flow during peaks; secondary aisles at 1.5–1.8 m work for lighter traffic. Increase by 300–600 mm near registration and food edges where queuing is likely.

3) What’s an effective acoustic target for large exhibition halls?

A reverberation time (RT60) around 1.2–1.8 seconds balances clarity and buzz. Combine overhead baffles, perimeter panels, and absorptive drape for stages to manage speech frequencies.

4) Which color temperatures are most versatile for exhibits?

3000K–3500K creates warmth without yellowing whites; 4000K adds brightness for tech or medical showcases. Use high CRI (90+) for accurate brand colors and product materials.

5) How can I make layouts flexible without feeling temporary?

Use a consistent grid, neutral fixed finishes, and modular elements that “disappear” visually—like aluminum frames with interchangeable panels. Prototype options with a room layout tool to pressure-test flow and egress.

6) What’s the best way to integrate sponsorship without visual clutter?

Reserve dedicated reveal zones at entries and nodes, cap sponsor surfaces to matte finishes, and keep a two-line hierarchy for messages. Lighting sponsors with softer 3000K accent reduces glare on camera.

7) How do you plan digital infrastructure for hybrid events?

Design redundant fiber routes, PoE for kiosks, and rigging points mapped to the ceiling grid. Provide “silent broadcast pockets” with screens, acoustic treatment, and 3500K task lights for interviews.

8) What accessibility features are essential?

Dual-height registration counters, tactile floor strips on main routes, clear signage at 1100–1600 mm, and seating islands every 30–40 meters. Use gentle ramps with handrails at stage access points.

9) How do you manage food and beverage without disrupting exhibits?

Place F&B at edges to pull crowds outward, provide separate air handling if possible, and design queuing with stanchion-ready widths. Keep strong aromas away from sensitive displays.

10) Which materials stand up to heavy turnover?

Low-VOC carpet tiles for selective replacement, epoxy or high-durability vinyl in BOH, and reconfigurable frames with recyclable panels. Standardized stage modules reduce waste and setup time.

11) How do you evaluate success after an event?

Collect lux/UGR readings, RT60/STI samples, and footfall heatmaps; combine with short intercept surveys. Look for intuitive wayfinding, minimal glare complaints, and balanced crowd distribution.

12) What’s a practical approach to signage in very large halls?

Use high-contrast colorways, matte substrates, and scalable typography with long-range identifiers (visible at 30 m) and near-range detail boards at decision points.
