MCC Room Design: Optimize Your Electrical Control Space: 1 Minute to Discover Fast-Track Tips for Effective MCC Room Layouts

Designing an MCC (Motor Control Center) room is equal parts performance, protection, and foresight. I focus on safe clearances, thermal management, maintainable routing, and human-centered ergonomics so technicians can work efficiently without compromising uptime.

Space planning decisions should be grounded in measurable criteria. The WELL Building Standard highlights the impact of thermal comfort and noise on human performance, noting that environmental factors (temperature, noise, lighting) can measurably affect cognitive function and productivity (WELL v2). In addition, IES standards for task lighting recommend ~300–500 lux for technical tasks in industrial settings, with glare control and uniformity to reduce error rates. Steelcase research also links controllable environments to lower cognitive load and better focus—vital in rooms where diagnostics and lockout/tagout (LOTO) procedures occur.

When I set the baseline, I design for code-compliant working clearances around gear (commonly 36–48 inches depending on voltage and conditions), dedicated egress paths, and a layout that anticipates cable entry, heat rejection, and maintenance envelopes—then I refine the ergonomics so routine inspections and emergency interventions feel frictionless.

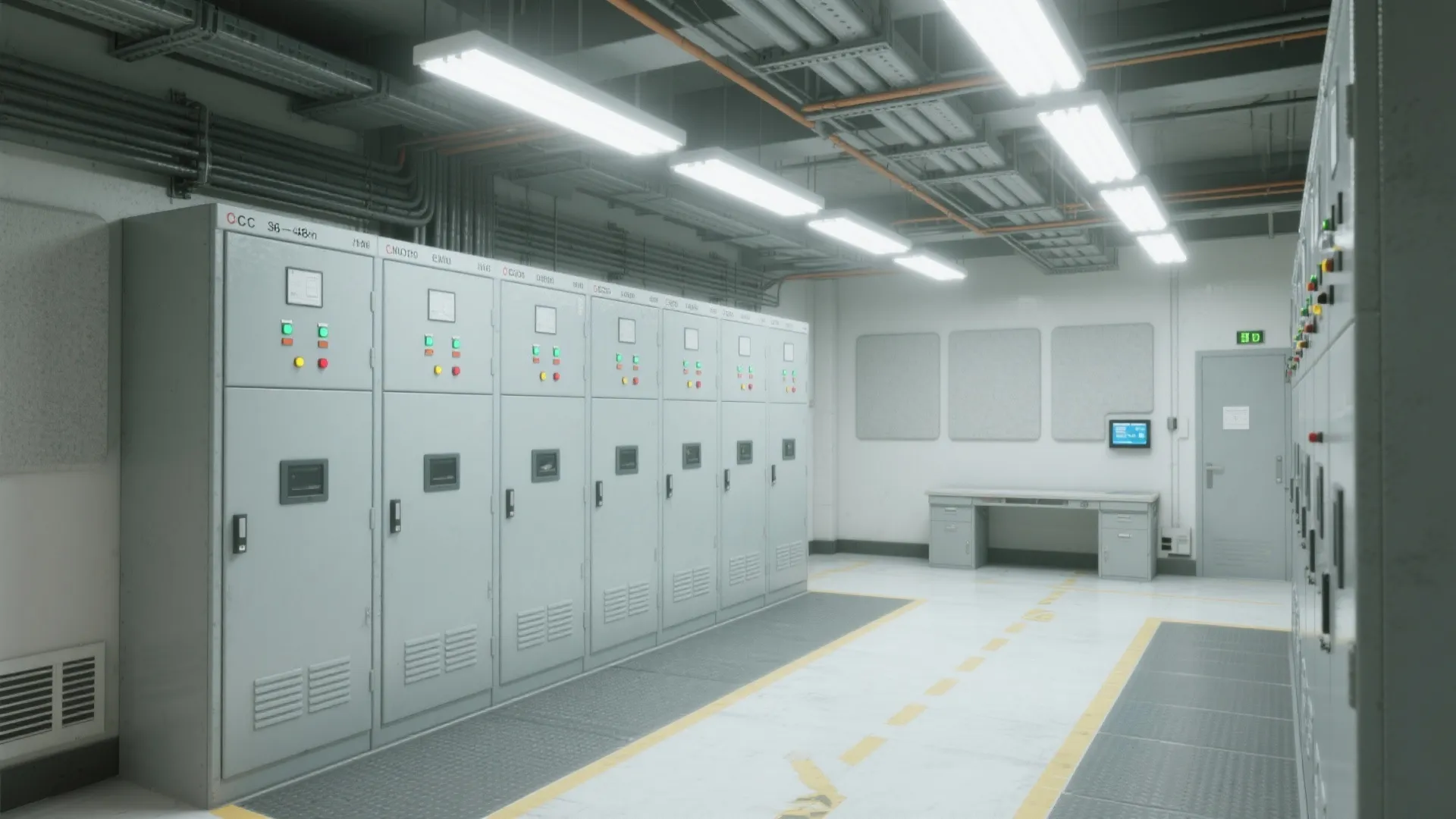

Core Spatial Strategy

I map the room around MCC lineup length, front working clearance, and rear access (if rear-wired or for bus inspection). I maintain clear, straight egress to doors and avoid dead-ends longer than code allows. Where planning iterations are needed, a layout simulation tool like an interior layout planner can clarify collision points, turning radii for equipment dollies, and future expansion bays. For schematic iterations and quick visualization of cabinet spacing, I often mock scenarios with a room layout tool: room layout tool.

Clearances, Codes, and Access

Design around the strictest requirement: working space in front of energized equipment, doorway widths, and door swing (typically outwards with panic hardware). I keep the full manufacturer maintenance envelope free—front, top, and rear—and prevent overhead obstructions that could block lifting points. For double-stacked MCCs, ensure adequate vertical access and safe portable ladder zones without encroaching on egress. Label cable trays and segregate power, control, and network pathways to simplify troubleshooting and reduce crosstalk.

Thermal Management and Ventilation

Heat sinks, VFDs, and high-density starters can drive room loads beyond what passive ventilation can handle. I calculate heat dissipation from nameplate losses, apply a factor for diversity, and size HVAC to maintain a stable temperature within manufacturer limits (commonly 20–30°C). WELL v2 notes that thermal comfort influences task accuracy and fatigue; for rooms with intermittent occupancy, I use zoning to maintain stable equipment-friendly conditions without overspending on energy. Avoid short-circuiting airflow; position supply and return to sweep across heat sources, not just the room perimeter.

Lighting and Visual Ergonomics

For routine panel work, 300–500 lux with high color rendering helps read wire colors and labels accurately. I specify neutral-white (4000 K) task lighting with minimal glare; linear fixtures parallel to cabinet faces reduce shadowing. I also add switchable task lights near diagnostic benches. Per IES guidance, balanced uniformity reduces eye strain; I avoid high-brightness luminaires directly opposite glossy panel doors to minimize specular reflections that obscure meters.

Acoustics and Noise Control

Transformers, fans, and VFDs create tonal noise. Even brief exposure during troubleshooting benefits from damped finishes: sealed acoustic wall panels rated for industrial hygiene, insulated doors, and vibration isolation under air handling units. Lower noise can help technicians maintain attention during LOTO steps and fault tracing. Where permissible, I separate noisy auxiliaries into a service alcove and maintain sealed penetrations to prevent flanking paths.

Cable Management, Pathways, and Future-Proofing

I stage cable trays on dedicated elevations: power at the top tier, controls below, and data/fiber segregated with metallic dividers. Large-radius sweeps protect insulation and reduce strain at terminations. I pre-allocate 20–30% spare tray fill and leave at least one full MCC bucket column’s worth of space for expansion. When space is tight, I plan vertical bus risers and a clear wall zone for future starters. A room design visualization tool helps test alternative tray runs around structural interferences: interior layout planner.

Human Factors and Safety Operations

Technicians need sightlines to status indicators and emergency stops, with uncluttered floor markings (high-contrast, non-slip). I keep diagnostic benches within a few steps of the lineup but outside required clearances, and I place a wall-mounted PC or HMI for schematics and historian access at standing height (approx. 42–44 in to center) to reduce awkward neck flexion. I standardize label height and typography; clear labeling reduces errors, which aligns with research on cognitive load and human performance from organizations like Steelcase.

Environmental Controls and Reliability

Humidity control protects conductors and terminals; I maintain 40–60% RH where feasible and specify corrosion-resistant finishes for coastal or chemical environments. Positive pressurization with filtered air helps keep dust away from bus bars and contactors. If the facility handles aggressive particulates, I use gasketed cabinets and plan for easy filter changes along the main circulation path.

Fire Protection, Egress, and Risk Mitigation

Coordinate fire detection (smoke or air sampling) with HVAC shutoff. Keep doors outward-swinging and unobstructed, with illuminated exit signage and low-level lighting for power-loss scenarios. Provide dedicated space for arc-flash PPE and insulated tools near the entrance, not deep in the room. I maintain arc-flash labels at eye level and reserve a clear staging area for lockout devices and permit paperwork to reduce risky improvisation during outages.

Materials, Durability, and Cleanability

Floors must be hardwearing, anti-static, and easy to clean—conductive or dissipative finishes where required by equipment. Wall protection at tray heights prevents scuffs; light-matte finishes reduce glare and make dust visible for housekeeping. Select materials with low VOCs to protect electronics and staff; WELL v2 includes provisions for material emissions that also improve occupant experience, even in technical rooms.

Commissioning, Testing, and Documentation

I schedule a commissioning pass that verifies airflow, illuminance levels, emergency lighting autonomy, labeling completeness, and clearance conformity. I keep an annotated as-built—tray elevations, penetrations, and spare capacities—so future retrofits don’t become disruptive surgeries. A small wall-mounted board tracking spare buckets, tray fill percentages, and last thermal scan date keeps the space honest.

Trends Shaping MCC Rooms (2024–2025)

- Higher VFD density demands better cooling and harmonic mitigation zones

- Hybrid operations require quick dock points for portable diagnostic gear

- Sensor-led condition monitoring drives more data cabling—plan segregated pathways

- Improved ergonomics and controllable lighting support faster, safer interventions

- Modular MCC sections for phased plant upgrades with minimal downtime

FAQ

What lighting level should I target in an MCC room?

Aim for 300–500 lux at working height with neutral-white (around 4000 K) and good glare control. This aligns with IES task lighting guidance and supports accurate color recognition for wiring.

How much clearance do I need in front of MCC lineups?

Common practice is 36–48 inches depending on voltage, equipment condition, and local code. Always confirm with your electrical code and manufacturer maintenance envelopes, and preserve egress path width.

How do I manage heat from VFD-heavy installations?

Quantify heat loads from equipment losses, then size HVAC to maintain manufacturer-recommended temperatures (often 20–30°C). Use directed supply/return placement to sweep heat sources and avoid recirculation hot spots.

What’s the best way to separate power and control cabling?

Use tiered trays with metallic dividers: power at top, control below, and data/fiber segregated. Maintain bend radii, label trays, and reserve 20–30% spare capacity for future runs.

How can I reduce noise in an MCC room?

Specify insulated doors, vibration isolation for mechanical equipment, and sealed acoustic wall panels suited to industrial hygiene. Where possible, locate noisy auxiliaries in an adjacent service alcove.

What ergonomics matter for technicians?

Provide clear sightlines to indicators, standardized label heights, anti-glare lighting, and a standing-height HMI station (about 42–44 inches to center). Keep benches and tools outside required electrical clearances.

How do I plan for future expansion?

Reserve wall space and tray capacity, leave at least one bucket column for growth, and maintain a clear path for moving new sections. Use a layout simulation tool to test alternative placements before committing.

What environmental controls should I include?

Maintain 40–60% RH where feasible, use positive pressurization with filtered air, and specify corrosion-resistant finishes for harsh environments. Gasketed cabinets and easy-access filters help in dusty or chemical settings.

Do I need special flooring?

Use durable, anti-slip, and easy-to-clean floors; consider conductive or dissipative finishes if static control is required by your equipment. Light-matte tones help with visibility and reduce glare.

How should I organize documentation and LOTO gear?

Place arc-flash PPE, insulated tools, and LOTO devices near the entrance with a dedicated staging area. Mount a board tracking spare buckets, tray fill, and last thermal scan to maintain discipline.
