MCC Room Full Form in Interior Design: What Does It Mean?: 1 Minute to Understand the Role of an MCC Room in Building Design

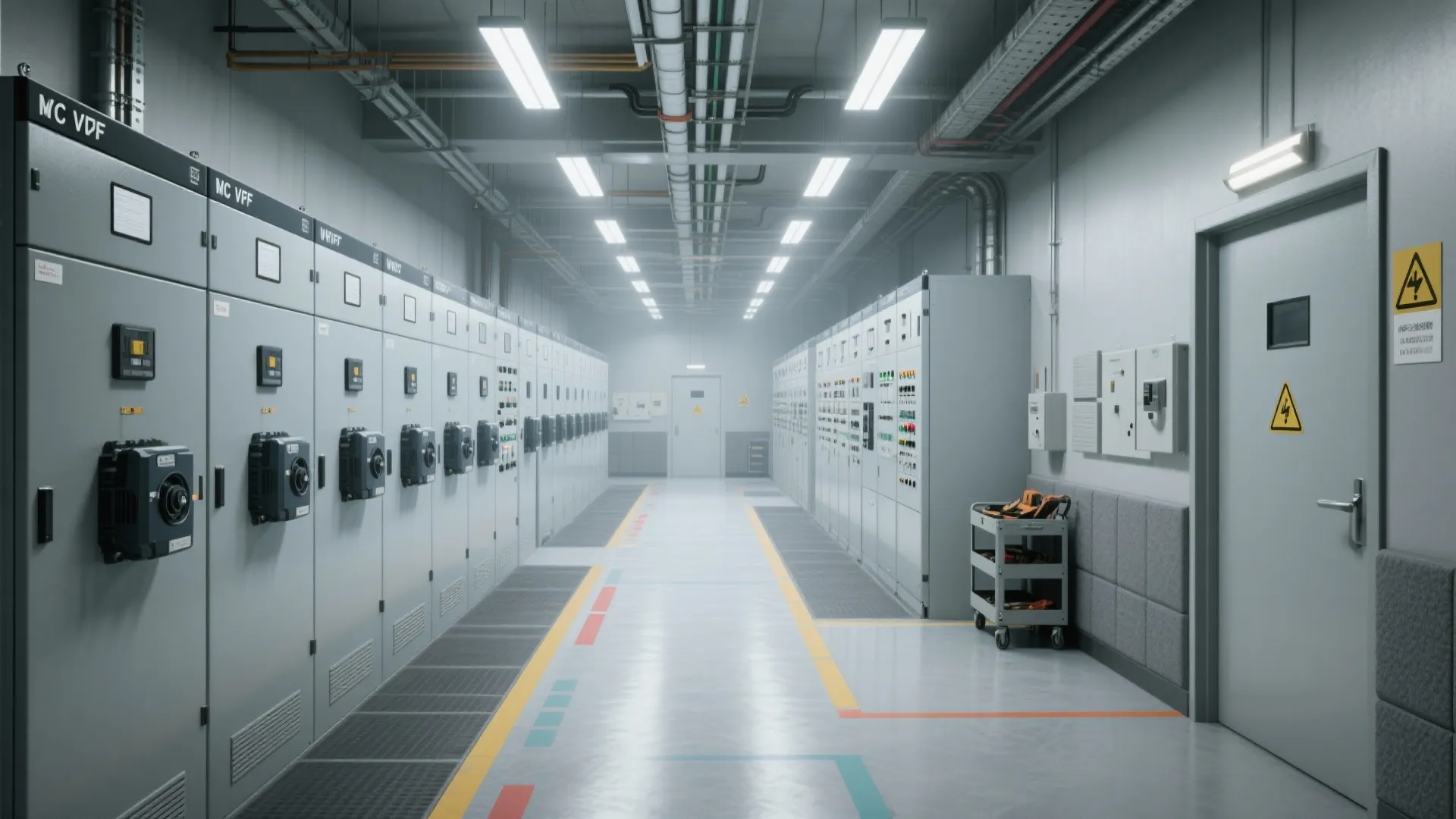

MCC Room stands for Motor Control Center Room. In interior design and building planning, it is the dedicated space housing motor control center assemblies—switchgear, starters, variable frequency drives, breakers, and protective relays that distribute and control power to mechanical systems like HVAC, pumps, and fans. While it looks like a purely engineering domain, the interior designer’s role is vital: spatial planning, circulation, finishes, lighting, acoustics, and human factors all determine how safely and efficiently technicians can operate and maintain the equipment.

Safety and performance benchmarks guide its design. WELL v2 references promote reduced noise exposure (≤55 dBA in focus areas, often used as a target threshold when adjacent to occupied rooms) and improved lighting quality for task visibility. Steelcase research links poor environmental quality to higher error rates and lower productivity; in technical rooms, glare and poor color rendering can cause misreading of labels and instrumentation. IES task lighting guidance supports balanced illuminance and color rendering to reduce visual fatigue and mistakes during maintenance.

From operational data, facility teams report that clear egress routes and labeled cable trays cut troubleshooting time significantly. Herman Miller’s workplace studies note that well-organized spaces improve cognitive clarity—translating here to faster, safer interventions during outages. In practice, I aim for 1.2–1.5 m clear working aisles in front of MCC sections, dedicated turning radii for carted tools, and consistent floor markings aligning with emergency egress paths. When laying out equipment rows, a room layout tool can help visualize clearances and future expansion potential: layout simulation tool.

MCC Room: Core Purpose and Components

The MCC Room centralizes electrical control for motors. Typical components include lineups of MCC buckets, VFDs, soft starters, protective relays, control panels, and switchboards. Mechanical ventilation, cable trays, grounding bars, and fire-stopping assemblies complete the infrastructure. Designers coordinate structural loading, floor anchorage, and door sizes to accommodate equipment transport and replacement cycles.

Spatial Ratios, Circulation, and Accessibility

I plan for dual-sided access when equipment depth exceeds 800–900 mm, maintaining working clearances in line with manufacturer instructions and local codes. Aisles should remain unobstructed, with pathway color coding to separate emergency egress from operational zones. Spatial rhythm matters: rack alignments, sightlines to panels, and consistent labeling reduce cognitive load and error risk during high-pressure events.

Light Environment: Illuminance, Color, and Glare Control

Technicians need luminance-balanced task lighting with minimal veiling reflections. I follow IES recommendations for utility and task areas, targeting 300–500 lux general ambient with supplemental task lighting at panels. Color temperature around 4000K–5000K supports visual acuity; high CRI (≥80) helps read cable colors and terminal markings. Shielded fixtures and matte finishes on adjacent surfaces limit specular glare.

Acoustic Comfort and Vibration

MCC Rooms can generate tonal noise from cooling fans and VFDs. Where adjacency to offices or meeting rooms is inevitable, I apply acoustic zoning—dense gypsum assemblies, resilient channels, and sealed penetrations—plus vibration isolation pads for racks. Keeping the room under 65 dBA during typical operation mitigates fatigue for maintenance staff and reduces bleed-through to neighboring spaces.

Ergonomics and Human Factors

Controls at 900–1200 mm height, readable typographic hierarchy at panels, and consistent cable labeling are small details that make daily maintenance safer. I use high-contrast signage, tactile cues at floor boundaries, and logical panel sequencing (from incoming to outgoing) to support intuitive workflows. Tool stations and PPE storage near entry points cut unnecessary travel.

Material Selection and Safety

Non-slip, anti-static flooring—often conductive or static-dissipative vinyl—reduces ESD risk and improves traction. Walls and ceilings should be smooth, cleanable, and resistant to dust accumulation. Fire-rated doors with appropriate hardware, intumescent seals around cable penetrations, and clearly marked emergency shutoffs are standard. Sustainability touches include low-VOC coatings and durable materials to minimize replacement cycles.

Thermal Management and Ventilation

Heat loads from MCC lineups and VFDs require dedicated HVAC or mechanical ventilation. I coordinate with MEP engineers to provide adequate airflow, filtration, and redundancy; temperature stability prolongs equipment life. Avoid placing MCC Rooms near wet areas or direct exterior exposure to mitigate humidity and corrosion.

Layout Planning and Future Flexibility

Plan for expansion by reserving wall space and bus capacity; use modular rack spacing with clear maintenance aisles. Before finalizing, simulate transport paths from loading dock to MCC Room, including turns, door widths, and slab capacities. For visualizing aisle widths and panel sequencing, an interior layout planner like this room layout tool speeds iterations.

Color Psychology and Visual Balance

While MCC Rooms stay utilitarian, color still matters. Neutral, low-saturation hues reduce visual noise; high-visibility accents (yellow, orange) mark hazard zones and emergency pathways. Balanced contrast on labels and panels supports fast recognition under variable lighting.

Coordination with Codes and Standards

Coordinate with electrical codes, fire safety provisions, and accessibility requirements. Follow manufacturer clearances and local authority guidance on working space and egress. WELL v2 provisions on lighting and noise, plus IES standards for task illumination, offer useful targets that improve human performance without over-design.

Common Pitfalls I Avoid

Underestimating heat loads, crowding aisles with storage, placing panels opposite reflective walls, ignoring acoustic bleed-through, and leaving no pathway for equipment replacement are the usual culprits. Early multidisciplinary coordination prevents expensive rework.

FAQ

What does MCC Room stand for?

MCC Room means Motor Control Center Room—the dedicated space for controlling and distributing power to building motors such as HVAC fans and pumps.

How bright should an MCC Room be?

I target 300–500 lux ambient with glare-controlled task lighting at panels, following IES task-area guidance for safe visibility.

Which color temperature works best?

Neutral to cool white (4000K–5000K) supports crisp reading of labels and wiring while avoiding eye strain.

What aisle clearances are recommended?

Maintain clear working aisles of about 1.2–1.5 m in front of MCC sections, adjusted to manufacturer and local code requirements.

How do I manage noise?

Use acoustic partitions, sealed penetrations, and vibration isolation. Aim to keep typical operation under roughly 65 dBA, and protect adjacent offices from tonal noise.

Which flooring is appropriate?

Anti-slip, static-dissipative vinyl or conductive flooring reduces ESD risk and improves safety during maintenance.

Is color important in a technical room?

Yes. Neutral palettes reduce visual clutter; high-visibility accents mark hazards and routes. Good contrast on labels improves speed and accuracy.

How do I plan for future expansion?

Reserve wall space, maintain modular rack spacing, and simulate transport routes. Use a room design visualization tool to test layouts and clearances.

Are there human-centered standards to reference?

WELL v2 provides guidance on lighting quality and acoustic comfort, while IES standards inform illuminance and glare control for task areas.

What are common mistakes to avoid?

Overheating due to insufficient ventilation, cramped aisles, poor glare control, and lack of replacement pathways. Early coordination prevents these issues.
