Direct Answer

Clinic, hospital, and outpatient center floor plans differ primarily in scale, circulation complexity, and infrastructure requirements. Clinics focus on efficiency and fast patient turnover, hospitals prioritize capacity and critical care infrastructure, while outpatient centers sit in between—optimized for high-volume procedures without overnight stays.

The best medical building layout depends on patient flow, equipment needs, staffing model, and long‑term expansion plans.

Quick Takeaways

1. Clinic layouts prioritize compact exam clusters and short patient travel distances.
2. Hospitals require layered circulation, specialized departments, and heavy infrastructure.
3. Outpatient centers balance efficiency with surgical or diagnostic capacity.
4. Patient flow design often matters more than square footage.
5. Choosing the wrong model can double operational inefficiencies.

Introduction

In my experience designing healthcare interiors over the past decade, the biggest mistake people make with a medical building floor plan is assuming every healthcare facility works the same way. It doesn't.

A clinic, a hospital, and an outpatient center may all treat patients, but the way people move through those spaces—and the infrastructure supporting them—is completely different. I've worked on projects where a layout designed like a small clinic was later forced to support surgical procedures. The result? Congested corridors, inefficient staff movement, and costly renovations only a few years later.

Before finalizing any healthcare facility layout, it's critical to understand how each model actually operates in practice. If you're still early in the planning stage, it's helpful to review examples of visual medical floor layout concepts used during early facility planningto see how departments, circulation, and support zones interact.

This guide breaks down the real differences between clinic, hospital, and outpatient center layouts—from space allocation and patient flow to infrastructure demands and hidden design tradeoffs.

save pin

Key Differences Between Clinic, Hospital, and Outpatient Facility Layouts

Key Insight: The core difference between healthcare facility layouts is operational complexity, not just building size.

Many people assume hospitals are simply larger clinics. In reality, hospitals operate as layered systems of departments, circulation networks, and critical infrastructure.

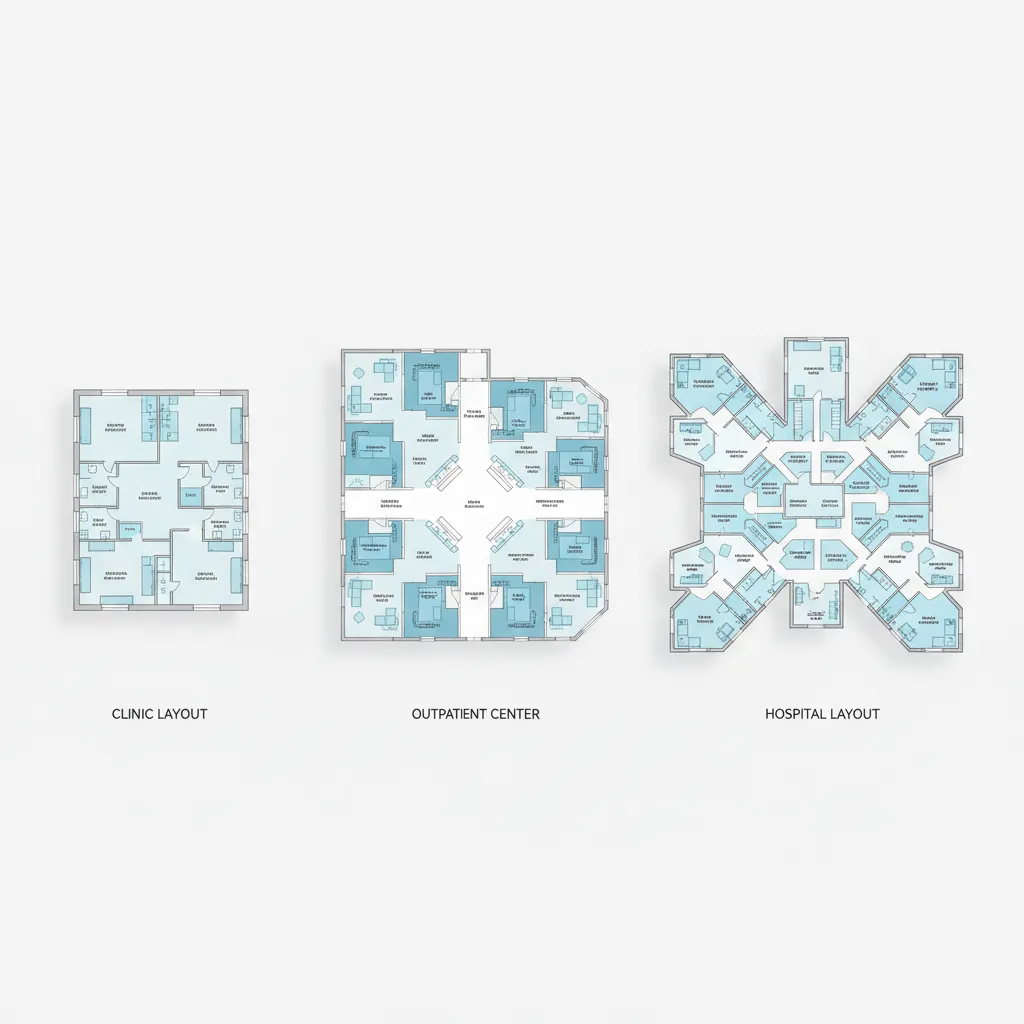

Here is how the three layout models typically compare:

1. Clinic Layout – Focused on consultation rooms, waiting areas, and quick turnover.
2. Outpatient Center – Designed for diagnostic imaging, minor procedures, and ambulatory surgery.
3. Hospital – Multi‑department ecosystems including emergency care, surgery, inpatient wards, labs, and imaging.

Typical layout characteristics:

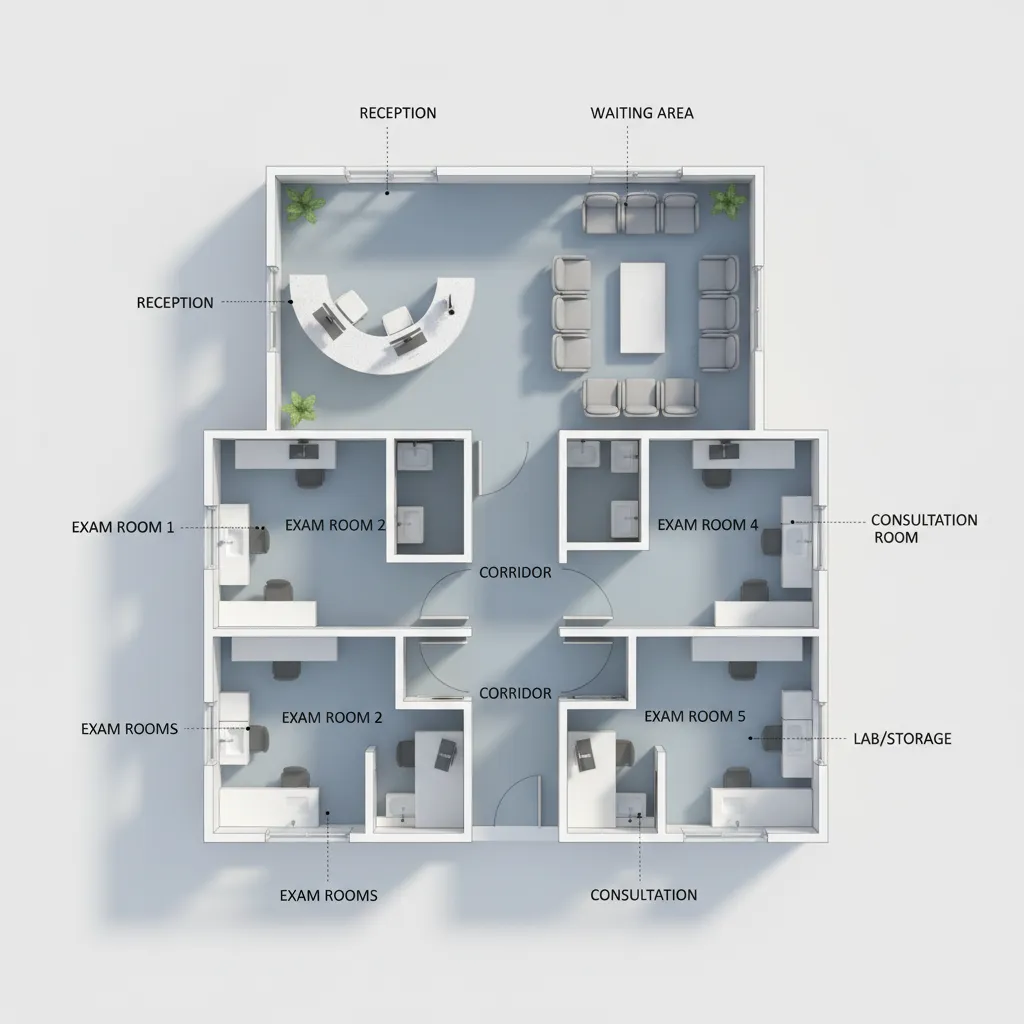

1. Clinics often cluster exam rooms around a central staff station.

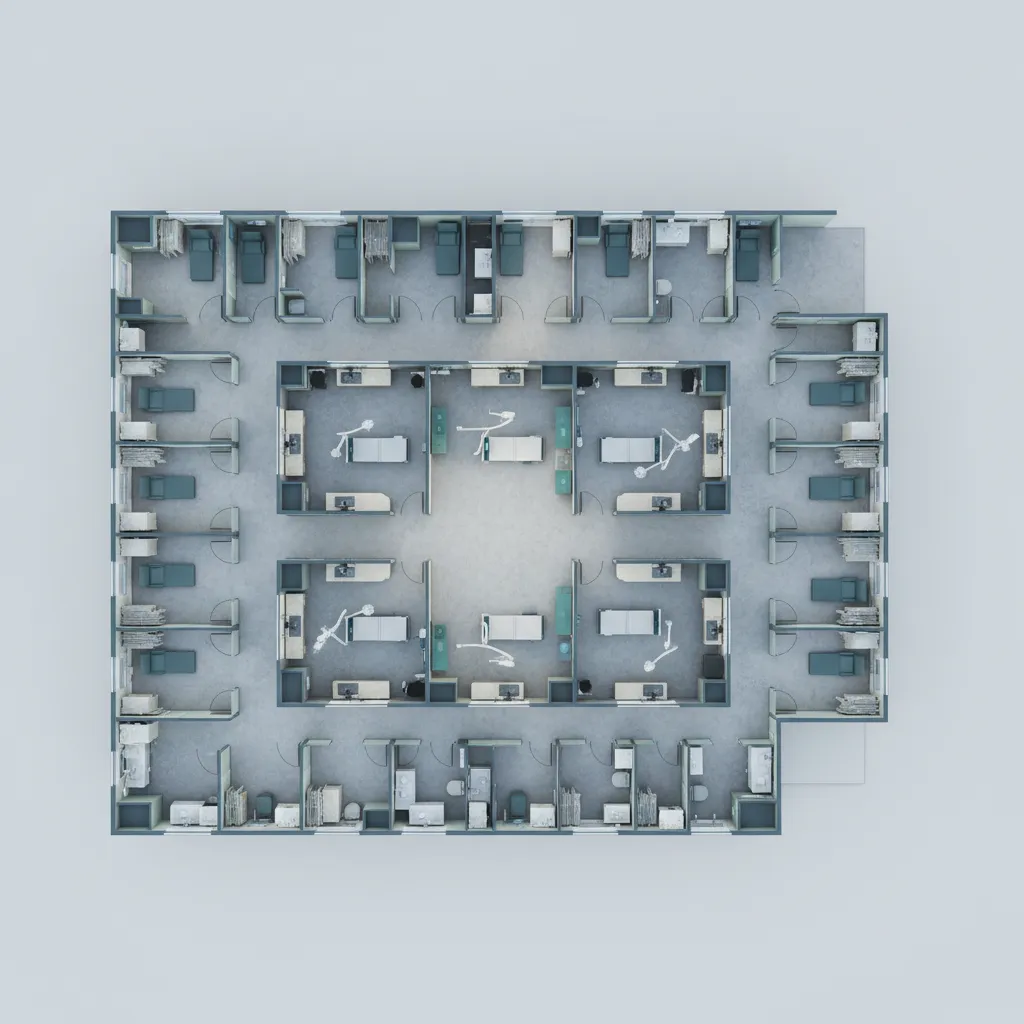

2. Outpatient centers separate prep, procedure, and recovery zones.

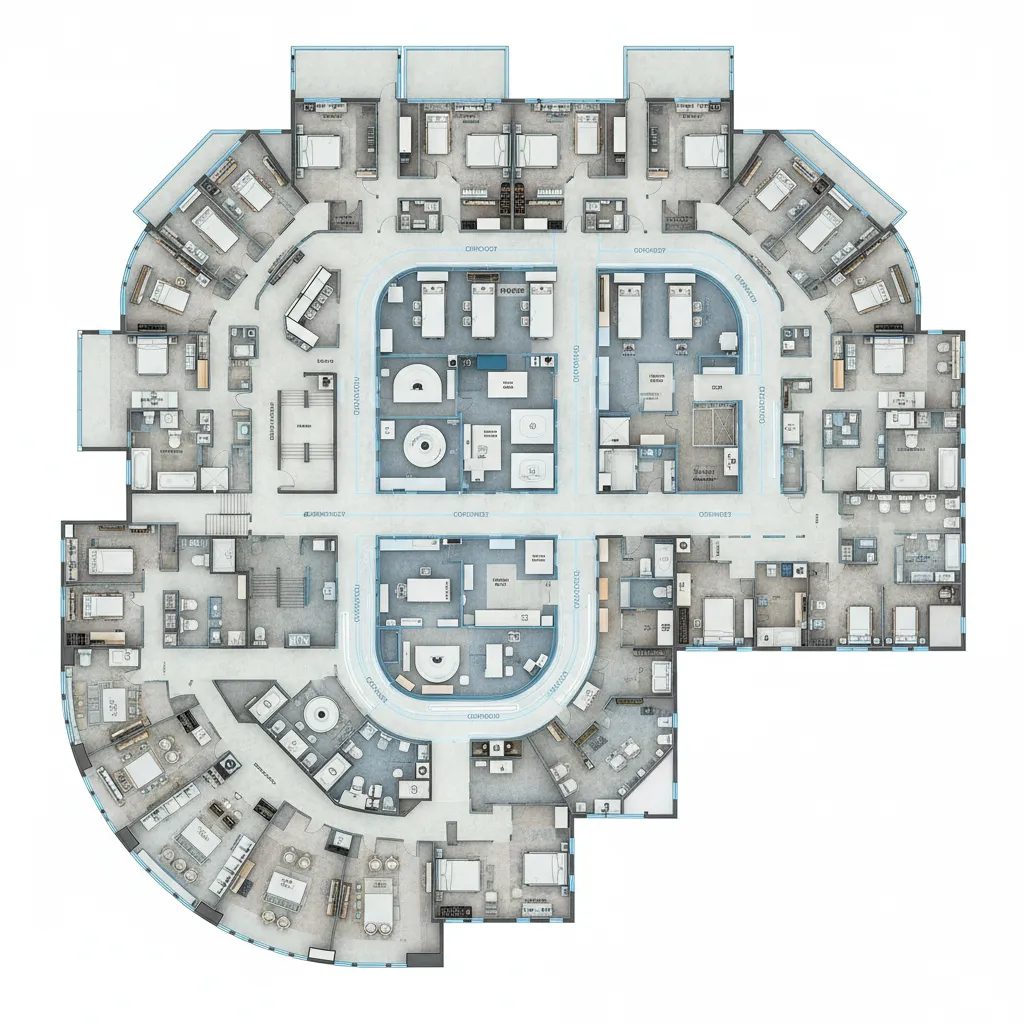

3. Hospitals require multiple circulation paths for patients, staff, supplies, and emergencies.

Healthcare architecture research from the Facility Guidelines Institute emphasizes that separating circulation streams significantly improves infection control and operational efficiency in larger hospitals.

Typical Space Allocation for Each Medical Building Type

Key Insight: Space distribution shifts dramatically depending on the facility's treatment intensity.

When I review early planning documents, the most revealing metric is how square footage is allocated—not the total size.

Typical planning ratios look like this:

1. Clinics: 40–60% exam and consultation rooms
2. Outpatient Centers: 30–40% treatment or procedure rooms
3. Hospitals: large allocation for inpatient rooms, surgical suites, imaging, and support services

Example departmental priorities:

1. Clinics: reception, exam pods, small labs
2. Outpatient centers: operating rooms, prep/recovery, diagnostics
3. Hospitals: emergency departments, ICU, imaging centers, operating theaters

Early-stage planning tools that allow teams to quickly draft and test healthcare facility floor plan optionsare useful because these ratios often shift several times before construction.

save pin

Patient Flow and Staff Workflow Variations

Key Insight: The most successful healthcare layouts are designed around movement patterns rather than room placement.

In smaller clinics, patient and staff circulation often overlaps. In hospitals, separating those flows becomes critical for efficiency and safety.

Common flow patterns include:

1. Clinic flow: Reception → Waiting → Exam Room → Checkout
2. Outpatient flow: Registration → Prep → Procedure → Recovery → Discharge
3. Hospital flow: Emergency or Admission → Diagnostics → Treatment → Inpatient Unit

Design teams often overlook one hidden factor: staff travel distance. Studies published in the Health Environments Research & Design Journal show nurses in poorly planned units can walk several miles per shift.

Strategic zoning and clear department adjacency dramatically reduce those inefficiencies.

save pin

Equipment and Infrastructure Requirements

Key Insight: Infrastructure—not architecture—is what often determines the final layout of a healthcare facility.

Medical equipment dictates ceiling heights, mechanical systems, structural loads, and room adjacency.

Examples include:

1. MRI rooms requiring magnetic shielding and vibration control
2. Operating rooms needing sterile airflow systems
3. Hospital ICUs requiring extensive medical gas lines

Infrastructure intensity by facility type:

1. Clinics: minimal specialized mechanical systems
2. Outpatient centers: moderate infrastructure for surgery and imaging
3. Hospitals: extensive infrastructure and redundancy systems

This is why hospitals often allocate entire mechanical floors or large service corridors that smaller clinics simply do not need.

Which Layout Model Fits Your Healthcare Project?

Key Insight: The correct medical building layout is determined by service scope, not projected patient numbers.

I've seen facilities with relatively small patient volumes still require outpatient surgery layouts because of the complexity of procedures offered.

Ask these planning questions:

1. Will procedures require recovery rooms?
2. Are imaging services part of the facility?
3. Will the building support overnight stays?
4. Do departments require sterile corridors?

Many design teams now prototype layouts using tools that help them experiment with medical room arrangements and circulation layouts before committing to construction documents.

Common Design Tradeoffs Between Efficiency and Capacity

Key Insight: Healthcare layouts always involve tradeoffs between operational efficiency and long‑term expansion capacity.

One common mistake I see in new outpatient facilities is designing only for current patient volumes. Healthcare demand tends to grow quickly, and layouts without expansion zones become difficult to adapt.

Typical tradeoffs include:

1. More exam rooms vs larger waiting areas
2. Compact circulation vs future department expansion
3. Centralized staff stations vs decentralized pods

Experienced healthcare architects usually design "soft space"—areas that can later convert into clinical rooms as demand increases.

Answer Box

The difference between clinic, hospital, and outpatient center floor plans comes down to operational complexity. Clinics focus on efficient consultations, outpatient centers support procedures without overnight stays, and hospitals require multi‑layered infrastructure and departmental zoning.

Final Summary

1. Clinic layouts prioritize efficiency and rapid patient turnover.
2. Outpatient centers balance procedure capacity with operational efficiency.
3. Hospitals require complex circulation and infrastructure systems.
4. Patient and staff flow design heavily impacts operational performance.
5. Future expansion should always influence early layout planning.

FAQ

What is the main difference between a clinic and hospital floor plan?

Clinic layouts focus on exam rooms and efficiency, while hospital floor plans include inpatient wards, surgical suites, emergency departments, and complex infrastructure systems.

How is an outpatient center layout different from a hospital?

An outpatient center layout supports procedures and diagnostics but typically excludes overnight patient accommodation and large emergency departments.

What is the best layout for outpatient medical centers?

The best layout clusters prep, procedure, and recovery spaces while maintaining clear patient circulation and efficient staff access.

Do clinics need complex infrastructure systems?

Most clinics only require standard HVAC and medical gas lines. Advanced imaging or surgical services increase infrastructure needs.

How many exam rooms should a clinic floor plan include?

A common ratio is 2–3 exam rooms per physician to maintain steady patient flow.

Why is patient flow important in healthcare facility design?

Efficient flow reduces waiting times, improves staff productivity, and supports infection control protocols.

Can a clinic layout be converted into an outpatient center?

Sometimes, but infrastructure upgrades—especially for surgical suites or imaging—can make conversion expensive.

What software helps design medical building layouts?

Many architects use 3D planning tools to test room adjacency, circulation paths, and equipment placement before finalizing drawings.
