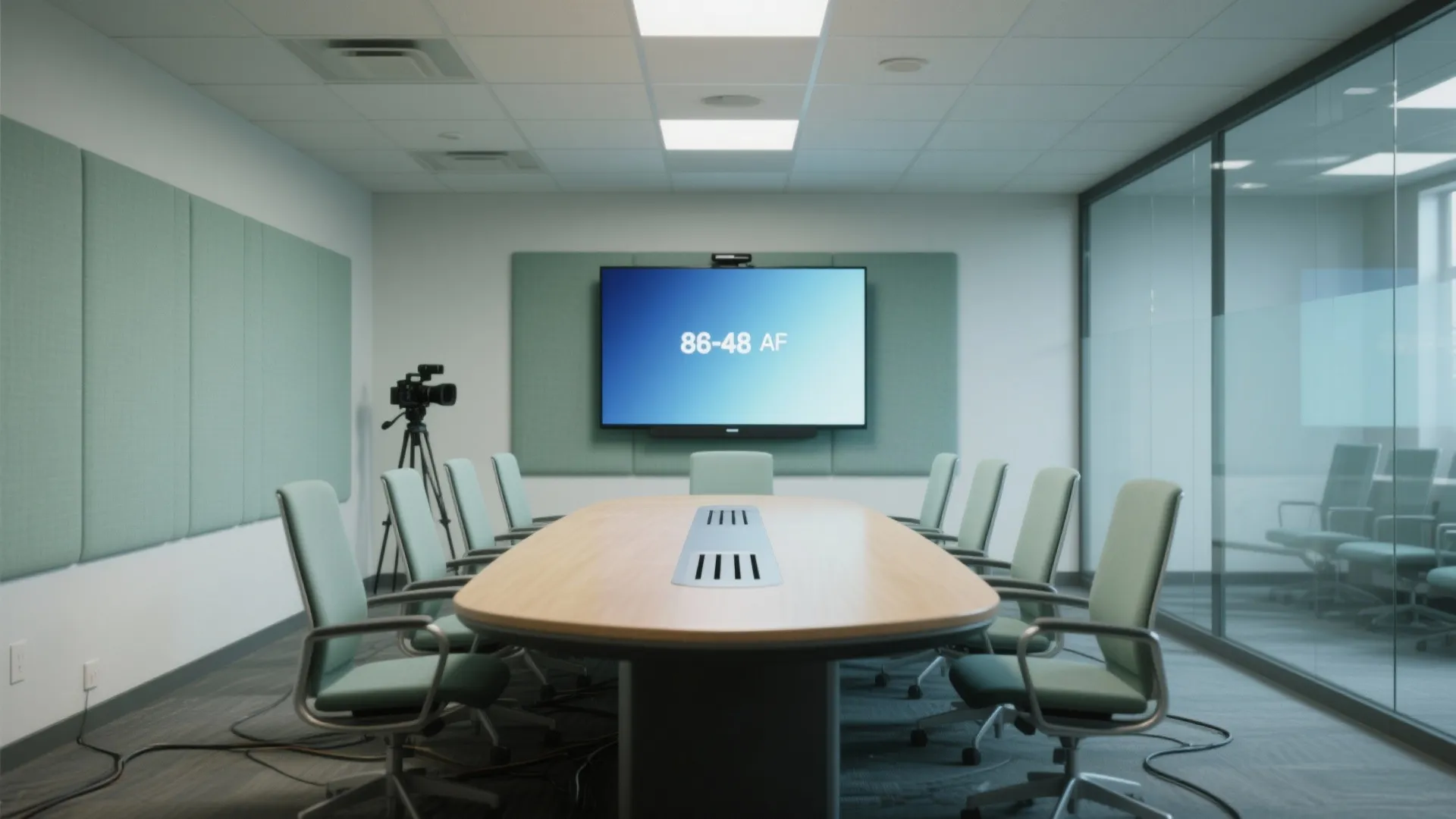

Meeting Room Standard Size: Everything You Need to Know: Fast-Track Guide to Choosing the Ideal Meeting Room Layout

I’ve planned more meeting rooms than any other single space type in my career, and the lesson is consistent: size follows behavior. The right footprint balances seated capacity, sightlines, acoustics, and circulation—not just a round number on a plan. As a starting point, small focus rooms typically work at 50–80 sq ft (4.6–7.4 sq m) for 2–4 people, while a standard project-room or huddle space lands at 120–160 sq ft (11–15 sq m) for 4–6 people. For formal meetings, a 10–12 person room generally requires 220–320 sq ft (20–30 sq m), and boardrooms for 16–20 attendees often range from 400–600 sq ft (37–56 sq m). These ratios ensure each person has adequate personal space and that the table-to-wall distances allow comfortable movement.

Space isn’t only about headcount. Research from Steelcase indicates small meetings (2–4 participants) account for a significant share of collaboration events in modern offices, driving demand for smaller, video-ready rooms. Meanwhile, WELL v2 promotes minimum 500 lux average horizontal illuminance for regularly occupied work areas and highlights glare control and acoustic privacy to reduce cognitive load—critical in rooms where people need to digest complex information. These benchmarks guide not just the footprint but also ceiling height, lighting layers, and finishes that minimize echo and visual fatigue. For planning standards and design performance guidelines that affect meeting rooms, Gensler’s workplace research and WELL v2 resources offer useful data points.

Core Dimensions and Seating Ratios

My baseline rule is 25–30 sq ft (2.3–2.8 sq m) per person for rooms with fixed tables and display walls. That allocation covers seat width, pushback distance (30–36 in/760–915 mm), a 36–42 in (915–1065 mm) circulation band behind chairs, and clear access to doors and technology. For flexible rooms without a fixed table, 18–22 sq ft (1.7–2.0 sq m) per person can work, but only with stackable chairs and movable displays. A standard 10-person table often measures 120–144 in long by 48–54 in wide (3050–3660 x 1220–1370 mm); add a minimum of 36 in (915 mm) around the perimeter for clearance.

Ceiling Height, Sightlines, and Display Placement

Ceiling height influences both acoustics and visual comfort. I aim for 9–10 ft (2.7–3.0 m) clear height in most meeting rooms, especially those using pendant lighting or video conferencing bars. For display walls, keep the screen centerline roughly 42–48 in (1065–1220 mm) above finished floor for seated viewing. Screen diagonal typically scales with room depth: a 65–75 in display suits rooms with viewing distances of 10–14 ft (3.0–4.3 m), while 85–98 in works in larger rooms at 15–20 ft (4.6–6.1 m). Maintain a 30°–36° vertical viewing angle maximum to limit neck strain and reduce glare.

Door Swing, Circulation, and Accessibility

Clear circulation is where meeting rooms often fail. For a 10–12 person room, provide at least one 36 in (915 mm) barrier-free path from door to table edge and onward to seating. If doors swing inward, hold the table back to maintain a 4–5 ft (1220–1525 mm) landing area inside. Keep light switches and touch panels between 40–48 in (1015–1220 mm) high. I avoid corner doors in medium rooms because they compress pathways; a centered wall door often yields better flow. When planning layout, a room layout tool can quickly validate table size, chair clearance, and door swing impacts.

room layout tool

Acoustic Comfort: RT60 and Background Noise

Conversation intelligibility depends on reverb time (RT60) and background noise. Target an RT60 of 0.4–0.6 seconds in small to medium rooms. That’s achievable with a mix of absorptive ceiling tiles (NRC 0.70+), fabric wall panels, and soft flooring. Keep mechanical noise below NC-30 for standard conference use and NC-25 for video-heavy rooms. A simple rule: at least two major absorptive surfaces (ceiling + one wall) and one diffusive surface to prevent flutter echo. Locate microphones away from supply diffusers and choose table microphones if ceiling height or pendant geometry creates reflection issues.

Lighting Layers: Task, Ambient, and Glare Control

Meeting rooms benefit from layered lighting. Provide ambient illumination at 300–400 lux and ensure task lighting at tables reaches 500 lux when needed, aligning with WELL v2 guidance for regular work areas. Color temperature between 3500–4000K keeps faces natural on camera while maintaining alertness. Use indirect uplight or lens-diffused fixtures to reduce direct glare; add wall washers to balance luminance on display walls and avoid high-contrast hotspots. Dim-to-warm fixtures can soften the mood for ideation sessions, and vertical illuminance on faces (150–300 lux) improves video quality.

Table Geometry, Ergonomics, and Equity of Eye Contact

Rectangular tables favor presentations; oval or boat-shaped tables improve sightlines and equalize reach. For laptops, allow 24–30 in (610–760 mm) per seat width and maintain 18 in (460 mm) minimum elbow clearance between adjacent users. When cameras are centered on the short side of a rectangular room, boat-shaped tables help place remote participants in a natural focal line. Avoid seating directly against display walls; a 36–42 in (915–1065 mm) buffer reduces neck rotation and keeps cables clear.

Technology Integration and Cable Management

At 10–12 seats, a single central cable trough may be enough; beyond 14 seats, add dual troughs or a perimeter floor box grid at 6–8 ft (1.8–2.4 m) intervals. Keep device reach within 30 in (760 mm) and avoid trip hazards by routing under the table with brush grommets. Mount cameras at eye height and ensure the first seating row is at least 6–7 ft (1.8–2.1 m) from the camera for flattering angles. Where ceiling microphones are used, coordinate with acoustic treatment to minimize early reflections.

Color Psychology and Material Selection

Muted greens and soft blues support calm focus; warm neutrals lower visual noise and help skin tones on video appear natural. High-chroma accents should be limited to 10–15% of the field of view to avoid distraction. For materials, prioritize low-VOC paints, FSC-certified wood, and recycled content carpet tiles to support air quality and sustainability goals. Matte finishes on the display wall reduce specular reflection; light reflectance values (LRV) around 50–60 on the display wall balance contrast.

Proportion, Spatial Rhythm, and Balance

Good rooms feel composed. Align table centerlines with fixture grids and camera axes. Keep major wall features in thirds to guide sightlines: display wall on one third, storage or whiteboard on another, and a clean acoustic panel zone on the third. Symmetry helps in formal spaces; asymmetry can suit project rooms where pinup and writable surfaces dominate one side. Maintain at least 18–24 in (460–610 mm) from chair backs to walls at full pushback—this is the comfort margin that prevents bumps and allows side-step movements.

Typical Size Matrix

- 2–4 people: 50–80 sq ft (4.6–7.4 sq m); small round or rectangular table (36–48 in diameter/width).

- 4–6 people: 120–160 sq ft (11–15 sq m); 72–96 x 42–48 in table.

- 8–10 people: 180–240 sq ft (17–22 sq m); 96–120 x 48–54 in table.

- 10–12 people: 220–320 sq ft (20–30 sq m); 120–144 x 48–54 in table.

- 16–20 people: 400–600 sq ft (37–56 sq m); 168–240 x 54–60 in table or modular sections.

Planning Workflow and Layout Simulation

Start with headcount scenarios and preferred meeting modes (presentation, workshop, hybrid). Map table geometry to camera position and display size. Test reach, viewing angles, and door swing in an interior layout planner to uncover pinch points before construction. This is where layout simulation tools help validate clearances and ensure furniture spec matches the room shell.

interior layout planner

FAQ

Q1. What is the minimum size for a 6-person meeting room?

A 6-person room functions well at 120–160 sq ft (11–15 sq m) with a 72–96 x 42–48 in table and 36 in perimeter clearance.

Q2. How much space should I allow per person?

Allocate 25–30 sq ft (2.3–2.8 sq m) per person for fixed-table rooms to cover seating, pushback, and circulation.

Q3. What lighting levels are appropriate?

Provide 300–400 lux ambient and reach 500 lux task lighting at the tabletop. Keep color temperature around 3500–4000K for natural skin tones on video.

Q4. How large should the display be?

Match display size to viewing distance: 65–75 in for 10–14 ft viewing; 85–98 in for 15–20 ft. Centerline at 42–48 in above floor for seated viewing.

Q5. What are recommended acoustic targets?

Aim for RT60 of 0.4–0.6 s and background noise under NC-30. Use absorptive ceilings (NRC 0.70+), fabric panels, and soft flooring.

Q6. Which table shape works best for hybrid meetings?

Boat-shaped or oval tables improve sightlines and equalize eye contact, especially with a camera centered on the short wall.

Q7. How wide should circulation be behind chairs?

Maintain 36–42 in (915–1065 mm) clear behind chairs to allow pass-through and reduce bumping during ingress/egress.

Q8. What ceiling height do you recommend?

Target 9–10 ft (2.7–3.0 m) clear height for comfortable acoustics, better lighting distribution, and clean camera placement.

Q9. How do I prevent glare on screens?

Use indirect or lens-diffused luminaires, add wall washing on the display wall, and keep matte finishes with balanced LRV (50–60) on the screen wall.

Q10. What sustainability choices matter in meeting rooms?

Low-VOC finishes, FSC-certified wood, recycled-content carpet tiles, and high-efficiency LED fixtures reduce emissions and energy loads.

Q11. Where should the camera be mounted?

Mount at eye height on the short wall with the table centered; keep the first seating row 6–7 ft from the camera for natural framing.

Q12. Do smaller rooms really get used more?

Many organizations report high demand for 2–4 person rooms aligned with hybrid work patterns, as reflected in workplace research by firms like Steelcase.
