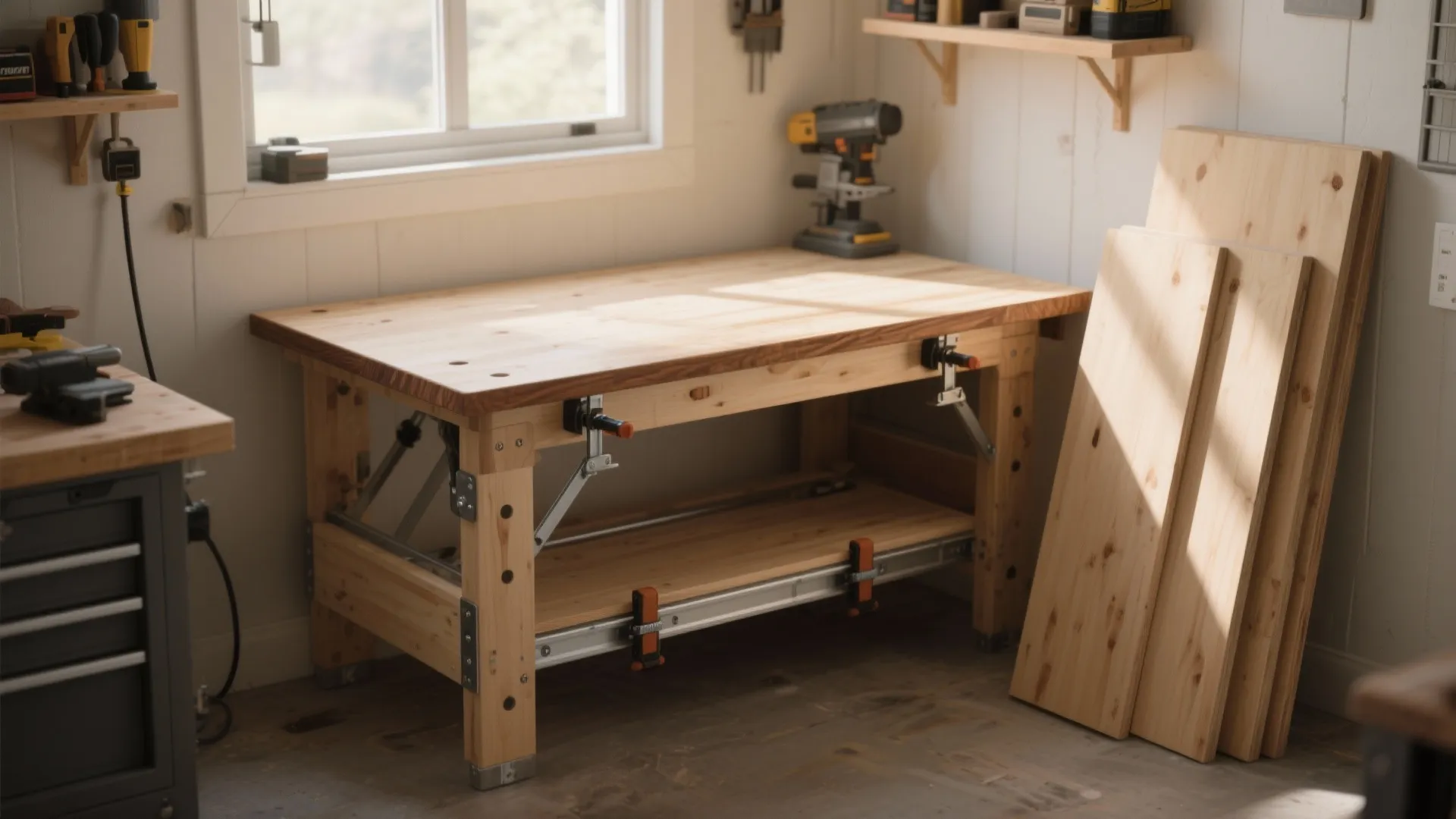

MFT Table DIY: 5 Smart Workshop Ideas: Practical, space-saving and budget-friendly MFT table DIY inspirations I’ve used in real projects

I once built an MFT table on a Thursday night and accidentally used it as a temporary dining table for Saturday dinner—yes, the guests loved the clamps. That little disaster taught me one thing: multifunctional builds win, and small clever choices can make a workbench feel like a thoughtful piece of furniture. If you’re planning an MFT table in a tight workshop, start by visualizing tight layouts so your table actually fits and lets you move freely.

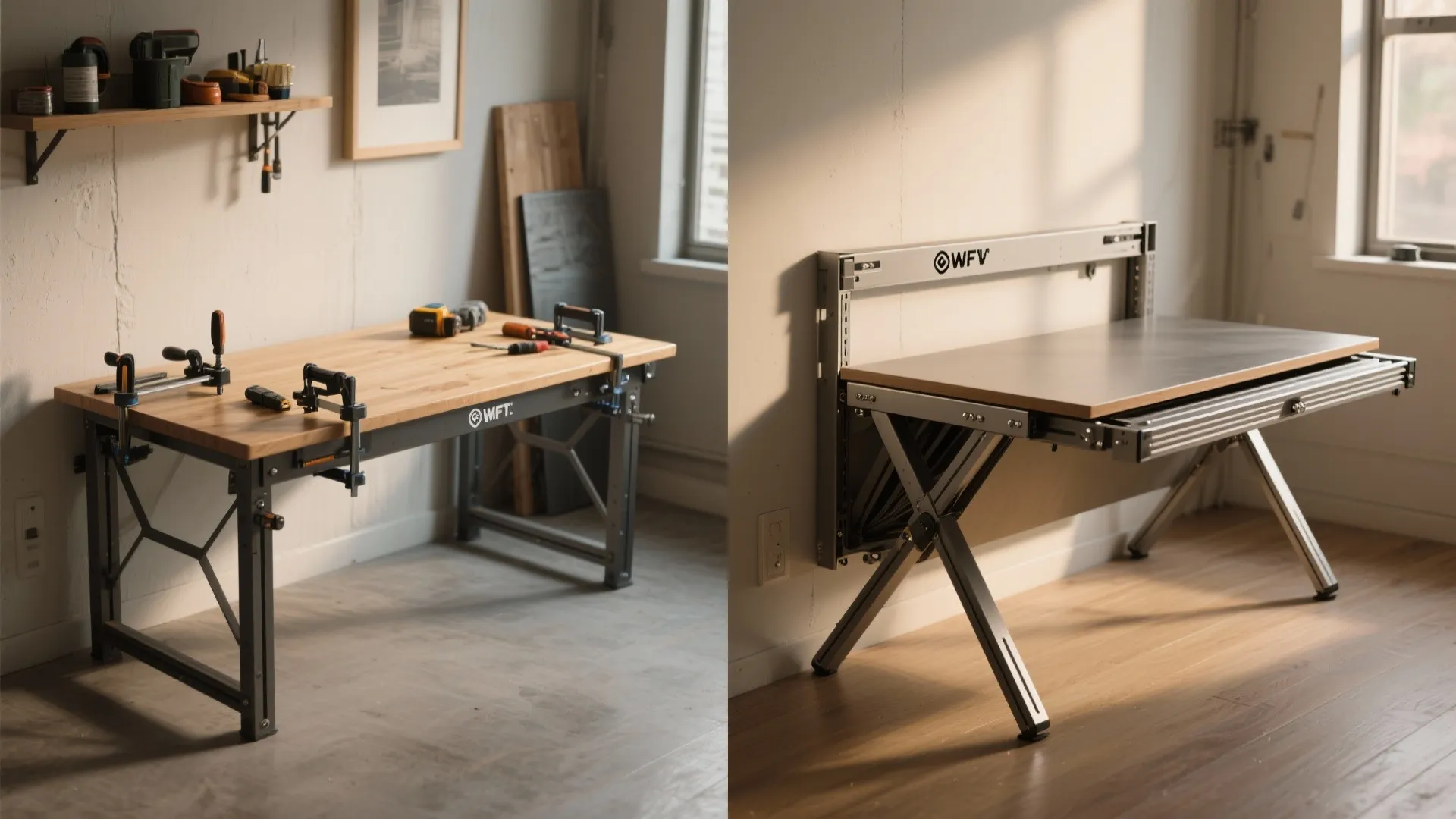

1. Compact folding base for tiny shops

I designed folding legs for an MFT when a client had only two meters of clear floor. The table folds flat against a wall so the room transforms in seconds—great for multipurpose spaces. The trade-off is slightly more complexity in the hinge hardware, but it’s worth it if floor space is precious.

save pin

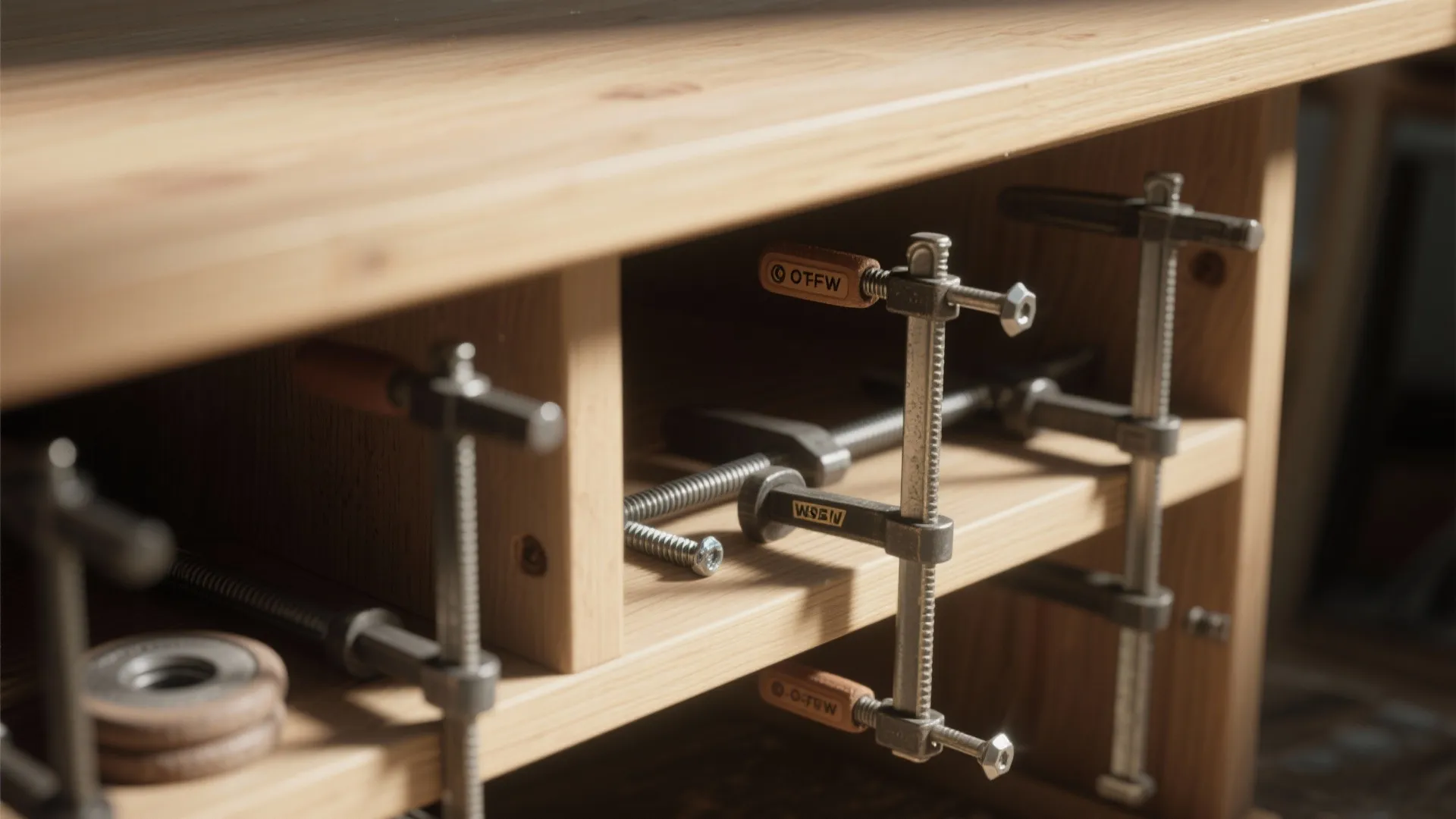

2. Integrated clamp storage and ledge

My favorite upgrade is a shallow side shelf under the top that holds cauls, clamps and a few screws; everything stays within arm’s reach. It keeps the surface clear and saves time, though you’ll lose a little under-table clearance for rolling carts. For many clients the convenience outweighs the small space sacrifice.

save pin

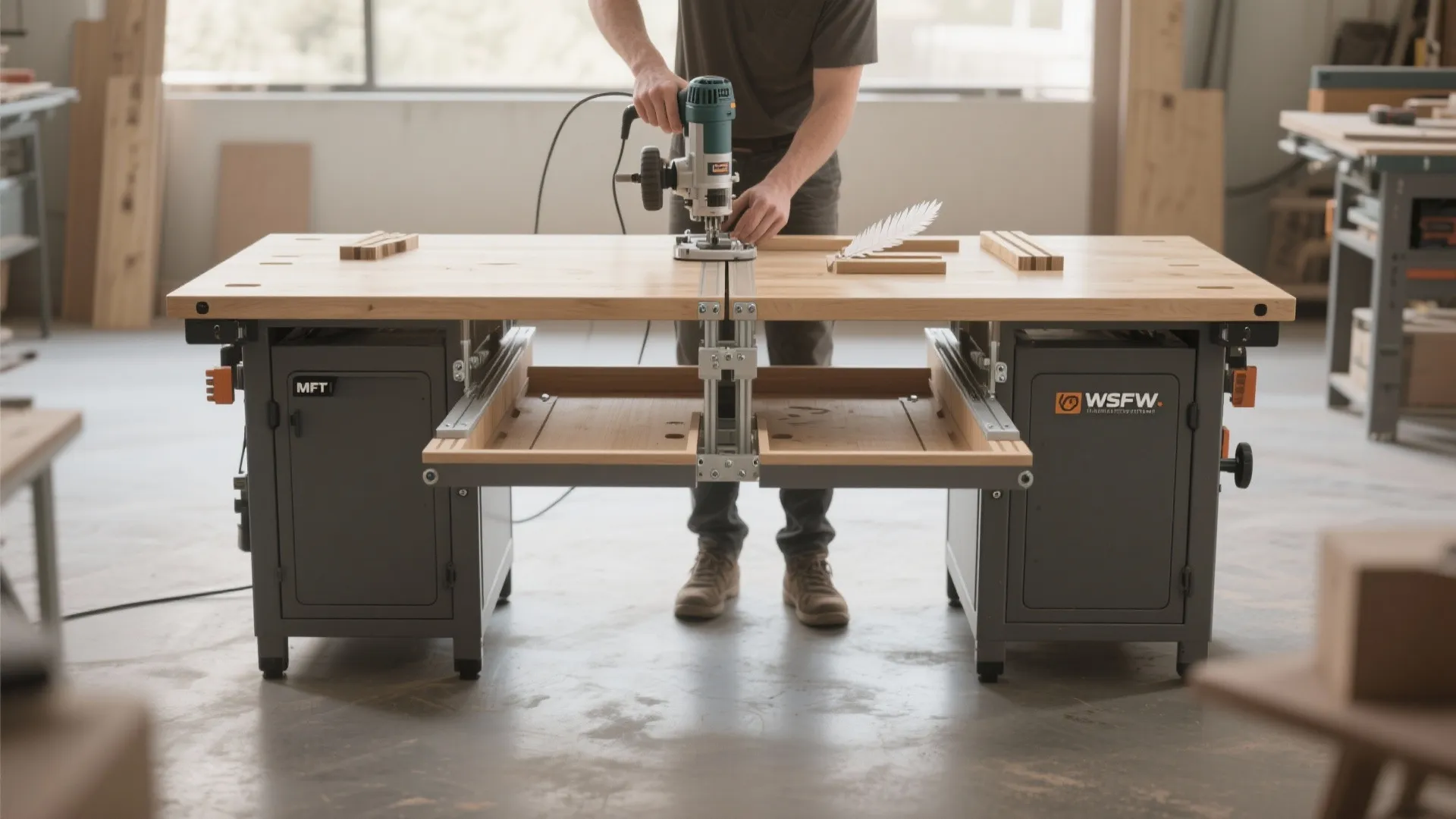

3. Adjustable-height center section

On one kitchen island conversion I split the top into fixed outer panels and a smaller center insert that adjusts for routing or joinery—works like a charm. The advantage is ergonomic work: you raise the center for standing routing, lower for planing. It adds build complexity and a touch more weight, so I recommend good hardware and clear marking.

save pin

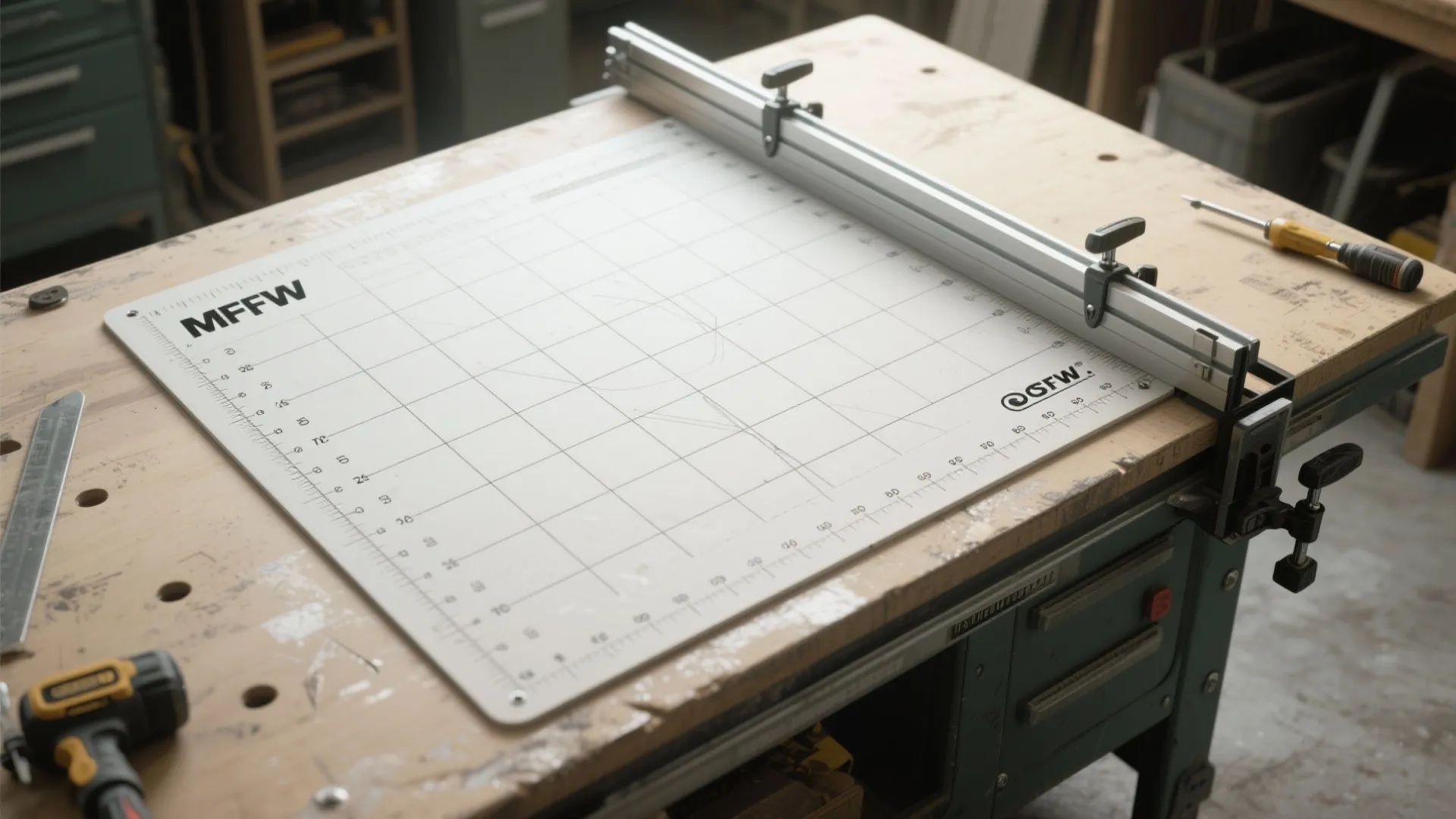

4. Built-in measuring grid and reference fence

Etching a durable grid into the surface plus a removable fence turned an MFT into a precision station for hundreds of cuts. It speeds up repeat work and reduces measuring mistakes, but you should plan the grid relative to your most common tools to avoid redoing it. If you want to prototype the layout first, I often tell clients to draw your layout on paper or digitally before committing to the cuts.

save pin

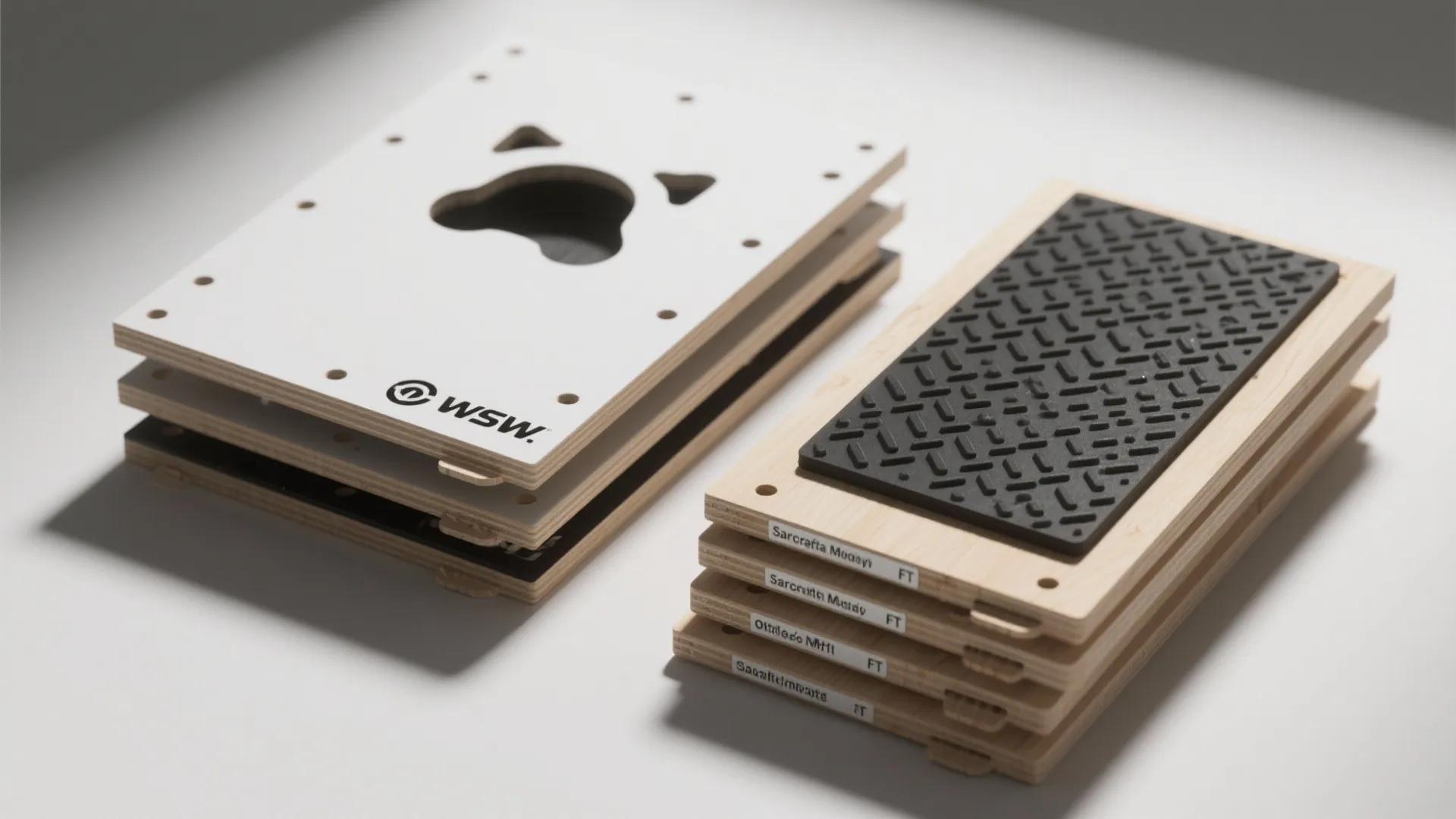

5. Portable modular panels for task-specific setups

I built a set of thin modular panels that slot into dadoes on the table: one with dog holes, one with an anti-slip rubber surface, one with sacrificial MDF for routing. The upside is versatility—you swap panels depending on the job. The downside is storage for the panels themselves, but they nest flat and are easy to label.

save pin

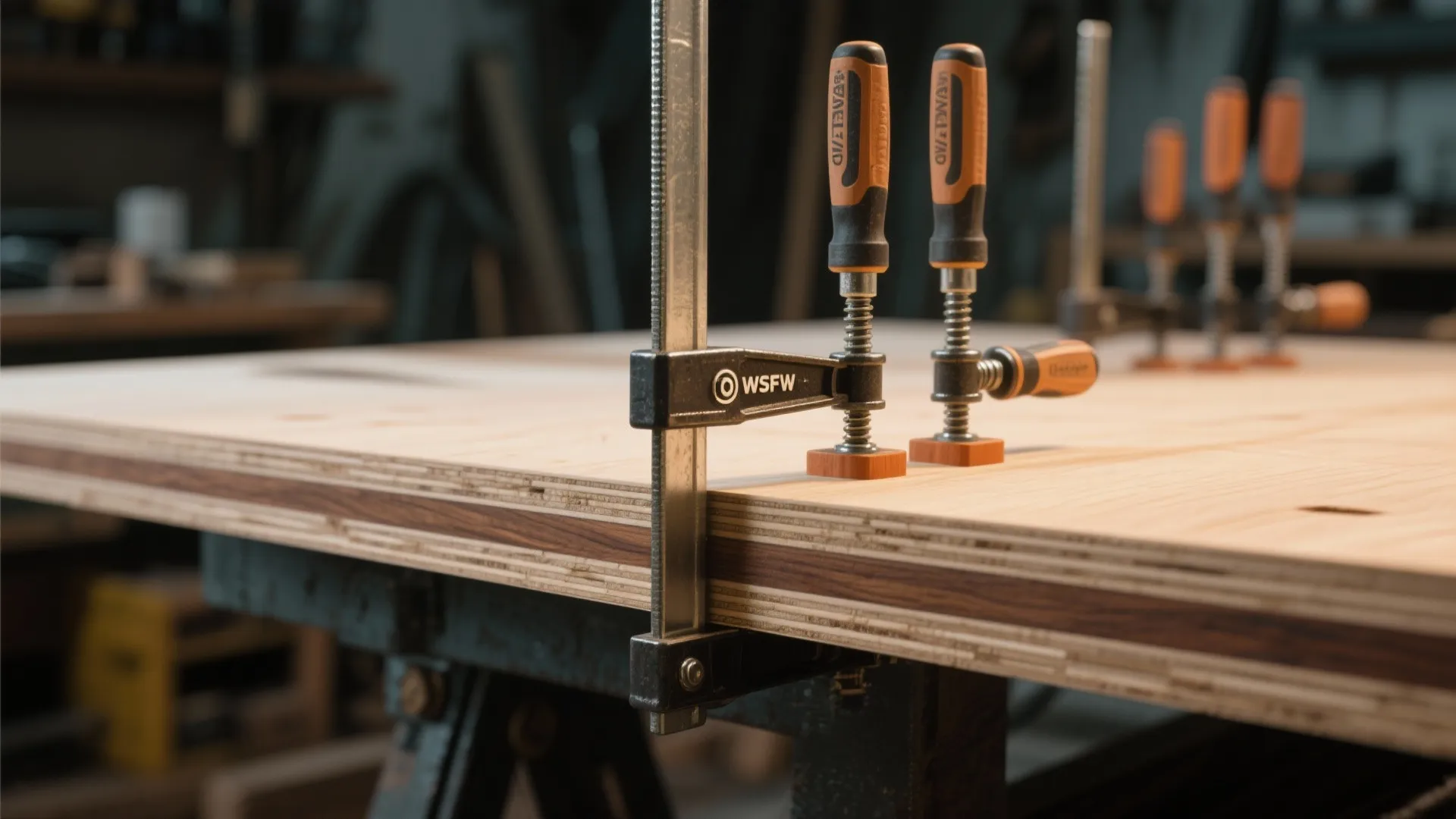

Budget tips and real-world tweaks

Use birch plywood for the top if you want a balance of cost and stability, and reserve hardwood only for edges or wear faces. Spend on good clamps and hinges; cheap hardware is a false economy that bites later. For kitchen or cabinetry work, thinking through a kitchen workflow diagram while you plan your MFT can save hours once you’re on the job.

save pin

FAQ

Q1: What are the basic dimensions for an MFT table?

A common comfortable size is around 1200–1500 mm long and 700–900 mm deep with a tabletop height of 850–900 mm. Adjust the dimensions to fit your workshop and typical projects.

Q2: What materials are best for the top?

Baltic birch plywood with a glued-on hardwood edge is a great combo for durability and flatness. You can also add a wear layer of HDF or MDF if you do heavy routing.

Q3: How do I incorporate clamping systems?

Plan dog holes in a standard grid and pair them with bench dogs or toggle clamps; a removable fence with T-track makes clamping flexible. Keep the grid aligned to your most-used jig positions for efficiency.

Q4: Are folding legs strong enough?

Yes, if you use robust hinges and locking braces; I use steel drop-leg brackets or custom hinge-and-pin systems. Test for racking and add corner supports if you notice instability.

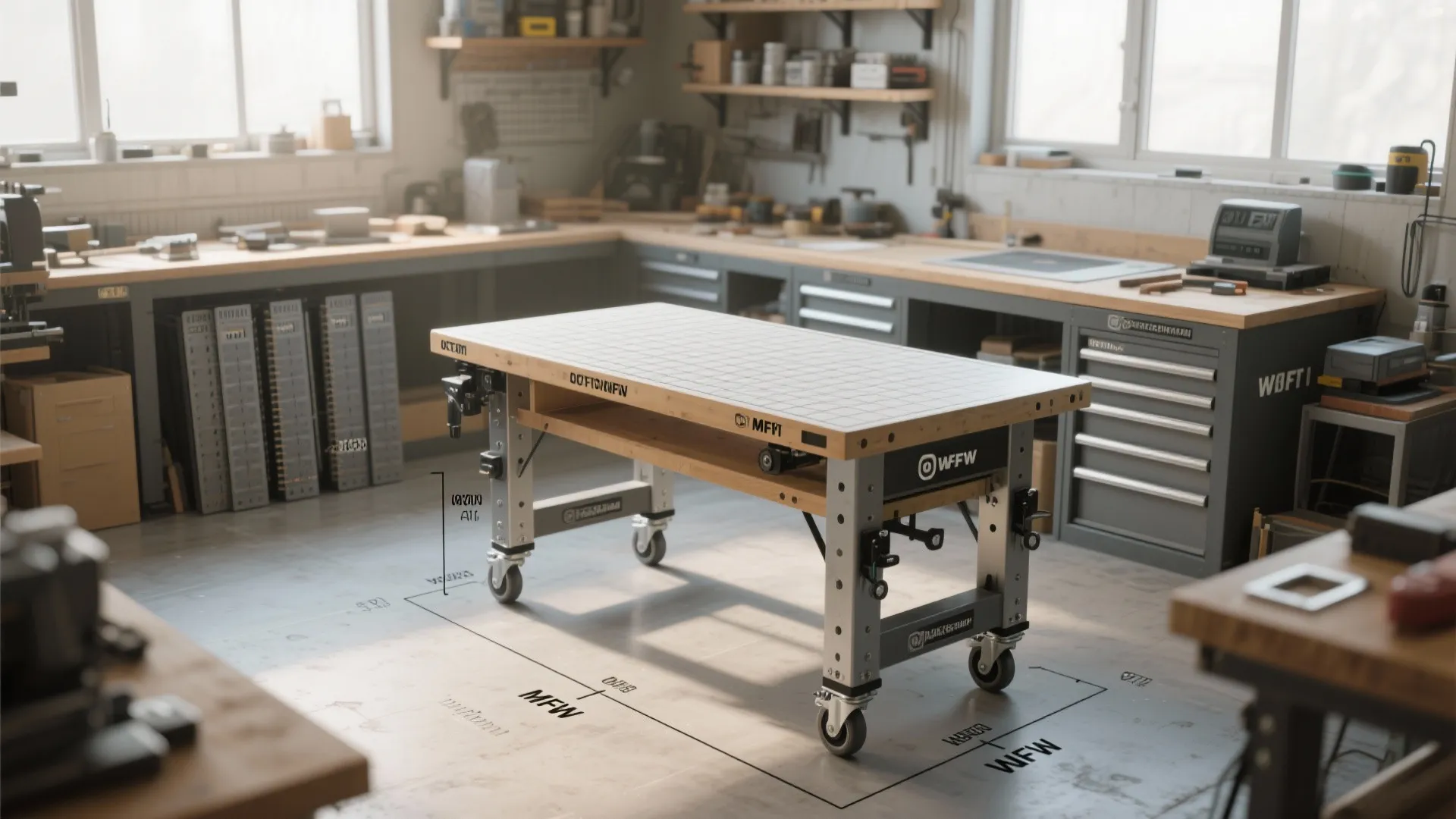

Q5: How can I make an MFT mobile?

Add heavy-duty casters with a positive locking mechanism and design a quick-release leg system so you can drop legs and roll it away. Remember casters add height, so account for that when setting worktop level.

Q6: What safety should I consider?

Ensure all moving parts have stops, keep the work area clear of cord tripping hazards, and use dust collection for routing and sanding. For routing, always use feather boards and push blocks when feasible.

Q7: Where can I find official guidance on MFT dimensions or use?

Manufacturers like Festool provide detailed manuals and recommended practices for their MFT systems; see Festool’s product documentation for precise specs (https://www.festool.com/). These are great references for safe, standardized builds.

Q8: Can I adapt MFT ideas for a kitchen or home workshop?

Absolutely—many of my clients use the same modular top ideas for kitchen islands or craft rooms, adapting dog hole patterns and surface materials to suit the space. Think multifunctional from the start and balance permanence with flexibility.
