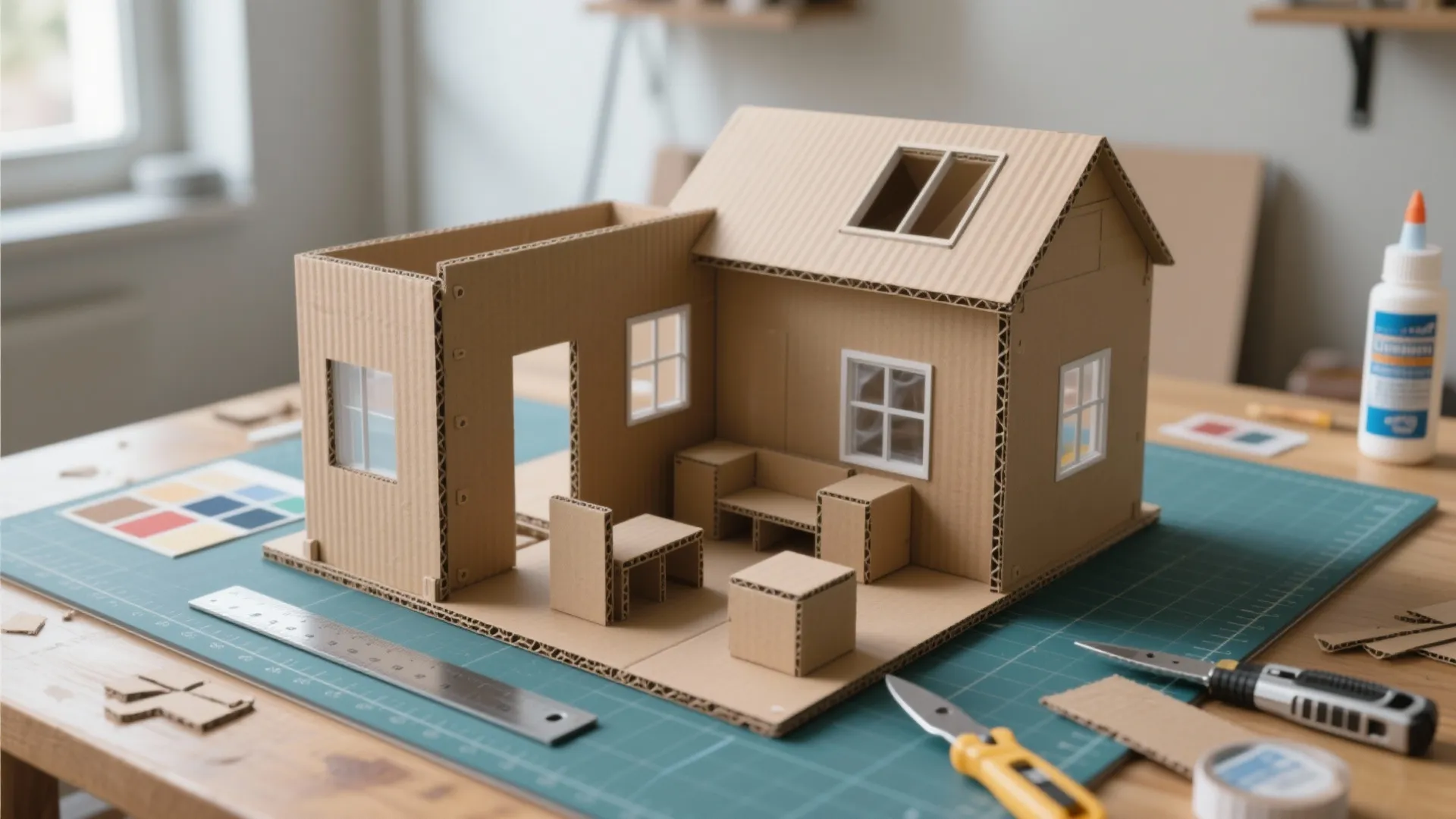

Mini Cardboard House DIY: Creative Small-Scale Design Made Easy: 1 Minute to Master a Fun Mini Cardboard House for Home Décor

I love using mini cardboard houses to prototype spatial ideas before committing to full-scale builds. Cardboard is forgiving, quick to work with, and costs almost nothing—perfect for testing layout, light, and circulation on a tabletop. Treat a small model as a real project: define intent, sketch the program, plan ratios, and detail joints. A disciplined approach turns a fun craft into a reliable design tool.

Scale matters. I typically work at 1:20 or 1:25 for hand builds because it keeps dimensions readable while fitting on a desk. A living nook of 2.4 m × 2.4 m translates to roughly 120 mm × 120 mm at 1:20. To gauge how light and tasks might behave, I reference WELL v2 guidance for visual comfort—WELL suggests 300–500 lux for general work tasks, rising to 500 lux+ for detailed visual tasks—and the Illuminating Engineering Society (IES) notes around 300 lux as a baseline for simple reading or living areas. These two references ground even tiny models in real performance standards. See WELL Building Standard (v2) and IES lighting recommendations for baseline targets.

Color and behavior are inseparable, even at miniature scale. Verywell Mind’s overview on color psychology notes that blues tend to support calm, while warm tones can boost energy and sociability. When I mock up interiors, I test small swatches—muted blue for bedrooms, warm neutral accents for living/dining—so the model communicates mood, not just geometry. Over years of prototyping, I’ve found color cues in models help clients understand the emotional intent early, reducing changes later.

Materials and Tools: Simple, Accurate, Durable

Pick sturdy corrugated cardboard for walls and base, and finer chipboard for façades or interior partitions. You’ll need a sharp utility knife, metal ruler, cutting mat, PVA glue or tacky glue, painter’s tape, and a soft pencil. Optional: balsa sticks for structural frames, acetate for windows, and lightweight spackle for faux plaster. Keep offcuts—they make perfect test panels for joint strength and finish samples.

Establish Scale, Program, and Ratios

Start by defining the use: is the micro-house a reading retreat, a tiny studio, or a play structure? Set a clear program (entry, seating, storage, window seat), then translate real sizes to model scale. I favor proportional anchors: 1/3 mass and 2/3 void often yields balanced façades; a 1:1.618 (Golden Ratio) outer shell can stabilize volume visually. Plan circulation with a 600–900 mm real-world clear path—at 1:20 that’s 30–45 mm—so movement feels natural when you imagine yourself inside.

Light: Apertures, Orientation, and Glare Control

Cut windows as light instruments, not decorations. A low, wide aperture brings in soft ambient light; a tall, narrow slit creates vertical emphasis and gentle contrast. Avoid direct sightlines to bright sources to minimize glare—mimic baffles with folded cardboard inside window wells. If you’re simulating a workspace nook, target the equivalent of 300–500 lux in real use (WELL v2 and IES); in models, represent this by placing a desk near a side aperture with a cardboard “shade” to indicate task lighting direction.

Structure and Joints That Actually Hold

For rigidity, use double-layer walls with grain directions crossing. Score, fold, and glue tabs rather than butt-jointing raw edges. A simple tongue-and-slot joint is fast and self-aligning. Reinforce corners with L-brackets made from offcuts. If you want removable roofs, create a shallow rebate around the top edge so the lid seats accurately. Test loads by gently twisting the shell; if it creaks, add internal ribs.

Layout Simulation: Furniture, Storage, and Flow

Mini furniture blocks clarify how a tiny plan lives. Keep seat depth near 450–500 mm in real dimensions (22–25 mm at 1:20), and allocate 300 mm real (15 mm at 1:20) for toe clearance under benches. Use modular cubes to trial different living scenarios—reading corner vs. craft table—before fixing walls. If you want a quick digital check of arrangement and circulation, a room layout tool can help you visualize scale and adjacency changes before you cut cardboard: room layout tool.

Acoustic Thinking in a Tiny Envelope

Even models benefit from acoustic intent. Suggest absorption by lining one wall with faux felt (thin fabric) and diffusion by adding shallow, irregular shelves. In actual small spaces, alternating absorptive and reflective surfaces reduces harshness; the model should show where those treatments might go.

Color Psychology and Finishes

Apply papers or light washes to communicate finish strategy. Blues and desaturated greens read restful; warm grays and terracottas energize communal areas. Verywell Mind’s color psychology overview is a useful primer on behavioral effects. I often keep ceilings lighter than walls to lift perceived height and paint lower wall bands darker to ground the space.

Daylight Orientation and Seasonal Adjustments

Orient the façade based on your latitude and typical sun path. A deeper overhang on the south façade (northern hemisphere) moderates summer gain while preserving winter light. Slot windows on east/west walls temper morning/evening glare. In the model, represent overhangs with 10–15 mm cardboard hoods; they visually explain solar control and shadow play.

Sustainability and Material Choices

Use post-consumer cardboard and low-VOC glue. Reuse packing tape cores as columns or skylight wells. When the prototype outlives its purpose, separate paper from acetate and wood to recycle appropriately. This small habit mirrors good practice on real projects and keeps the craft truly low-impact.

Step-by-Step Build Sequence

1) Sketch plans and elevations at scale. 2) Cut base and walls, labeling edges. 3) Score fold lines and pre-fit tabs. 4) Glue walls to base, square up with a set square. 5) Add internal ribs and corner brackets. 6) Cut and seat the roof with a rebate. 7) Insert windows, baffles, and furniture blocks. 8) Finish with color swatches and acoustic cues. Photograph the model under a single directional lamp to test shadow quality.

Common Mistakes I See

Rushing window placement without thinking about glare, forgetting clear circulation, overloading with color, and relying on butt joints. Treat the model like a real building, and it will teach you more than a quick sketch ever could.

FAQ

How do I choose the right scale for a mini cardboard house?

Pick 1:20 or 1:25 for hand builds. It keeps dimensions readable, furniture block sizes practical, and the footprint small enough for a desk.

What lighting levels should I simulate?

Use WELL v2 and IES as reference: target the equivalent of 300–500 lux for general tasks, higher for detailed work. In models, show task orientation and glare control rather than measuring lux.

How can I avoid warping or weak walls?

Cross-grain double layers, tab-and-slot joints, and internal ribs prevent deformation. Let glue cure fully and avoid oversized single-panel walls.

What’s the easiest way to test different layouts?

Create modular furniture blocks and swap them around. If you want a quick digital pass before cutting, try an interior layout planner such as a room design visualization tool: layout simulation tool.

Any tips for realistic windows?

Use acetate for glazing, build window wells, and add mini baffles to indicate glare control. Vary sill height: low for seated views, high for privacy.

How do colors affect tiny space perception?

Cool hues calm and visually recede; warm accents energize and pull surfaces forward. Keep ceilings lighter to lift height and darker base bands to ground the composition.

Can I represent acoustic comfort in a model?

Yes—layer thin fabric for absorption and add small shelves for diffusion. Show alternating zones to communicate a balanced acoustic strategy.

What sustainable choices make sense for this craft?

Use recycled cardboard, low-VOC adhesives, and separate materials for end-of-life recycling. Reuse packaging components as structural elements.

How do I ensure good circulation in a tiny plan?

Maintain a clear path equivalent to 600–900 mm in real dimensions, keep furniture depths realistic, and avoid pinch points at corners.

What’s the best roof strategy for removability?

Create a shallow rebate around the wall tops so the roof seats precisely. Reinforce with corner tabs for repeat access.
