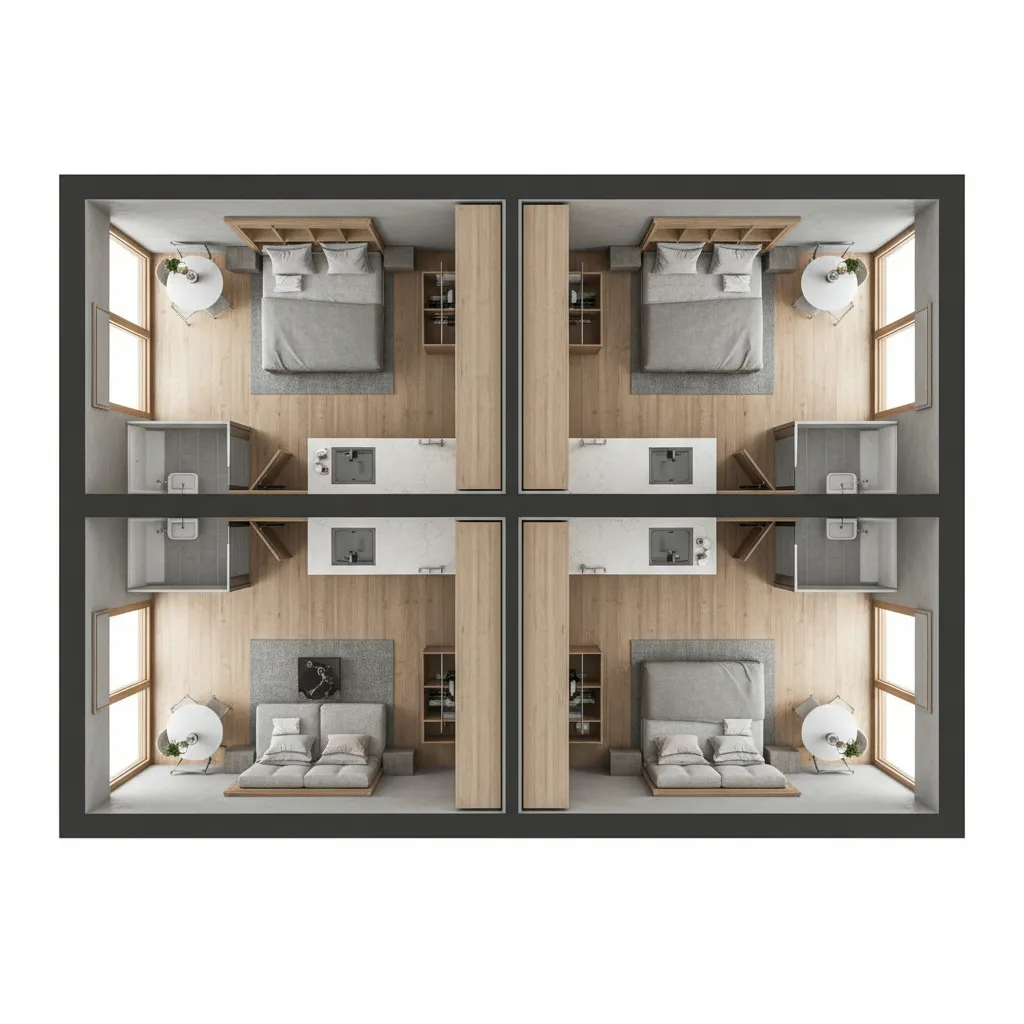

Modular Duplex Layout Optimization Maximizing Space and Efficiency: Practical layout strategies to improve comfort, reduce wasted space, and make small modular duplex plans work smarter

Direct Answer

Modular duplex layout optimization focuses on reducing wasted circulation space, aligning rooms with natural light, and using shared walls and modular grids to improve construction efficiency. Well‑optimized modular duplex floor plans feel larger, cost less to build, and perform better for long‑term living or rental use.

In practice, the biggest gains usually come from rethinking hallway placement, stacking plumbing zones, and designing flexible storage within modular units.

Quick Takeaways

1. Hallways are the biggest hidden space loss in small duplex layouts.
2. Stacking kitchens and bathrooms reduces plumbing cost and speeds installation.
3. Shared walls improve thermal efficiency and reduce material use.
4. Natural light planning makes compact duplexes feel significantly larger.
5. Modular grid alignment speeds factory fabrication and on‑site assembly.

Introduction

Over the past decade working on modular housing projects, I've reviewed dozens of duplex layouts that looked efficient on paper but felt cramped once built. The problem usually isn't square footage—it's how the layout distributes that space.

Modular duplex layout optimization is really about eliminating hidden inefficiencies. Small shifts in room placement, circulation paths, and storage zones can transform a tight duplex into a comfortable, livable home.

One of the most useful ways to evaluate a layout is to visualize it early using tools that allow quick adjustments and circulation testing. Many designers start by experimenting with layouts in a visual room layout planning workflow for compact homesso movement paths and furniture placement can be validated before construction decisions are locked in.

In this guide, I'll walk through the layout strategies I consistently use when optimizing modular duplex floor plans—especially for small footprints where every square foot matters.

save pin

Principles of Efficient Modular Duplex Layout Design

Key Insight: Efficient modular duplex layouts prioritize compact circulation, stacked utility zones, and clear structural grids aligned with modular fabrication.

Unlike conventional houses, modular homes are built in sections. If the layout ignores the modular grid, manufacturing becomes slower and more expensive.

In my projects, the most efficient duplex layouts follow three structural principles:

1. Aligned module widths so rooms fit cleanly inside factory-built sections.
2. Stacked plumbing cores to reduce pipe runs.
3. Centralized vertical circulation when using two-story duplex units.

Typical efficient duplex zoning:

1. Front: living and dining areas
2. Middle: stairs and shared utilities
3. Rear: kitchens and service spaces
4. Upper level: bedrooms stacked above living zones

According to the Modular Building Institute, modular construction can reduce build schedules by 30–50% when layouts align with factory production logic.

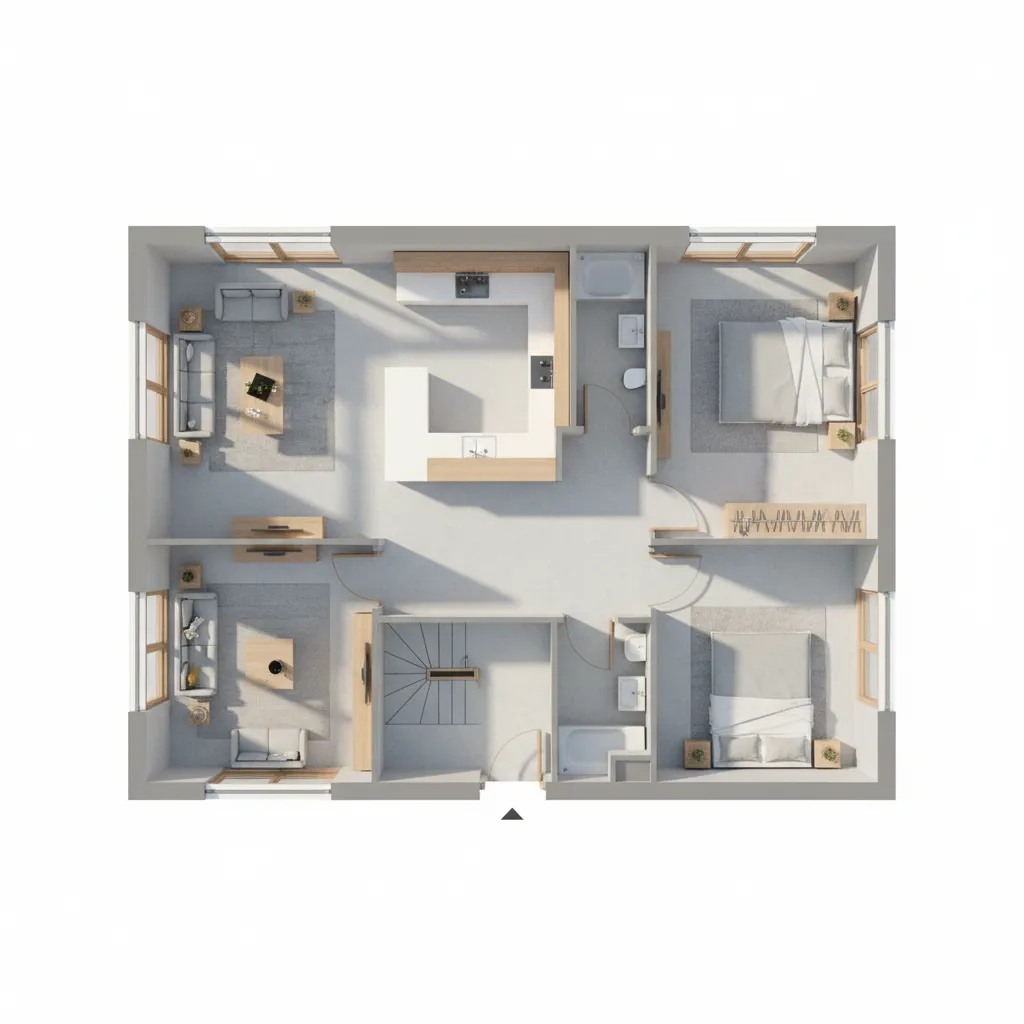

Optimizing Room Placement for Natural Light

Key Insight: Strategic window orientation and room placement can make a compact duplex feel significantly larger without increasing floor area.

Natural light has a disproportionate impact on perceived space. Poorly lit duplex layouts often feel smaller than they actually are.

Room placement guidelines I use frequently:

1. Living rooms positioned on the longest exterior wall.
2. Kitchens located near corner windows when possible.
3. Bedrooms placed on quieter building sides.
4. Bathrooms and closets placed toward interior walls.

Many architects now test daylight distribution using quick layout modeling with a 3D floor plan visualization for duplex lighting analysisto identify dark zones before construction.

save pin

Reducing Hallway Waste in Duplex Floor Plans

Key Insight: Hallways are often the largest source of wasted square footage in small duplex floor plans.

I regularly see duplex designs where 12–15% of the total floor area is circulation. In smaller modular units, that's simply too much.

Effective strategies to reduce hallway waste:

1. Use open living spaces as circulation paths.
2. Align bedroom doors along a single wall.
3. Combine entry vestibules with storage areas.
4. Replace long corridors with short distribution nodes.

For example, in one 1,200 sq ft duplex project we redesigned, shortening the hallway by just six feet allowed space for a full laundry closet and additional pantry storage.

Answer Box

The most effective modular duplex layout improvements usually involve reducing hallway space, stacking utility areas, and aligning rooms with natural light. These changes increase usable space without increasing building size.

Small layout adjustments often deliver the biggest efficiency gains.

Shared Wall Design for Energy Efficiency

Key Insight: Shared walls between duplex units significantly reduce heating and cooling loads.

Energy efficiency is one of the quiet advantages of duplex housing. When designed properly, the shared wall acts as a thermal buffer.

Design tactics that improve efficiency:

1. Place stairwells or storage against the shared wall.
2. Minimize windows on shared structural lines.
3. Stack bathrooms and kitchens along the center wall.

The U.S. Department of Energy notes that attached housing can reduce heat loss compared with detached homes due to reduced exposed exterior wall area.

Smart Storage Solutions in Compact Duplex Layouts

Key Insight: Built‑in storage integrated into structural zones dramatically improves livability in small duplex homes.

Storage is often the first compromise in compact duplex layouts, but it's also one of the easiest improvements during design.

Storage strategies that work well in modular duplex plans:

1. Staircase drawers and under‑stair closets
2. Floor‑to‑ceiling kitchen cabinets
3. Entry bench storage with coat compartments
4. Bedroom wall closets integrated into modular partitions

When evaluating layouts early, I often test storage capacity with quick layout prototypes using a

save pin

simple floor plan workflow for testing compact storage layouts to ensure everyday items actually fit the design.

Optimizing Modular Units for Faster Installation

Key Insight: The fastest modular duplex projects are designed with transportation, lifting, and connection points in mind from the beginning.

One mistake I see in many early duplex layouts is ignoring how modules will actually arrive on site.

Design considerations that speed installation:

1. Limit module widths to transportation standards.
2. Align structural walls across modules.
3. Keep mechanical connections accessible.
4. Design roof sections for quick on‑site joining.

In several modular projects I've worked on, aligning kitchen and bathroom modules vertically allowed entire plumbing stacks to connect within hours instead of days.

Final Summary

1. Reducing hallway space dramatically improves small duplex layouts.
2. Natural light placement can make compact homes feel larger.
3. Stacked utilities simplify construction and reduce cost.
4. Shared walls improve both efficiency and energy performance.
5. Integrated storage transforms livability in tight footprints.

FAQ

What is modular duplex layout optimization?

It refers to improving a duplex floor plan so space, circulation, and structural modules work efficiently together during design and construction.

What is the best layout for a small modular duplex?

The best layout places living spaces near exterior walls, stacks bathrooms and kitchens vertically, and minimizes hallway length.

How can I optimize a modular duplex floor plan?

Focus on stacking utilities, reducing circulation areas, aligning rooms with natural light, and designing storage into structural zones.

Do duplex homes waste more space than single homes?

Not necessarily. When designed well, duplex layouts often use space more efficiently because they share walls and infrastructure.

Why are hallways inefficient in duplex floor plans?

Hallways add circulation area without usable function. In small homes they can consume over 10% of total floor space.

Are modular duplex homes energy efficient?

Yes. Shared walls and factory-built insulation systems often make modular duplexes more energy efficient than detached homes.

How much space should a duplex hallway have?

Most efficient duplex layouts keep hallway length minimal and widths between 36–42 inches.

What tools help test modular duplex layouts?

Digital floor planning tools allow quick testing of circulation, furniture placement, and lighting before construction begins.

References

1. Modular Building Institute Construction Reports
2. U.S. Department of Energy Housing Efficiency Guidelines
3. American Institute of Architects Residential Design Standards
