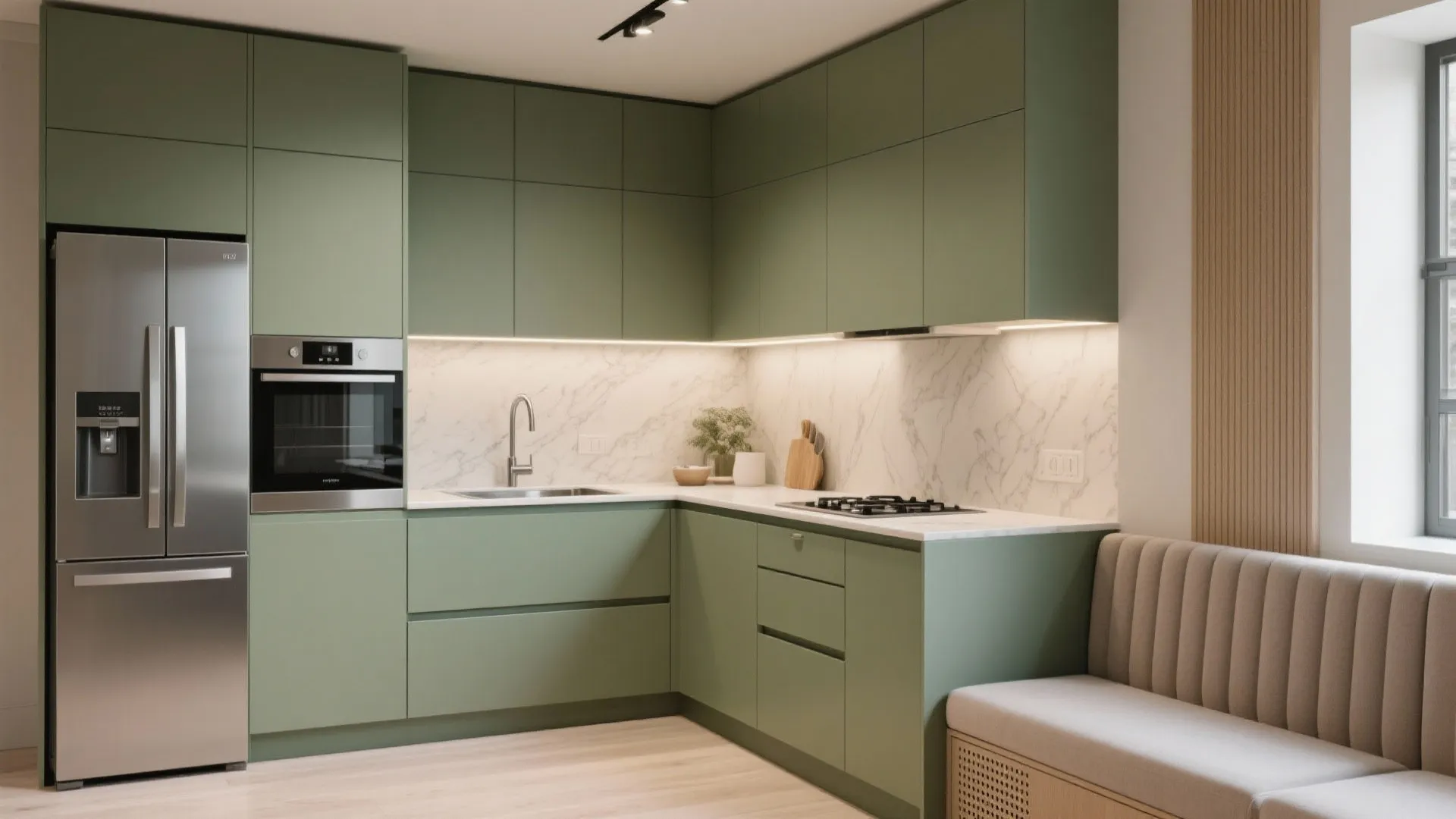

Modular kitchens have matured from boxy convenience to highly adaptive, ergonomic systems that calibrate to real cooking habits. I approach every kitchen as an ecosystem—appliances, storage, circulation, hygiene, light, and acoustics must all work as one. When evaluating or creating a modular kitchen design catalogue PDF, I look beyond glossy renders and focus on data, human factors, and fit-to-purpose modules that can scale from compact studios to chef-grade homes.

Ergonomic precision drives module sizing and zoning. Herman Miller’s research has long demonstrated that ergonomic reach ranges and task heights reduce fatigue and micro-strain in routine tasks; for kitchens, 36 in (915 mm) counter height remains a widely adopted baseline, but tasks vary. A 42 in (1067 mm) breakfast bar suits stool seating; prep counters benefit from slightly lower surfaces for leverage. WELL v2 highlights controllable task lighting and glare mitigation as key to healthier interiors; achieving 300–500 lux at prep surfaces with a color temperature around 3000–3500K supports visual comfort without washing out color rendering (CRI ≥90 is ideal for food prep). These figures anchor my module selection and accessory pairing.

Spatial flow matters as much as finishes. Gensler’s workplace research consistently ties efficient circulation and clear sightlines to performance; translated to residential kitchens, uninterrupted work triangles (fridge–sink–hob) and logical adjacencies reduce steps and cognitive load. I audit catalogues for corner solutions that minimize dead zones, pull-out pantries that maintain a 1,000–1,200 mm aisle width, and wall units that preserve vertical rhythm without exceeding safe reach (roughly 1,800–2,000 mm to the highest shelf for most users). This maintains a calm visual grid while fitting diverse bodies and behaviors.

How to Read a Modular Kitchen Catalogue PDF

I start with module taxonomy—base units, tall units, wall units, corner solutions, appliance housings—and verify dimensional consistency (increments of 150, 300, 450, 600 mm are typical). Next, I check hardware spec sheets: soft-close hinges, full-extension runners (at least 40–45 kg rated for pantry pull-outs), integrated ventilation for ovens, and moisture-resistant substrates for sink bases. Finally, I examine lighting notes and acoustic panels; thin composite fronts can act like diaphragms, raising reverberation if not paired with absorbent finishes elsewhere.

Planning the Layout: From Zones to Micro-Movements

I map zones into Prep, Cook, Wash, Store, and Serve. If you’re testing placements or aisle widths, a layout simulation tool like Coohom’s room layout tool helps visualize clearances, appliance swing arcs, and workflow loops. Prioritize the sink’s proximity to the dishwasher (ideally adjacent) and place trash/recycling under or near the sink for single-motion cleanup. Keep heat sources away from tall refrigeration to reduce compressor load, and separate raw food handling from hot zones by at least one uninterrupted prep surface.

Ergonomics and Human Factors

Handle profiles, drawer heights, and toe-kicks are subtle but decisive. A 100–150 mm toe-kick allows close-in stance and safer leverage for chopping. Frequently used tools should sit between 600–1,200 mm above floor to stay within the comfortable reach envelope. I specify deep drawers for pots (at least 500–550 mm depth) over doors for faster access. For multi-user households, adjustable shelves and modular insert trays prevent conflicts and keep motion economy intact.

Lighting: Layered, Glare-Free, and Color-True

Task lighting under wall units should deliver 300–500 lux without specular glare; diffusers or prismatic lenses help. Ambient lighting can float around 150–250 lux, with accent lighting highlighting texture and color. Following WELL v2 guidance on visual comfort, I choose 3000–3500K LEDs for warmth and food realism, and I cross-check beam angles to avoid hard shadows at the knife line. Dimmers and zoned switches empower different cooking modes—from focused prep to relaxed dining.

Acoustics: Taming the Hard Surfaces

Kitchens are reflective. I counter harsh reverberation with a mix of soft window treatments, upholstered banquettes, micro-perforated wall panels, or cork-backed rugs. Drawer dampers and felt pads under chairs keep incident noise low. If the kitchen opens to living areas, mild absorption in adjacent spaces prevents the “audio spill” that makes conversations feel tiring.

Materials and Sustainability

Moisture-resistant particleboard or plywood carcasses, high-pressure laminates for durability, and quartz composites for non-porous worktops form a resilient base. I prefer fronts with low-VOC finishes and hardware that’s easy to service. Stainless work edges in high-abuse prep zones extend life. Verify that the catalogue details repairability—replaceable fronts, reconfigurable interiors—so the system evolves rather than heads to landfill.

Color Psychology and Visual Balance

Color influences appetite, calm, and perceived cleanliness. Muted greens and warm neutrals encourage focus and reduce visual noise, while high-chroma reds can energize but may overwhelm in tight spaces. I manage rhythm with vertical lines on tall units and horizontal lines on base drawers; consistent handle placement stabilizes the visual field. Keep high-contrast accents to limited areas—backsplash or a single appliance front—so the space reads coherent rather than fragmented.

Storage Logic: Make Every Millimeter Work

Inside the catalogue, I hunt for pull-out spice frames near the hob, tray dividers near the oven, and deep drawers for bulk dry goods. A tall unit with internal drawers beats a single big door for daily efficiency. Corner carousels must have robust bearings; otherwise, they become frustration machines. Overhead, lift-up doors reduce collision in tight aisles, and open shelves are best limited to frequently used, easy-to-clean items.

Appliance Integration: Ventilation, Clearance, and Serviceability

Hob to hood clearance typically ranges 600–750 mm depending on manufacturer; strong capture efficiency prevents grease film across the kitchen. Fridge modules need ventilation gaps; ovens require thermal buffers from adjacent fronts. I position combi-ovens at chest height for safer loading, and I specify magnetic gaskets and accessible service panels. Ensure the dishwasher door swing doesn’t choke the aisle; 1,000–1,200 mm clear passage accommodates multi-user traffic during cleanup.

Small Spaces: Compact, Not Compromised

In studios, a single-wall kitchen with 600 mm-deep bases and 300 mm-deep uppers can still deliver: integrate a slim pull-out pantry, a combined washer-dryer hidden in a tall unit, and a fold-down breakfast ledge. Use light, matte finishes to counteract limited daylight, and keep the vertical grid clean to reduce visual clutter. A narrow 450 mm dishwasher and 500–600 mm induction hob maintain functionality without swallowing the plan.

Creating Your Catalogue: What to Include

A robust modular kitchen design catalogue PDF should feature: clear dimensioned drawings for each module; hardware specs and load ratings; lighting recommendations with lux targets; ergonomic notes on reach and heights; finish swatches with maintenance guides; appliance integration diagrams; sample layouts for common room shapes; and a quick-reference matrix mapping modules to functions (Prep, Cook, Wash, Store, Serve). Pair the document with a link to a room design visualization tool to let clients test arrangements and understand how modules behave in real space.

Designer’s Checklist for Selection

- Confirm aisle widths and door/drawer swing clearances in plan.

- Validate lighting layers and lux targets at prep surfaces.

- Choose moisture-resistant carcasses and serviceable hardware.

- Keep storage near task zones; minimize cross-traffic.

- Integrate ventilation and thermal buffers around appliances.

- Align visual rhythm across fronts and handles.

- Ensure acoustic comfort through soft finishes nearby.

- Provide future-proofing with adjustable interiors and add-on modules.

FAQ

Q1: What are the ideal counter heights for different kitchen tasks?

A: General worktops sit around 36 in (915 mm). Breakfast bars often rise to 42 in (1067 mm), while intensive prep can benefit from slightly lower heights for leverage. Position ovens at chest height for safer loading and minimize overhead reach beyond 1,800–2,000 mm.

Q2: How bright should task lighting be in a modular kitchen?

A: Aim for 300–500 lux at prep surfaces with 3000–3500K LEDs and high CRI (≥90). Use diffusers to cut glare and layer ambient lighting at 150–250 lux for comfort, aligning with WELL v2 visual comfort guidance.

Q3: What storage modules improve daily efficiency?

A: Full-extension deep drawers for pots, pull-out pantries, tray dividers near ovens, spice pull-outs by the hob, and lift-up wall units in tight aisles. Corner solutions should have robust bearings and easy access.

Q4: How wide should kitchen aisles be?

A: Maintain 1,000–1,200 mm clear passage for multi-user cooking and safe dishwasher door swings. Tight spaces can function at around 900 mm, but expect more friction when doors are open.

Q5: Which materials are most durable for daily use?

A: Moisture-resistant carcasses (particleboard or plywood), quartz composites for non-porous worktops, high-pressure laminates for impact resistance, and stainless edge protection in heavy prep zones. Choose low-VOC finishes for better indoor air quality.

Q6: How do I optimize the work triangle?

A: Keep the fridge, sink, and hob in a clear loop with uninterrupted prep space between sink and hob. Place the dishwasher adjacent to the sink and separate heat-intensive appliances from refrigeration to reduce energy load.

Q7: What color strategy works best for small kitchens?

A: Use warm neutrals and muted greens to create calm and clarity. Keep high-contrast accents limited to backsplashes or a single appliance to avoid visual fragmentation. Matte finishes help with glare control.

Q8: How can I reduce kitchen noise?

A: Introduce soft surfaces—upholstered seating, curtains, micro-perforated panels—and specify damped hardware. If the kitchen opens to living spaces, add mild absorption nearby to prevent reverberation spill.

Q9: What should a modular kitchen catalogue PDF include?

A: Dimensioned module drawings, hardware and load ratings, lighting specs with lux targets, ergonomic reach notes, finish and maintenance guides, appliance integration diagrams, and sample layouts for typical room shapes.

Q10: How do I plan for future changes?

A: Select systems with replaceable fronts and adjustable interiors. Maintain standard module widths so appliances and inserts can be swapped without tearing down the carcass.

Q11: Are open shelves practical?

A: Limit open shelves to frequently used items; they collect grease and dust more quickly. Use them for visual warmth but avoid overloading, especially near cooking zones.

Q12: What clearances do appliances require?

A: Follow manufacturer guidance: hobs typically need 600–750 mm to the hood, fridges require ventilation gaps, and ovens need thermal buffers. Ensure swing arcs and service panels are accessible in your plan.
