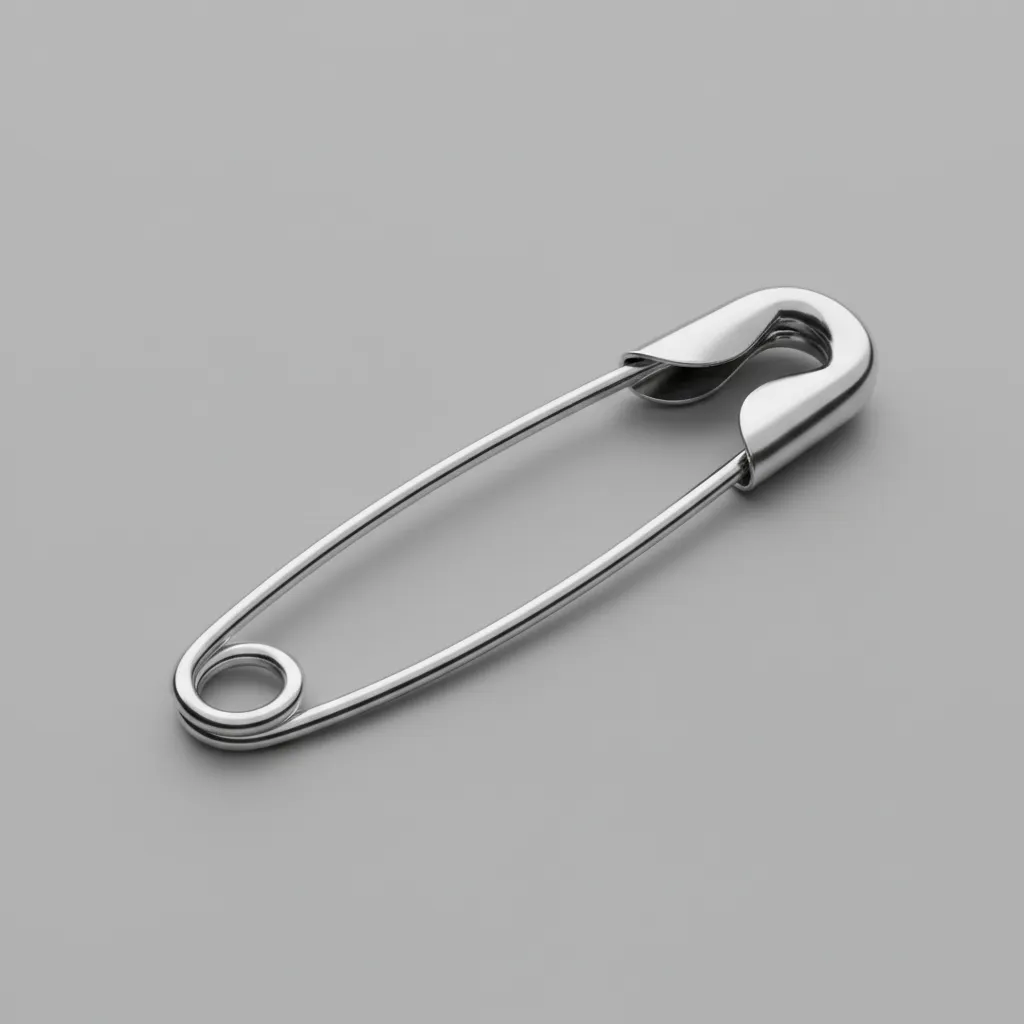

Optimizing a 3D Safety Pin Model for Rendering and Performance: Practical techniques to reduce polygons, improve topology, and render realistic metal safety pins without sacrificing visual quality.

Direct Answer

Optimizing a 3D safety pin model means reducing unnecessary polygons, improving curved topology, and using efficient materials so the model renders quickly while still looking realistic. For most real‑time or visualization workflows, the goal is a clean low‑poly wire structure with smooth shading and efficient metal materials.

In practice, this involves simplifying circular geometry, maintaining proper edge flow along the wire curve, and preparing materials that simulate polished metal without heavy rendering costs.

Quick Takeaways

1. A well‑optimized 3D safety pin model relies on clean curved topology rather than high polygon counts.
2. Most safety pin models look identical visually after reducing polygon counts by 40–70%.
3. Edge loops should follow the wire curvature to prevent shading artifacts.
4. Metal realism usually comes from materials and lighting, not complex geometry.
5. Game engines benefit most from low‑poly models with baked reflections.

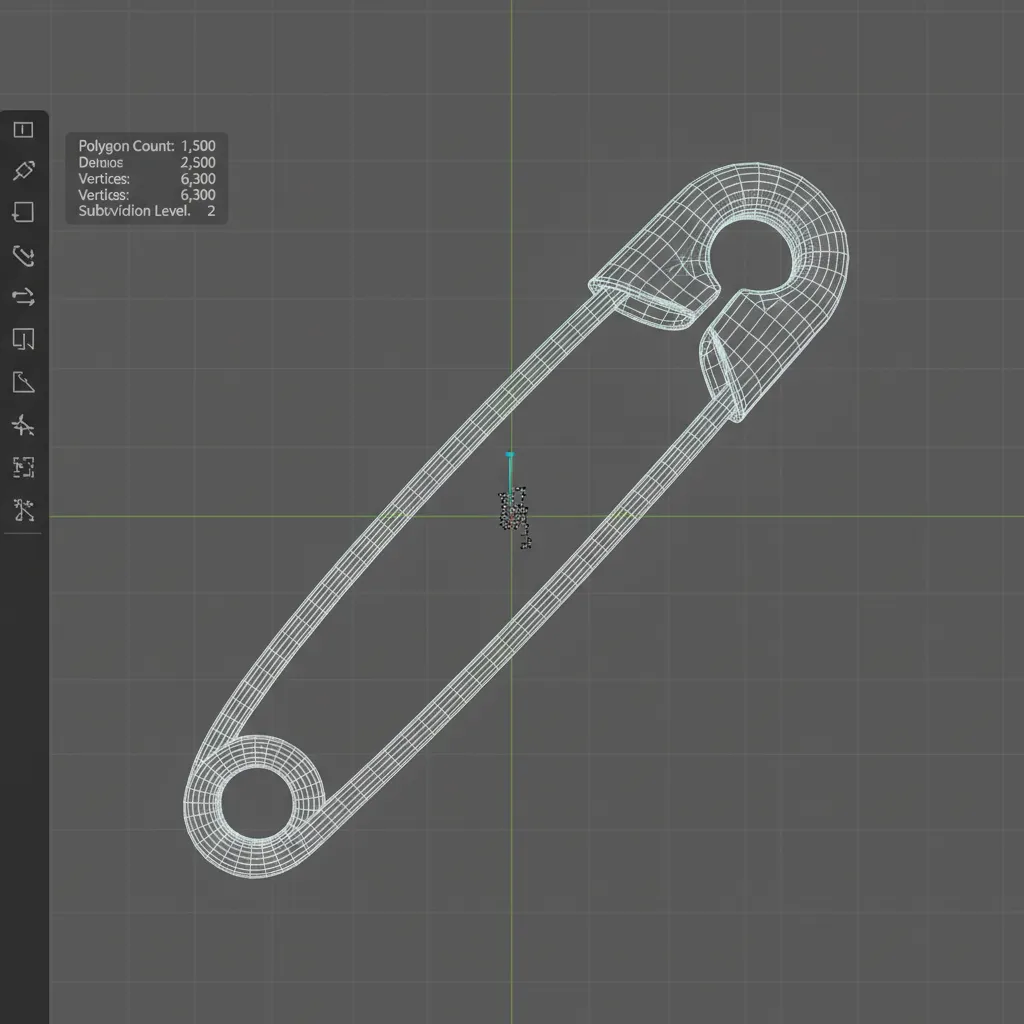

Introduction

Over the years I've modeled hundreds of small mechanical objects—from screws and paperclips to jewelry hardware—and the 3D safety pin model is one of those deceptively simple assets that often gets built inefficiently.

Most beginners treat it like a complex mechanical part and end up with extremely dense geometry. In reality, a safety pin is basically a bent wire with a clasp shell. If the topology is clean, the model can stay lightweight and still render beautifully.

I’ve seen safety pin assets in product libraries that use over 20,000 polygons when the same visual quality can be achieved with under 3,000. That difference becomes huge when you're rendering multiple accessories or building large product catalogs.

If you're building models for product visualization or asset libraries, it also helps to understand how optimized models behave in realistic rendering pipelines like those used in high‑quality home rendering visualization workflows.

In this guide, I’ll walk through the practical techniques I use to optimize curved metal assets while maintaining realism.

save pin

Why Optimization Matters for Small Mechanical 3D Models

Key Insight: Small objects often appear many times in a scene, so inefficient geometry multiplies performance costs.

A single safety pin model rarely breaks performance on its own. The problem appears when assets are duplicated across clothing simulations, product scenes, or accessory libraries.

In one apparel visualization project I worked on, dozens of metal accessories were scattered across garments. Replacing dense models with optimized versions reduced render memory by nearly half.

Typical hidden inefficiencies include:

1. Over‑segmented circular wire geometry
2. Subdivision surfaces applied unnecessarily
3. Internal faces inside the clasp housing
4. Duplicate edge loops that do not affect silhouette

For curved wire objects like safety pins, visual quality depends more on shading smoothness than on extreme polygon density.

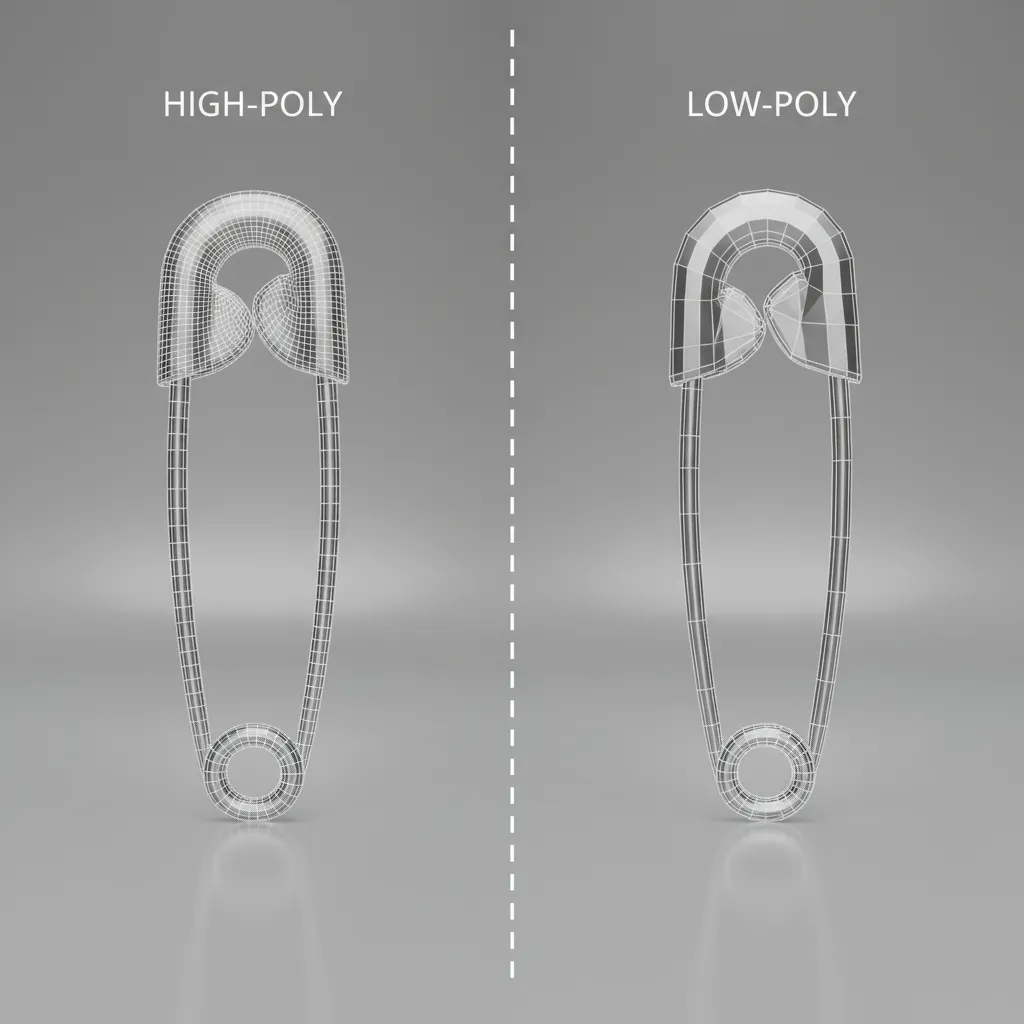

Reducing Polygon Count Without Losing Shape

Key Insight: The silhouette defines realism—polygons that don't affect silhouette are usually waste.

Most safety pins are modeled as cylinders bent into shape. The easiest way to reduce geometry is lowering the cylinder segment count.

A practical workflow:

1. Start with 12–16 cylinder sides for the wire.
2. Apply smooth shading.
3. Add supporting edges only where curves tighten.
4. Remove loops along straight sections.

Many artists are surprised that even 10‑sided cylinders can look perfectly round after smoothing.

Common polygon reduction opportunities:

1. Straight wire segments
2. The long spine of the pin
3. The needle shaft
4. Hidden inner clasp surfaces

This technique is standard in optimized asset pipelines such as those used in large digital asset libraries that generate layout scenes automatically, where each object must stay lightweight.

save pin

Improving Topology for Curved Metal Objects

Key Insight: Proper edge flow along curves prevents shading errors even with fewer polygons.

A safety pin is essentially a continuous curve. If topology doesn't follow that curve, you get lighting artifacts, especially in reflective metals.

Best topology practices for wire objects:

1. Maintain evenly spaced edge loops along curves
2. Avoid poles on visible curved surfaces
3. Keep circular cross‑sections consistent
4. Use bevels only at mechanical transition points

One mistake I see frequently is converting CAD geometry directly into polygon meshes. CAD exports tend to produce extremely dense triangulated meshes that are terrible for real‑time workflows.

Retopologizing the model into clean quads dramatically improves performance and shading.

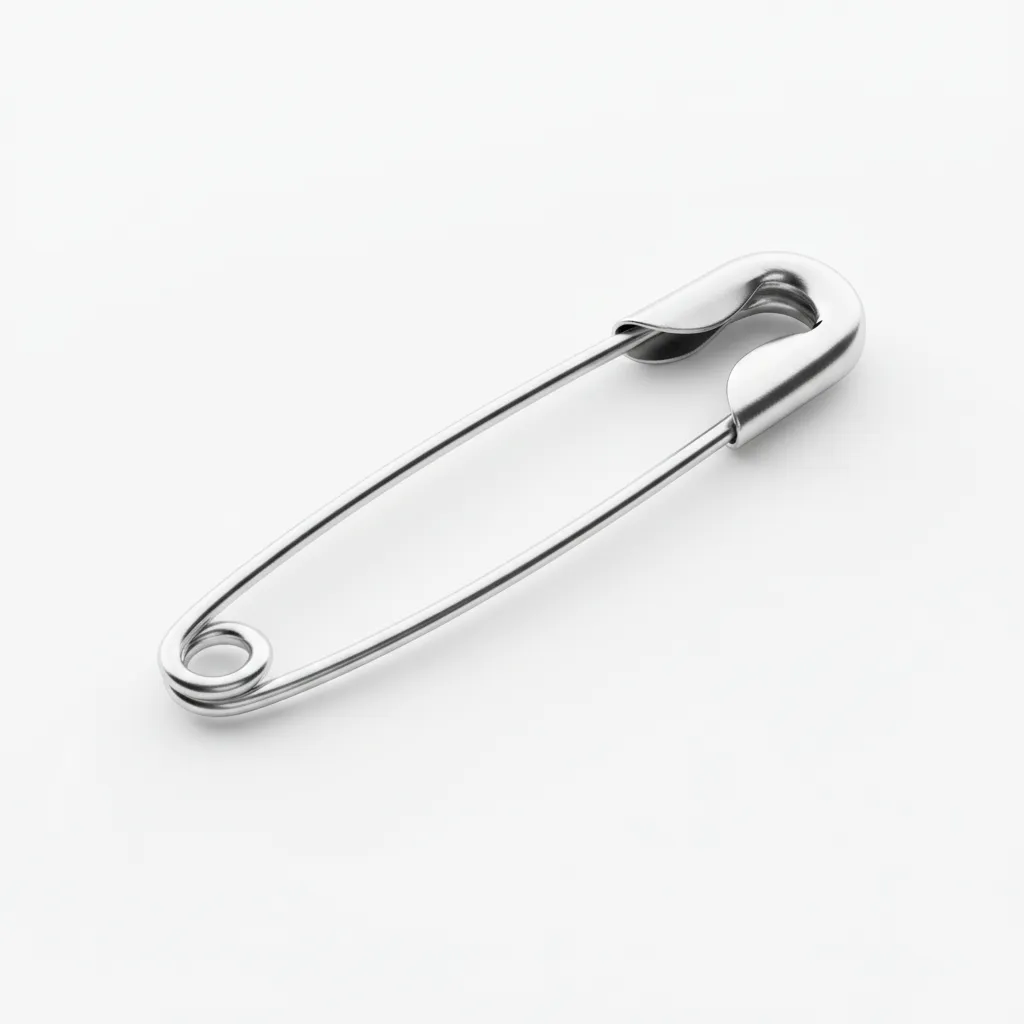

Materials and Metal Rendering for Safety Pins

Key Insight: Realistic metal appearance depends more on reflections and roughness than geometry complexity.

When rendering a safety pin, the polished metal look comes from how the material interacts with light.

A practical PBR metal setup usually includes:

1. Metallic value near 1.0
2. Roughness between 0.15–0.35
3. Subtle micro‑scratches normal map
4. HDRI lighting for reflections

In product visualization, even a low‑poly model can look extremely realistic once reflections and lighting are correct.

save pin

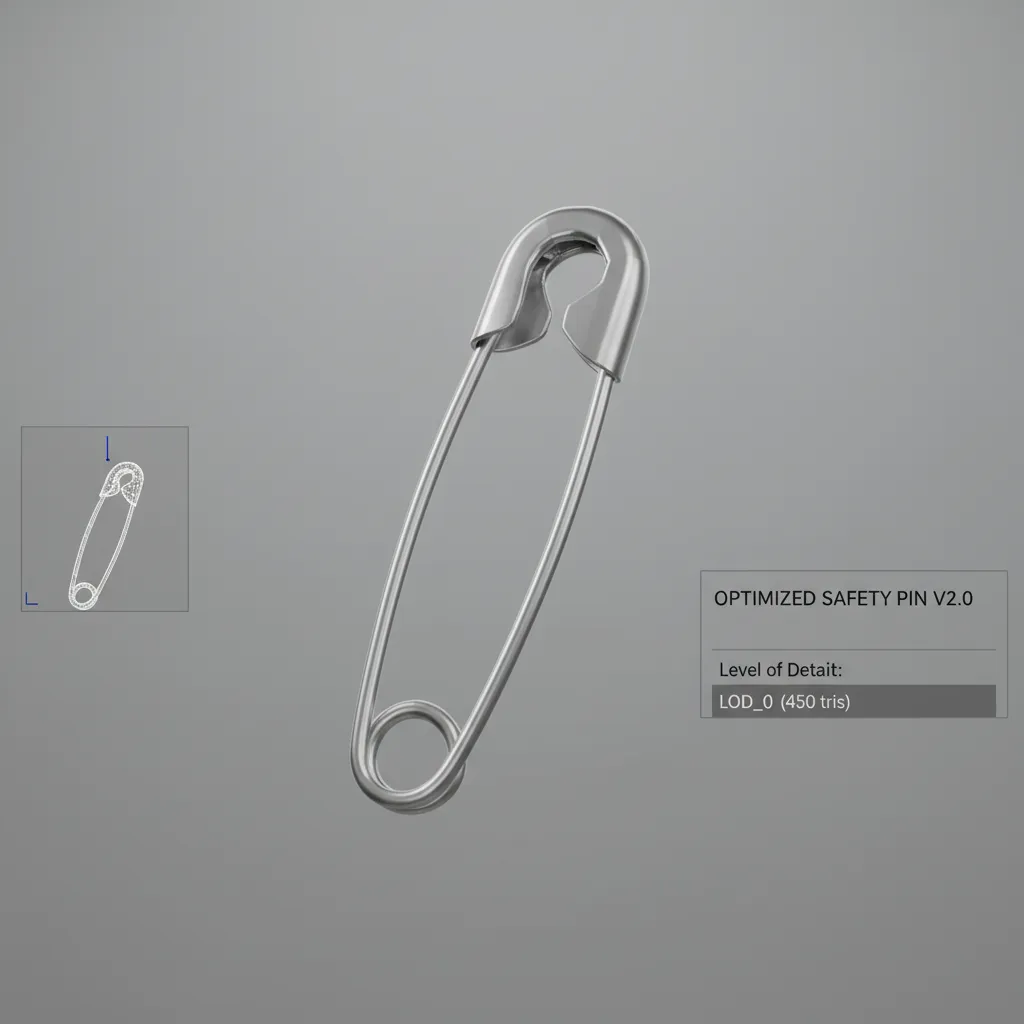

Preparing a 3D Safety Pin Model for Real-Time Engines

Key Insight: Real‑time engines require optimized meshes, efficient materials, and predictable scale.

If the safety pin will be used in games or interactive applications, several additional steps matter.

Real‑time preparation checklist:

1. Keep polygon count under ~3k tris
2. Apply transforms and reset scale
3. Combine small mesh pieces where possible
4. Use a single PBR material
5. Bake reflection highlights if needed

Another overlooked step is pivot placement. For mechanical objects, placing the pivot near the hinge area allows easier animation if the pin needs to open.

save pin

Performance Optimization for Large Asset Libraries

Key Insight: Asset libraries amplify inefficiencies, so standardized optimization rules become critical.

When managing large collections of 3D objects, consistency matters as much as raw polygon reduction.

In professional asset libraries, we usually standardize:

1. Maximum triangle budgets
2. Material slot limits
3. Texture size constraints
4. Uniform scale units

These standards prevent scenes from becoming unstable as more objects are added.

If you're building full visualization environments rather than single objects, studying structured scene pipelines like AI‑assisted interior design scene generation systems can reveal how optimized assets scale across thousands of scenes.

Answer Box

The most effective way to optimize a 3D safety pin model is reducing cylinder segment counts, maintaining clean curved topology, and relying on physically based metal materials for realism. Geometry should support silhouette accuracy while materials handle visual detail.

Final Summary

1. A 3D safety pin model rarely needs high polygon density.
2. Silhouette and edge flow matter more than mesh complexity.
3. Clean quad topology improves reflections on curved metal.
4. Efficient materials create realism without heavy geometry.
5. Standardized asset rules prevent performance issues at scale.

FAQ

How many polygons should a 3D safety pin model have?

For most real‑time uses, 1,000–3,000 triangles are sufficient for a realistic safety pin model.

What is the best topology for a curved wire model?

Evenly spaced quad edge loops following the curve produce the cleanest shading.

Can a low‑poly safety pin still look realistic?

Yes. Lighting, reflections, and materials contribute far more to realism than polygon count.

Should I model scratches into the geometry?

No. Use normal maps or roughness maps instead to avoid unnecessary polygons.

Why do reflective metals reveal topology problems?

Because reflections exaggerate shading inconsistencies caused by uneven topology.

Is CAD geometry good for a 3D safety pin model?

CAD exports often create overly dense meshes. Retopology is usually needed for real‑time use.

What file format works best for optimized assets?

FBX and glTF are widely used for real‑time engines and visualization tools.

Can a 3D safety pin model be used in product rendering scenes?

Yes. With proper materials and lighting, a lightweight model works perfectly in product visualization.
