Optimizing Airflow Efficiency with a 6-Inch HVAC Duct: Practical strategies to improve airflow, reduce pressure loss, and get better HVAC performance in small rooms.

Direct Answer

A 6-inch HVAC duct can efficiently serve most small rooms when airflow resistance is minimized and the duct layout is properly balanced. Optimizing duct length, reducing pressure loss, and selecting the right vents can significantly improve airflow performance. In many homes, simple layout adjustments deliver noticeable increases in comfort and energy efficiency.

Quick Takeaways

1. A straight, short duct run improves airflow efficiency in a 6-inch HVAC duct system.
2. Reducing sharp bends can increase usable airflow by lowering static pressure.
3. Proper vent register selection helps distribute air evenly across the room.
4. Balancing airflow between rooms prevents weak supply in small spaces.
5. Optimized duct layouts often reduce HVAC energy consumption.

Introduction

In many residential projects I've worked on, the 6-inch HVAC duct is one of the most common supply duct sizes used for small bedrooms, offices, and guest rooms. On paper it looks straightforward—but in reality, performance depends far more on layout and resistance than on the duct size itself.

I’ve seen perfectly sized ducts deliver weak airflow simply because the run was too long or packed with tight turns. In contrast, a well-optimized 6-inch duct system can easily maintain strong airflow and consistent comfort.

One helpful step early in planning is mapping the room layout and supply path using a simple floor plan tool for visualizing HVAC layout options. Even a quick visual layout helps identify unnecessary duct turns or inefficient routing.

In this guide, I’ll break down practical ways to optimize airflow efficiency when using a 6-inch duct. These insights come directly from real residential installations where small adjustments made a big difference in airflow performance.

save pin

Understanding Ideal Airflow for Small Rooms

Key Insight: Most small rooms perform best when supplied with 60–120 CFM of airflow through a properly configured 6-inch duct.

One mistake I frequently see is assuming airflow problems are caused by duct diameter alone. In reality, the airflow requirement of the room matters more than the duct size.

According to common residential HVAC design guidelines such as ACCA Manual J and Manual D, typical airflow targets include:

1. Small bedroom: 60–100 CFM
2. Home office: 70–110 CFM
3. Guest room: 60–90 CFM

A 6-inch duct can usually carry around 80–120 CFM depending on static pressure and duct length. That means the size itself is rarely the limitation—poor airflow typically comes from resistance within the system.

In several retrofit projects I’ve done, correcting the duct path improved airflow more than upsizing the duct ever would have.

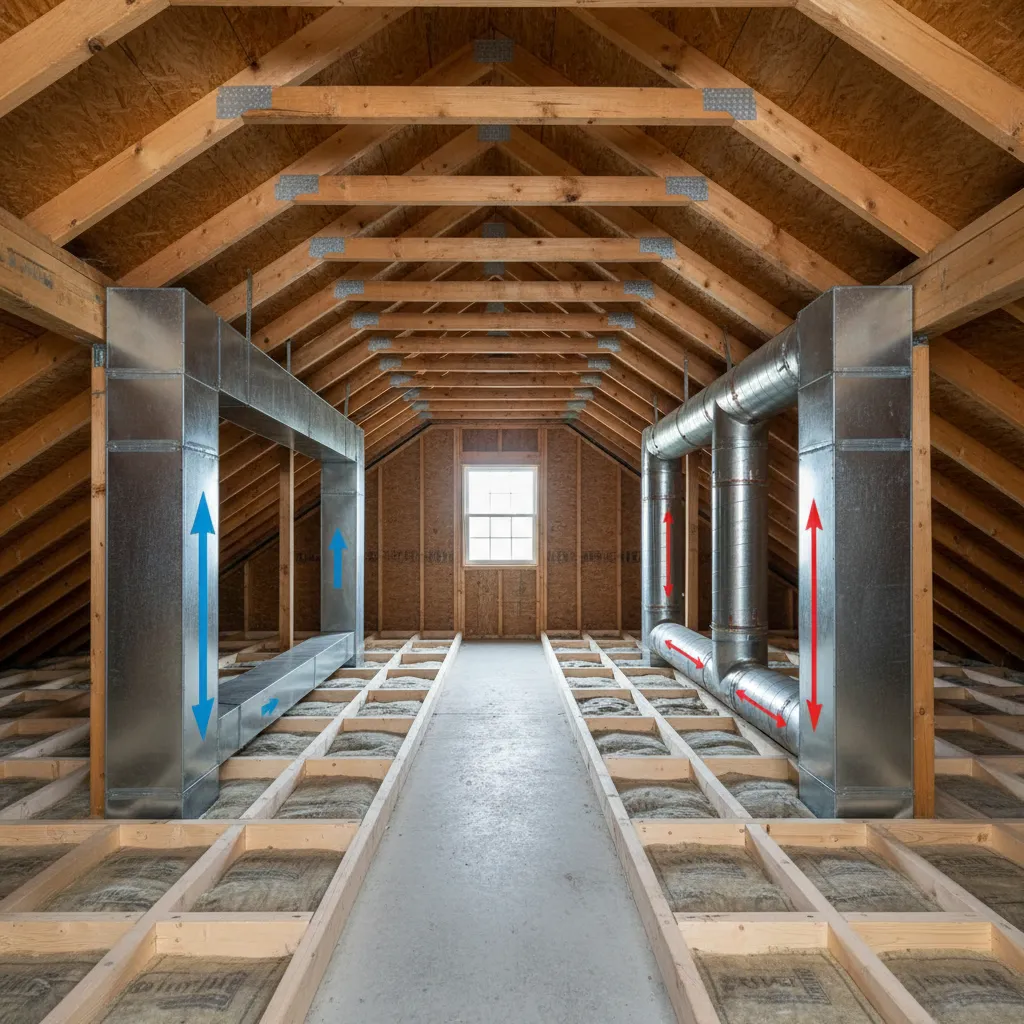

Duct Length and Layout Optimization

Key Insight: Shorter, straighter duct runs dramatically improve airflow efficiency in a 6-inch HVAC duct.

The biggest hidden performance killer in residential duct systems is excessive duct length. Every extra foot adds friction loss, which reduces the airflow reaching the room.

Based on field experience, the most efficient layout follows three simple rules:

1. Keep duct runs under 25–35 feet when possible
2. Minimize turns and elbows
3. Avoid unnecessary detours around framing

Even two extra elbows can reduce airflow more than homeowners expect. Each 90-degree elbow can add the equivalent of 5–10 feet of duct resistance.

When planning layouts for clients, I often sketch different supply routes using a visual room planning layout tool to test airflow paths. Seeing the duct path visually makes it easier to identify unnecessary bends before installation.

save pin

Reducing Pressure Loss in a 6-Inch Duct

Key Insight: Lowering static pressure in the duct system is the fastest way to improve airflow without changing duct size.

Pressure loss builds up from several sources inside a typical HVAC duct system.

Common sources of airflow resistance include:

1. Sharp elbows
2. Flexible duct compression
3. Long duct runs
4. Undersized registers
5. Dirty filters

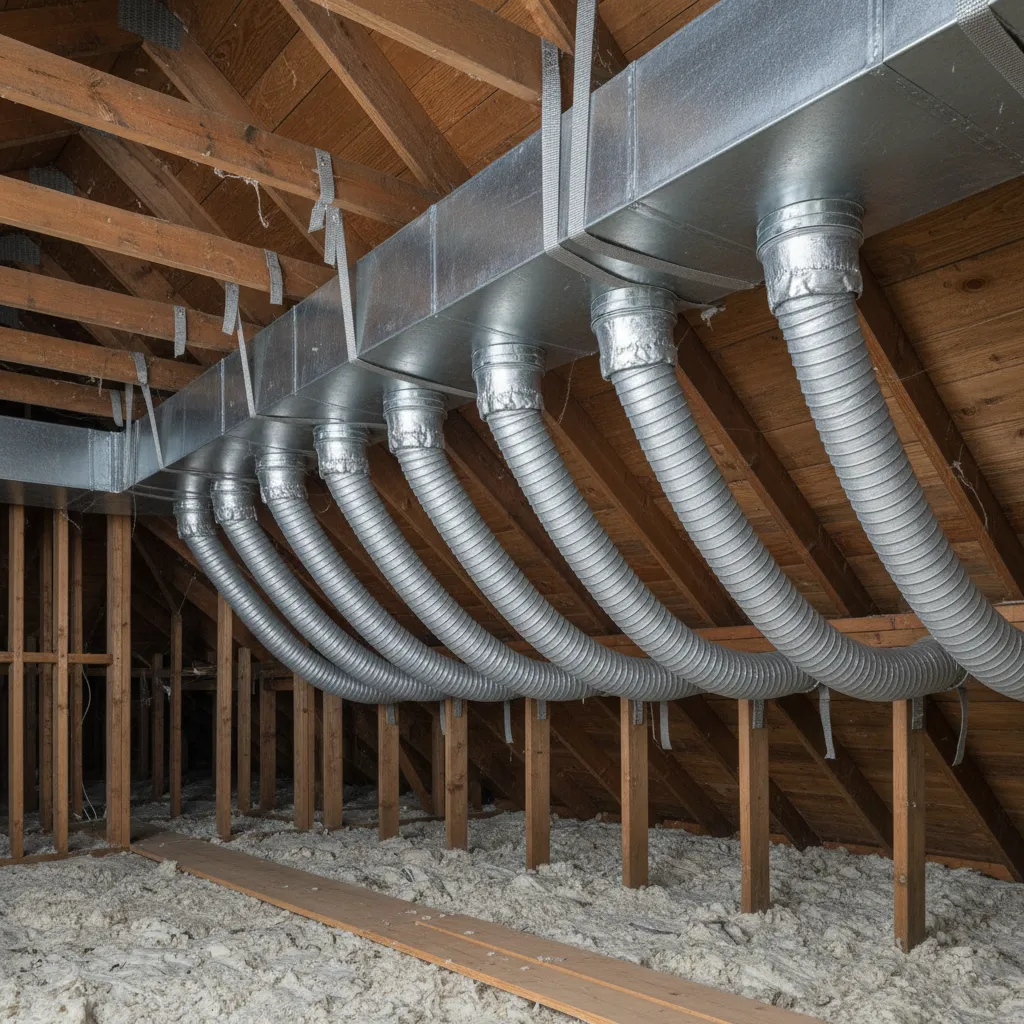

One issue I see often during inspections is compressed flexible duct. When flex duct is stretched unevenly or sagging between supports, internal ridges increase friction dramatically.

Proper installation should keep flexible duct stretched tight and supported every 4–5 feet. This simple fix alone can noticeably improve airflow.

save pin

Balancing Airflow Across Multiple Rooms

Key Insight: Poor airflow in one room is often caused by imbalance elsewhere in the duct system.

Many homeowners assume weak airflow means their duct is too small. But in multi-room systems, airflow is actually a competition between supply branches.

When one branch has less resistance, it naturally steals airflow from other rooms.

Effective airflow balancing strategies include:

1. Installing manual balancing dampers
2. Adjusting existing dampers at the trunk line
3. Ensuring return air pathways are unobstructed
4. Checking for closed or blocked registers

In several projects I’ve managed, simply adjusting dampers restored proper airflow without replacing any ductwork.

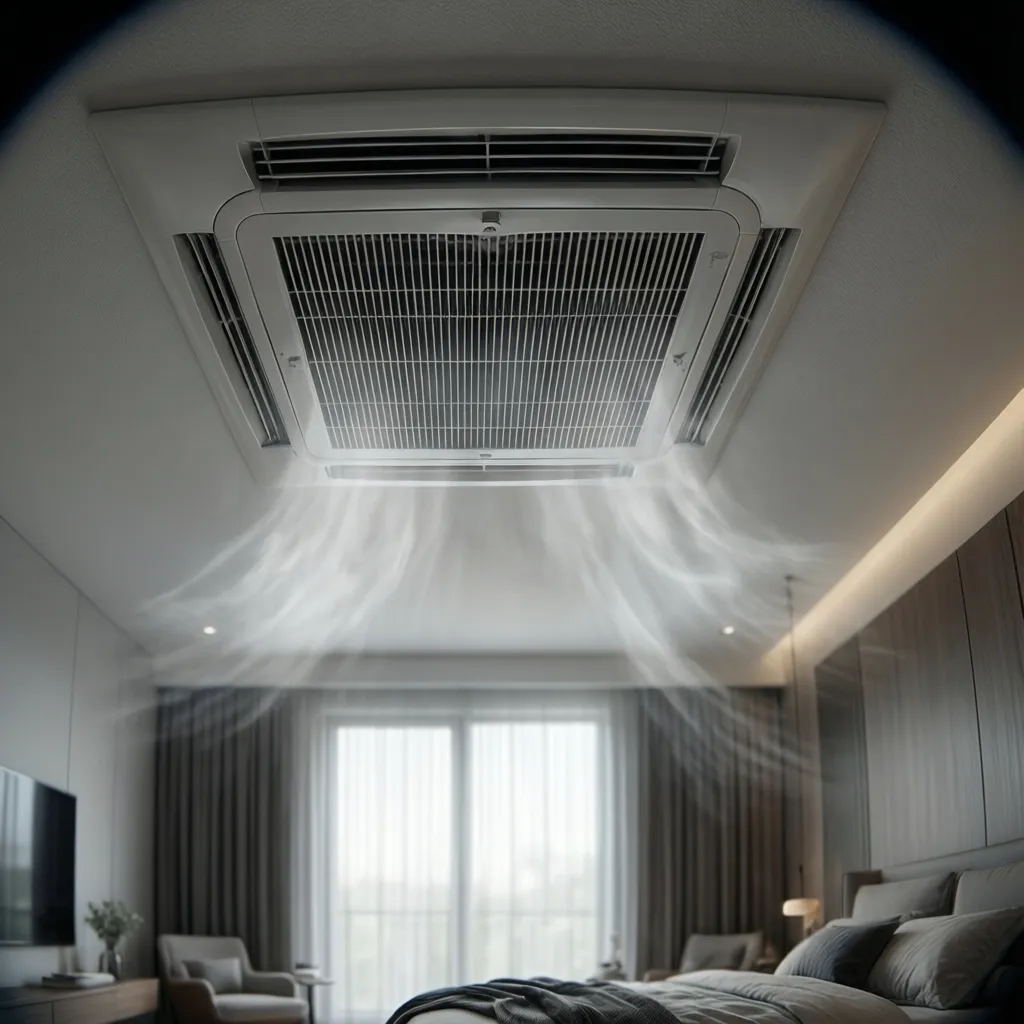

Choosing the Right Vent Registers and Grilles

Key Insight: The wrong supply register can reduce airflow by 10–30%, even when the duct size is correct.

Registers create their own resistance within the system. Decorative models with tight louvers sometimes restrict airflow significantly.

When selecting registers for a 6-inch duct, consider:

1. Free airflow rating
2. Register size relative to duct diameter
3. Adjustable louvers
4. Low-resistance grille design

For small bedrooms, I often recommend 10x4 or 12x4 supply registers. These allow sufficient air dispersion without creating additional pressure loss.

save pin

Energy Efficiency Benefits of Proper Duct Optimization

Key Insight: Optimizing duct airflow improves HVAC efficiency and reduces system strain.

When airflow is restricted, HVAC systems must run longer cycles to maintain temperature. That increases energy consumption and accelerates wear on components like blowers and compressors.

In homes where we improved duct efficiency, homeowners often noticed:

1. Faster room cooling or heating
2. More even temperature distribution
3. Reduced HVAC runtime
4. Lower energy bills

Visualizing the final airflow path and room layout using a 3D home visualization for airflow and layout planning can also help homeowners understand how air moves through the space.

Answer Box

A properly installed 6-inch HVAC duct can efficiently serve most small rooms when duct runs are short, pressure loss is minimized, and airflow is balanced across the system. Layout design and vent selection often impact airflow more than duct diameter itself.

Final Summary

1. A 6-inch HVAC duct typically supports airflow needs for small residential rooms.
2. Duct layout and length often affect performance more than duct size.
3. Reducing elbows and compression improves airflow efficiency.
4. Balancing dampers help distribute air evenly across rooms.
5. Proper register selection prevents unnecessary airflow restriction.

FAQ

Is a 6-inch HVAC duct enough for a small bedroom?

A 6-inch HVAC duct usually delivers 80–120 CFM, which is sufficient for most small bedrooms between 100 and 200 square feet when properly installed.

How can I optimize airflow in a 6 inch HVAC duct?

Keep duct runs short, minimize elbows, fully stretch flexible ducts, and choose low-resistance registers to improve airflow performance.

What causes weak airflow in a 6-inch duct?

Common causes include long duct runs, multiple elbows, compressed flex duct, dirty filters, or poor airflow balancing in the system.

Does duct length affect HVAC airflow?

Yes. Longer duct runs increase friction loss, which reduces the airflow reaching the room.

Can vent registers reduce airflow?

Yes. Some decorative registers restrict airflow due to tight louver spacing or small openings.

How many CFM can a 6-inch duct handle?

A typical 6-inch HVAC duct supports around 80–120 CFM depending on static pressure and duct length.

Should I increase duct size to fix airflow problems?

Not always. In many cases, airflow improves simply by reducing resistance and balancing the system.

What is the best duct layout for a small bedroom HVAC system?

The best layout is a short, straight run with minimal turns, balanced airflow, and properly sized supply registers.

References

1. ACCA Manual D Residential Duct Systems
2. U.S. Department of Energy – Duct System Design
3. ASHRAE Residential Ventilation Guidelines
