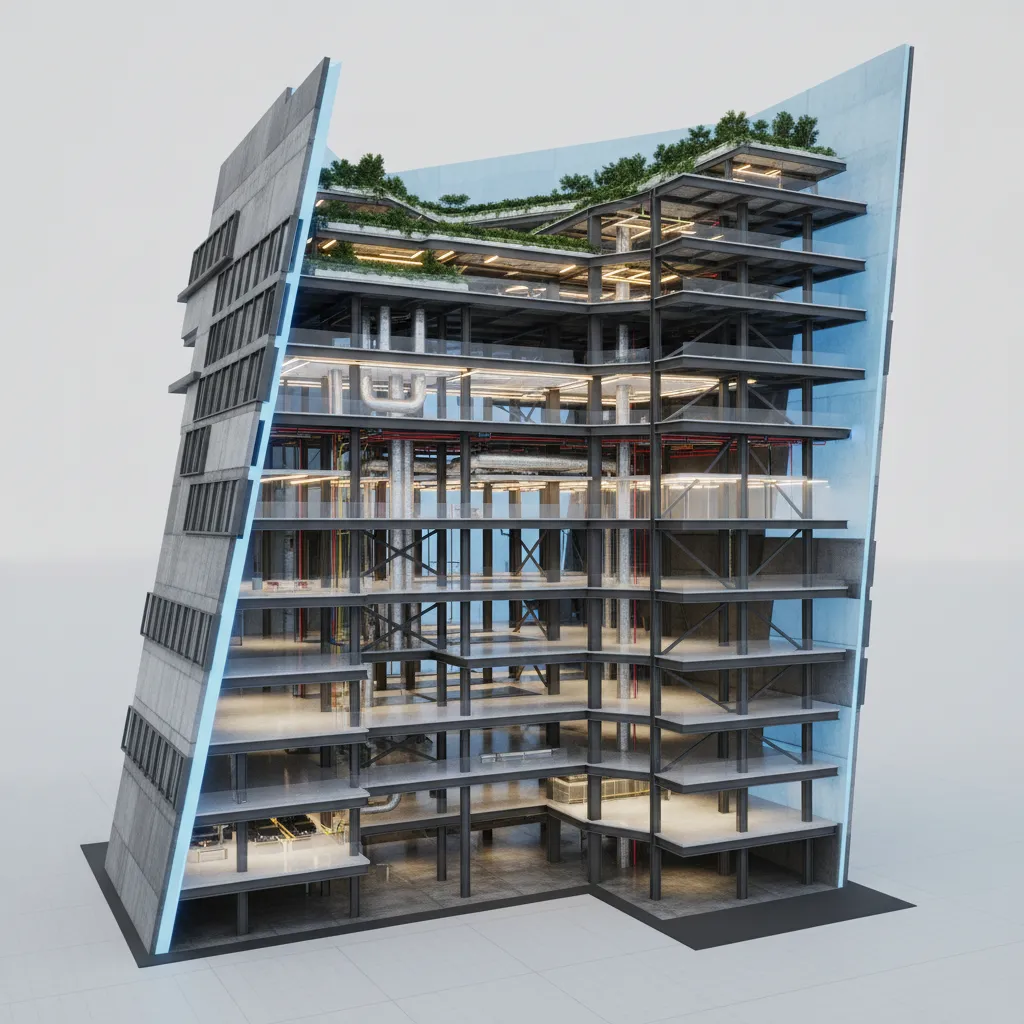

Optimizing Cross Section Performance in Large 3D Models: 6 practical techniques I use to keep section views fast and stable in massive 3D scenes

A few years ago I opened a massive project model—hundreds of objects, layered materials, the whole thing—and the moment I turned on a section plane… everything froze. I remember staring at the screen thinking, “Great, I just sliced my workstation in half too.” That embarrassing moment pushed me to rethink how I prepare heavy scenes before touching section tools. Over time I realized that techniques similar to visualizing layered spaces in a 3D floor planning workflow can dramatically improve how large models behave when cut by section planes.

Large assemblies always look intimidating, but I’ve learned that smart structure beats raw hardware most of the time. When section views are optimized properly, even huge environments become smooth to navigate and analyze. In this guide I’ll share the practical methods I rely on to keep cross sections responsive—even in very heavy scenes.

Why Cross Sections Slow Down Large 3D Models

Section views force the engine to calculate intersections between the cutting plane and every visible piece of geometry. In large models, that can mean thousands—or millions—of calculations happening instantly. If the geometry is dense or poorly organized, the system has to rebuild a massive amount of mesh data every time the section moves.

I’ve seen projects where a single decorative object had more polygons than the entire building shell. When the section plane hits those meshes, performance drops fast. Understanding this bottleneck is the first step toward optimizing cross section performance in large 3D models.

Geometry Simplification Strategies

One of my favorite tricks is simplifying geometry before enabling section planes. Highly detailed meshes rarely add value in technical section views, but they dramatically increase calculation load.

I often create simplified versions of complex components—especially furniture, decorative panels, or mechanical assemblies. Reducing polygon density, merging surfaces, or replacing complex curves with simpler shapes can reduce section calculation time dramatically.

Another habit I developed is maintaining "analysis versions" of models. These are lightweight copies specifically prepared for section studies and performance testing.

Using Layer Control and Object Filtering

Layer management is one of the most underrated performance tools. When I know I’ll be using multiple section planes, I isolate only the systems that matter—structure, plumbing, mechanical components, or architectural shells.

This is similar to how I organize projects when structuring a clean room-by-room modeling layout. A well-organized scene allows you to temporarily disable entire groups of objects before activating section views. The result is dramatically fewer intersection calculations.

Filtering hidden or distant objects is equally important. If an object will never intersect the section plane, it shouldn’t be active in the scene.

GPU and Rendering Optimization Techniques

Many users focus only on modeling adjustments, but GPU settings also play a major role in section performance. Real‑time clipping operations rely heavily on GPU processing, especially when the viewport uses advanced shading or reflections.

I often switch heavy scenes to simplified viewport modes while adjusting section planes. Turning off real-time shadows, reflections, or high-resolution textures can instantly improve responsiveness.

Modern GPUs are powerful, but they still struggle when every object includes complex materials and transparency effects during section calculations.

Managing Section Planes in Massive Assemblies

Another mistake I used to make was stacking too many active section planes. Each additional plane multiplies intersection calculations and increases memory usage.

Instead, I typically work with one active plane at a time and reposition it dynamically. For massive assemblies, I also divide the project into logical zones so each section only interacts with a smaller subset of geometry.

When teams ignore this, even powerful workstations begin to lag or crash during section visualization.

Best Practices for Real Time Section Visualization

Real-time section visualization becomes much smoother when the workflow prioritizes preview efficiency. I often test section positioning using lightweight viewport previews before generating higher quality visuals.

Sometimes I even verify composition by previewing sectioned interiors through quick 3D render previews, which helps confirm visibility and structure without keeping heavy interactive calculations active the entire time.

The key lesson I’ve learned after years of working with dense models: preparation matters more than hardware. Clean geometry, controlled visibility, and disciplined section management will keep even very large models responsive.

FAQ

1. Why do section views slow down large 3D models?

Section planes force the system to compute intersections between the plane and all visible geometry. In dense models with high polygon counts, this creates heavy processing loads that slow viewport updates.

2. How can I speed up section views in CAD software?

Simplify geometry, disable unnecessary layers, and reduce viewport rendering settings. These steps significantly reduce intersection calculations and GPU load.

3. Do multiple section planes affect performance?

Yes. Each additional section plane increases intersection calculations across the entire model. Using fewer planes or activating them only when needed helps maintain responsiveness.

4. Does polygon count affect cross section performance?

Absolutely. High‑polygon models require more processing when sliced by a section plane. Reducing mesh density or using proxy geometry can improve performance significantly.

5. Is GPU power important for section visualization?

Yes. Modern visualization engines rely heavily on GPU processing for clipping operations and real‑time rendering. A stronger GPU can improve section interaction speed.

6. Should textures and materials be simplified when using section planes?

Often yes. Heavy materials such as reflections, transparency, and complex shaders increase rendering load during section calculations.

7. What is the best workflow for large assembly section views?

Work in stages: isolate relevant components, activate a single section plane, and analyze zones individually rather than slicing the entire assembly at once.

8. Are there official recommendations for handling large 3D model performance?

Yes. Many software vendors recommend reducing geometry complexity and limiting active visual effects. For example, NVIDIA notes that simplifying scene geometry and minimizing draw calls improves real‑time GPU performance in visualization workflows.
