Optimizing Drain Pipe Routing When Adding a Toilet in a Crawl Space Laundry Room: Design an efficient drain and vent layout under a laundry room floor to prevent clogs, improve flow, and simplify crawl space plumbing.

Direct Answer

The most efficient drain pipe routing for a crawl space toilet is a short, straight 3‑inch drain line with a consistent 1/4 inch per foot slope that connects to the main waste line before the laundry standpipe while maintaining proper venting. Minimizing bends, protecting pipes from moisture, and planning vent placement are essential for reliable flow.

Quick Takeaways

1. A 3‑inch toilet drain with 1/4 inch per foot slope provides the most reliable waste flow.
2. Keep horizontal runs short and avoid unnecessary elbows in crawl space plumbing.
3. The toilet should connect upstream of the laundry standpipe when possible.
4. Proper vent placement prevents siphoning and slow drainage.
5. Moisture protection and insulation are critical in crawl space pipe routing.

Introduction

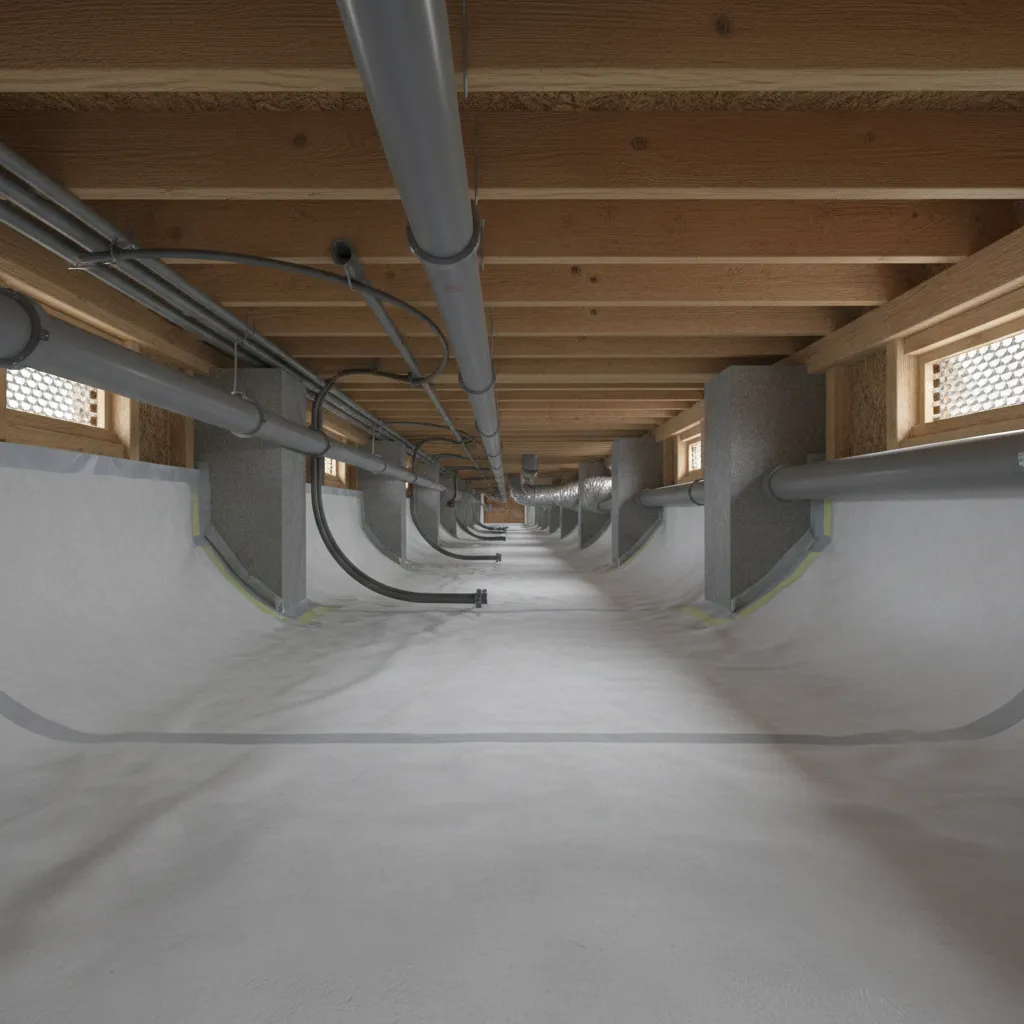

Adding a toilet to a laundry room above a crawl space seems simple until you start planning the drain pipe routing. In many renovation projects I’ve worked on, the challenge isn’t installing the fixture itself—it’s designing the drain and vent layout so the system actually works long term.

Homeowners often assume they can simply tap into the nearest laundry drain. In reality, crawl space plumbing requires careful slope control, strategic vent placement, and thoughtful pipe routing to avoid slow drains, odors, or recurring clogs.

Before cutting into your floor, it helps to visualize the entire pipe layout under the room. Many designers use tools that allow them to map plumbing zones while creating a scaled floor plan, which makes it easier to align fixtures with existing waste lines.

After working on multiple crawl‑space bathroom additions, I’ve noticed the same problems repeating: overly complex pipe runs, incorrect slopes, and poorly positioned vents. This guide breaks down the practical decisions that lead to a cleaner and more efficient system.

save pin

Why Drain Pipe Layout Matters in Crawl Space Plumbing

Key Insight: Efficient pipe routing is the single biggest factor affecting long‑term toilet performance in crawl space installations.

Unlike slab plumbing, crawl spaces allow flexibility in pipe placement—but that freedom often leads to overly complicated layouts. Every unnecessary bend increases friction and the chance of waste buildup.

In renovation projects, I often see drains routed around joists in zigzag patterns instead of adjusting the toilet placement slightly. A 6‑inch shift in fixture position can eliminate multiple elbows and dramatically improve flow.

Common layout mistakes:

1. Multiple 90‑degree elbows in short runs
2. Improper slope due to joist interference
3. Connecting to laundry lines downstream of the trap
4. Vent pipes located too far from the toilet

Professional plumbers often recommend designing the layout visually first. Many remodelers use tools that help visualize under‑floor pipe routes and structural spacing before installation.

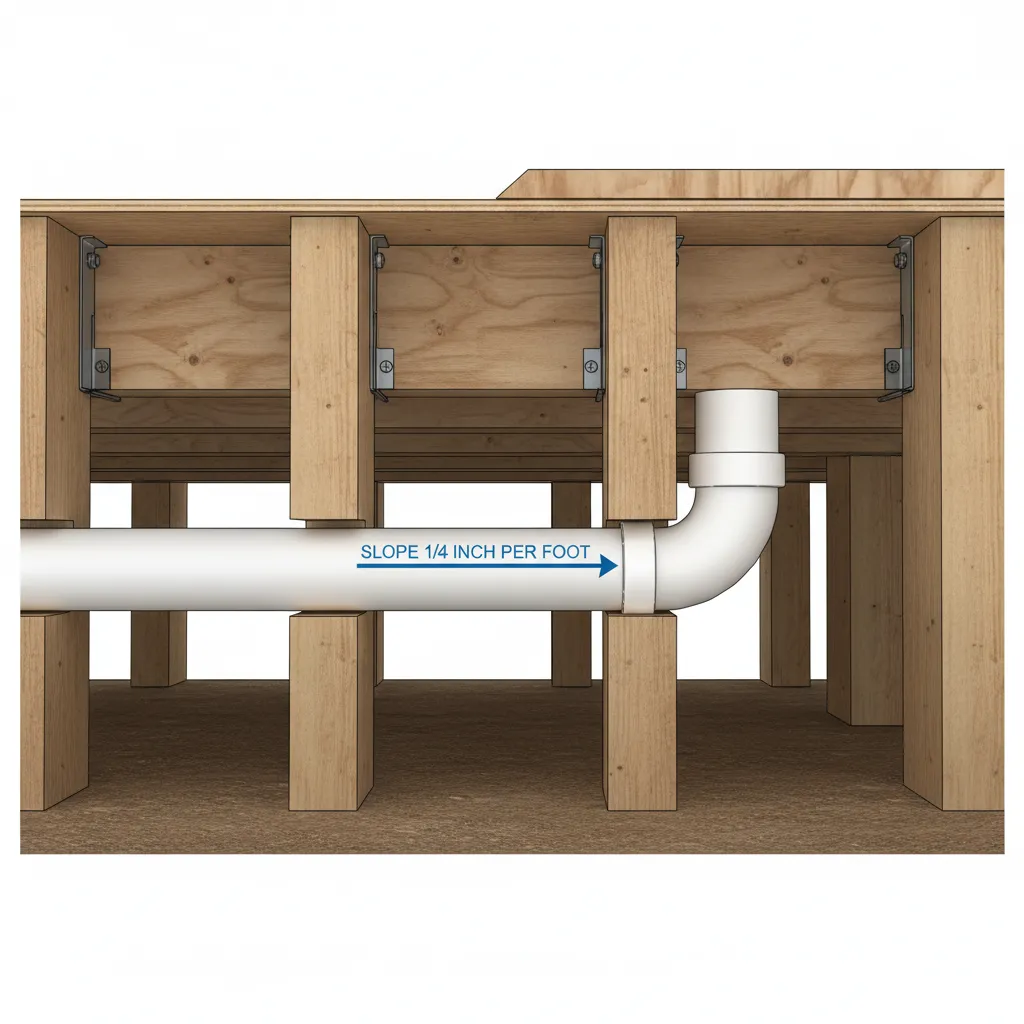

Ideal Toilet Drain Pipe Slope and Distance Limits

Key Insight: A consistent 1/4 inch per foot slope with minimal horizontal distance keeps solids moving effectively through crawl space drain lines.

Toilet drains rely heavily on gravity. If the slope is too shallow, waste slows down. Too steep, and water outruns solids, which can create buildup.

Recommended specifications:

1. Pipe diameter: 3 inches minimum
2. Slope: 1/4 inch per foot
3. Maximum horizontal distance to vent: typically 6 feet
4. Preferred connection: directly into the main soil stack

In tight crawl spaces, maintaining slope can be tricky when beams or ducts block the path. The best solution is usually to adjust the route early instead of forcing the pipe through awkward angles.

Professional plumbing guidelines from the International Plumbing Code emphasize maintaining consistent slope and minimizing directional changes to preserve waste flow efficiency.

save pin

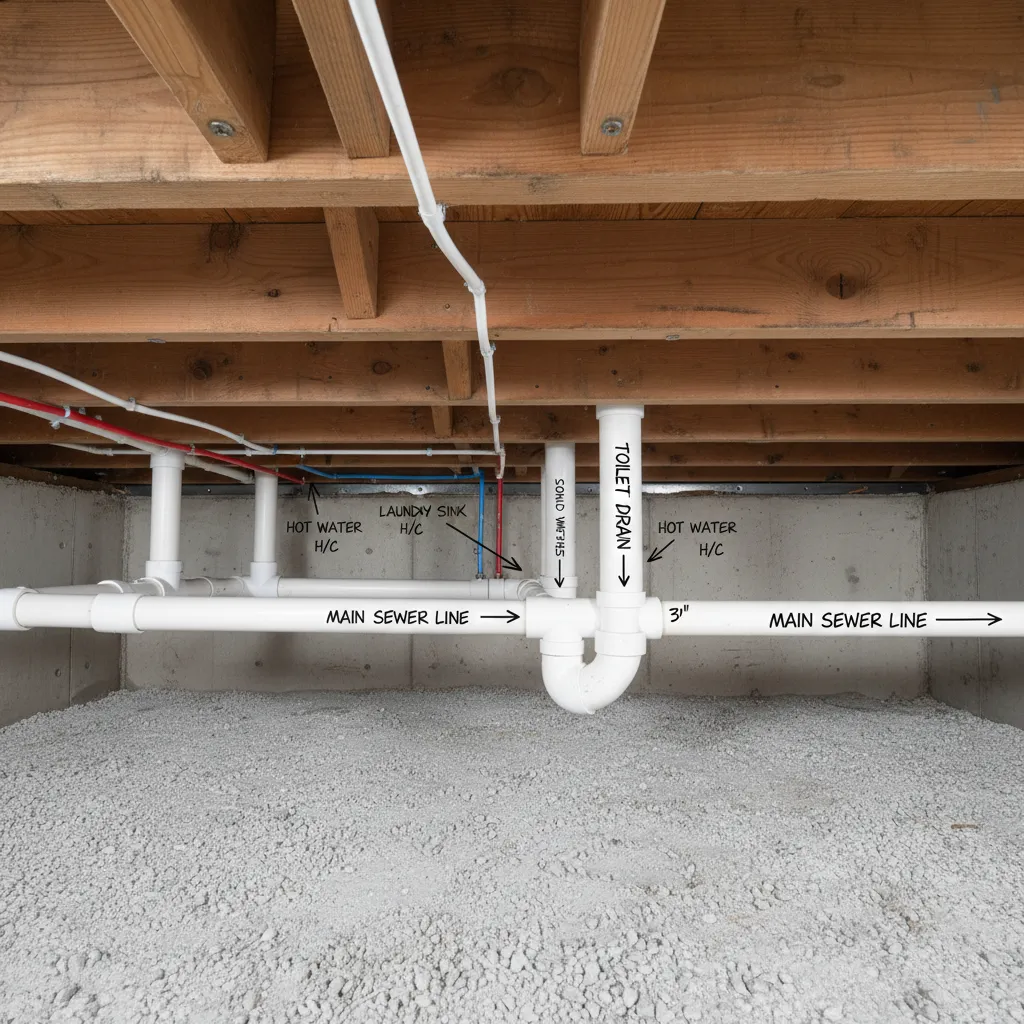

Connecting the Toilet Drain to Existing Laundry Lines

Key Insight: The toilet drain should typically connect to the main waste line before the laundry standpipe to prevent cross‑flow issues.

Laundry drains carry large volumes of water quickly. When a toilet connects incorrectly downstream of a laundry standpipe, pressure fluctuations can disrupt flow and create gurgling or siphoning.

Best connection order:

1. Main drain line
2. Toilet branch connection
3. Laundry standpipe
4. Trap and vent assembly

This order keeps the toilet waste line clear and prevents washing machine discharge from affecting the toilet trap.

Another overlooked issue is pipe diameter transitions. Laundry drains are often 2 inches, while toilets require 3 inches. Reducing too early in the system can restrict flow.

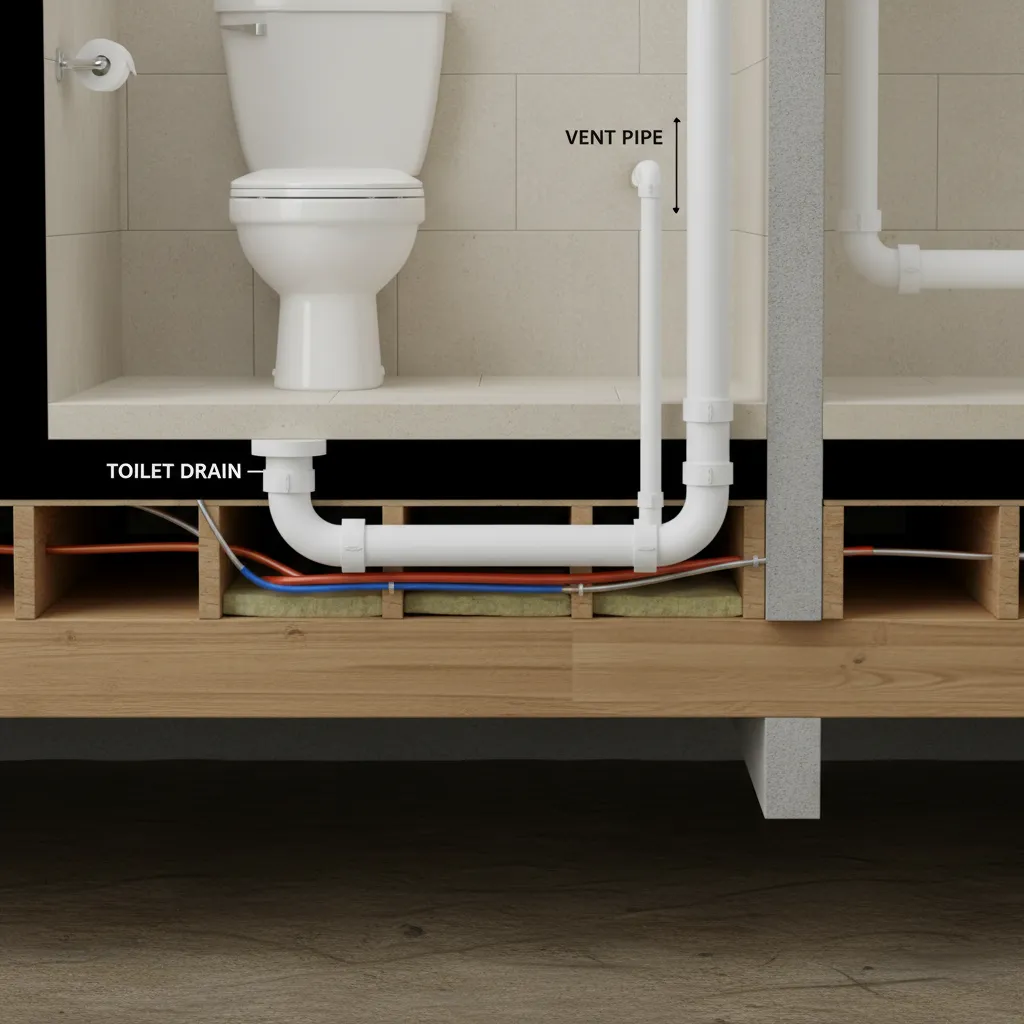

Best Venting Configurations for Small Utility Bathrooms

Key Insight: Proper vent placement prevents siphoning and ensures stable drainage in crawl space toilet installations.

Without proper venting, the flushing action can pull water from nearby traps, allowing sewer gases to enter the room. This problem shows up frequently when toilets are added to existing laundry rooms.

Common venting solutions:

1. Individual vent connected vertically above the toilet
2. Wet vent shared with nearby sink
3. Connection to an existing vent stack in the wall

From a design perspective, planning fixture alignment early simplifies vent routing. Many renovation planners first test different bathroom fixture layouts before finalizing plumbing paths, which helps avoid complicated vent reroutes later.

save pin

Answer Box

The most efficient crawl space toilet plumbing layout uses a straight 3‑inch drain line with a 1/4 inch per foot slope, minimal elbows, and a properly positioned vent within code distance. Connecting the toilet upstream of laundry drains helps maintain consistent waste flow.

Reducing Pipe Bends to Improve Waste Flow

Key Insight: Every additional elbow increases resistance and raises the risk of clogs in horizontal crawl space drains.

In several crawl‑space remodels I’ve reviewed, the number one performance issue was excessive pipe bends. Installers sometimes use multiple 90‑degree elbows where two 45‑degree fittings would maintain smoother flow.

Preferred fittings:

1. Two 45° elbows instead of one sharp 90° turn
2. Long sweep elbows for horizontal transitions
3. Wye fittings instead of sanitary tees for horizontal joins

The difference may seem small, but smoother turns significantly reduce the chance of waste accumulation over time.

Protecting Pipes from Moisture and Freezing in Crawl Spaces

Key Insight: Crawl space plumbing must be insulated and supported properly to prevent condensation, freezing, and pipe sagging.

Crawl spaces often experience high humidity and seasonal temperature swings. Over time, unsupported pipes can sag between joists, which disrupts the carefully planned slope.

Protection strategies:

1. Use insulated pipe sleeves in colder climates
2. Install pipe hangers every 4 feet for PVC
3. Maintain vapor barriers on crawl space floors
4. Avoid running pipes directly against exterior vents

Building science studies from the U.S. Department of Energy consistently show that insulating exposed plumbing in crawl spaces reduces freezing risk and energy loss.

Final Summary

1. Straight drain runs with consistent slope improve toilet performance.
2. Connecting upstream of laundry drains prevents pressure conflicts.
3. Proper vent placement protects traps and prevents odors.
4. Minimizing elbows significantly reduces clog risk.
5. Insulation and pipe support are essential in crawl space environments.

FAQ

How much slope does a crawl space toilet drain need?

Most plumbing codes recommend 1/4 inch per foot for a 3‑inch toilet drain line.

Can a toilet share a drain with a laundry machine?

Yes, but the toilet branch should connect before the laundry standpipe to maintain proper waste flow.

What size pipe should be used for a crawl space toilet drain?

A 3‑inch pipe is standard for residential toilet drain lines.

How far can a toilet be from its vent?

Most plumbing codes allow around 6 feet for a 3‑inch drain before a vent is required.

What is the best drain layout for a crawl space toilet?

The optimal drain pipe routing crawl space toilet design uses a short, straight run with minimal elbows.

Can I tie a toilet into a 2‑inch laundry drain?

Not directly. Toilets typically require a 3‑inch drain before reducing into larger system lines.

Do crawl space toilet pipes need insulation?

Yes. Insulation helps prevent freezing, condensation, and long‑term pipe deterioration.

How do you vent a toilet in crawl space plumbing?

A vertical vent connected near the toilet or a wet vent shared with a sink is commonly used.
