Optimizing Fixtures and Storage in a 7x4 Bathroom Layout: Practical design strategies to make a 7x4 bathroom layout feel functional, spacious, and organized

Direct Answer

A 7x4 bathroom layout works best when fixtures are aligned along one wall, using compact sinks, wall-mounted toilets, and vertical storage to preserve walking space. Prioritizing narrow-depth fixtures, sliding shower enclosures, and wall-integrated storage keeps the layout usable without feeling cramped.

The key is designing around circulation first and letting storage rise vertically instead of spreading horizontally.

Quick Takeaways

1. A single-wall fixture layout keeps circulation clear in a 7x4 bathroom.
2. Wall-mounted toilets and slim sinks save crucial floor depth.
3. Sliding or frameless shower panels prevent door clearance conflicts.
4. Vertical storage dramatically increases capacity without shrinking the room.
5. Lighting and reflective materials make narrow bathrooms feel wider.

Introduction

The first time I had to design a 7x4 bathroom layout was for a compact urban renovation in Los Angeles. On paper, it looked nearly impossible: 28 square feet, plumbing constraints, and a client who still wanted storage, a proper shower, and a comfortable sink.

But after working on dozens of micro-bathroom projects over the past decade, I’ve learned something important: ultra-small bathrooms fail not because of size, but because of poor fixture decisions.

Most homeowners try to shrink standard fixtures. That rarely works. The real solution is rethinking how each element interacts with the room’s narrow proportions.

When planning layouts like this, I usually start by sketching spatial flow using a simple interactive floor plan tool for testing tight bathroom layouts. Visualizing the movement zone before choosing fixtures prevents most of the mistakes I see in small renovations.

In this guide, I’ll walk through the exact strategies I use to optimize storage, fixtures, and usability in a 7 by 4 bathroom—along with some design trade‑offs that typical advice rarely explains.

save pinOpen in 3D Planner Processing...

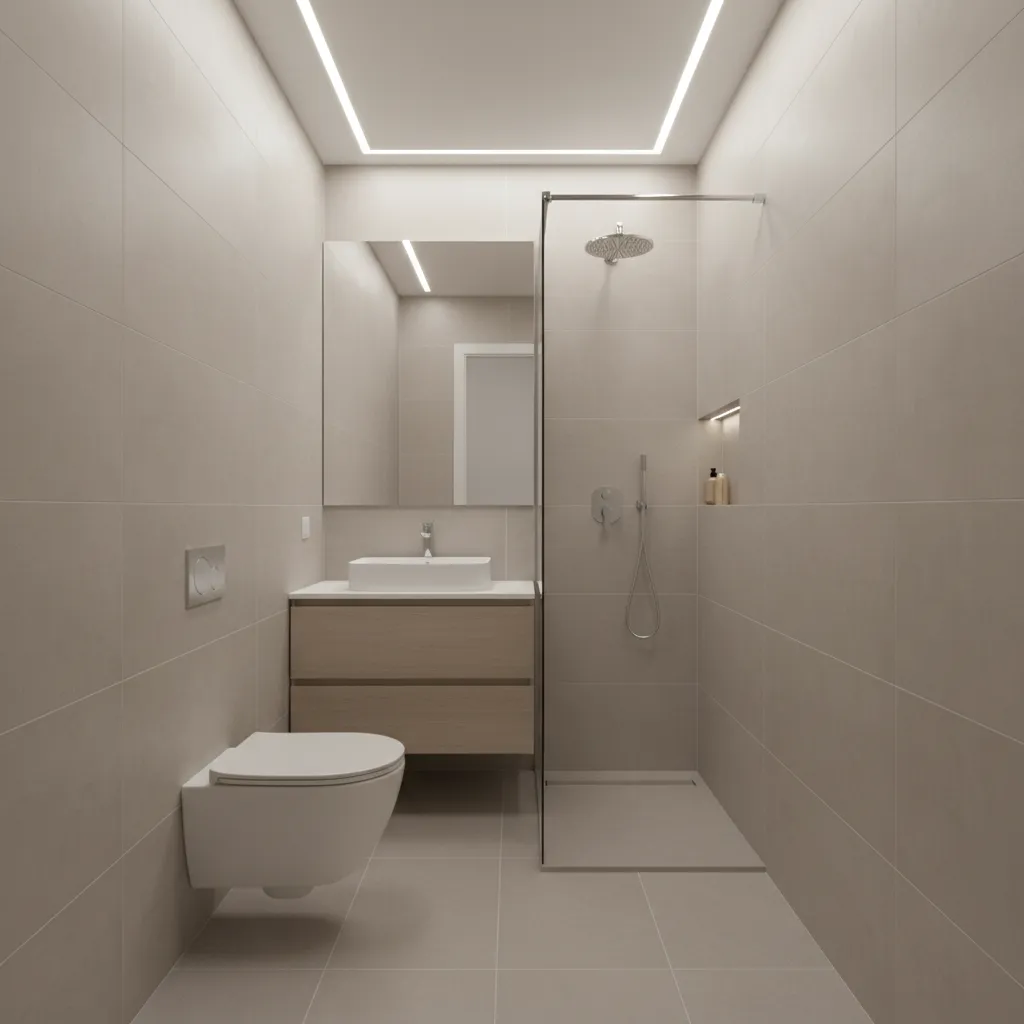

Understanding Spatial Limits in a 7x4 Bathroom

Key Insight: The real constraint in a 7x4 bathroom isn’t floor area—it’s usable clearance.

Many homeowners assume the challenge is fitting fixtures into 28 square feet. In reality, the bigger issue is the circulation path. Once a toilet, sink, and shower enter the room, usable walking space becomes extremely limited.

Based on building guidelines and my project experience, a comfortable narrow bathroom requires at least:

1. 24 inches of walkway clearance
2. 15 inches from toilet centerline to side wall
3. 30 inches minimum shower width

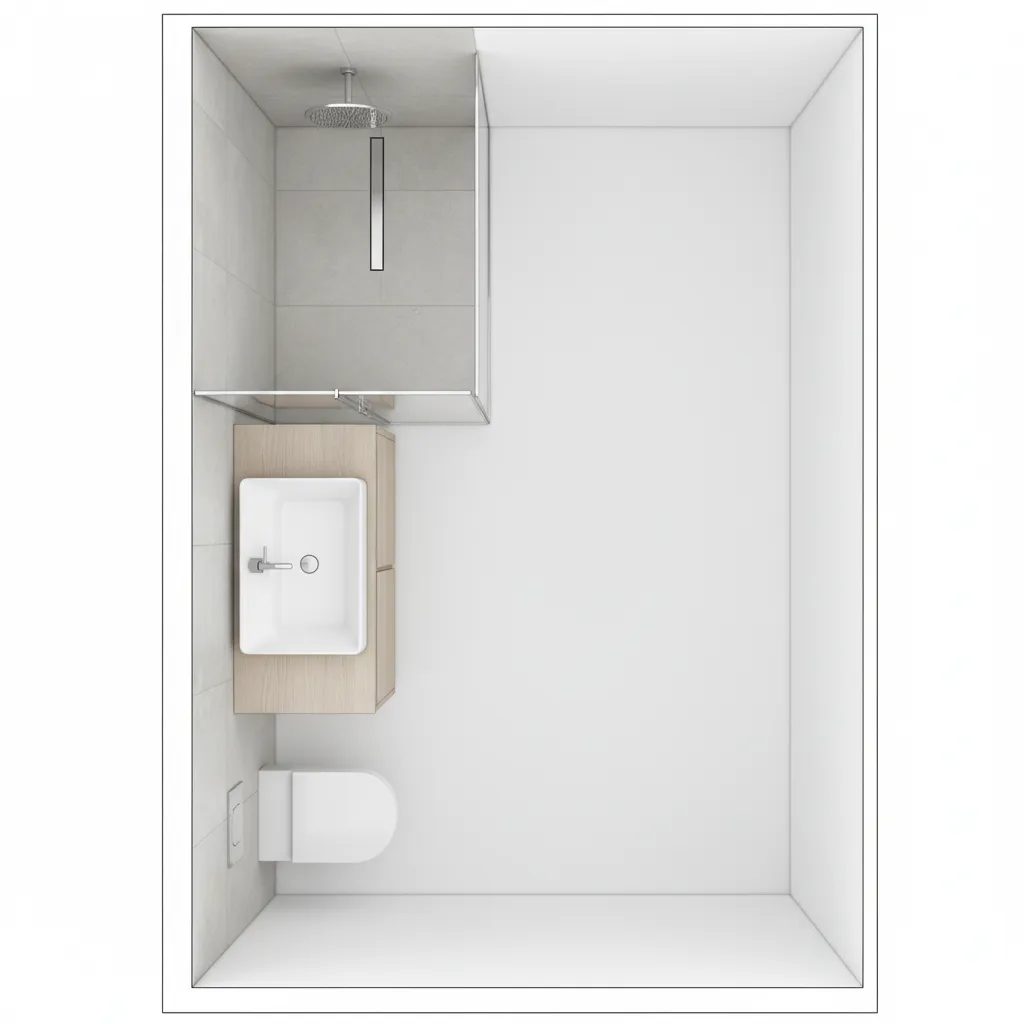

If fixtures are placed on opposite walls, the walking path collapses instantly. That’s why the most efficient layout almost always follows a single-wall configuration.

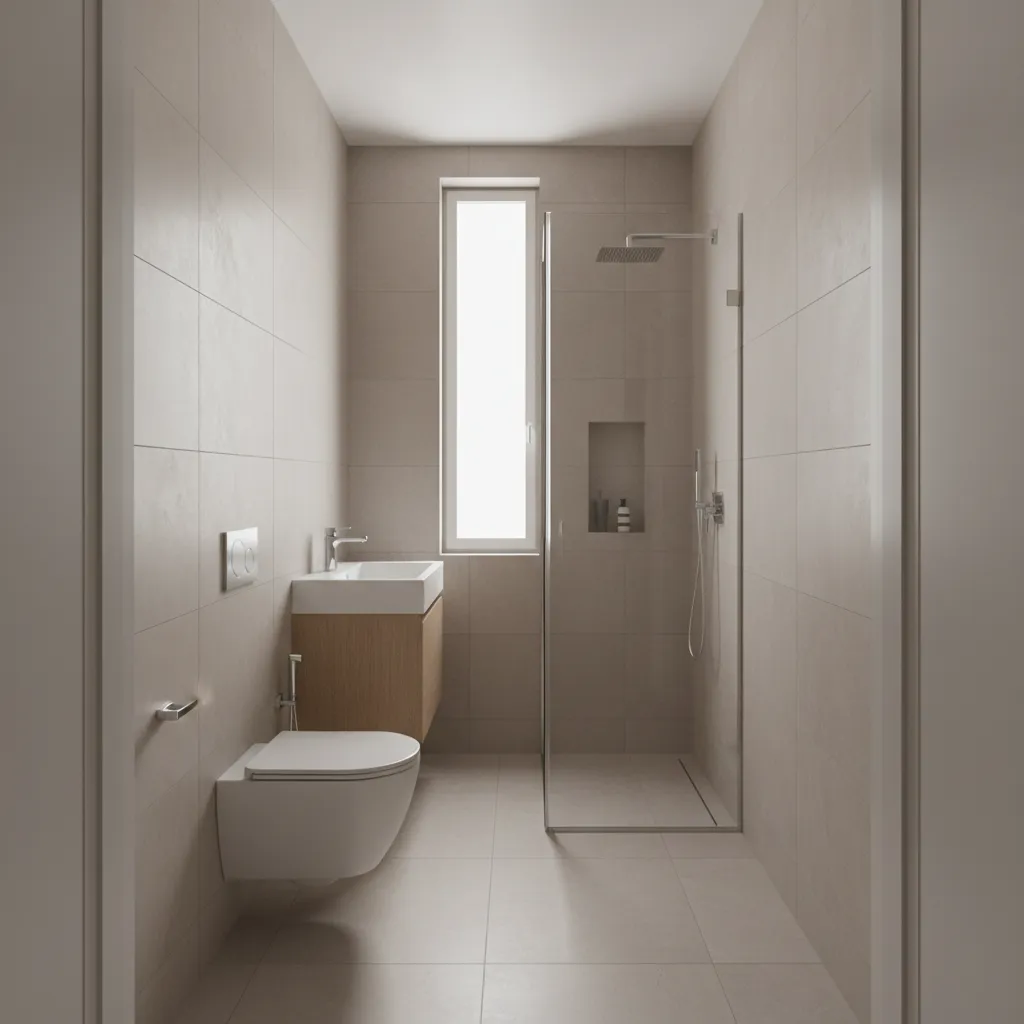

This means placing the sink, toilet, and shower along the same side of the room, leaving the opposite side open for movement.

Architectural designers often call this a linear wet wall strategy. It simplifies plumbing while preserving the maximum circulation zone.

save pinOpen in 3D Planner Processing...

Compact Sink and Toilet Configurations

Key Insight: Choosing the right fixture depth matters more than fixture width in a narrow bathroom.

A common mistake is focusing only on width measurements. In a 7x4 layout, depth is what eats into your walking space.

Here are the fixture types I consistently recommend:

1. Wall-mounted toilets (depth: 19–22 inches)
2. Slim console sinks (depth: 10–15 inches)
3. Corner sinks when entry doors interfere with sink placement
4. Integrated sink-vanity hybrids for hidden storage

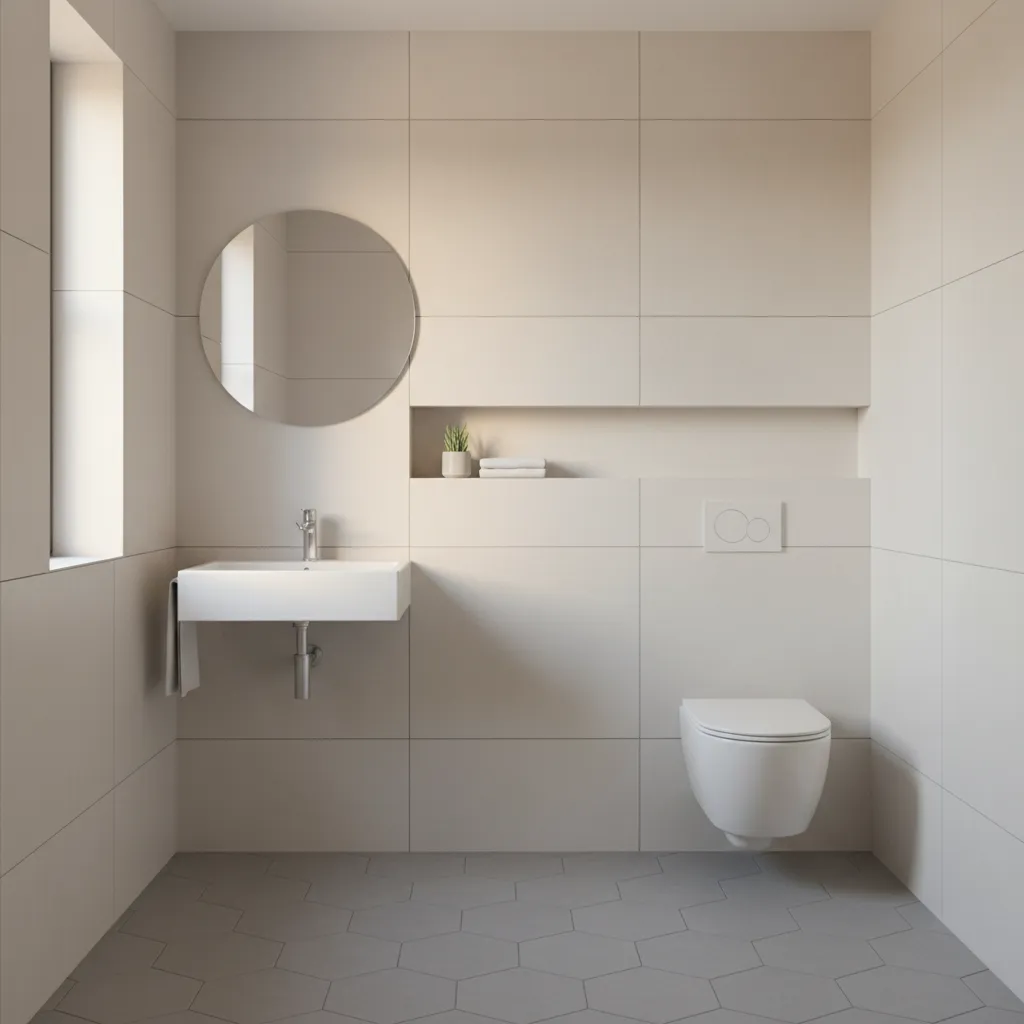

Wall-mounted toilets are particularly powerful in small bathrooms. Because the tank is hidden inside the wall, the fixture protrudes less into the room.

According to Kohler and Duravit product specifications, wall-hung toilets can save 6–9 inches of depth compared with standard models. In a 7x4 bathroom, that difference is massive.

Another trick I use frequently: floating vanities with exposed floor space beneath them. Even if the storage volume is similar, visible floor area makes the bathroom feel noticeably larger.

save pinOpen in 3D Planner Processing...

Shower Design Options for Ultra-Narrow Spaces

Key Insight: Door mechanics matter as much as shower size in small bathrooms.

One of the hidden problems in compact bathrooms is door swing conflict. A hinged shower door can block half the room.

In tight spaces, these solutions work best:

1. Sliding glass shower doors
2. Frameless walk-in showers with a fixed panel
3. Curbless showers to extend visual floor space
4. Linear drains to simplify floor slope

Many designers now favor the fixed-panel walk-in approach for narrow bathrooms. It removes mechanical hardware and makes the room visually calmer.

When clients want to preview how this affects spatial perception, I often recommend experimenting with a visual bathroom layout planner that simulates fixture placement. Seeing the shower proportions in 3D helps avoid expensive construction mistakes.

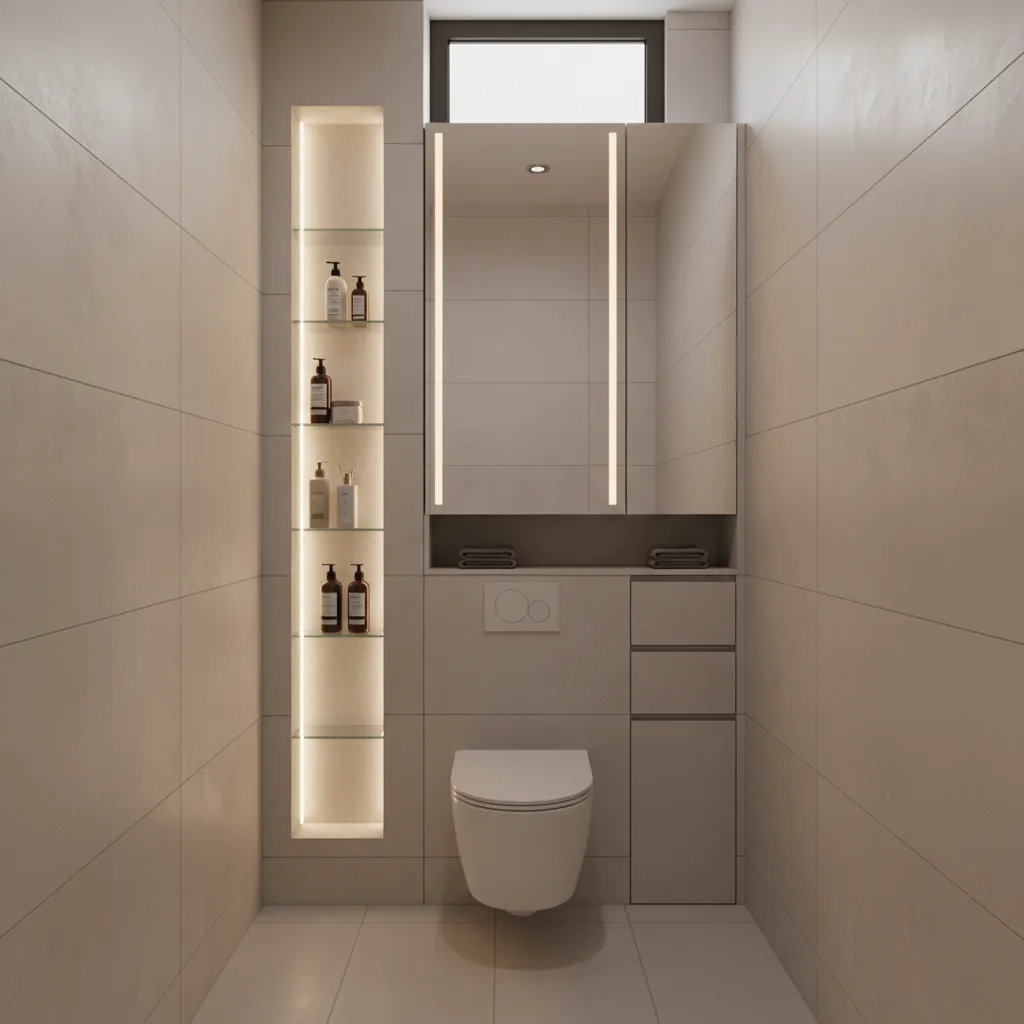

Vertical Storage and Wall Integration

Key Insight: In a 7x4 bathroom layout, storage should grow upward—not outward.

Small bathrooms usually fail because storage is treated like furniture instead of architecture.

The best micro-bathrooms integrate storage into the walls themselves.

High‑efficiency storage solutions include:

1. Recessed shower niches
2. Tall medicine cabinets
3. Over‑toilet shelving towers
4. Wall‑recessed cabinets between studs

A standard wall cavity between studs is about 3.5 inches deep. That’s enough space for recessed storage without affecting room width.

In several New York micro-apartment projects I’ve worked on, wall recesses increased usable storage by nearly 40% compared with surface cabinets.

save pinOpen in 3D Planner Processing...

Lighting and Visual Expansion Techniques

Key Insight: Visual expansion is essential in narrow bathrooms—good lighting can make the room feel twice as wide.

Design psychology plays a huge role in compact bathrooms.

Here are the lighting strategies I use most often:

1. Large mirrors spanning the vanity wall
2. Vertical LED light strips beside mirrors
3. Light-colored tiles with subtle texture
4. Continuous floor tiles extending into the shower

According to research from the Lighting Research Center at Rensselaer Polytechnic Institute, layered lighting significantly improves spatial perception in small interiors.

Mirrors also multiply visual depth, which is why many designers install wall-to-wall mirrors in narrow bathrooms.

Maintaining the Interface-Inspired Layout Logic

Key Insight: The best 7x4 bathrooms feel intuitive because every element follows a logical sequence.

In several recent projects, I’ve applied what I call an interface-inspired layout approach. The idea is simple: each zone should flow like a user interface.

A typical optimized sequence looks like this:

1. Entry zone with sink
2. Central toilet area
3. Shower at the far end

This progression mirrors the way people naturally move through the room.

When clients want to visualize the full environment before construction, I suggest generating a photorealistic 3D visualization of the completed bathroom space. Seeing the lighting, materials, and proportions together helps validate whether the layout truly works.

Answer Box

The most efficient 7x4 bathroom layout aligns fixtures along one wall, uses compact-depth fixtures, and relies on vertical storage. Sliding shower panels, floating vanities, and integrated wall niches maximize usability without shrinking the circulation path.

Final Summary

1. Fixture depth matters more than width in narrow bathrooms.
2. Single-wall layouts preserve circulation space.
3. Wall-mounted fixtures significantly reduce spatial pressure.
4. Vertical storage dramatically increases functionality.
5. Lighting and mirrors reshape how the room feels.

FAQ

Is a 7x4 bathroom layout practical?

Yes. With compact fixtures and a single-wall layout, a 7x4 bathroom layout can comfortably fit a sink, toilet, and shower.

What is the best sink for a narrow bathroom?

Slim-depth wall-mounted sinks or corner sinks work best because they reduce intrusion into the walkway.

Can a shower fit in a 7 by 4 bathroom?

Yes. A 30–32 inch wide shower with a sliding or fixed glass panel usually fits comfortably.

How do you maximize storage in a 7x4 bathroom layout?

Use recessed niches, tall mirrored cabinets, and over-toilet storage rather than floor cabinets.

Are wall-mounted toilets worth it for small bathrooms?

Yes. They save several inches of depth and make cleaning easier.

What colors make narrow bathrooms feel larger?

Light neutral tones, large mirrors, and continuous tile patterns help expand perceived space.

What shower door works best in tight bathrooms?

Sliding doors or fixed glass panels prevent door swing conflicts.

How wide should the walkway be in a narrow bathroom?

Ideally at least 24 inches of clearance for comfortable movement.

References

International Residential Code (IRC) Bathroom Clearance Guidelines

NKBA Bathroom Planning Standards

Lighting Research Center – Small Space Lighting Studies
