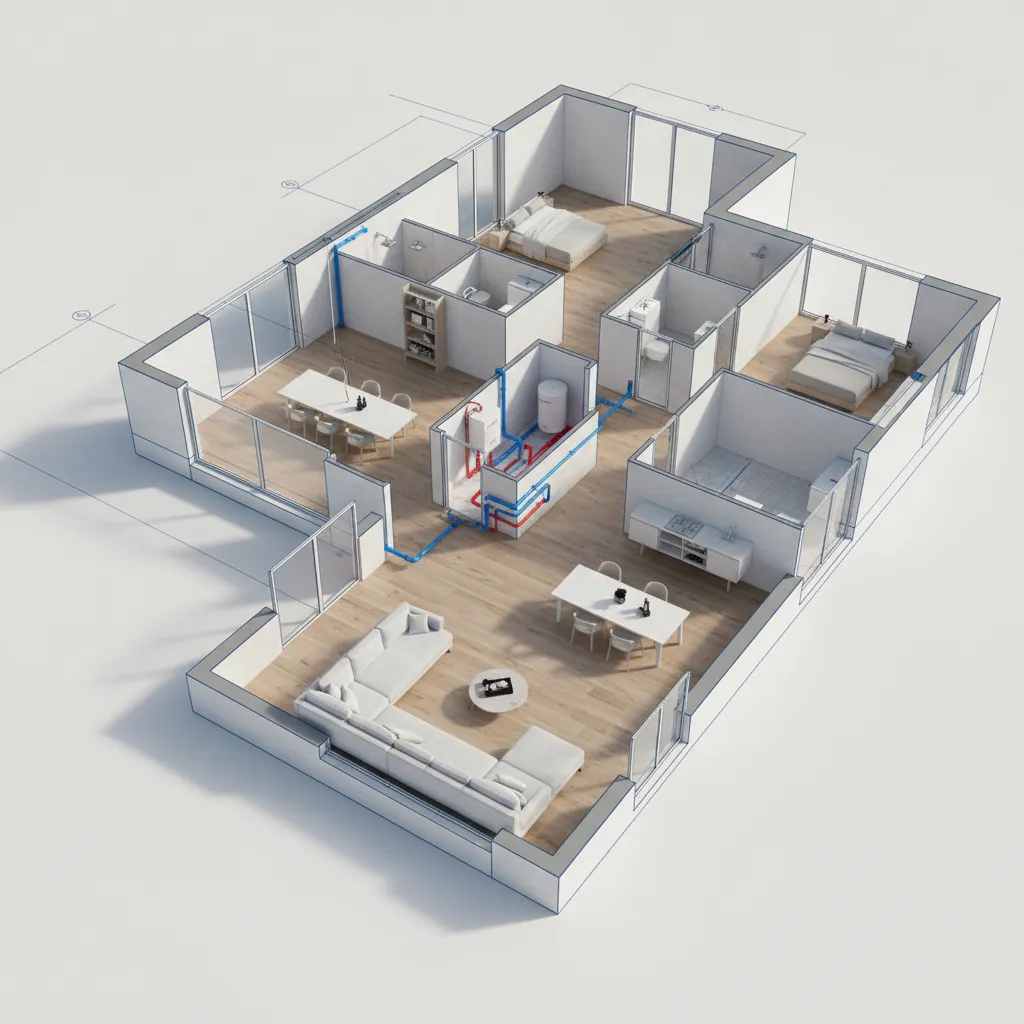

Optimizing Water Heater Placement in Residential Floor Plans: Where a water heater should sit in a house plan to reduce heat loss, shorten plumbing runs, and improve long‑term energy efficiency

Direct Answer

The best water heater placement in a residential floor plan is close to the home's highest hot‑water demand areas—typically kitchens, bathrooms, and laundry rooms—while remaining accessible for maintenance. Centralized placement reduces pipe length, heat loss, and wait time for hot water.

Designers usually position water heaters in utility rooms, garages, or mechanical closets located near plumbing clusters to balance efficiency, safety, and usable living space.

Quick Takeaways

1. Place water heaters close to kitchens and bathrooms to reduce hot water travel distance.
2. Central placement improves plumbing efficiency and lowers energy loss.
3. Utility rooms and garages are the most common locations in residential floor plans.
4. Poor placement increases wait time for hot water and wastes energy.
5. Accessibility for maintenance should never be sacrificed for hidden placement.

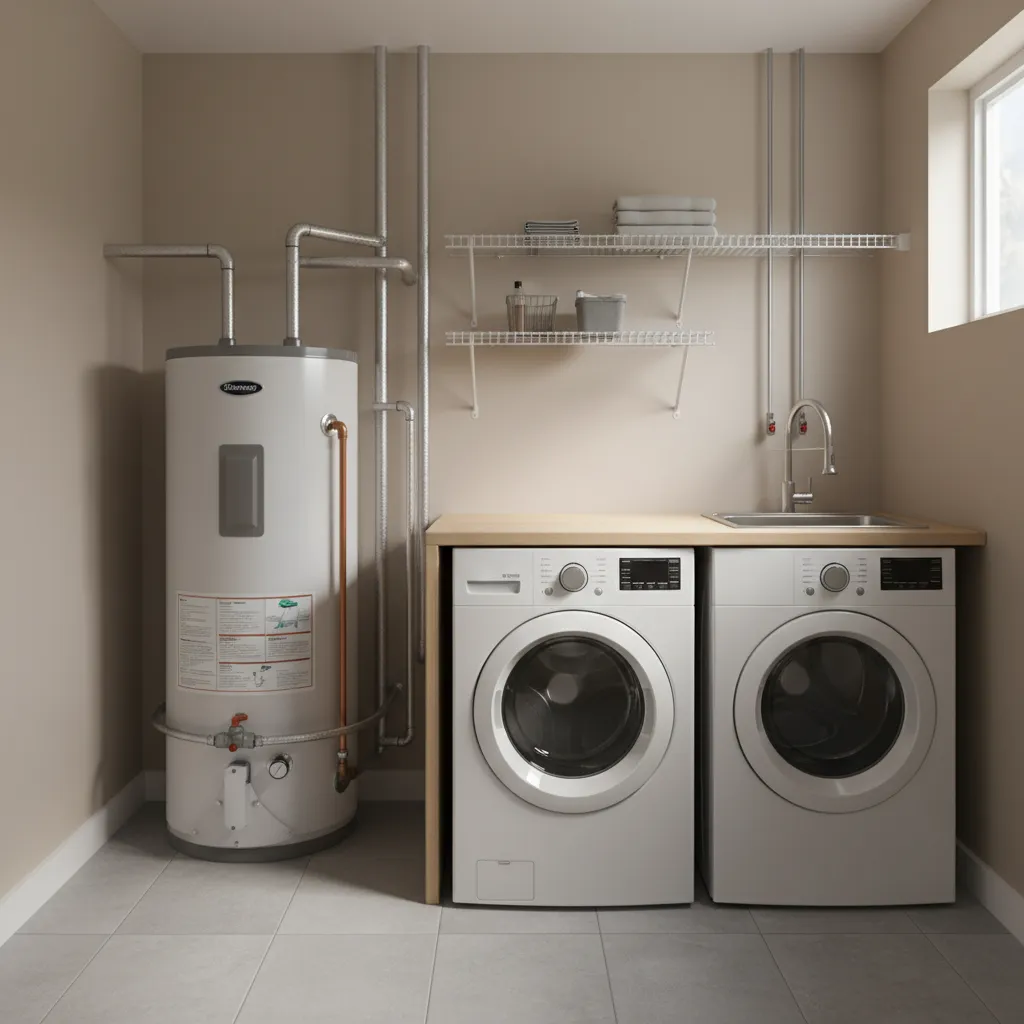

Introduction

In most residential projects I've worked on, the water heater is treated like an afterthought. Architects finish the floor plan, then someone squeezes the heater into whatever corner remains. That approach often creates plumbing inefficiencies that homeowners pay for over the next 20 years.

Optimizing water heater placement in residential floor plans is not just about finding an empty closet. It directly affects energy efficiency, plumbing cost, maintenance access, and even daily comfort. A poorly located unit can add 20–40 feet of unnecessary piping to every hot‑water run.

Before finalizing layouts, I usually map plumbing zones using a digital planning workflow similar to mapping plumbing zones with an interactive floor plan layout tool. Seeing circulation, fixtures, and pipe routes together often reveals placement mistakes early.

This guide breaks down how designers evaluate water heater locations, what mistakes show up most often in house plans, and how to place the system where it performs best.

save pin

Why Water Heater Location Matters in Floor Plan Design

Key Insight: The location of a water heater directly impacts energy loss, installation cost, and user comfort.

Hot water cools as it travels through pipes. The longer the pipe run, the more energy is lost before the water even reaches a faucet. In larger homes, this problem becomes very noticeable—especially in bathrooms located far from the mechanical area.

According to U.S. Department of Energy guidelines, long plumbing runs increase both heat loss and water waste as residents wait for hot water to arrive.

Design factors affected by placement include:

1. Pipe length and installation cost
2. Hot water delivery time
3. Energy efficiency
4. Maintenance accessibility
5. Safety ventilation requirements

In many projects, relocating the water heater just 10–15 feet closer to the plumbing core can noticeably reduce wait times for hot water.

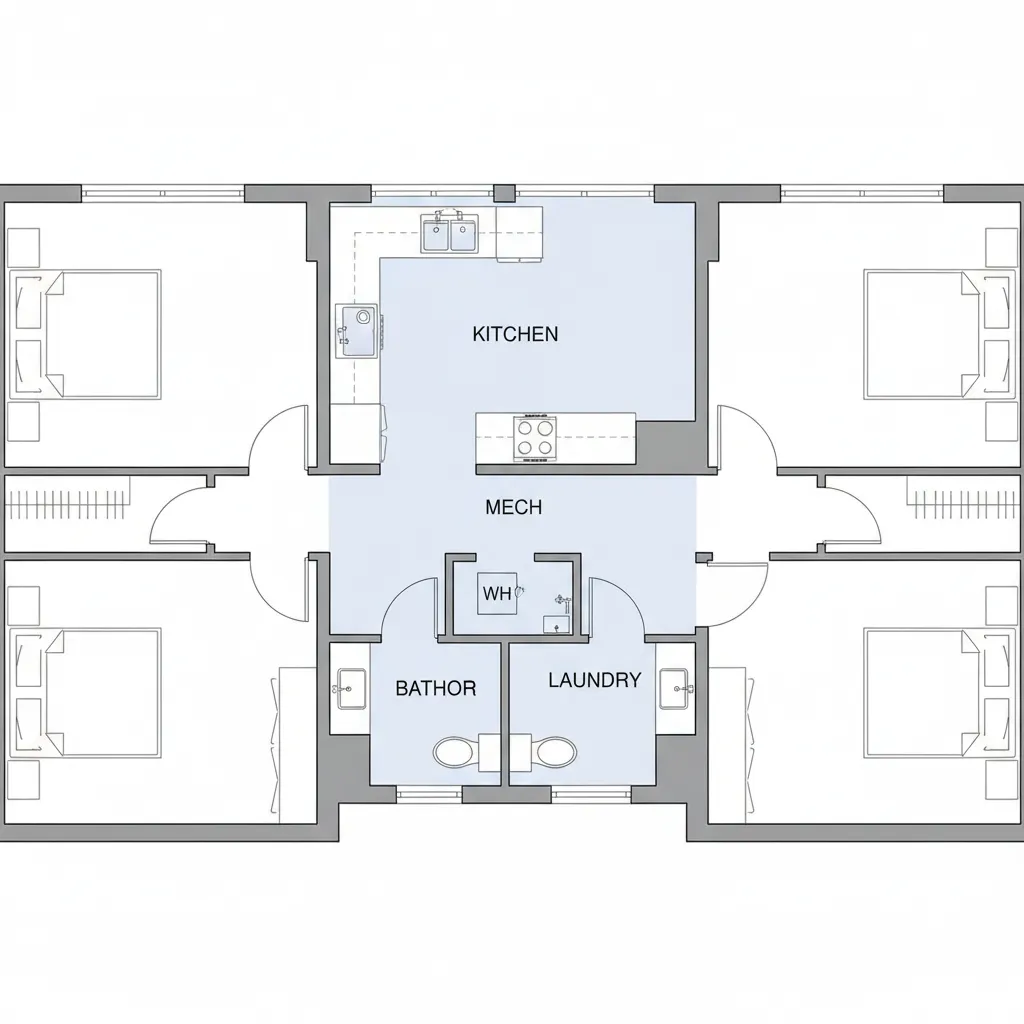

Common Placement Areas for WH in Homes

Key Insight: Most homes place water heaters in service-oriented spaces that balance safety, ventilation, and accessibility.

Across hundreds of residential layouts I've reviewed, a few locations appear repeatedly. These areas keep the heater close to plumbing while isolating mechanical noise from living spaces.

Typical placement zones include:

1. Garage – Common in suburban homes due to ventilation and available space.
2. Utility room – Ideal for central placement near laundry and plumbing lines.
3. Basement mechanical area – Efficient in multi‑story homes.
4. Dedicated mechanical closet – Often used in compact urban homes.

When evaluating these layouts, I often compare circulation flow and mechanical placement using tools similar to visualizing functional zones inside a residential room planning layout, which helps confirm whether the heater sits near plumbing-heavy areas.

save pin

Reducing Heat Loss Through Smart Placement

Key Insight: The most energy‑efficient water heater placement keeps the unit close to clustered plumbing fixtures.

One mistake I frequently see in large floor plans is placing the heater at the far edge of the home while bathrooms are grouped on the opposite side.

This creates excessive pipe length.

Better placement strategies include:

1. Positioning the heater near the kitchen‑bathroom plumbing core
2. Using stacked plumbing walls in multi‑story homes
3. Locating heaters near laundry rooms, which often share plumbing lines
4. Adding secondary heaters for very large homes

In luxury homes above 4,000 sq ft, designers sometimes install dual water heaters to shorten pipe runs rather than relying on one central unit.

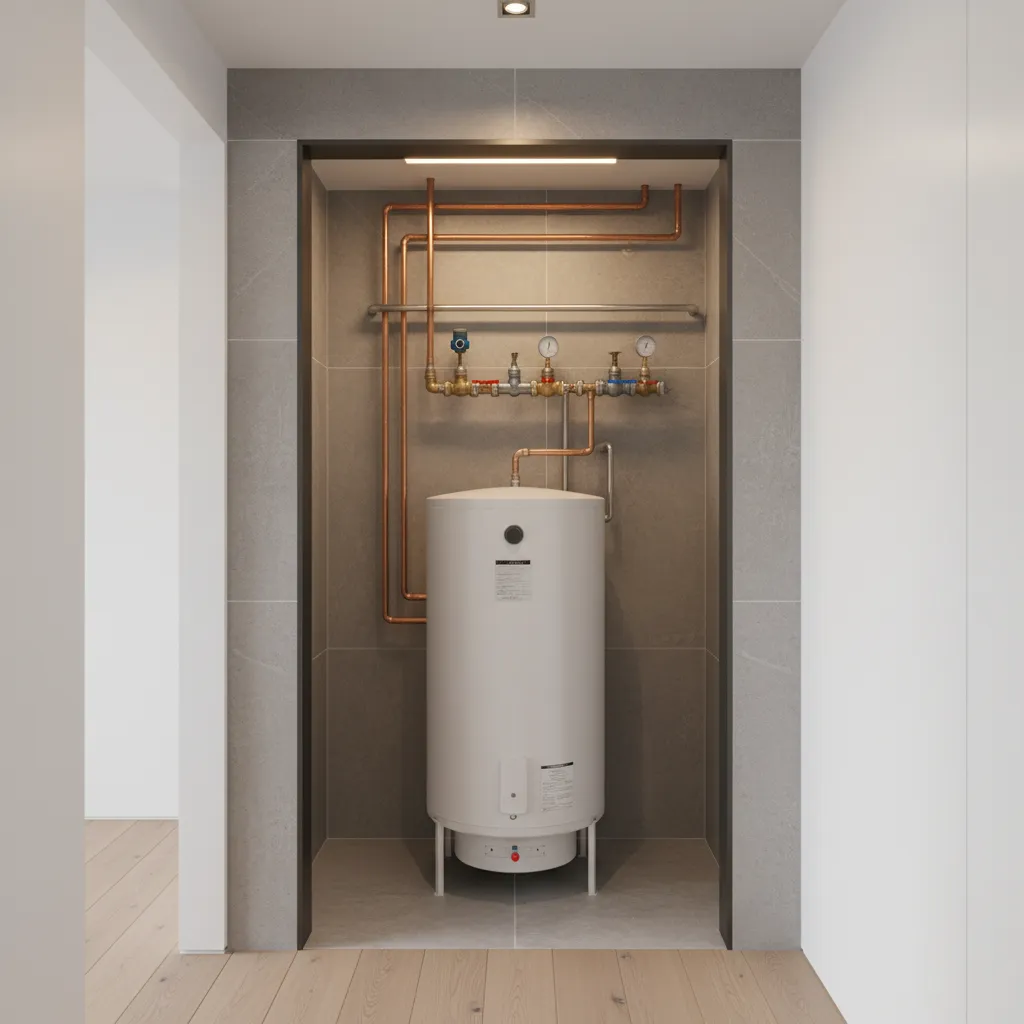

Balancing Accessibility and Space Efficiency

Key Insight: The best water heater location balances mechanical access with minimal impact on usable living space.

Many homeowners ask designers to "hide" the water heater. That request often leads to tight closets with poor maintenance clearance.

From a design standpoint, accessibility is critical because water heaters require:

1. Routine inspection
2. Periodic flushing
3. Possible replacement every 8–15 years

Good layout practice usually includes:

1. 30 inches of service clearance
2. Proper ventilation or exhaust
3. Nearby floor drain where possible

Mechanical closets placed along hallways or near laundry rooms tend to offer the best compromise between accessibility and space efficiency.

save pin

Plumbing Distance and Energy Efficiency Considerations

Key Insight: Shorter plumbing runs dramatically improve both energy efficiency and daily usability.

From a system perspective, the ideal water heater location is rarely the geometric center of the house. Instead, it should be located near the "hot water demand cluster."

This cluster usually includes:

1. Kitchen sink
2. Main bathroom
3. Laundry appliances
4. Secondary bathrooms

Design evaluation checklist:

1. Is the heater within 20–30 ft of the main bathroom?
2. Does the kitchen share the same plumbing wall?
3. Are vertical plumbing stacks aligned in multi‑story homes?

When testing layouts for new builds, I often simulate these routes using a model similar to evaluating pipe routes inside a 3D residential floor plan. Seeing plumbing distances visually makes inefficiencies obvious.

Answer Box

The optimal water heater location in a house floor plan is near clustered plumbing fixtures such as kitchens, bathrooms, and laundry rooms. Shorter pipe runs reduce heat loss, improve hot‑water delivery speed, and lower energy costs.

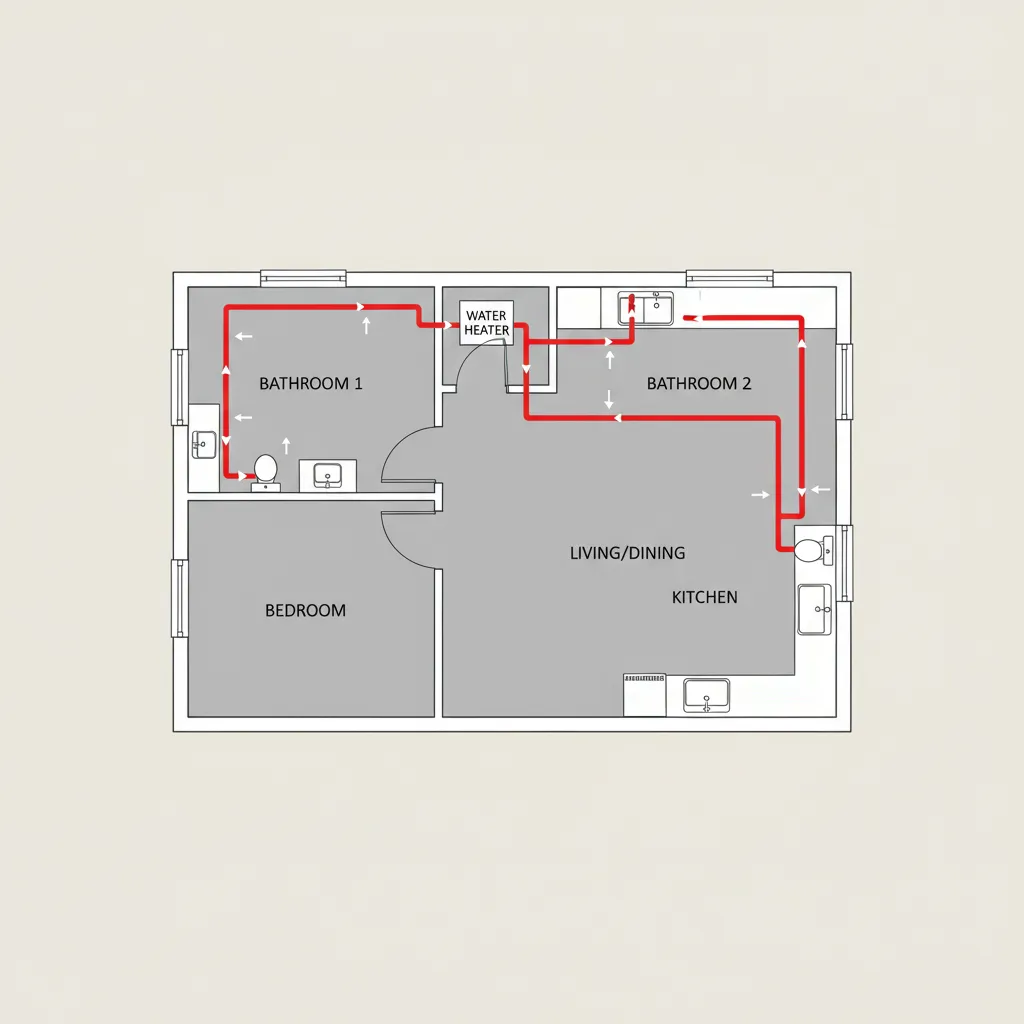

Design Tips for Optimizing Water Heater Locations

Key Insight: Early mechanical planning prevents expensive layout compromises later in the design process.

After working on many residential layouts, I’ve noticed the same design mistakes repeat. Most occur because mechanical systems are considered too late.

Practical design tips:

1. Plan water heater placement before finalizing plumbing walls
2. Group bathrooms and kitchens into plumbing clusters
3. Avoid locating heaters at exterior corners of large homes
4. Provide direct access for maintenance and replacement
5. Allow future upgrades such as tankless conversion

A simple early adjustment in the floor plan can significantly reduce plumbing complexity and improve long‑term energy performance.

save pin

Final Summary

1. Water heater placement strongly affects plumbing efficiency and hot‑water delivery speed.
2. Central placement near kitchens and bathrooms minimizes pipe length.
3. Utility rooms, garages, and mechanical closets are the most practical locations.
4. Accessibility and maintenance clearance should always be included in the design.
5. Early planning prevents costly plumbing adjustments later.

FAQ

Where is the best water heater location in a house floor plan?

Near the main plumbing cluster—usually between kitchens, bathrooms, and laundry rooms—to minimize pipe distance and heat loss.

Should a water heater be in the garage or inside the house?

Both are common. Garages simplify ventilation, while interior utility rooms often improve plumbing efficiency.

Does water heater placement affect energy efficiency?

Yes. Longer pipe runs increase heat loss and waste water while waiting for hot water to arrive.

Can a water heater be placed in a closet?

Yes, but the closet must allow ventilation, safety clearance, and maintenance access.

What is the optimal water heater location for plumbing efficiency?

A central location close to bathrooms and kitchens typically provides the best plumbing efficiency.

Is basement placement good for water heaters?

Basements work well in multi‑story homes because vertical plumbing stacks can serve multiple floors.

Do larger homes need multiple water heaters?

Often yes. Large homes may install two units or use recirculation systems to reduce wait time.

How far should a water heater be from a bathroom?

Ideally within 20–30 feet to minimize heat loss and reduce the time it takes for hot water to reach fixtures.

References

1. U.S. Department of Energy – Water Heating Efficiency Guidelines
2. International Residential Code (IRC) Mechanical Provisions
3. NAHB Residential Construction Standards
