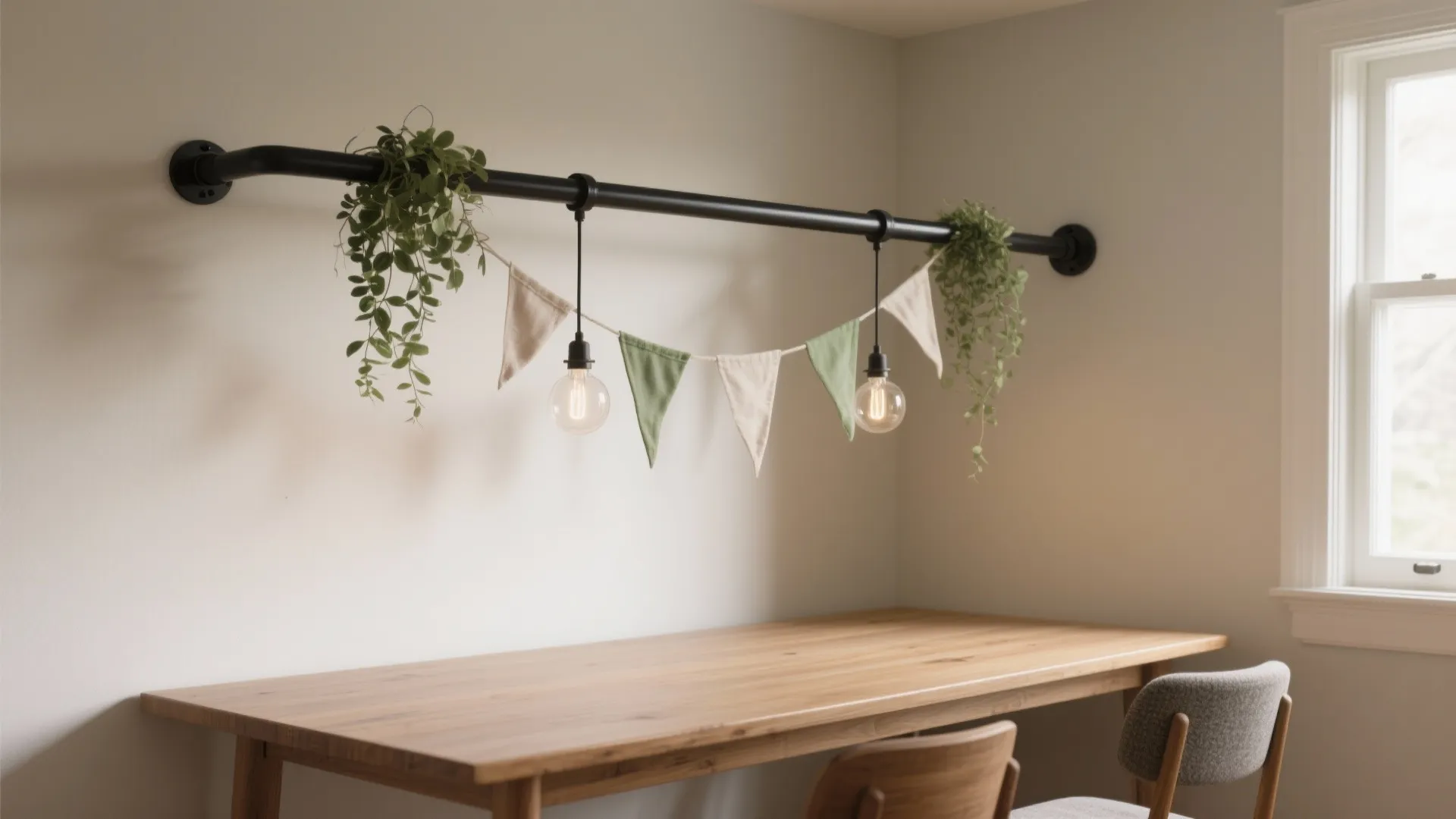

Over the Table Rod Stand DIY: Space-Saving Guide: 1 Minute to Build Your Own Over-the-Table Display Rod Stand

I’ve built and specified dozens of over-the-table rod stands for homes, cafés, and pop-ups where every inch of tabletop matters. A well-proportioned rod frame can carry seasonal decor, soft task lighting, even light storage—freeing the table for what it does best. In compact homes, vertical layers are a design lifeline: Steelcase found that environments supporting clear, clutter-free surfaces helped 74% of people feel more effective at work-like tasks, especially when visual order was maintained. WELL v2 guidance also ties reduced visual noise and controllable lighting to improved comfort and focus.

Dimensioning matters. As a baseline, I aim for a rod height between 28–34 inches above the tabletop for decor and 22–28 inches for pendant cord-drops, keeping glare below 19 UGR for seated users (a practical interpretation aligned with IES glare guidance). For behavior and mood, color psychology research consolidations on Verywell Mind note that greens and soft neutrals are calming—useful when styling foliage or fabric along the rod to temper visual stimulation and improve dwell time.

Design Intent and Use Cases

The over-table rod stand is a clamp-on or freestanding frame that spans the table lengthwise. It’s ideal for small dining nooks, balcony tables, craft stations, and temporary entertaining setups. I use it to: 1) suspend light garlands or low-watt pendants for 2700–3000K evening warmth; 2) hang greenery, dried florals, or seasonal ornaments without crowding the surface; 3) clip menus, recipe cards, or tools during buffet or craft sessions; 4) define a “vertical room” boundary for intimacy in open plans.

Core Dimensions and Clearances

- Table length: The rod should span 70–95% of table length; set back at least 1 inch from each end for stability. For a 72-inch table, target a 60–68 inch rod.

- Height above table: 28–34 inches for decor; 22–28 inches if suspending micro-pendants to keep sightlines clear when seated (eye height ~45–48 inches).

- Post spacing: For 60–72 inch rods, place posts 6–8 inches in from edges to avoid tipping forces. For longer spans, add a discreet mid support.

- Load: Keep hanging loads under 8–12 lb total for clamp-on systems; under 15–20 lb for through-bolted feet on sturdy tables. If you plan heavier greenery or lanterns, upgrade to thicker-wall tubing (see Materials).

If you want to validate scale before drilling, mock the frame using painter’s tape on the wall and a temporary dowel across chairs; or use a room layout tool to test sightlines and traffic clearance on plan: room design visualization tool.

Materials and Tools

- Rod: 3/4 in (19 mm) OD steel or aluminum tube with 1.2–1.6 mm wall. For a lightweight look, 5/8 in works if total load stays under ~8 lb.

- Uprights: Matching tube or 1x1 in square tube for anti-rotation stiffness.

- Feet/Clamps: Options include padded C-clamps (non-marring), plate feet with felt pads, or through-bolt base plates if you accept minor table modifications.

- Fasteners: M6/M8 set screws, lock washers, thread locker.

- Finish: Powder coat matte black, satin brass, or clear coat over raw steel for an industrial look. Choose low-VOC finishes to maintain indoor air quality consistent with WELL principles.

- Tools: Tube cutter or metal saw, drill press with step bit, file/deburr tool, hex keys, torque wrench (light), soft pads, level, and measuring tape.

Joinery Methods

- Through-sleeve and set-screw: Easiest DIY. Use a slightly larger sleeve welded or epoxied to the uprights; secure the rod with two opposing set screws to prevent racking.

- Flange and pin: Decorative side flanges with cross pins—clean look for dining tables.

- T-joint with gusset: For heavier loads, add a 45° gusset between upright and rod seat to reduce deflection.

Step-by-Step Build

1) Plan the span: Measure table length and decide your coverage (70–95%). Mark post positions at equal insets. Verify chairs can tuck without hitting feet.

2) Cut and prep tubing: Rod to final length; uprights 28–34 in above table plus foot height. Deburr all cuts.

3) Prepare feet/clamps: For clamp designs, attach padded C-clamps to upright bases with machine screws and lock washers. For plate feet, cut 3x3 in plates (1/8 in thick), drill two countersunk holes per plate, and apply felt pads.

4) Drill and fit joints: Drill perpendicular holes for set screws in sleeves; test-fit rod. Ensure a snug slide-fit with minimal wobble.

5) Finish: Degrease, prime, and powder coat or spray finish. Let cure fully to avoid odors near dining areas.

6) Assemble on table: Protect the surface with a microfiber cloth during setup. Level uprights first, then slide the rod through sleeves. Tighten set screws evenly—do not overtighten; you want firm contact without crushing thin-wall tubing.

7) Load test: Hang a distributed test load (e.g., small sandbags) to your intended total weight. Observe deflection; if the mid-span sags more than 1/4 inch on a 60-inch rod, add a center support or increase wall thickness.

Lighting and Glare Control

For ambient charm that still respects task visibility, I stay in the 2700–3000K range for evening dining, with dimmable strings or micro-pendants at 150–250 lumens each spaced 12–18 inches. Avoid bare high-intensity points near eye level; use frosted bulbs or shades to cut high-angle glare. Aligns with IES comfort guidance to control brightness ratios in the near field. If you want health- and comfort-led targets for residences, WELL v2’s lighting intent emphasizes spectral quality and user control; tying your rod lighting to a dimmer satisfies the control brief.

Behavioral and Ergonomic Notes

- Seated eye height: Typical 45–48 inches from floor. Keep luminaires and decor below that when seated behind them to protect sightlines.

- Hand reach: Primary reach zone for seated users is 12–18 inches forward from table edge; don’t place frequently used items too high on the rod.

- Conversation field: Keep the center 24 inches of the span visually light—airier decor maintains face-to-face connection.

Styling: Color, Rhythm, and Seasonality

- Color psychology: Greens and soft blues read restorative (Verywell Mind compilation), while small red accents add energy—use sparingly for dining to avoid visual tension.

- Rhythm and balance: Cluster decor in odd groupings; maintain symmetrical endpoints for calm. Keep 30–40% negative space along the rod to preserve visual breathing room.

- Seasonal swaps: Winter—evergreen garlands + warm micro-lights; Spring—eucalyptus, linen pennants; Summer—bare rod with two low pendants; Autumn—dried grasses, amber glass.

Materials and Sustainability

Opt for recycled-content steel or aluminum where available; powder coating is durable and typically lower in VOCs than many wet paints. If using wood accents, ensure edges are eased to reduce snagging textiles. Hardware longevity beats frequent replacement—fewer cycles, less waste.

Acoustics in Open Dining Areas

Soft elements hung from the rod—linen flags, felt garlands—help break up flutter echoes in hard kitchens. Keep fabric clear of candles and hot appliances by at least 12 inches.

Safety and Stability Checklist

- Non-marring contact: Felt or silicone pads on feet; check weekly if the table is softwood.

- Anti-tip: Wider foot plates for narrow tables; consider discreet under-table straps for kids/pets zones.

- Heat and flame: No fabric within 12 inches of open flame; avoid halogen near greenery.

- Weight audit: Re-weigh when changing decor. Moist garlands gain mass—dry thoroughly.

Quick Variations

- Freestanding base: Use two heavy bookend bases that slide under the table ends when clamping isn’t possible.

- Split rod: Two shorter rods with a 6–8 inch gap over the center to leave clear headroom over serving platters.

- Modular collars: Add sliding collars with hooks for flexible layout of ornaments or tools.

Maintenance

Wipe metal with a barely damp microfiber cloth; avoid acidic cleaners that dull powder coat. Inspect set screws monthly. Re-square uprights after moving the table.

FAQ

How high should the rod be above the tabletop?

For decor, 28–34 inches above the surface keeps items visible without intruding on conversation. If hanging small pendants, drop to 22–28 inches above the table so shades shield direct glare for seated guests.

What diameter rod is best for stability?

Use 3/4 inch (19 mm) OD with 1.2–1.6 mm wall for most DIY builds up to 68 inches long. Increase wall thickness or add a center support for longer spans or heavier greenery.

Can I clamp to a delicate wood table?

Yes—use padded C-clamps and add felt or silicone pads between metal and wood. Tighten gradually and check weekly. For heirloom pieces, choose freestanding bases instead of clamps.

How much weight can it hold?

Clamp-on designs: keep to 8–12 lb distributed. Through-bolted or plate-foot versions on sturdy tables: up to 15–20 lb, provided the rod and joints are reinforced and you test incrementally.

What’s the best light color temperature for dining?

Warm-white 2700–3000K enhances food tones and feels relaxed. Use frosted bulbs or shades and dimming to manage brightness ratios consistent with IES comfort guidance.

Will decor block sightlines or feel cluttered?

Leave the central 24 inches lighter and maintain 30–40% negative space along the rod. Choose a calming palette—greens, soft neutrals—supported by color psychology summaries on Verywell Mind.

Any tips to reduce echo in open kitchens?

Incorporate soft elements like linen pennants or felt garlands on the rod and keep additional fabric on chairs or rugs below. Even small soft surfaces can ease flutter echo between hard planes.

Can I integrate this into a small home office setup?

Absolutely. Use the rod to clip task cards, cable-manage light fixtures, or mount a small diffuser. Research from Steelcase links visually ordered work zones with higher perceived effectiveness—keep the tabletop clear and move vertical.

How do I test proportions before drilling?

Mock with tape and a temporary dowel or simulate in an interior layout planner: layout simulation tool. Check chair clearance and sightlines seated and standing.

What finishes are safest indoors?

Powder coat is durable and typically lower in VOCs than many solvent paints. Allow any finish to cure fully before indoor use, aligning with WELL v2’s emphasis on indoor air quality.
