Pellet Stove Use in Tiny Homes Cabins and RV Living: How compact pellet stoves heat tiny houses off grid cabins and mobile living spaces efficiently

Direct Answer

Pellet stoves can work extremely well in tiny homes, cabins, and some RV setups because they deliver high heat output in a compact footprint. The key is proper ventilation, safe clearances, and thoughtful pellet storage. When installed correctly, a compact pellet stove can comfortably heat spaces under 400 square feet.

Quick Takeaways

1. Compact pellet stoves can efficiently heat tiny homes under 400 sq ft.
2. Proper venting and floor clearance are the most critical safety factors.
3. Pellet storage often becomes the biggest challenge in micro homes.
4. Off grid cabins often pair pellet stoves with small battery systems.
5. Most RVs cannot support pellet stoves without structural modifications.

Introduction

Over the last decade, I have worked on several tiny home and off grid cabin projects where heating became the single biggest design constraint. A pellet stove for tiny house living often enters the conversation because it offers something rare in small spaces: serious heat without a full wood stove footprint.

But tiny homes behave very differently than traditional houses. They heat up faster, cool down faster, and every inch of storage matters. I have seen beautifully designed micro homes struggle simply because no one planned where the pellet bags would go.

When planning layouts for small dwellings, heating placement often starts during the early layout phase. If you're experimenting with space planning, tools like a visual room layout planner for small home layoutsmake it easier to see how a stove, vent pipe, and safe clearances affect the entire floor plan.

In this guide, I’ll walk through the real-world considerations I’ve seen across tiny homes, remote cabins, and mobile living setups—including a few mistakes people rarely talk about until it’s too late.

save pin

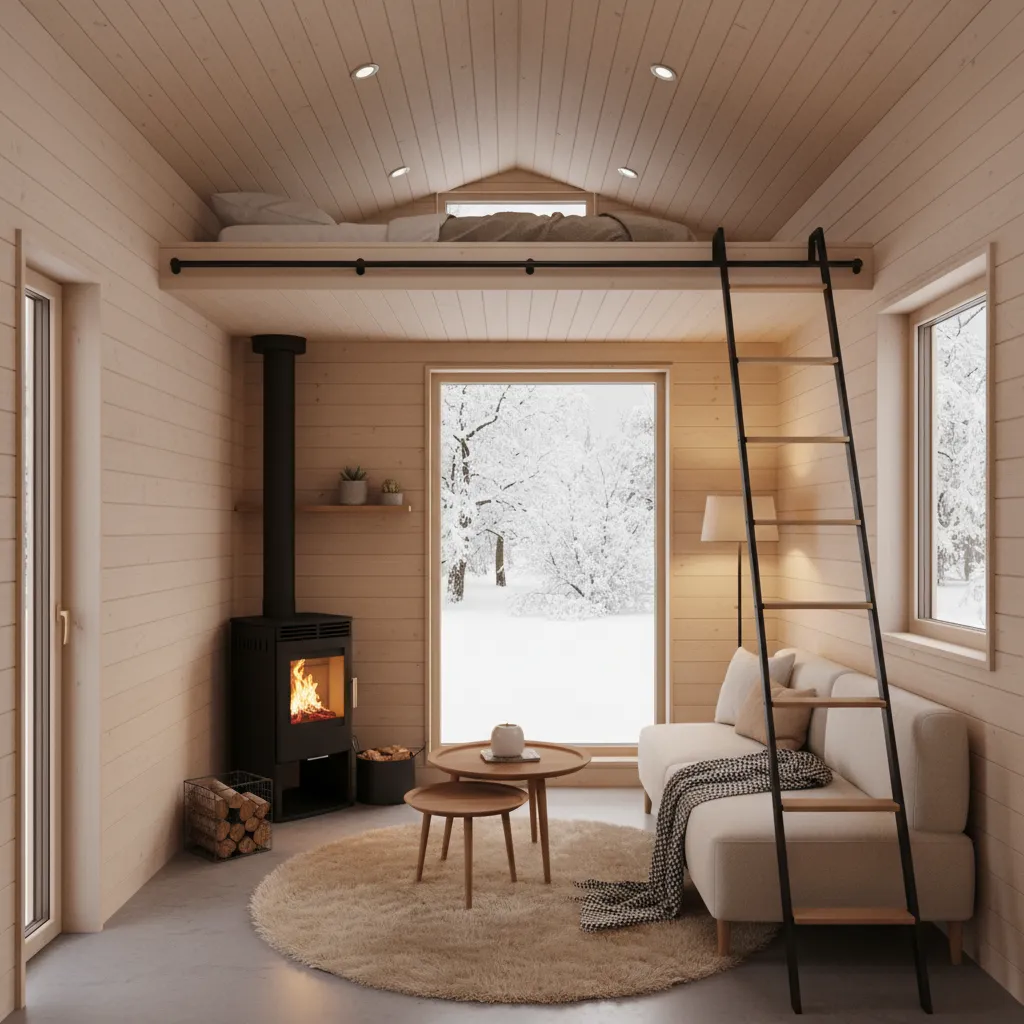

Why Pellet Stoves Are Popular in Tiny Homes

Key Insight: Pellet stoves are popular in tiny homes because they produce strong, consistent heat while occupying less floor space than most wood stoves.

Traditional wood stoves require larger clearances, wood storage, and constant tending. In a 200–400 sq ft home, that becomes impractical quickly. Pellet stoves automate the burn process and provide controllable heat output.

From my project experience, tiny home owners usually choose pellet stoves for three reasons:

1. Predictable heat output with thermostat control
2. Compact stove footprint
3. Cleaner indoor air compared to wood burning

According to the U.S. Department of Energy, pellet stoves can reach efficiency levels between 70% and 83%, which is significantly higher than many small wood stoves.

The overlooked benefit is temperature stability. Tiny homes heat up extremely fast. A pellet stove’s controlled feed system prevents the intense heat spikes that wood stoves often create in micro spaces.

What Heating Challenges Do Cabins and Micro Homes Face

Key Insight: The biggest heating challenge in tiny homes and cabins is not heat production—it is heat balance and safe distribution.

Many people assume small homes are easy to heat. In reality, they often overheat.

Common issues I see during design consultations:

1. Heat trapped in sleeping lofts
2. Uneven heat between zones
3. Excess humidity during winter
4. Limited wall space for vent pipes

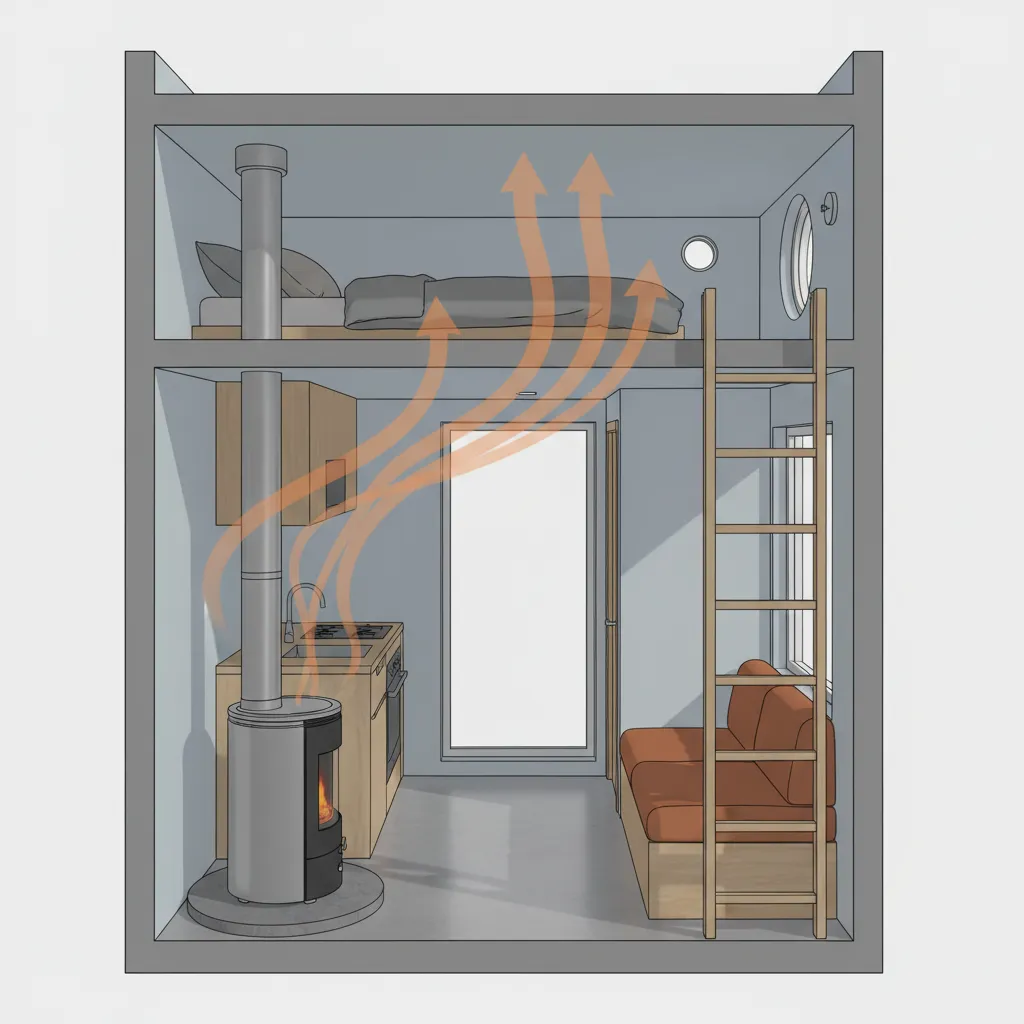

In lofted tiny houses, warm air naturally rises and collects upstairs. Without proper airflow, the loft becomes unbearably hot while the ground floor stays cool.

Practical design fixes include:

1. Small circulation fans
2. Strategic stair placement
3. Open railing designs
4. Ceiling air channels

When mapping these airflow paths, many builders experiment with a 3D floor layout visualizer for tiny house planningto understand how heat might travel through stacked micro spaces.

save pin

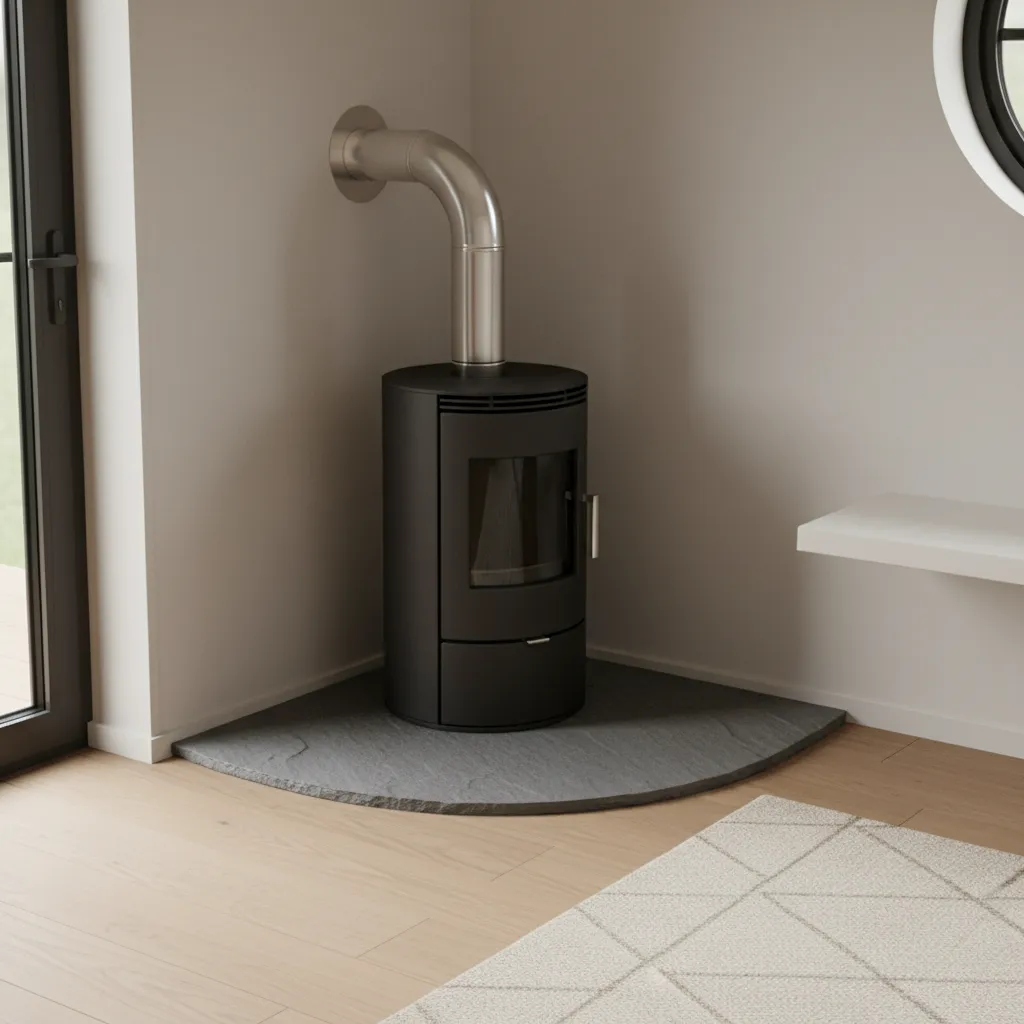

Pellet Stove Installation Considerations for Mobile Spaces

Key Insight: Installing a pellet stove in a tiny home on wheels requires structural reinforcement, specialized venting, and vibration-safe mounting.

This is one of the most misunderstood parts of mobile tiny homes.

A pellet stove installation usually requires:

1. Non combustible hearth pad
2. Wall clearance zones
3. Dedicated exhaust vent pipe
4. Stable power supply

Unlike wood stoves, pellet stoves require electricity to run the auger and blower system. That means off grid systems must support:

1. Ignition startup load
2. Continuous fan operation
3. Backup battery during outages

Typical electrical consumption ranges from 100 to 400 watts while operating, according to stove manufacturers like Harman and Quadra-Fire.

One hidden issue: vibration. In mobile tiny homes, travel movement can loosen internal components unless the stove is properly secured.

save pin

Fuel Storage Solutions for Small Living Environments

Key Insight: Pellet storage often becomes the most overlooked design challenge in tiny homes.

A standard pellet bag weighs about 40 pounds. During winter, many tiny home residents burn one bag every one to three days depending on climate.

That means weekly storage may require:

1. 5–10 bags indoors
2. Dry protected exterior storage
3. Moisture-proof containers

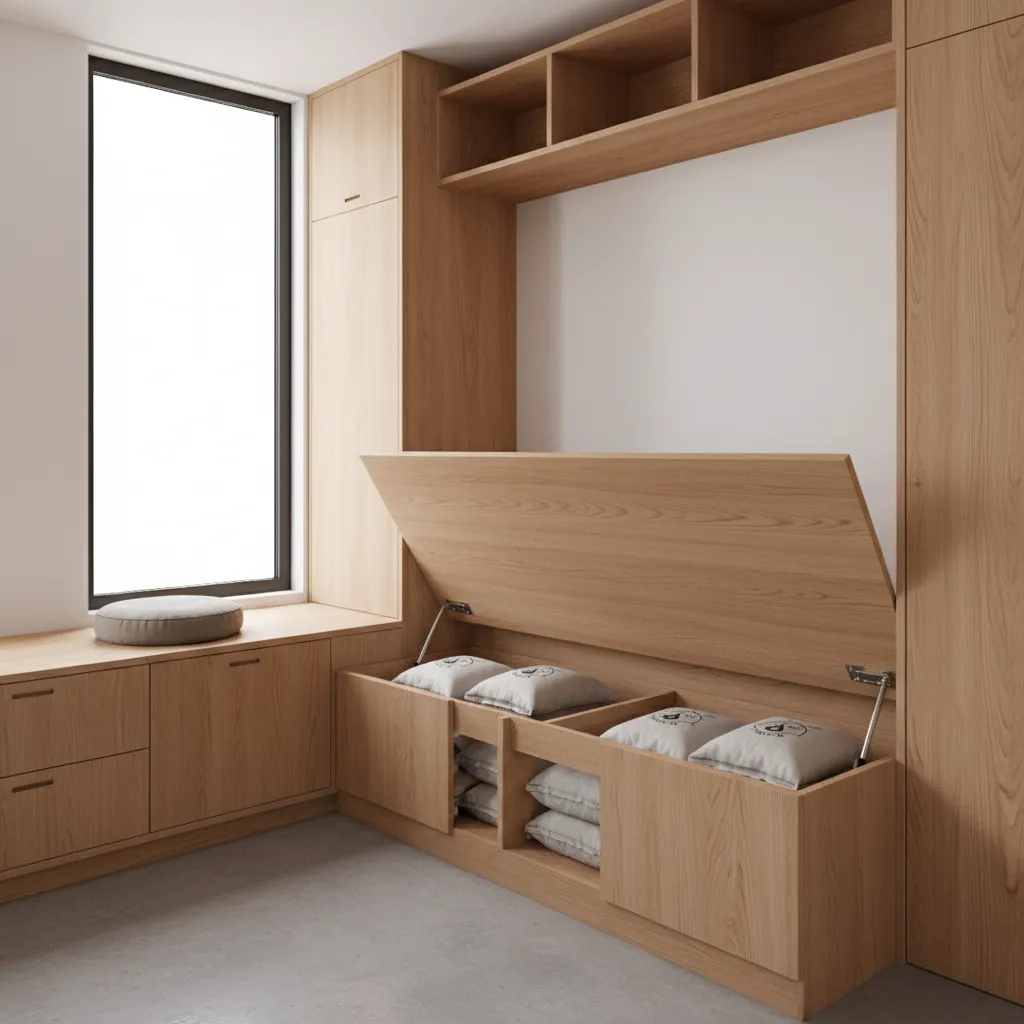

Smart solutions I’ve seen implemented include:

1. Under bench pellet compartments
2. Exterior weatherproof deck boxes
3. Vertical narrow storage closets
4. Raised outdoor pellet bins

The key rule: pellets must stay dry. Even small humidity exposure can cause them to swell and crumble.

Answer Box

A pellet stove can heat most tiny homes effectively, but success depends on proper installation, safe ventilation, and realistic pellet storage planning. In many projects, storage and airflow—not heating power—become the real design challenges.

Real World Tiny Home Heating Setups

Key Insight: The most successful tiny home pellet stove setups combine compact heating with thoughtful layout planning.

Across several projects and case studies, three common layouts consistently perform well.

1. Corner Stove Layout

1. Maximizes open floor area
2. Simplifies vertical vent pipe routing
3. Keeps heat circulation centralized

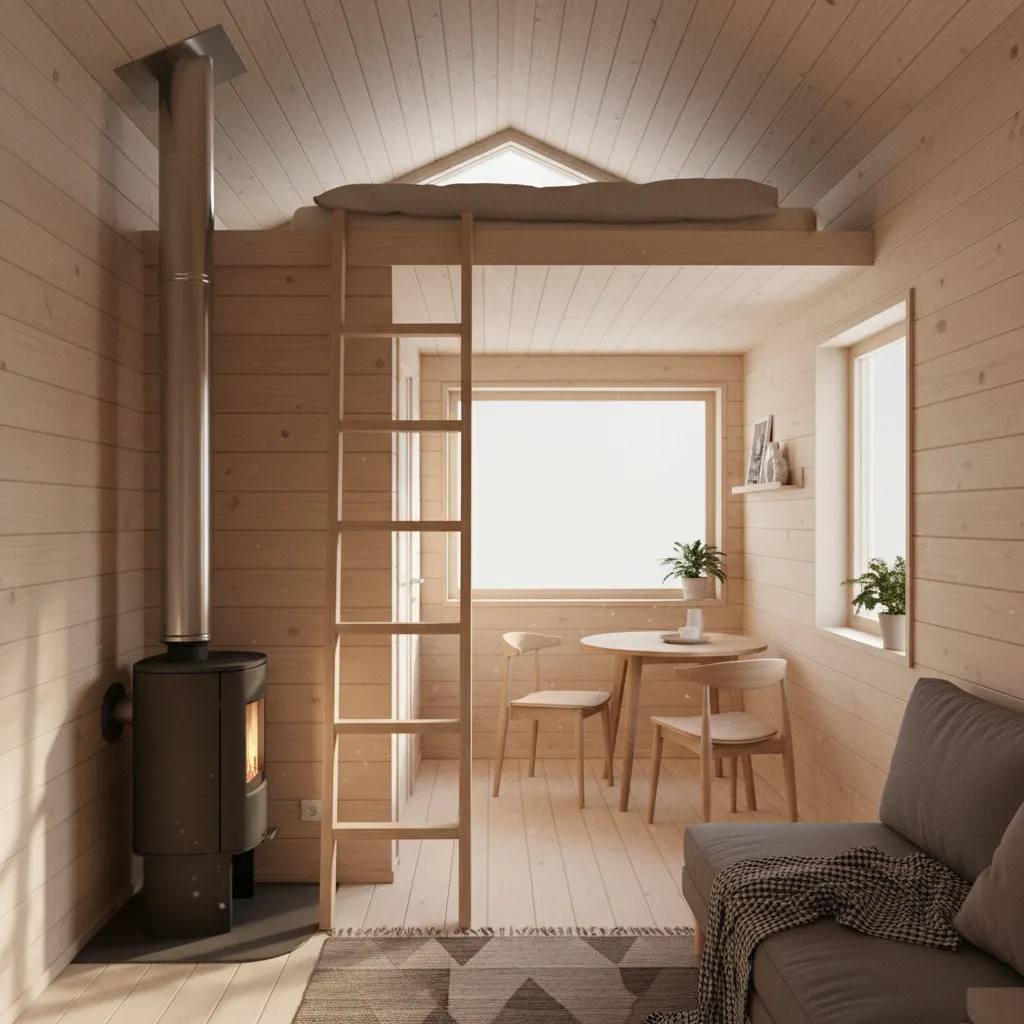

2. Staircase Integrated Heating

1. Stove placed near stair opening
2. Heat rises naturally into loft
3. Reduces need for additional fans

3. Entry Wall Installation

1. Easy exterior venting
2. Convenient pellet loading
3. Heat spreads across main living zone

When visualizing stove placement, many builders prototype layouts using a simple floor plan creator for compact homesto test clearance zones and walking paths before construction.

save pin

Is a Pellet Stove Practical for RV or Off Grid Living

Key Insight: Pellet stoves are practical for off grid cabins but usually impractical for standard RVs.

RVs introduce several complications:

1. Limited wall clearance
2. Lightweight wall structures
3. Strict fire safety requirements
4. Restricted vent pipe installation

However, off grid cabins work extremely well with pellet systems.

A typical off grid pellet setup includes:

1. Small solar battery system
2. 12V inverter power
3. Compact hopper stove
4. Vertical insulated vent pipe

In cold regions like the Pacific Northwest and parts of Canada, many remote cabins rely on pellet stoves because pellet fuel is easier to transport and store than firewood.

Final Summary

1. Pellet stoves provide powerful heating for tiny homes under 400 square feet.
2. Storage planning for pellet fuel is often the biggest hidden design challenge.
3. Loft heat buildup requires airflow planning in micro homes.
4. Off grid cabins pair well with pellet stoves and small power systems.
5. Standard RVs rarely support pellet stove installation safely.

FAQ

Can you use a pellet stove in a tiny home?

Yes. Many tiny homes successfully use compact pellet stoves. Proper venting, safe clearances, and pellet storage planning are essential for safe operation.

What size pellet stove is best for a tiny house?

Most tiny homes use stoves rated between 20,000 and 30,000 BTU, which can comfortably heat spaces under 400 square feet.

Is a pellet stove safe in a small space?

Yes when installed correctly. Clearance zones, proper exhaust venting, and carbon monoxide detectors are mandatory safety measures.

How much pellet fuel does a tiny home use?

Many homes burn one 40 lb pellet bag every one to three days during winter, depending on insulation and climate.

Can a pellet stove run off grid?

Yes. Many off grid cabins power pellet stoves using solar battery systems and small inverters.

Can you install a pellet stove in an RV?

Most RV manufacturers do not recommend pellet stoves due to clearance and structural limitations.

Where do tiny homes store pellet bags?

Common storage areas include under bench seating, exterior weatherproof boxes, or narrow utility closets.

Do pellet stoves overheat tiny homes?

They can if oversized. Choosing the right BTU rating and maintaining airflow helps prevent overheating.
