Phlebotomy Room Design: Optimize Small Healthcare Spaces: Fast-Track Guide to Efficient Phlebotomy Room Makeovers

The most effective phlebotomy rooms are calm, efficient, and predictable—especially when square footage is tight. I focus on clinical flow, patient comfort, and exacting ergonomic standards so staff can work faster and safer without sacrificing experience.

Space matters more than it looks on paper. Gensler’s workplace research notes that well-orchestrated layouts can lift task performance when movement and wayfinding are simplified, a principle that translates directly to clinical micro-environments. Lighting also isn’t cosmetic: IES recommends 300–500 lux for clinical tasks like venipuncture to ensure visual accuracy while controlling glare; WELL v2 further ties appropriate illuminance and color temperature to reduced visual fatigue and improved satisfaction. I design toward these benchmarks to keep errors low and confidence high.

Comfort has measurable impact. Steelcase research links environmental comfort (lighting, acoustics, posture) to reduced cognitive load and better outcomes; very small rooms amplify these effects. I pair that with color psychology insights from Verywell Mind: muted blue-greens and soft neutrals can lower heart rate and anxiety, which helps patients who fear needles. These aren’t cosmetic decisions—they reduce restlessness, speed up turnover, and minimize re-sticks.

Plan the Core Workflow First

In compact rooms, I map the shortest path between entry, patient chair, supply access, sharps disposal, label printing, and exit. The goal is a clockwise (or counterclockwise) loop that avoids backtracking and crossover. For quick iterations before construction, a simple interior layout planner or room layout tool helps test reach zones, door swings, and clearances at true scale.

Right-Size the Room: Clearances and Reach

• Patient chair: Maintain at least 36 in (915 mm) lateral clearance on the phlebotomist’s working side and 30 in (760 mm) on the opposite side for egress and ADA maneuvering. A 60 in (1525 mm) turning radius near the door or sink supports wheelchair access.

• Working envelope: Keep primary supplies within a 20–24 in (510–610 mm) forward reach and 15–18 in (380–455 mm) vertical reach from a seated or perched position to minimize shoulder elevation and ulnar deviation (ergonomics best practice).

• Door and chair orientation: Place the chair so the phlebotomist’s dominant-hand side faces the primary armrest; align door swing away from the patient to reduce perceived threat when it opens.

Lighting: Visual Accuracy Without Glare

• Ambient: Target 300–350 lux general ambient at 3500–4000K to balance alertness and warmth.

• Task: Provide a dedicated task light at 500–750 lux with a CRI ≥90 aimed obliquely to the antecubital area; avoid specular glare on the skin that flattens vein contrast (IES clinical guidance).

• Glare control: Use matte finishes (≤20 GU) on counters and armrests; add indirect uplight or baffles to soften shadows.

• Night or low-light: Dim-to-warm capability can reduce patient stress while preserving venous visibility.

Ergonomics: Protect the Clinician

Phlebotomy is repetitive precision work. I set seat heights so the elbow is at 90–100° flexion with neutral wrist. Adjustable armrests (height range ~28–36 in / 710–915 mm) accommodate different body types. If standing, a 39–42 in (990–1065 mm) counter with an anti-fatigue mat reduces lower-limb strain. Frequently accessed items live in the primary reach zone; sharps containers mount between 52–56 in (1320–1420 mm) to centerline to keep disposal neutral and visible without shoulder hike.

Patient Chair and Armrest Strategy

Use a chair with lockable casters or a fixed base, high-friction upholstery, and bilateral armrests. A gentle recline option (10–15°) reduces vasovagal episodes. If space is tight, a wall-mounted fold-down secondary armrest can serve left-handed draws without widening the room. Integrate a small siderail tray for tourniquets, alcohol pads, and gauze—this prevents supply creep onto the main worktop.

Storage That Prevents Error

Open shelves invite dust and visual noise. I prefer shallow, closed cabinets with clear internal bins, color-coded by gauge and tube type, and front labels in 16–18 pt. Keep no more than 2–3 days of consumables in-room to limit clutter; bulk storage lives outside. A narrow vertical pull-out (9–12 in wide) near the task side can hold gloves, bandages, and tape within one-step reach.

Specimen Flow, Labeling, and Tech Integration

Print labels at the point of draw to minimize mislabeling. Mount a compact label printer at elbow height on the non-dominant side; route power/data through a wall channel to keep the floor clear. Provide a small pass-through cubby or lockable hatch toward the corridor or lab side to move specimens without adding traffic through the room. If space allows, a wall-mounted tablet for EHR check-in reduces clipboards and gives eye-level confirmation of patient identity, improving chain-of-custody.

Acoustic Comfort and Privacy

Small rooms magnify noise and stress. Aim for an NRC of 0.70+ at the ceiling, add a door sweep, and specify perimeter seals. Soft, cleanable wall panels at head height reduce reverberation and patient eavesdropping fears. A white-noise emitter outside the room can mask conversations without entering the clinical soundscape.

Color, Materials, and Infection Control

Color impacts physiology. Desaturated greens, soft blues, and warm grays temper arousal; avoid high-chroma reds that can raise perceived pain. Select seamless sheet flooring with integral coved base, non-porous solid-surface counters, and minimal joints at the sink. Matte finishes reduce glare; choose bleach-cleanable textiles or coated fabrics for the chair. Place a hands-free sink near the exit path with a 24 in (610 mm) clear drop zone and wall-hung storage above to keep the counter open.

Air, Thermal, and Odor Management

Keep supply airflow away from the patient’s face; a gentle laminar pattern with low velocity minimizes draft perception. If the suite shares return air, add a discreet, high-MERV prefilter near the room return. Maintain 70–74°F (21–23°C); cooler temperatures can constrict veins and complicate draws.

Safety, Compliance, and Sightlines

Position the phlebotomist so the door, patient face, and tray are in the same sight cone, reducing surprises. Sharps containers must be visible and within one arm movement of the draw site. Add a discreet emergency call button at knee height on the phlebotomist side. Stow oxygen and crash-cart access outside the tiny room when possible but within 50 ft (15 m).

Micro-Zoning a Small Footprint

• Front zone: Entry clearance, identity confirmation, hand hygiene.

• Center zone: Chair and bilateral armrests with task lighting.

• Side zone: Specimen prep shelf, label printer, and sharps.

• Rear zone: Sink with touchless controls, glove and towel dispensers.

Testing a few variations with a layout simulation tool can reveal which orientation unlocks the best sightlines and shortest steps.

Step-by-Step Layout for a 6 ft × 9 ft Room

1) Door on the short wall, outswing if code allows. 2) Chair centered on the long wall, dominant-hand side toward the side storage. 3) 18–24 in (455–610 mm) deep counter opposite the chair with undercounter drawers. 4) Task light over the chair’s armrest, off-axis by 20–30°. 5) Sink near the exit path with 24 in landing space. 6) Label printer and scanner mounted to the non-dominant side at elbow height. 7) Sharps container 12–18 in from the draw site within the same reach envelope.

Maintaining Flow with Multiple Patients

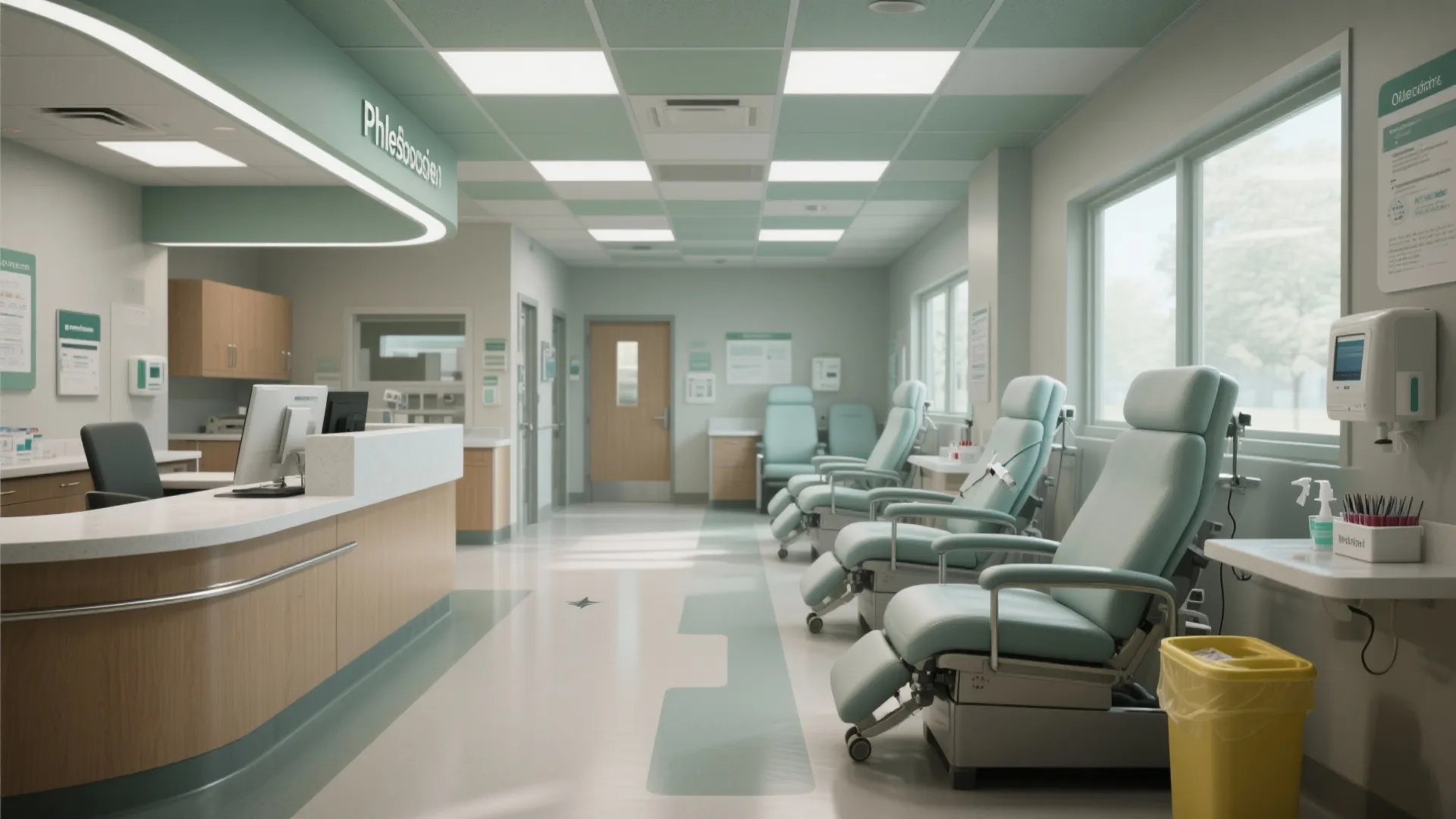

In multi-bay setups, stagger chair orientations so clinicians have sightlines to both patients and the corridor. Standardize the left/right supply map in every bay to reduce cognitive switching. Use identical lighting and chair settings across bays so staff don’t waste time re-adjusting.

What the Data Means for Daily Operations

Evidence-backed lux levels, ergonomic reach zones, and calming color palettes reduce error and anxiety. In a small room, those gains are outsized: fewer steps, fewer re-sticks, faster turnaround, and better patient satisfaction scores. When the plan, light, and storage work together, the space fades into the background and the procedure feels effortless.

FAQ

What illuminance is best for venipuncture?

Aim for 300–350 lux ambient and 500–750 lux task lighting at the antecubital area, with CRI ≥90. These levels align with IES clinical guidance and support vein visibility without harsh glare.

Which color temperatures calm patients without dulling visibility?

Use 3500–4000K for ambient and a slightly cooler 4000K on task lights; it maintains contrast while avoiding the sterility of 5000K+.

How do I fit full ADA clearances in a tiny room?

Prioritize the 60 in turning radius near the entry or sink and maintain at least 36 in on the working side of the chair. Use wall-mounted storage to open floor area.

What chair features prevent fainting or movement?

A stable base, bilateral armrests, a 10–15° recline, and high-friction, cleanable upholstery. Add an adjustable headrest to stabilize posture during longer draws.

Where should the sharps container go?

Within the same reach envelope as the draw site, typically 12–18 in away and 52–56 in to centerline height, clearly visible from the working position.

How can I reduce noise and protect privacy?

Specify high-NRC ceiling tiles (≈0.70+), perimeter door seals, and a soft wall panel behind the chair. Corridor white noise can mask speech without entering the clinical sound field.

What materials balance cleanability and comfort?

Seamless sheet flooring with coved base, solid-surface counters, and coated textiles rated for bleach solutions. Choose matte finishes to limit glare on work surfaces.

Is a label printer in-room really necessary?

Yes. On-site printing at elbow height reduces walk time and mislabeling risk. Mount it on the non-dominant side to keep the draw hand free.

How do I avoid clutter with limited storage?

Use shallow closed cabinets with labeled bins, cap in-room stock to 2–3 days, and add a narrow vertical pull-out for high-frequency items.

What task light beam angle works best?

Offset the beam 20–30° from vertical to avoid specular glare on skin; diffuse optics reduce hard shadow edges while maintaining contrast.

Can I make a 5 ft × 8 ft room work?

It’s tight but possible with a centered chair, 18 in counters, a wall-mounted armrest on the secondary side, and sliding door hardware to reclaim swing space, subject to local code.

Which research supports environmental comfort in clinical work?

Steelcase research links environmental comfort to cognitive performance, and WELL v2 provides metrics for lighting and comfort strategies applicable to clinical spaces.
