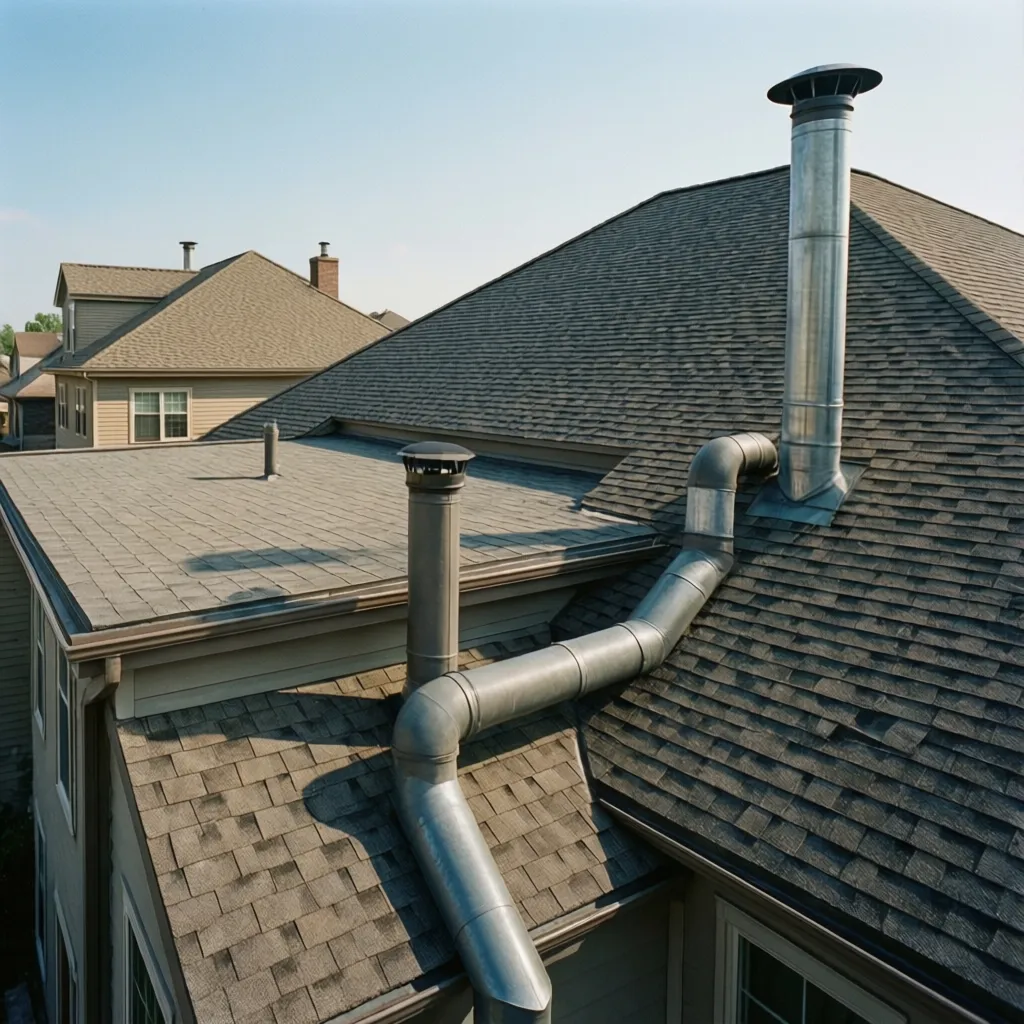

Plumbing Vent Pipe Height Requirements for Different Roof Types: How roof slope, materials, and structure change the correct vent stack height above your roof

Direct Answer

Plumbing vent pipe height requirements change depending on roof slope, roof accessibility, and nearby openings. Most building codes require vent pipes to extend at least 6 inches above the roof surface, but flat roofs used for access often require 10–12 inches or more. Snow-prone climates or certain roof materials may require even greater clearance.

Quick Takeaways

1. Most plumbing vents must extend at least 6 inches above the roof surface.
2. Accessible or flat roofs typically require 10–12 inches of vent pipe clearance.
3. Snow regions often require taller vent stacks to prevent blockage.
4. Roof materials can influence flashing design but rarely change minimum height rules.
5. Poor vent height planning can lead to sewer gas issues or winter freeze blockages.

Introduction

Plumbing vent pipe height is one of those small construction details that quietly determines whether a plumbing system works properly for decades—or starts causing odors and pressure problems within months. After working on residential interior projects for over a decade, I’ve noticed that many homeowners focus on fixtures and finishes while overlooking how roof design affects plumbing ventilation.

The reality is that plumbing vent pipe height above the roof isn’t a one-size rule. A steep shingle roof behaves differently from a flat membrane roof. Snow accumulation, wind exposure, and roof accessibility can all change how high the vent stack should extend.

When designers and contractors plan layouts early—especially during early spatial planning using tools that allow homeowners to experiment with a digital floor plan before construction begins—vent locations and roof penetrations become much easier to coordinate.

In this guide, I’ll walk through how roof type changes vent height requirements, the mistakes I repeatedly see on job sites, and how to choose the safest vent height for long‑term reliability.

save pin

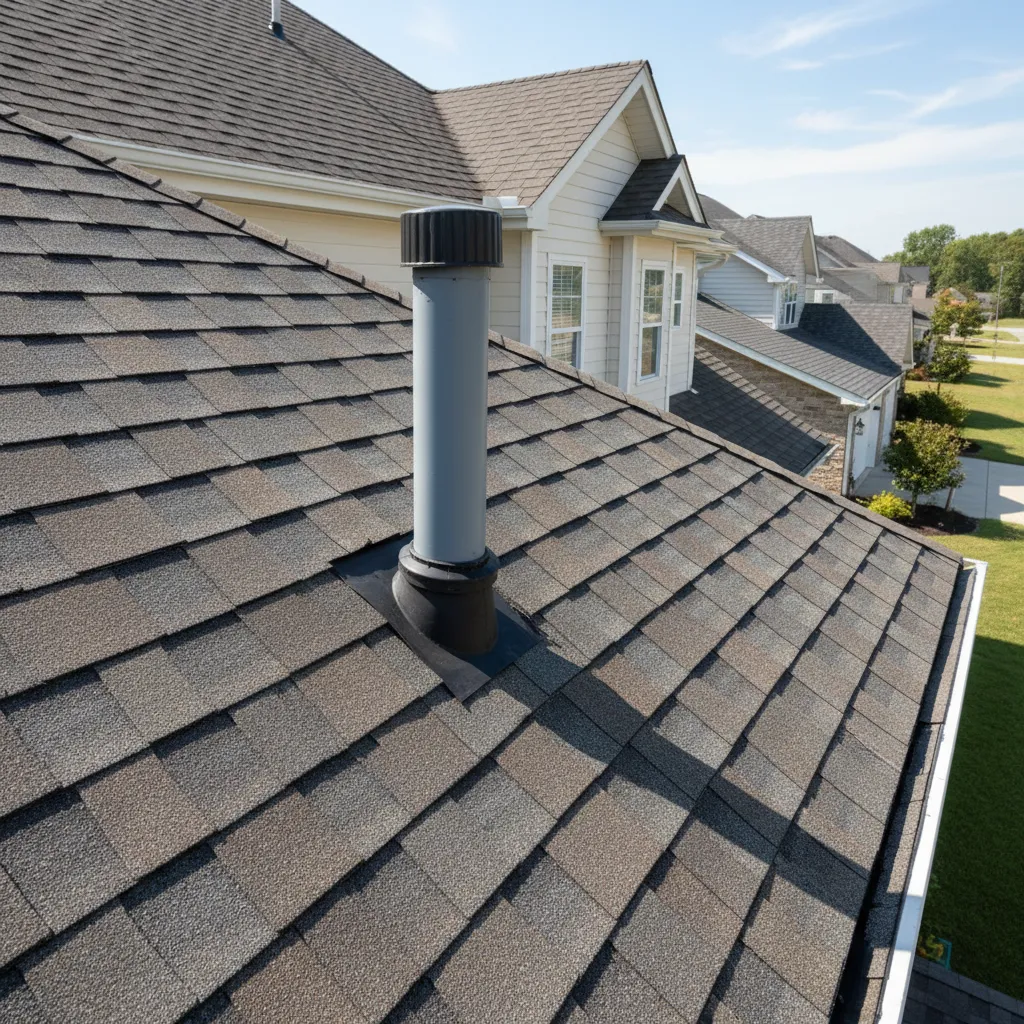

Why roof design affects plumbing vent pipe height

Key Insight: Roof geometry influences airflow, snow buildup, and accessibility, all of which affect minimum plumbing vent pipe height.

Plumbing vents work by equalizing air pressure inside the drainage system. For that to work reliably, the vent opening must remain unobstructed by snow, debris, or roof traffic.

Different roof designs change the risk factors dramatically:

1. Flat roofs: Higher risk of standing water and foot traffic
2. Low‑slope roofs: Snow accumulation can bury vents
3. Steep roofs: Faster snow shedding but stronger wind exposure
4. Accessible roofs: Safety clearances must prevent blockage

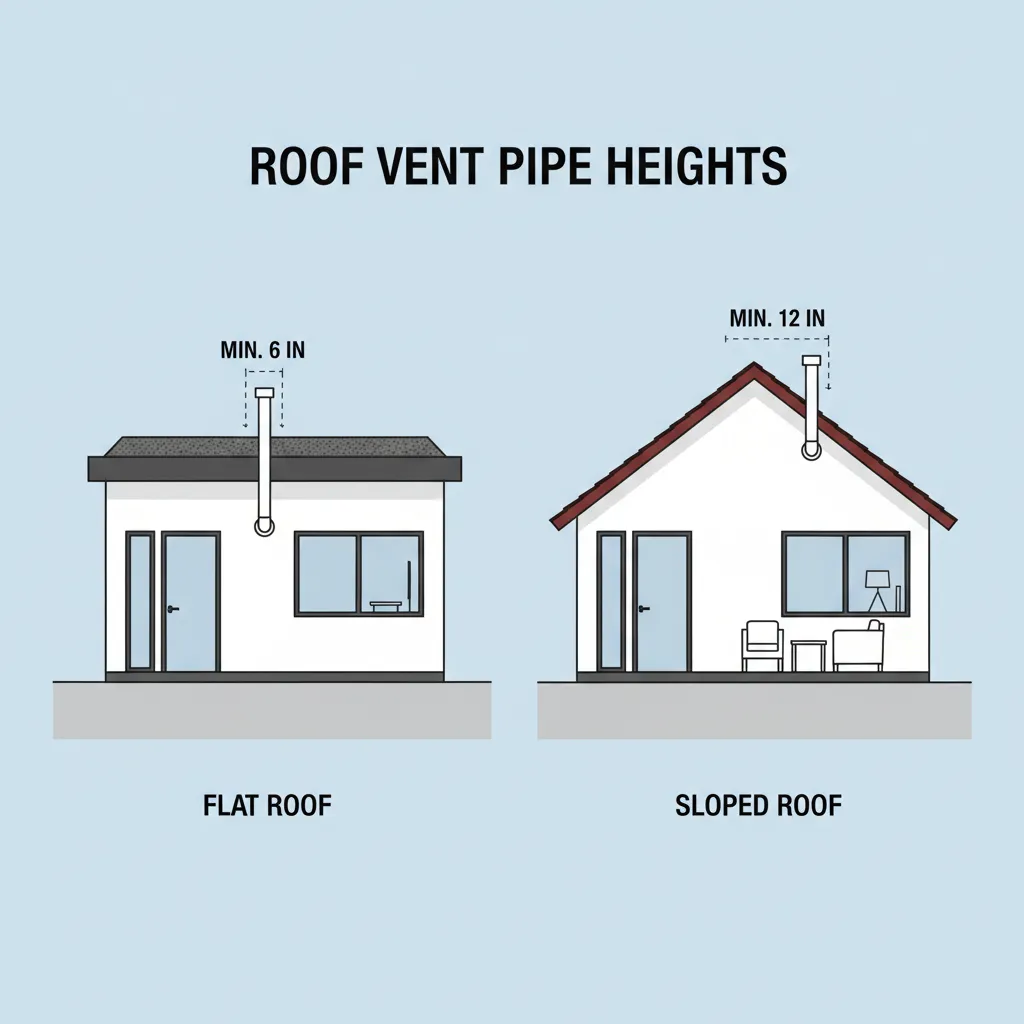

International Residential Code (IRC) and Uniform Plumbing Code (UPC) both require vents to extend at least 6 inches above the roof surface. However, the moment a roof becomes accessible for maintenance or recreational use, most jurisdictions increase that requirement.

From experience reviewing residential roof plans, the biggest oversight is failing to consider snow depth. A vent that technically meets code at 6 inches can still become buried during winter storms.

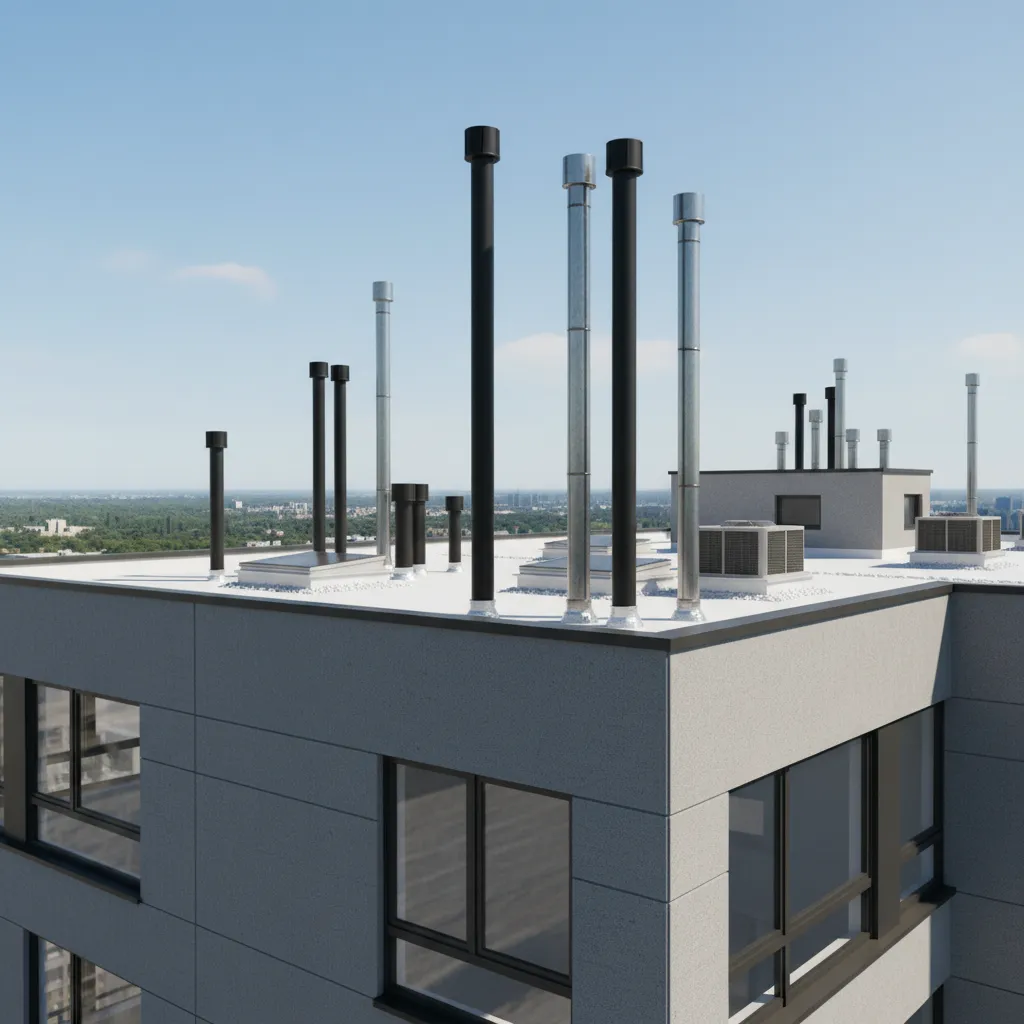

Vent pipe height rules for flat roofs

Key Insight: Flat roofs typically require taller vent stacks because they accumulate snow, water, and debris more easily.

Flat roofs are common in modern homes, additions, and urban buildings. However, they create a unique challenge for plumbing ventilation.

Typical vent height guidance for flat roofs:

1. Minimum code requirement: 6 inches above roof
2. Accessible roof areas: 10–12 inches recommended
3. Heavy snow regions: 12–24 inches often used

In practice, many contractors increase the height beyond code minimums. A taller stack prevents problems like:

1. Snow blockage
2. Leaf accumulation
3. Standing water near the vent base

When planning modern homes with flat roof sections, I often recommend mapping all roof penetrations early in the layout stage. Tools that help visualize circulation and mechanical placement—such as platforms used to visualize home layouts in a 3D floor planning environment—make it easier to avoid awkward vent placements later.

save pin

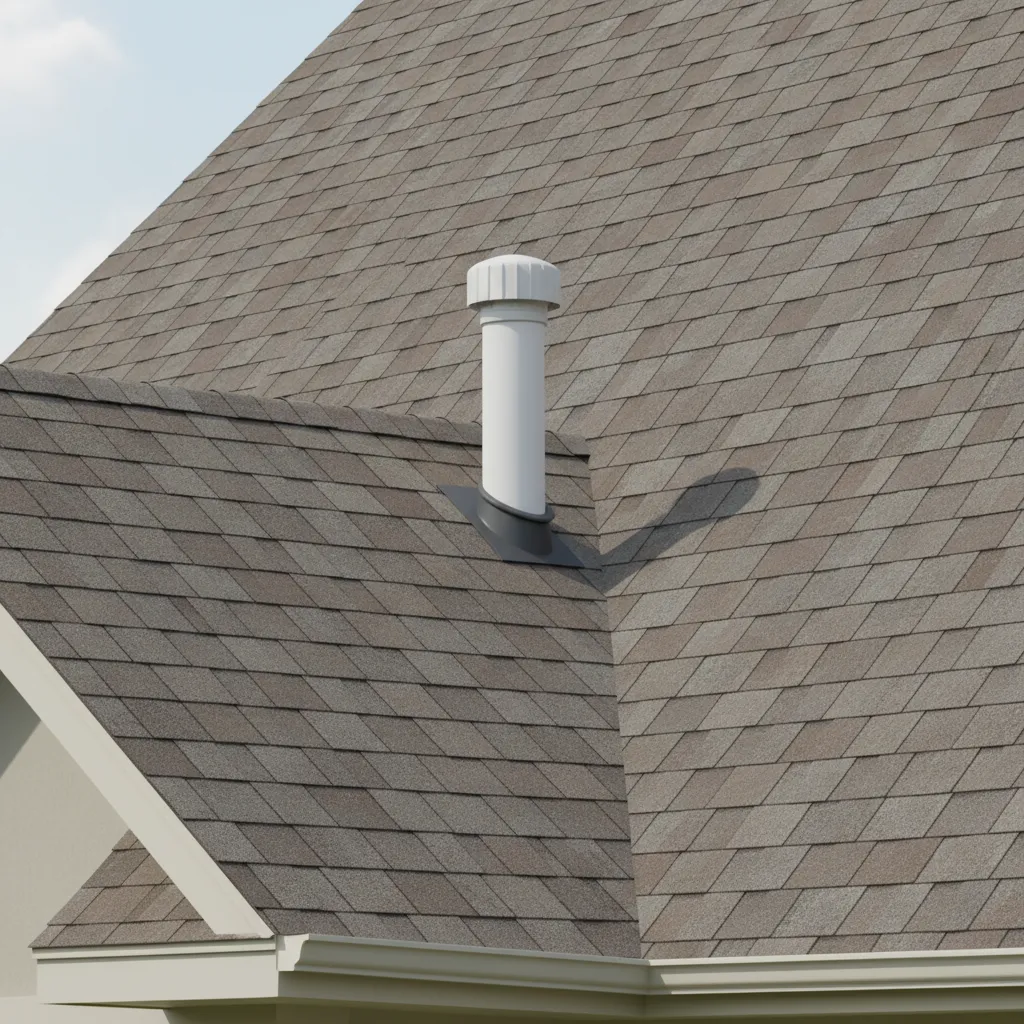

Vent pipe height requirements for sloped roofs

Key Insight: Sloped roofs usually meet code with a 6‑inch vent extension, but local climate conditions may require more.

Sloped roofs shed water and snow more efficiently than flat roofs, which is why most building codes allow the standard 6‑inch rule.

However, slope alone doesn't guarantee safe clearance.

Important factors include:

1. Roof pitch: Steeper roofs shed snow faster
2. Snowfall levels: Northern regions require taller vents
3. Wind exposure: Tall vents must resist movement
4. Distance from windows: Codes require separation from openings

Common vent height examples:

1. Standard sloped asphalt roof: 6–12 inches
2. High snowfall region: 12–24 inches
3. Near rooftop decks: 24 inches or more

A mistake I’ve seen multiple times is installing the shortest legal vent height in snowy regions. Within a single winter, the pipe becomes buried, causing slow drains and sewer gas pressure issues inside the house.

save pin

Metal, tile, and shingle roof considerations

Key Insight: Roofing material rarely changes minimum vent height but strongly affects flashing design and long‑term durability.

Different roof materials introduce installation challenges around the vent penetration.

Key differences include:

1. Asphalt shingles: Flexible flashing boots are common and easy to seal
2. Metal roofs: Require specialized vent boots to prevent leaks
3. Tile roofs: Raised profiles often require taller flashing assemblies

The real issue is not height—it’s water protection. Poor flashing installation causes more roof leaks than incorrect vent pipe height.

Another overlooked factor is thermal expansion. Metal roofs expand and contract significantly, so rigid vent connections can eventually loosen.

Building code comparisons across common roof types

Key Insight: Most plumbing codes share the same base requirement, but climate adjustments create practical differences.

Typical requirements based on widely adopted codes:

1. Minimum above roof: 6 inches
2. Accessible roof areas: 7 feet above walking surface (for safety)
3. Snow climates: Height must exceed average snow depth

Example comparison:

1. Flat roof (non‑accessible): 6–12 inches
2. Flat roof deck or terrace: up to 7 feet clearance
3. Steep residential roof: typically 6–12 inches

In architectural planning, roof penetrations often get finalized late in the process. But when designers review roof layouts alongside interior circulation—sometimes using visualization tools that allow homeowners to preview realistic 3D views of their future home design—conflicts between vents, skylights, and solar panels are easier to avoid.

save pin

Answer Box

Vent pipes must extend at least 6 inches above most roofs, but flat roofs, snow climates, and accessible rooftops often require 12 inches or more. The safest vent height depends on roof slope, expected snow depth, and nearby building features.

Choosing the safest vent height for your roof design

Key Insight: The safest vent height is usually higher than the minimum code requirement.

After reviewing many residential construction drawings, I’ve noticed a pattern: the minimum allowed vent height often creates long‑term maintenance problems.

Instead, I recommend using a simple planning checklist:

1. Confirm local plumbing code requirements
2. Check historical snow depth for your region
3. Account for roof accessibility and maintenance paths
4. Avoid placing vents directly behind dormers or parapets
5. Ensure strong flashing compatible with the roofing material

Adding just a few extra inches of height can prevent years of winter freeze issues and sewer gas problems.

Final Summary

1. Standard plumbing vents must extend at least 6 inches above the roof.
2. Flat roofs often require 10–12 inches or more clearance.
3. Snow climates frequently require taller vent stacks.
4. Roof materials affect flashing more than vent height rules.
5. Planning vent locations early prevents costly roof modifications.

FAQ

How high should a plumbing vent pipe be above a flat roof?

Most codes require at least 6 inches, but 10–12 inches is commonly recommended to prevent snow or debris blockage.

What is the minimum plumbing vent pipe height above roof?

The typical minimum plumbing vent pipe height above roof surfaces is 6 inches under most plumbing codes.

Does roof slope change plumbing vent height requirements?

Roof slope doesn’t usually change the minimum rule, but steeper roofs often shed snow better and may need less additional height.

Can snow block a plumbing vent pipe?

Yes. Heavy snowfall can cover short vent stacks, leading to slow drainage or sewer gas pressure issues inside the plumbing system.

Do metal roofs require different vent pipe heights?

Generally no. Metal roofs mainly require specialized flashing boots rather than different vent pipe height rules.

How tall should a vent stack be in snowy climates?

Many builders extend vents 12–24 inches above the roof to stay above typical snow accumulation.

Can vent pipes be too tall?

Extremely tall vents may require bracing because wind loads can stress the pipe or roof flashing.

How far should plumbing vents be from windows?

Most codes require at least 10 feet horizontally or 3 feet vertically above nearby openings.

References

1. International Residential Code (IRC)
2. Uniform Plumbing Code (UPC)
3. U.S. Department of Housing and Urban Development building guidelines
