Power Plant Control Room Design: Key Principles & Strategies: Fast-Track Guide to Building an Efficient Power Plant Control Room

I design control rooms for environments where operational clarity and human performance decide what happens in the next second. Power plants demand a space that merges ergonomics, situational awareness, and fail-safe resilience with absolute consistency. The goal: reduce cognitive load, shorten decision loops, and make every interaction with technology intuitive even under stress.

Data backs a human-centered approach. WELL v2 recommends task lighting between 300–500 lux for precision work, while ambient lighting near 150–300 lux helps minimize glare and fatigue (WELL Lighting Concept, v2). Steelcase research links visual comfort and reduced glare to improved sustained attention, which is vital when operators track alarms and trends continuously. For workflow impact, Herman Miller’s findings show that properly organized work settings and ergonomics contribute to measurable gains in accuracy and response time in complex tasks. These benchmarks inform how I tune light levels, sightlines, and work surface geometry.

Noise control is just as critical. The International WELL Building Institute’s v2 guidelines encourage maintaining background noise levels that support concentration, and many control rooms aim for NC-25 to NC-30 with targeted sound absorption. IES standards emphasize glare management and uniformity ratios for visual tasks; pairing these guidance points with adaptive lighting keeps screens readable and makes status colors legible without eye strain. For broader operational culture and team behavior patterns, Gensler’s research highlights how clear spatial hierarchies and unbroken lines of communication increase the speed of coordinated decision-making. These references form a practical framework when translating standards into the realities of a 24/7 operations floor.

Mission-Critical Design Principles

In a power plant control room, failure tolerance and human performance must be designed in from the start. I prioritize: clear sightlines to primary displays, ergonomic reach envelopes, redundant monitoring positions, zoned lighting, and acoustic treatments that protect concentration. The physical layout supports triage—operators can identify alarms, access procedures, and communicate across the room without friction. This means clustering related systems, aligning display walls within the operator’s ideal visual cone, and planning seating to minimize swivels and excessive reach.

Spatial Hierarchy and Operator Workflows

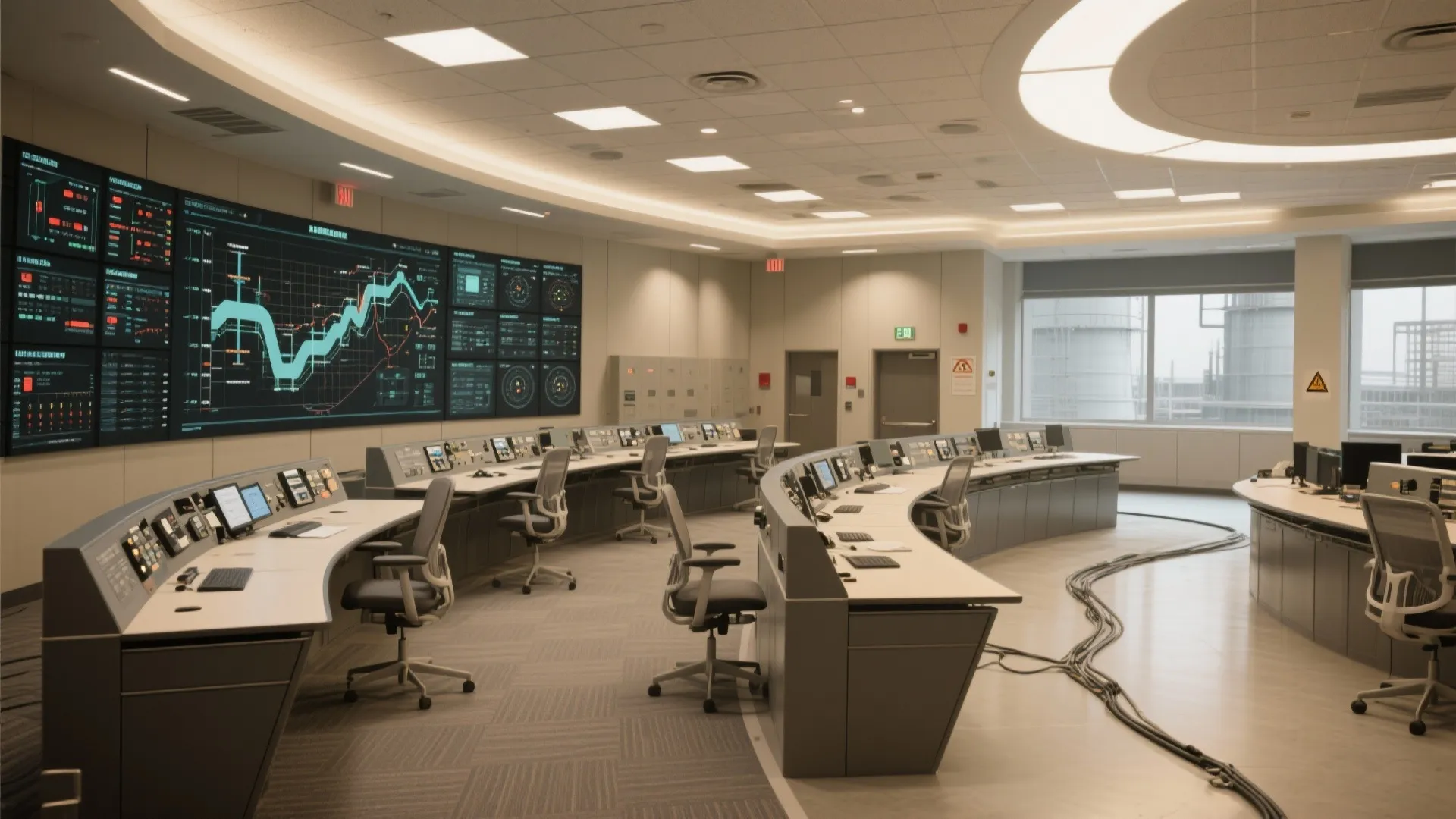

A strong hierarchy puts the main display wall or status mosaic at the visual anchor, with operator consoles arranged on arcs or gentle chevrons that keep all primary feeds within a comfortable head and eye rotation. A dedicated incident/command position should have line-of-sight to everyone and a clear voice path to field teams. When planning these geometries, I often validate options using a room layout tool like layout simulation tool to test sightlines, traffic flow, and emergency egress without guesswork.

Ergonomics: Consoles, Sightlines, and Reach

Console geometry must respect human factors: seated eye height ~1200–1250 mm, primary monitor top edges at or slightly below eye level, and viewing distances typically between 600–800 mm for displays in continuous use. Tilting rack-mounted screens reduces glare and preserves contrast. Adjustable sit–stand surfaces keep operators alert during long shifts and accommodate different body dimensions. I keep critical controls within the 400–500 mm primary reach zone and place less-frequent tasks in the secondary zone to avoid awkward postures.

Lighting Strategy for Readability and Endurance

Operators live under screens—lighting must support them, not fight them. I balance low-glare ambient light with focused task lighting. Target ambient levels around 150–300 lux with high-uniformity and indirect distribution; task planes for documentation sit near 300–500 lux per WELL v2. Luminaire selection favors low-UGR optics, dimmable drivers, and warm-neutral correlated color temperatures (~3000–4000K) to reduce eye fatigue without sacrificing contrast. I also carve out night-mode protocols with lowered levels and warmer tones to preserve circadian stability during overnight shifts.

Color Psychology and Visual Coding

Color is a cognitive shortcut. A restrained palette for walls and consoles helps emphasize alarm colors on screens. Neutral mid-values (LRV 40–60) reduce afterimages and improve legibility. For stress management, the evidence on color psychology shows cooler hues can lower perceived workload, while strategic accents guide attention to process-critical zones. I keep high-saturation colors off large surfaces to avoid visual noise and reserve them for signage and wayfinding.

Acoustics: Quiet Enough to Think, Clear Enough to Coordinate

Speech intelligibility matters—commands must be heard, not shouted. I aim for a balanced acoustic profile: ceiling absorption (NRC 0.80+ panels), targeted wall treatments, and soft finishes at high-reflection points. Background HVAC noise stays low to preserve signal-to-noise ratio for voice. If a large video wall is present, I add absorptive surfaces opposite it to mitigate flutter echo. Zoning helps: quiet individual monitoring zones near the core, collaborative huddle zones at the perimeter.

Resilience, Redundancy, and Reliability

Design for the abnormal. Redundant power feeds to consoles, dual network paths, and fail-safe lighting backup keep the room operational if the plant goes off nominal. Emergency communications—wired and wireless—should have clearly marked stations and battery-backed uptime. Critical signage and evacuation paths need consistent illumination and unambiguous graphics. Storage for incident kits, PPE, and procedures must be within quick reach of the command position.

Human Factors in Alarm Management

Alarm floods can overwhelm even experienced operators. Display layouts must prioritize severity coding, group related alarms, and stagger visual stimuli. Keep the number of simultaneously visible high-priority alerts within what the team can process; train the room as much as the people. Eye movement studies support placing summary indicators near the center field, with drill-down details accessible on secondary screens. Avoid flashing elements that compete with critical change indicators.

Wayfinding, Safety, and Egress

The room must guide behavior under stress. Clear, consistent wayfinding with high-contrast signage, floor markings, and illuminated exits shortens response time. Egress routes remain unobstructed and verified via mock drills. Doors avoid direct sightline interference with key display walls. Equipment storage does not encroach on circulation, and cable management prevents trip hazards.

Materials and Sustainability

I specify durable, low-VOC materials for better indoor air quality—powder-coated metals, high-pressure laminates with proven emissions data, and carpets with acoustic backing. Non-gloss finishes reduce specular reflections. Sustainable choices also reduce lifecycle interruptions; furniture systems with replaceable components make overnight maintenance feasible without disrupting operations.

Technology Integration and Future-Proofing

The room should evolve with the plant. Provide generous cable trays, accessible floor boxes, and flexible monitor mounts. Plan for mixed data types—SCADA, historian trends, CCTV—without stacking screens beyond comfortable scanning limits. A well-structured KVM matrix and intuitive touch interfaces reduce operator friction. Keep service paths and ventilation clear for equipment racks, and map acoustics against future display sizes.

Team Behavior and Spatial Intention

Layout reinforces role clarity. The lead operator’s station anchors the communication spine, with specialist roles flanking on lines that keep sightlines open. Non-verbal cues—being able to see a colleague’s posture or whether a headset is on—are design inputs. Provide quick-access whiteboards and digital annotation surfaces for shared situational awareness without clogging the main display.

Commissioning, Mock-Ups, and Iteration

Before fit-out, I test layouts with full-scale mock-ups. We validate reading angles, glare paths, and acoustic behavior using live screens and sound sources. Operators run simulated incidents to surface friction points—too many swivels, blocked views, or confusing alert clustering. Iteration at this stage is cheap and pays off in reliability on day one.

Authority References to Ground Decisions

To anchor choices in established guidance, I often cross-check lighting with IES recommended practices and WELL v2, and draw on workplace research from Steelcase and Herman Miller where human performance and comfort intersect with technology. Read more at the WELL Building Standard (WELL v2) and Steelcase research: WELL v2, Steelcase research.

Practical Layout Strategies

Start with a central visual anchor: the main display wall should be readable from every operator’s position without extreme head rotation. Use curved console rows to keep the screens within the comfortable field of view. Maintain generous aisles for cross-room communication, and separate quiet focus zones from collaboration points. When diagramming options, a visual-first interior layout planner such as a room design visualization tool helps evaluate reach distances, sightlines, and emergency routes.

FAQ

Q1: What ambient and task lighting levels work best for control rooms?

A: Ambient 150–300 lux with high uniformity, task lighting at 300–500 lux for documentation and precision work. This aligns with WELL v2 lighting guidance and keeps screens legible while minimizing glare.

Q2: How should consoles be arranged for optimal sightlines?

A: Arced or gentle chevron rows oriented toward the main display wall maintain comfortable eye rotation. Keep critical data within the central visual cone and secondary details on peripheral screens.

Q3: What acoustic targets support concentration?

A: Aim for NC-25 to NC-30 background noise, add ceiling/wall absorption (NRC ~0.80 or higher), and control reflections near large displays to preserve speech clarity.

Q4: Which color temperatures reduce eye strain?

A: Warm-neutral 3000–4000K helps balance visual comfort and contrast. Use dimmable, low-UGR fixtures to avoid harsh glare on screens.

Q5: How do I handle alarm floods?

A: Prioritize severity coding, group related alerts, and limit simultaneous high-priority items to what the team can process. Place summary indicators centrally and drill-downs on secondary monitors.

Q6: What ergonomic standards guide console dimensions?

A: Keep monitor tops at or slightly below seated eye level, set viewing distances ~600–800 mm, and place frequent controls within a 400–500 mm reach zone. Provide sit–stand adjustability to reduce fatigue.

Q7: How can the room support overnight shifts?

A: Introduce night-mode lighting with lower levels and warmer tones, offer adjustable seating and posture variation, and maintain quiet zones to manage cognitive load during circadian lows.

Q8: What redundancy should be built in?

A: Dual power feeds, redundant networks, battery-backed lighting for egress, and clearly marked emergency communications. Keep incident kits and procedures within immediate reach.

Q9: How do I plan for future technology?

A: Provide flexible mounts, accessible cable paths, scalable KVM and control interfaces, and ventilation allowances for larger display arrays or added servers.

Q10: What materials improve performance?

A: Low-VOC finishes, non-gloss surfaces to reduce reflections, acoustic carpets or underlays, and durable console surfaces that resist wear without glare.

Q11: How can layout tools help before construction?

A: Using a layout simulation tool allows quick testing of sightlines, circulation, and egress—catching ergonomic and visibility issues early and reducing rework.

Q12: Are there guidelines for visual uniformity on screens?

A: IES recommended practices emphasize luminance uniformity and glare control; pair that with consistent color coding in SCADA to speed recognition and reduce error.
