Professional Methods Contractors Use to Measure Kitchen Backsplash Area: Industry‑standard backsplash measurement techniques installers use to calculate square footage accurately before ordering tile.

Direct Answer

Professional installers measure kitchen backsplash area by calculating the wall section between countertops and upper cabinets, subtracting windows or large gaps, and adding 10–15% tile overage. Contractors usually assume a 16–18 inch backsplash height and measure each wall segment individually to avoid ordering errors.

Quick Takeaways

1. Contractors measure backsplash area by dividing walls into small rectangular sections.
2. Standard backsplash height between counter and cabinets is typically 16–18 inches.
3. Professionals subtract windows and large gaps but include small outlets.
4. Installers usually add 10–15% tile overage for cuts and waste.
5. Accurate measurement happens before tile ordering and layout planning.

Introduction

After working on residential kitchens for more than a decade, I’ve noticed one thing homeowners consistently underestimate: backsplash measurement. Calculating kitchen backsplash area sounds simple, but professionals rarely rely on rough guesses.

Contractors follow a repeatable workflow that balances speed and accuracy. On real projects, even small measuring mistakes can lead to ordering shortages, project delays, or expensive extra tile shipments.

Before measurements even begin, most installers sketch the wall layout digitally or on paper. Many designers now prototype the wall using a visual kitchen layout planning workflow used during early remodeling stagesso cabinet spacing and backsplash zones are already defined.

In this guide, I’ll walk through the contractor backsplash measurement method used in real renovation projects—including the assumptions installers make, the tools they rely on, and how professionals deal with awkward walls or large kitchens.

save pin

How Contractors Measure Backsplash Space in Real Projects

Key Insight: Professional installers never measure the backsplash as one large rectangle—they divide the wall into smaller measurable sections.

In the field, kitchen walls rarely behave like perfect rectangles. Cabinets may stop at different points, range hoods interrupt runs, and windows break the wall surface.

Instead of measuring the whole wall, contractors break the backsplash into sections.

Typical contractor measurement process:

1. Measure each countertop run length
2. Multiply by backsplash height
3. Subtract window or appliance openings
4. Add sections around range hoods or tall cabinets

Example:

1. Wall 1: 8 ft × 18 in
2. Wall 2: 6 ft × 18 in
3. Wall 3: 4 ft × 18 in

Each section is converted into square feet and added together.

This segmented approach dramatically reduces ordering mistakes compared to single-wall estimates.

Standard Height Assumptions Between Countertops and Cabinets

Key Insight: Contractors usually assume a backsplash height of 16–18 inches unless the kitchen design specifies otherwise.

Most modern kitchens follow standard cabinet spacing guidelines:

1. Countertop height: about 36 inches
2. Upper cabinet bottom: 52–54 inches

This leaves a backsplash zone of roughly 16–18 inches.

However, installers watch for exceptions:

1. Full‑height slab backsplashes
2. Backsplashes extending to the ceiling
3. Floating shelves replacing upper cabinets

In design planning stages, many professionals map this space using a 3D layout preview that shows cabinet spacing and backsplash coverage. It prevents measurement mismatches once cabinets are installed.

save pin

Tools Professionals Use for Accurate Backsplash Measurement

Key Insight: Laser distance meters have largely replaced tape measures in professional backsplash measurement.

While tape measures still work, most contractors now rely on digital measurement tools to speed up calculations.

Common installer tools:

1. Laser distance meters
2. Digital measuring tapes
3. Layout sketch apps
4. Construction notebooks or digital tablets

Laser measurement improves accuracy on long walls and prevents the sagging tape problem common with traditional measuring methods.

On larger remodels, measurements are often transferred into layout diagrams or digital models so designers and installers share the same numbers.

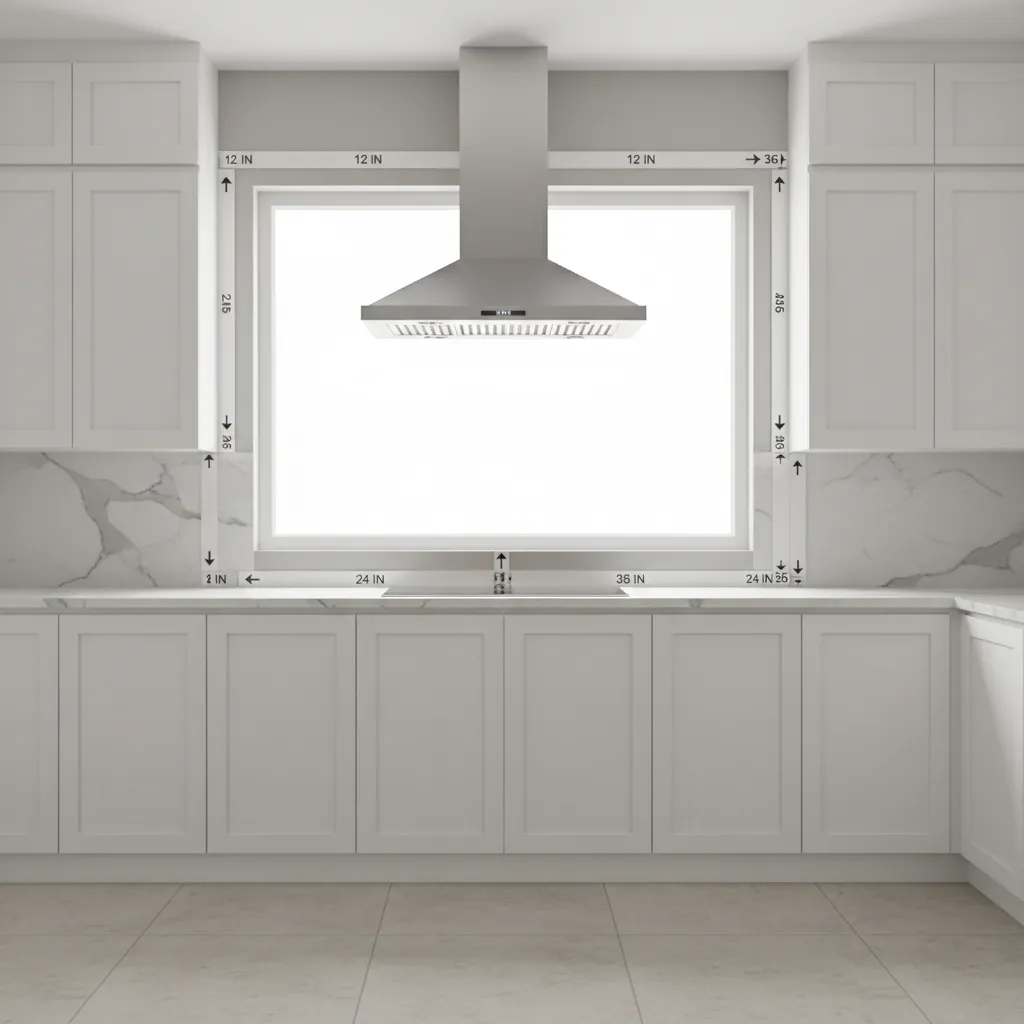

How Installers Handle Irregular Wall Sections

Key Insight: Irregular walls are measured as multiple small rectangles and triangles rather than estimated visually.

Real kitchens include obstacles such as:

1. Windows
2. Range hoods
3. Corner returns
4. Uneven cabinet edges

Instead of guessing, installers break shapes into measurable parts.

Example breakdown method:

1. Rectangle sections for normal backsplash runs
2. Triangles for sloped ceilings or hood areas
3. Small rectangles above appliances

This method mirrors architectural drafting logic and keeps calculations simple.

save pin

Estimating Tile Quantity for Large Kitchens

Key Insight: Tile orders are always larger than measured backsplash area to account for cuts, breakage, and layout alignment.

In contractor practice, tile waste allowance depends on tile size and pattern.

Typical waste allowances:

1. Straight subway tile layout: 10%
2. Diagonal patterns: 12–15%
3. Complex mosaics: up to 18%

Large kitchens amplify this issue because multiple corners and outlets increase cutting.

Before ordering, some installers simulate layouts using a simple floor plan tool that visualizes wall coverage and tile layout. It helps estimate where cuts will occur.

Professional Measurement Workflow Before Tile Ordering

Key Insight: Experienced contractors confirm backsplash measurements twice—once before cabinets and once after installation.

This double‑check system prevents costly surprises.

Typical professional workflow:

1. Initial wall measurement during kitchen design
2. Layout sketch of backsplash zones
3. Cabinet installation
4. Final measurement between countertop and cabinets
5. Tile quantity calculation with waste factor
6. Tile ordering and installation planning

The second measurement is critical because cabinet installers sometimes shift positions by half an inch or more.

save pin

Answer Box

Contractors measure backsplash area by calculating each wall segment between countertops and cabinets, subtracting openings, and adding tile waste allowance. The industry standard method focuses on section‑by‑section measurements rather than estimating a single wall surface.

Final Summary

1. Professional installers divide backsplash walls into smaller measurable sections.
2. Standard backsplash height is usually 16–18 inches.
3. Laser measuring tools improve speed and accuracy.
4. Tile orders include 10–15% extra material for waste.
5. Final measurements are confirmed after cabinet installation.

FAQ

How do professionals measure backsplash area?

They divide the wall into rectangular sections, measure each part, subtract openings, and convert the total into square feet before adding waste allowance.

What is the standard backsplash height in kitchens?

Most kitchens have 16–18 inches between countertop and upper cabinets, which defines the typical backsplash height.

Do contractors subtract outlets when measuring backsplash?

No. Small outlets are usually ignored during measurement because tile cuts are made around them during installation.

How much extra tile should be ordered?

Most installers recommend 10–15% extra tile depending on the layout pattern and kitchen complexity.

What tools do professionals use to measure backsplash walls?

Laser distance meters, tape measures, and digital layout sketches are commonly used by contractors.

Can backsplash measurement change after cabinet installation?

Yes. Cabinet placement shifts can slightly change wall spacing, which is why professionals remeasure before ordering tile.

How accurate should kitchen backsplash measurements be?

Measurements should be within 1/8 inch accuracy to prevent tile shortages or alignment issues.

Is measuring backsplash area different in large kitchens?

Yes. Larger kitchens require more segmented measurements and higher tile waste allowance because of additional corners and appliances.

References

1. National Kitchen and Bath Association (NKBA) Kitchen Planning Guidelines
2. Tile Council of North America Installation Handbook
3. Professional contractor field measurement practices
