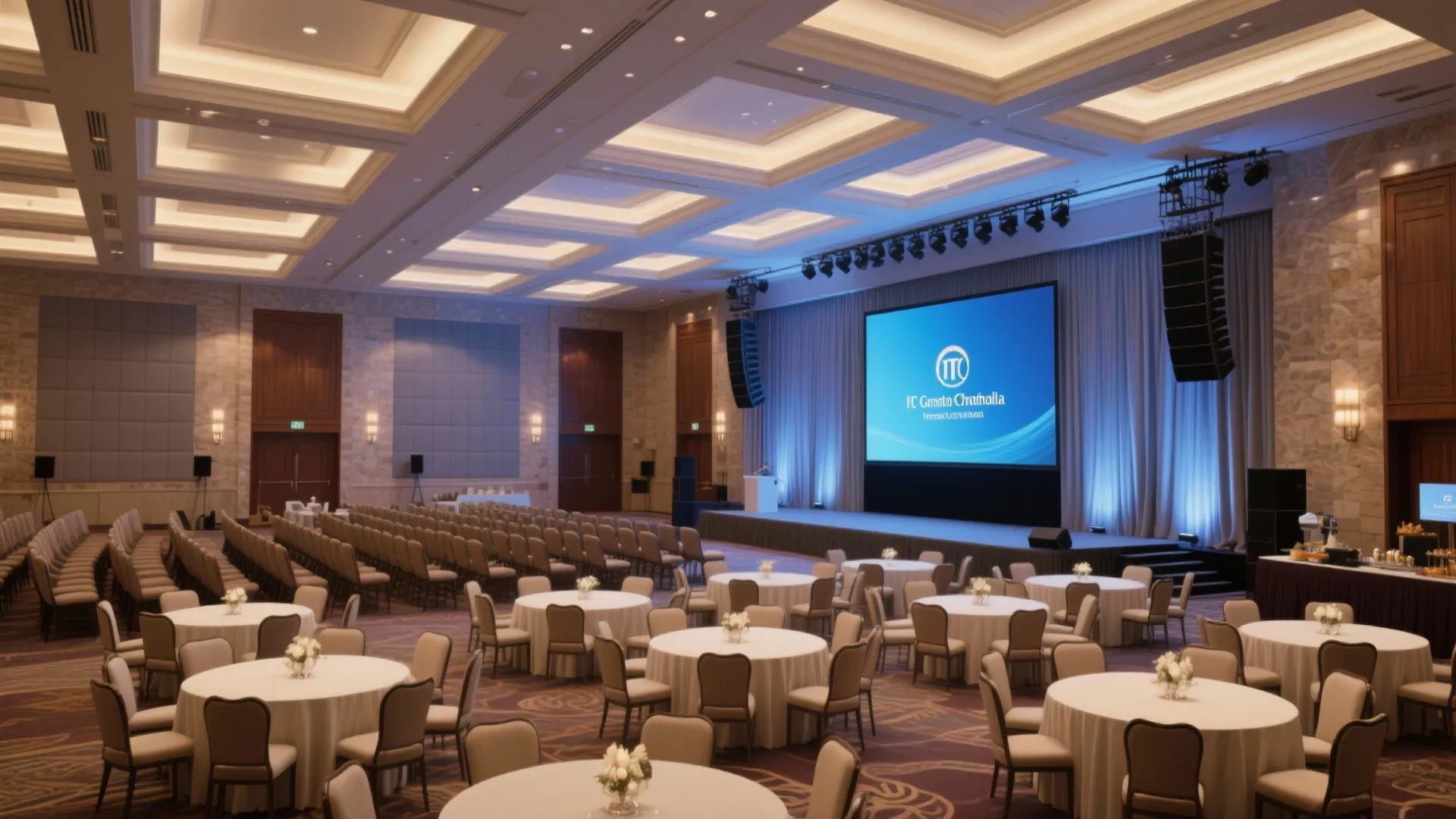

Rajendra Hall ITC Grand Chola: Ultimate Space Guide: 1 Minute to Know Rajendra Hall for Grand Events

Rajendra Hall at ITC Grand Chola has a reputation for scale and polish—an adaptable ballroom complex that can host high-profile conferences, weddings, and exhibitions with equal refinement. When I plan large-format events here, I break the space down into clear zones, model guest flow early, and tune light, sound, and materiality to the event’s purpose.

Capacity, comfort, and legibility drive every decision. Steelcase research shows that environments aligned with intended behaviors can lift performance and engagement by double-digit margins, especially when movement, posture, and sightlines are supported (Steelcase Workplace Research). WELL v2 also sets concrete targets for comfort and health—for example, L03 requires managing glare and providing user-controlled lighting strategies to reduce eye strain, while S04 suggests strategies for acoustic privacy to curb distraction (WELL v2 Features). These benchmarks translate neatly to large ballrooms: balanced illumination, controllable zones, and absorbent finishes make long agendas feel shorter.

Reading the Room: Proportions, Access, and Zoning

Rajendra Hall’s strength lies in its divisible volumes and generous clear heights. I start with three top-line checks: (1) clear spans for unobstructed sightlines, (2) ingress/egress capacity for peak arrival and turnaround, and (3) service back-of-house adjacency. For plenary sessions, I allocate at least two generous aisles for every 10 seating rows to maintain ADA-compliant access and to prevent mid-session bottlenecks. If your event involves multiple content tracks, strip the ballroom into three longitudinal zones and buffer them with soft partitions or drape plus mobile acoustic panels, keeping crossover circulation at the rear.

When the agenda mixes keynotes and networking, I run multiple test layouts to quantify distances from entrances to registration, from registration to seating, and from seating to F&B points. A quick digital pass with a room layout tool helps simulate crowd flow, turning radii for service, and emergency egress clarity: room layout tool.

Lighting Strategy: Layers, Color Temperature, and Control

I separate lighting into base, task, and accent layers. For conference seating, general ambient levels of 300–500 lux across the seating plane maintain alertness without glare; IES recommendations for assembly spaces sit in that band when screens are present. For note-taking, add a task layer targeted at 500 lux on tables, dimmable to 300 lux during video playback. Color temperature at 3500–4000K feels energetic yet not cold for daytime sessions; evening galas can warm to 3000K, especially when table candlelight or pin spots are in play.

Glare control is non-negotiable. Keep maximum luminance contrast near screens below the threshold that causes squinting; balance the wall-wash luminaires with dimmable scenes so presenters stay legible while the audience remains comfortably lit. I program three base scenes: “Presentation” (screen priority, 30–50% audience level), “Panel” (even wash, 60–70% audience level), and “Dining” (warm dim, 30–40% ambient with focused accent on tabletops). Tie these to the AV cue sheet to avoid delays.

Acoustic Comfort: Speech Clarity and Social Zones

Ballrooms are notorious for flutter and long reverberation times. For keynotes, I aim for an STI (Speech Transmission Index) in the 0.6–0.75 range. Strategies: carpet with high NRC underlay in seating areas, heavy drapery on at least one long wall, and ceiling clouds or baffles where possible. Breakout edges should feature soft furnishings—banquettes, upholstered screens—to absorb chatter. For dual-use events, anchor the plenary zone with a line-array system tuned to minimize spill past the last row; then carve out conversation pods in the foyer with acoustic screens to reduce background noise by 5–8 dB, which meaningfully improves intelligibility for networking.

Seating Plans: From Grand Plenary to Luxe Banquet

Conference mode: Theater seating yields the best capacity; keep seat width at 20–22 inches and row pitch at 36–39 inches for comfortable legs and circulation. Sightlines improve when the first row is no closer than 1.5× screen height; the farthest row should be within 6× screen height for text legibility. For panel-heavy agendas, I prefer chevron seating at 15 degrees to centerline; it tightens sightlines and feels more intimate.

Banquet mode: I default to 60-inch rounds for 8 guests or 72-inch rounds for 10, leaving a minimum 66-inch service corridor to maintain staff flow without chair collisions. If you want a hybrid—half-day conference and dinner—stage the dais and backdrop so the dining layout pivots around the same focal wall, reducing changeover time. Mark and pre-wire a cable spine to keep AV protected during resets.

Staging, AV, and Backdrop Logic

Allocate at least 24–36 inches of stage height for large rooms so presenters stay visible over heads, and provide a safe ramp at 1:12 slope. A 16:9 LED at a width equal to 1/4–1/3 of the room width typically balances presence with readability. For bilingual or data-heavy content, flank the main screen with two repeater displays. Keep the lectern offset to prevent blocking the screen corner, and use a soft-front wash at 3200–3500K to keep skin tones natural under cameras without fighting the main content brightness.

F&B and Service Flow

Service is a choreography. I place beverage points along perimeter zones, never at primary doors. Buffets sit perpendicular to traffic; two-sided runs with 6–8 linear feet per 100 guests cut queue length and time. For plated service, the 66-inch service corridors mentioned earlier are crucial. Build in a discrete bussing route back to BOH that doesn’t cross guest entries. If you’re using display kitchens or live stations, isolate them with acoustic screens or tall planters to avoid sound spill while keeping the visual theater.

Wayfinding, Registration, and Security

Registration should be visible within the first 30 feet of the main approach. I design a U-shaped desk to break queues into shorter spans and maintain line-of-sight to entrances. Badge pickup kiosks sit on the flanks, with manual help in the center. Clear, high-contrast signage—white on charcoal or black on white—wins for legibility; Verywell Mind notes that blue can signal trust and calm, so a restrained blue accent helps guide tone without overwhelming brand palettes (VerywellMind color psychology). For high-profile events, add a secondary, discreet VIP entrance with a direct path to green rooms.

Materiality and Sustainability

Choose dense carpet tiles with recycled content, high-NRC wall panels wrapped in durable textiles, and low-VOC paints to align with health criteria. WELL v2’s materials and air features provide a useful checklist for adhesives, sealants, and filtration. Where brand staging requires temporary builds, specify modular scenic pieces that can be re-skinned and re-used. Brass or bronze accents add warmth against the hotel’s classical references; pair with rich woods for ceremonial events and lighter oaks or ash for contemporary conferences.

Power, Data, and Tech Redundancy

Run a dual-path network plan: primary hardline for streaming and a secondary bonded cellular backup. Power drops should be mapped per seating block and per exhibitor bay. I keep a dedicated 20A circuit for show control, separate from stage power, to isolate noise and prevent unexpected reboots. Cable management is both safety and aesthetics—use under-carpet channels for crossings and keep every penetration taped and flagged for strike.

Back-of-House and Turnaround Discipline

Time is won or lost in transition. I stage labeled carts for linens, floral, centerpieces, and AV by zone, then run a reverse path for strike. When flipping from conference to banquet, chairs stack to the side walls while rounds roll in along the opposite flank. A colored-tape floor plan helps each crew read their area at a glance.

Designing the Experience Arc

The most memorable events at Rajendra Hall map energy in waves: a bright, crisp arrival; a well-lit, acoustically clean plenary; a softer networking plateau; then a warm, intimate dinner scene. Calibrate light, sound, scent, and material touchpoints to guide emotion through the day. Build in short “reset” moments—music and gentle dimming—so the room breathes between chapters.

Planning Toolkit

- Run early crowd-flow simulations with an interior layout planner to test bottlenecks and sightlines: room layout tool.

- Lock three lighting scenes and rehearse with AV cues.

- Pre-assign a cable spine and service corridors.

- Keep acoustic absorption portable for reconfiguration.

- Confirm egress routes visible from every seat.

FAQ

Q1. What illumination levels work best for a conference in Rajendra Hall?

A1. Target 300–500 lux for general seating, around 500 lux for task surfaces when note-taking is primary, and dim to 300 lux during video. Keep color temperature near 3500–4000K for daytime clarity.

Q2. How do I improve speech clarity without overhauling the ceiling?

A2. Add high-NRC carpet underlay, deploy heavy drape on one long wall, place freestanding acoustic panels near rear and side reflections, and tune a line-array to minimize spill. Aim for STI 0.6–0.75.

Q3. What’s the ideal screen size and stage height?

A3. A 16:9 screen width at roughly 1/4–1/3 of room width balances presence and readability. Stage height of 24–36 inches ensures sightlines over seated heads; add a 1:12 ramp for accessibility.

Q4. How should I plan banquet seating for 300–500 guests?

A4. Use 60-inch rounds for 8 or 72-inch rounds for 10, leaving at least 66 inches of service corridor. Keep aisles straight to exits and position bars at the perimeter to reduce congestion.

Q5. What’s a smart approach to lighting scenes for a mixed agenda?

A5. Program three presets: Presentation (lower audience, higher stage/screen), Panel (even, bright), and Dining (warm dim with tabletop accents). Integrate with the AV cue stack for smooth transitions.

Q6. How can I reduce queue times at registration?

A6. Place registration within the first 30 feet of arrival, use a U-shaped counter to split lines, and add self-service badge kiosks at the flanks. Clear, high-contrast signage improves wayfinding and flow.

Q7. What materials support both luxury and acoustics?

A7. Dense carpet tiles with recycled content, textile-wrapped acoustic panels, and heavy drapery provide absorption while maintaining a premium look. Finish with warm metals and wood veneers for depth.

Q8. How do I plan power and data for reliability?

A8. Separate show control on a dedicated circuit, run hardline primary internet with bonded cellular backup, and route cables in under-carpet channels. Pre-label every drop by zone and function.

Q9. What aisle and seat spacing keeps guests comfortable?

A9. Seat widths of 20–22 inches with row pitch at 36–39 inches support comfort and circulation. Provide at least two generous aisles per 10 rows for access and quick egress.

Q10. How do I manage sound during networking without killing the vibe?

A10. Create perimeter conversation pods with screens or tall planters, set background music 5–8 dB below average speech, and keep bars slightly offset from primary conversation clusters.

Q11. Can I flip from conference to banquet quickly?

A11. Yes—pre-mark service corridors, stage chair stacks at the perimeter, roll in rounds via an opposite flank, and use a colored-tape floor grid so teams hit their zones without re-measuring.

Q12. Which standards or research should guide decisions?

A12. Refer to IES for lighting levels, WELL v2 for comfort, materials, and acoustics strategies, and Steelcase or Gensler research for behavioral and engagement insights.
