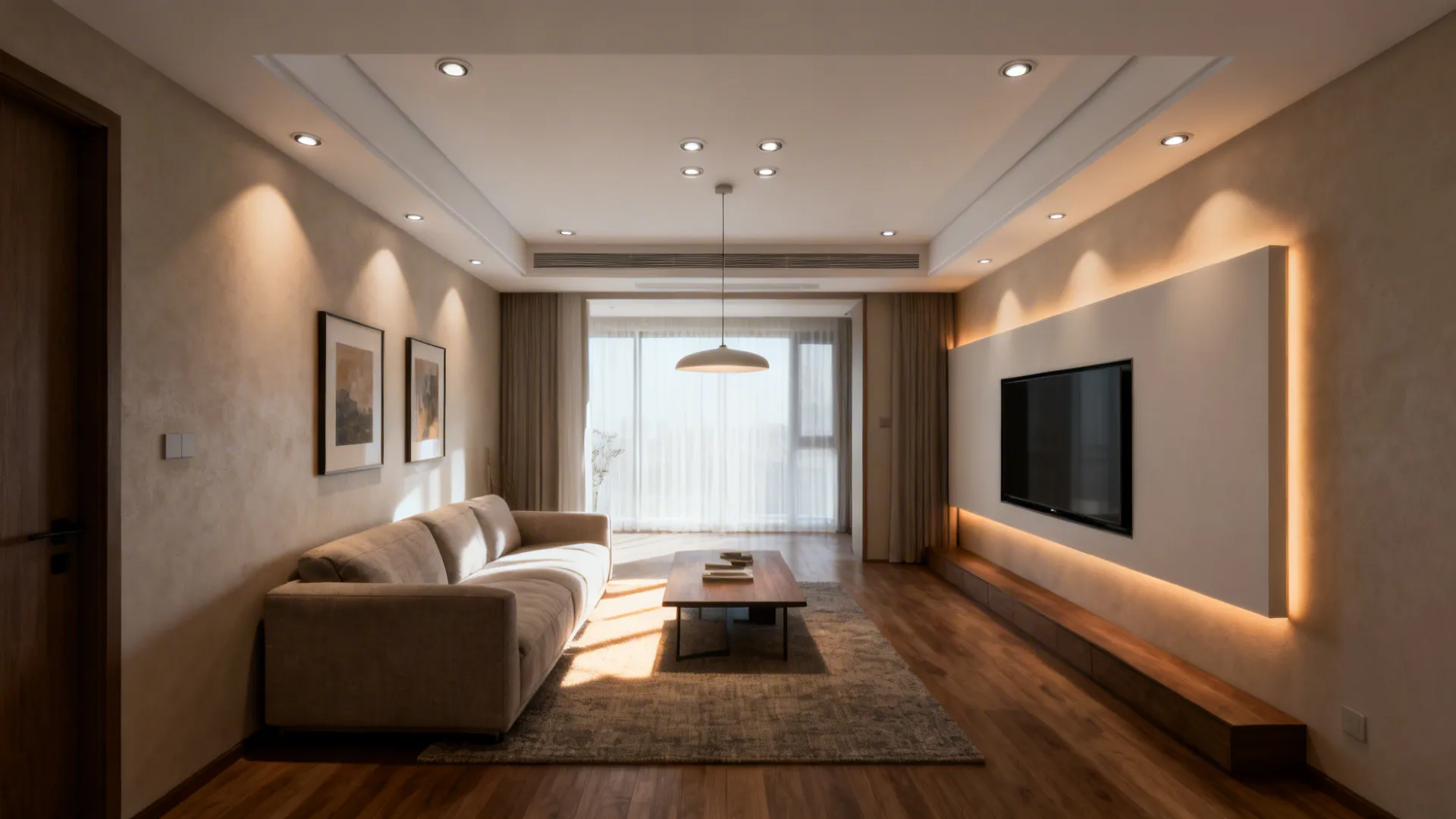

Recessed Lighting Ideas for Living Room — 5 Smart Layouts: Small-space lighting can feel like rocket science—here are five practical recessed lighting layouts that actually work

I once designed a living room where the homeowner insisted the recessed lights be centered over the couch—only the couch was later moved three times. That taught me a simple truth: recessed lighting must follow how people use a room, not where a sofa *might* sit. Small spaces especially reward clever lighting: with the right recessed layout you can make a compact living room feel layered, spacious, and welcoming.

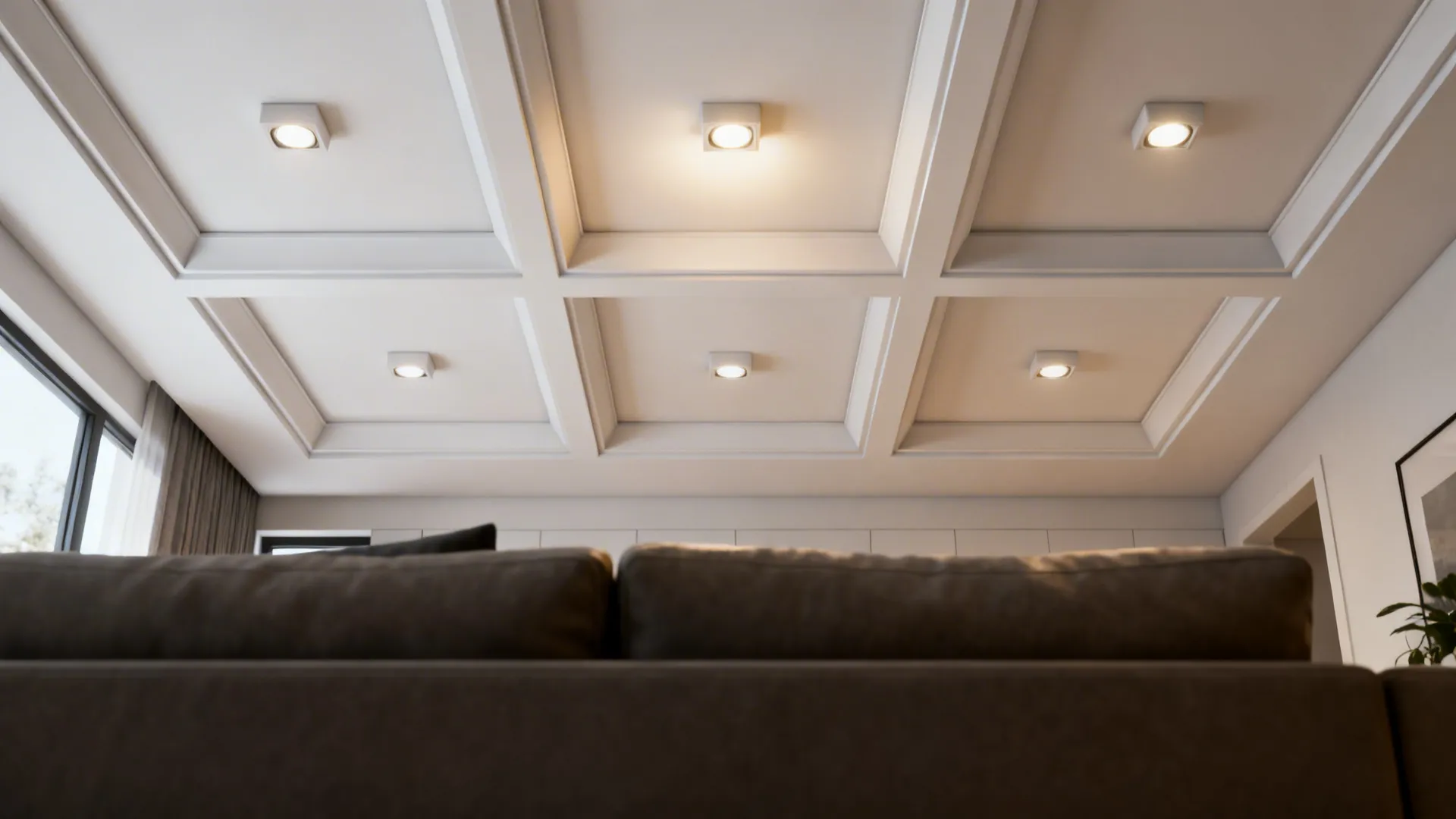

1. Grid with dimming zones

I often start with a basic 3-by-2 grid for a small rectangular living room, spacing fixtures 4–6 feet apart depending on ceiling height. The advantage is even ambient light without dark corners; the minor downside is potential flatness if you don’t add layers like floor lamps or wall sconces. Practical tip: wire the center row to a separate dimmer so you can create a brighter task mode for reading or a cozy low level for movie nights.

save pin

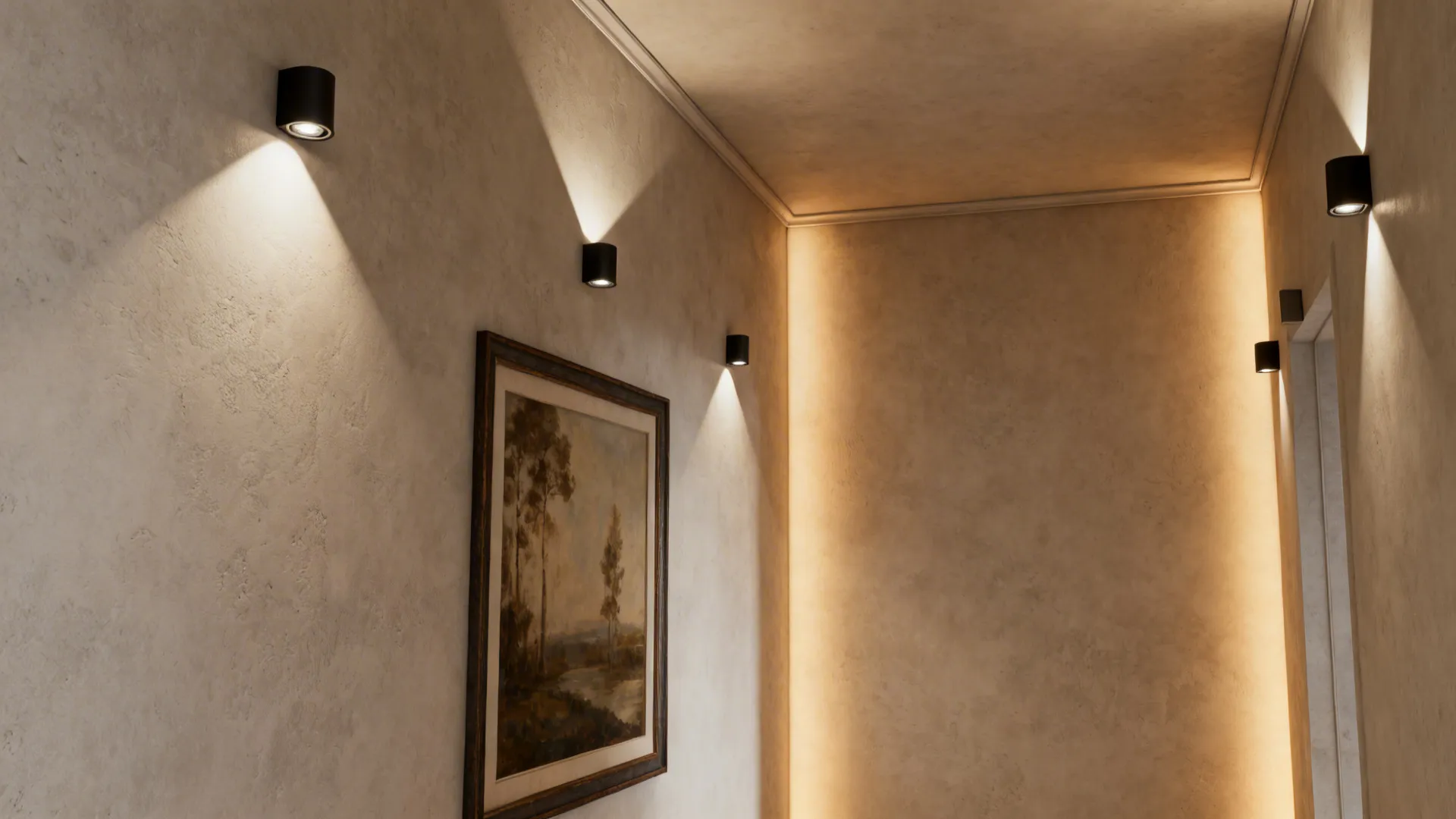

2. Perimeter wash for visual expansion

Placing recessed cans 1–2 feet from the walls and angling them slightly toward vertical surfaces creates a wash that visually pushes the walls outward—great for narrow rooms. This method highlights artwork and textures, but requires planning to avoid glare on TV screens. I once used a perimeter wash in a shoebox living room and the owner said it felt 20% larger; the tradeoff was spending a bit more on adjustable trims.

save pin

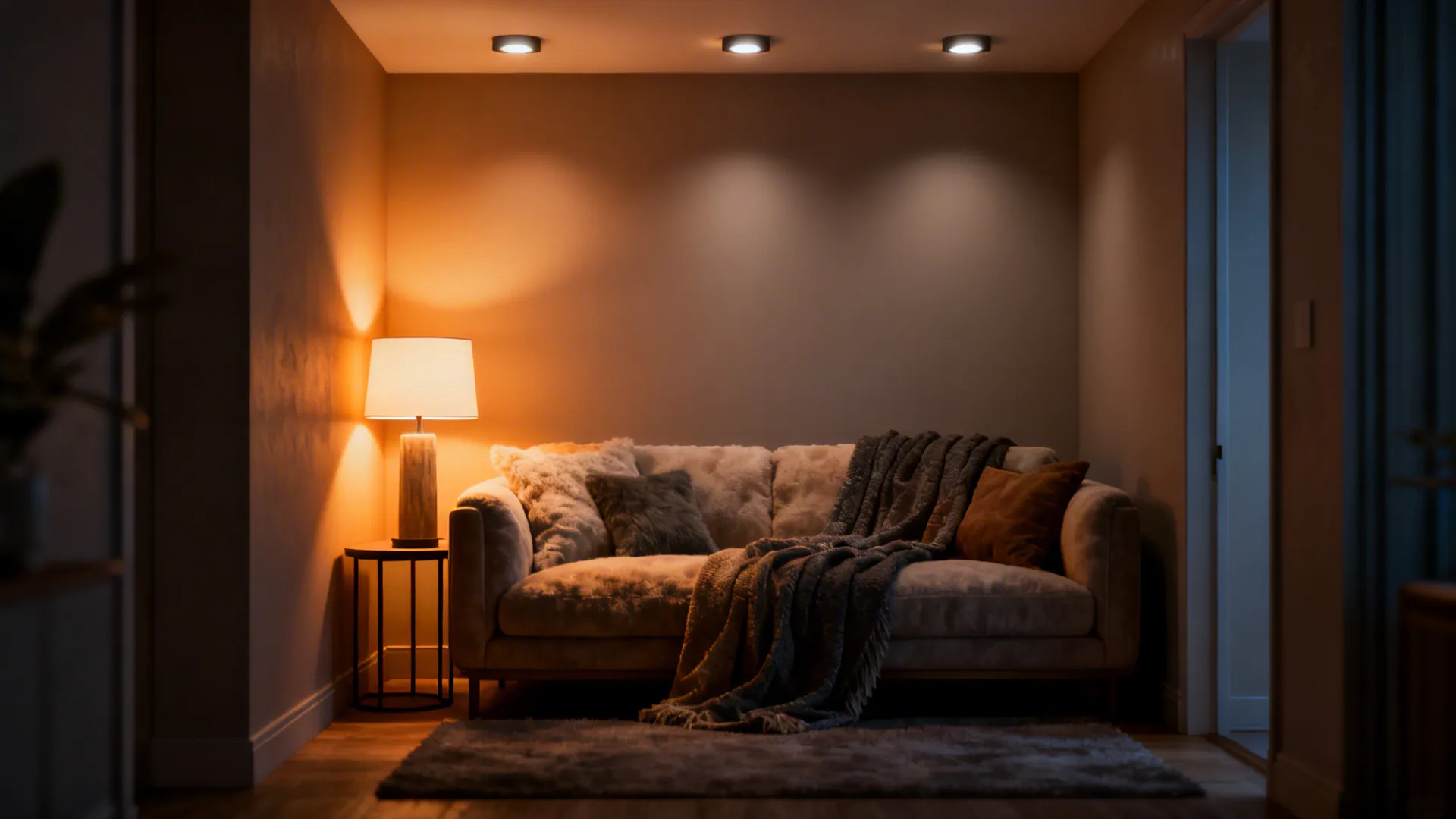

3. Layered pockets over seating areas

If your living room has a defined seating cluster, concentrate a small cluster of recessed lights (3–5 fixtures) over that zone and use lower-level lights elsewhere. That gives a cozy pocket of activity while keeping the rest of the room ambient. It’s perfect when you want distinct functional areas—though it can look odd if the seating moves often, so keep some flexibility with track or floor lighting as backup.

save pin

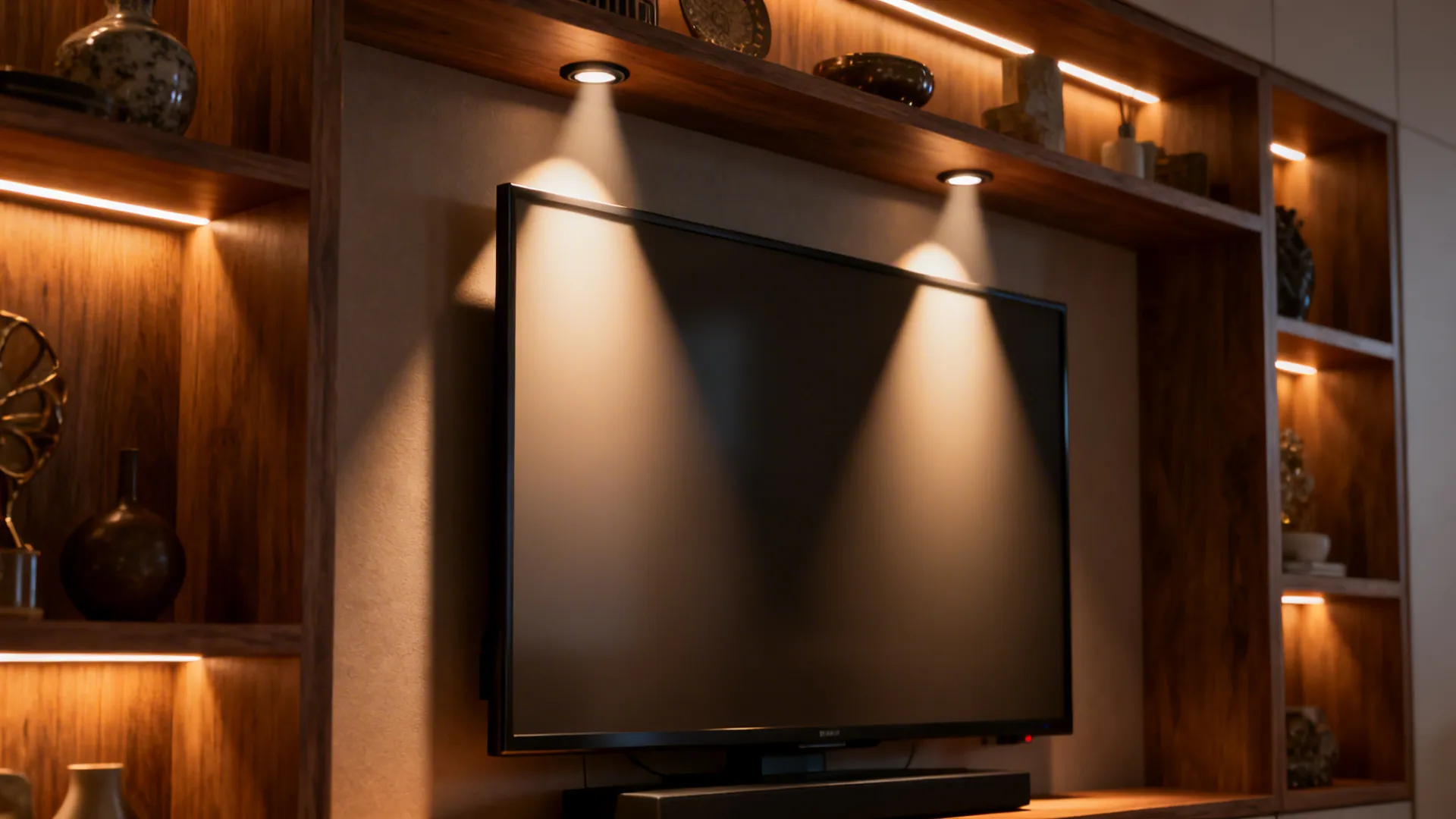

4. Accent and task mix near media walls

For media-first living rooms I recommend fewer recessed cans overall and more accent fixtures aimed at shelving, niches, or architectural details. Use warm-temperature recessed lamps with narrow beam angles for highlights, and separate dimming circuits so screen viewing isn’t washed out. As a caution: avoid over-aiming lights where reflections on the TV become a distraction.

save pin

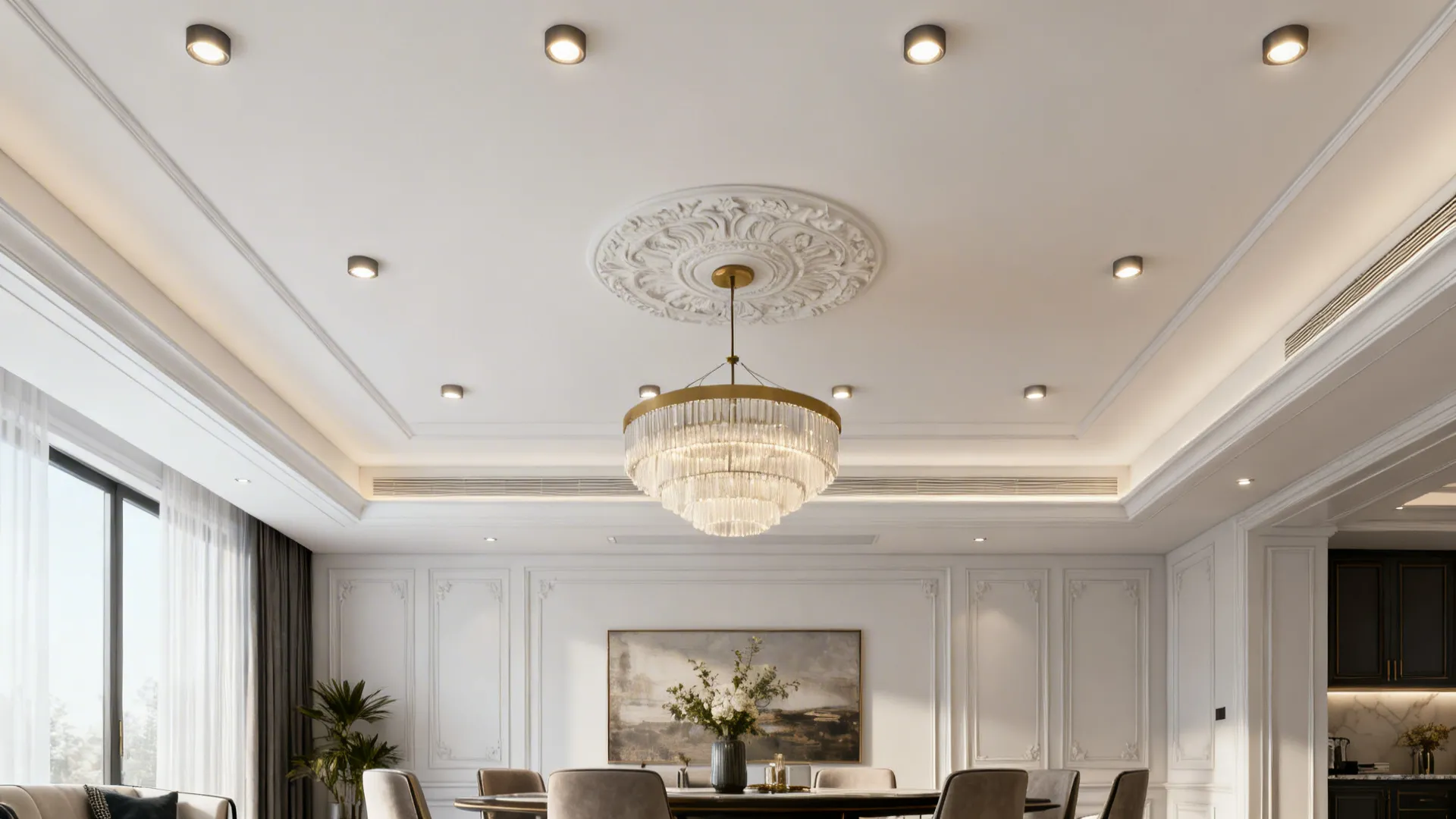

5. Symmetry with a central focal fixture

Pair recessed cans in a balanced layout with a central decorative fixture—like a pendant or modern chandelier—to anchor the room. The recessed lights provide even fill while the central piece supplies identity and scale. This approach looks polished but needs a little space above the central fixture so ceilings don’t feel crowded; I’ve pulled this off in condos by choosing a low-profile pendant.

save pin

Integrating controls and smart tech

Don’t forget controls: multi-dimmer zones, color temperature tunability, and smart scenes transform recessed layouts from static to adaptive. For small budgets, start with two circuits (ambient and task) and upgrade to tunable white later. If you want a fast layout mockup I sometimes use an online planner to test spacing before on-site marking; it saves time and reduces guesswork. room planner

save pin

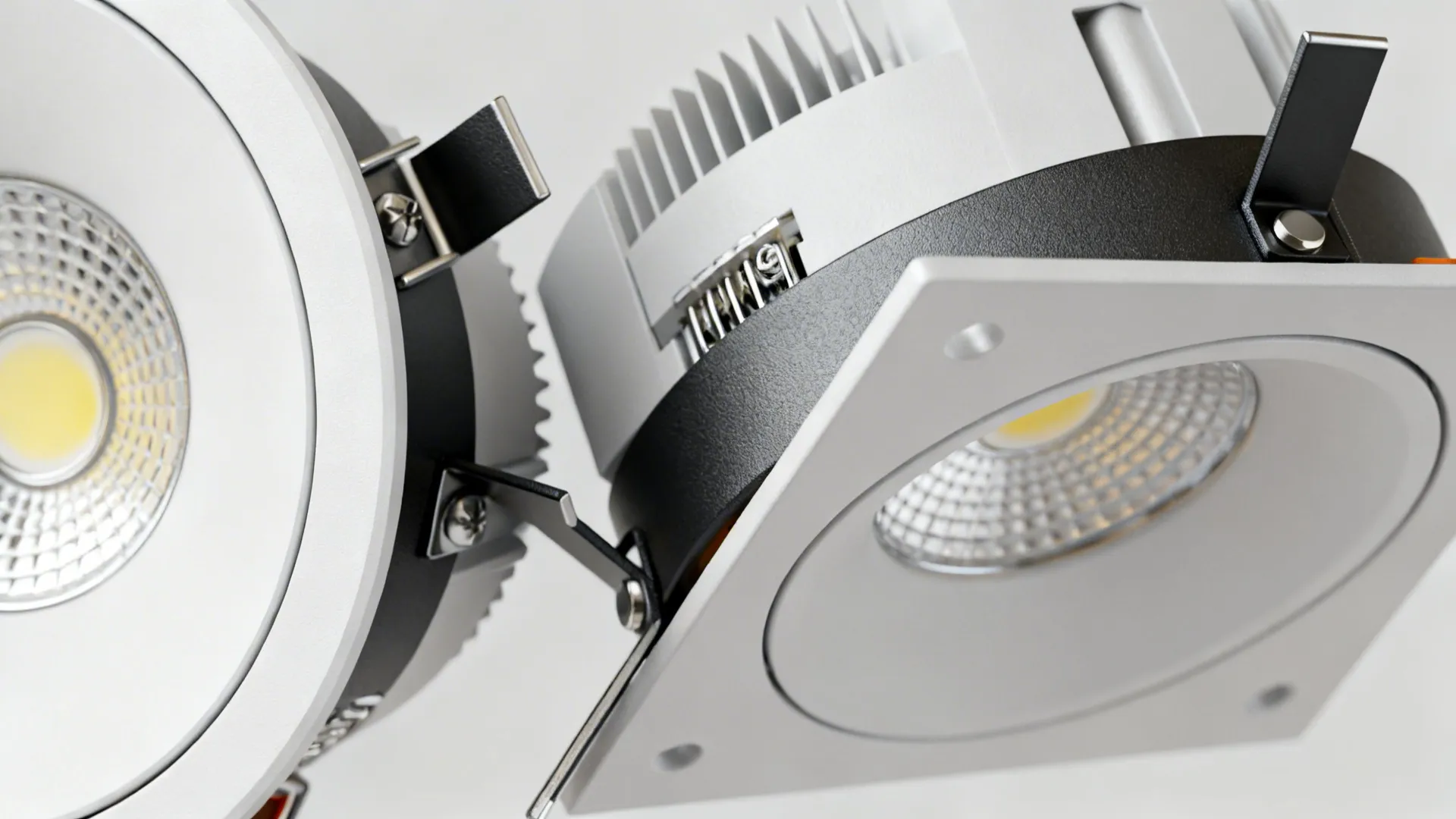

Lighting bulbs, trims, and ceiling height tips

Choose LED modules with CRI 90+ for natural tones, and match trim style to your ceiling (baffle trims reduce glare in living areas). In low ceilings, keep spacing tight and use flatter trims; in high ceilings, increase spacing and choose deeper trims or adjustable trims to control spread. Small challenge: retrofit jobs may limit placement because of joists—plan probe holes or use a floor plan tool to visualize options. 3D floor planner

save pin

Budget and installation notes

Expect a range: basic recessed cans and simple wiring for a small living room can be budget-friendly, while multi-zone smart systems raise costs. I usually advise clients to allocate 15–25% of their remodel budget to lighting—good lighting lifts everything else. If you want to experiment with layouts on your own, a free floor plan creator helps you place fixtures before any drilling. free floor plan creator

save pin

FAQ

Q: How many recessed lights do I need for a small living room?

A: It depends on ceiling height and desired brightness; a common starting point is 1 fixture per 12–16 square feet, adjusted with dimming zones for flexibility.

Q: What spacing should I use between recessed cans?

A: A simple rule is divide ceiling height (in feet) by 0.5–1 to get spacing in feet—for 8-foot ceilings, space lights roughly 4–6 feet apart.

Q: Should recessed lights be placed over the TV?

A: Avoid direct overhead lights aimed at the TV to minimize reflections; use wall washes or indirect lighting for the media wall.

Q: Are baffle trims better than reflector trims?

A: Baffle trims reduce glare and are great for living spaces; reflector trims are brighter and work well in kitchens or task areas.

Q: Can I install recessed lighting in a low ceiling?

A: Yes—use shallow housings and low-profile trims, and reduce spacing to maintain even coverage.

Q: How do I plan lighting with joists and structural constraints?

A: Use a stud/joist finder and consider remodel housings or external-mounted housings; consulting an electrician early helps avoid surprises.

Q: Is LED recessed lighting energy-efficient enough for whole-room lighting?

A: Absolutely—modern LED modules offer high lumen output with low wattage and long life, making them ideal for ambient and accent use.

Q: Where can I find standards for lighting design recommendations?

A: For authoritative guidance, refer to the Illuminating Engineering Society (IES) publications, which provide recommended illuminance levels and best practices (IES Lighting Handbook).
