Reducing Safety Risks in School Building Layouts: Practical layout strategies architects and planners use to reduce hazards, improve supervision, and design safer school environments.

Direct Answer

Reducing safety risks in school building layouts requires clear evacuation routes, visible supervision zones, controlled access points, and corridor designs that prevent congestion. A well‑planned school floor plan minimizes blind spots, separates public and student areas, and ensures every classroom has fast access to emergency exits.

When safety is integrated early in the layout stage, schools reduce evacuation times, improve staff visibility, and prevent many common accidents before the building even opens.

Quick Takeaways

1. Every classroom should connect to at least two accessible evacuation paths.
2. Long corridors without supervision points create avoidable safety risks.
3. Controlled entrances dramatically improve school security management.
4. Wider stairways and corridor pinch‑point control reduce evacuation delays.
5. Digital planning tools help visualize safety issues before construction.

Introduction

In more than a decade of designing educational spaces, I've learned that the most dangerous school building problems rarely come from dramatic design mistakes. They usually come from small layout decisions made early in planning. A hallway that turns too sharply. A staircase positioned too far from classrooms. An entrance that mixes visitors with students.

School building layout safety design isn't just about meeting building codes. It's about understanding how hundreds or thousands of students move through a building every day. When that movement isn't carefully planned, risk increases quickly.

Today many architects and facility planners start by mapping circulation and visibility using digital planning tools. If you're exploring how layouts influence supervision and movement patterns, this interactive guide on visualizing circulation and classroom placement in a 3D school layoutdemonstrates how early planning can reveal safety issues before construction begins.

In this guide I'll walk through the layout strategies professionals use to reduce evacuation risks, eliminate supervision gaps, and design safer educational facilities.

save pin

Why Safety Is Critical in School Floor Planning

Key Insight: The earliest layout decisions determine whether a school building supports safe supervision and fast evacuation.

Many safety issues originate long before security systems or cameras are installed. They start in the floor plan itself. If corridors are too narrow or visibility is blocked by corners and walls, supervision becomes difficult even with additional staff.

From a risk management perspective, architects typically evaluate three factors during early planning:

1. Movement density — where large groups of students gather or transition
2. Visibility coverage — whether staff can naturally supervise spaces
3. Evacuation efficiency — how quickly people reach safe exits

The National Fire Protection Association (NFPA) and International Building Code (IBC) both emphasize circulation width, exit access distance, and occupancy load as critical safety parameters in educational facilities.

In practice, the safest schools are not the ones with the most security hardware. They're the ones where the building layout naturally supports supervision and safe movement.

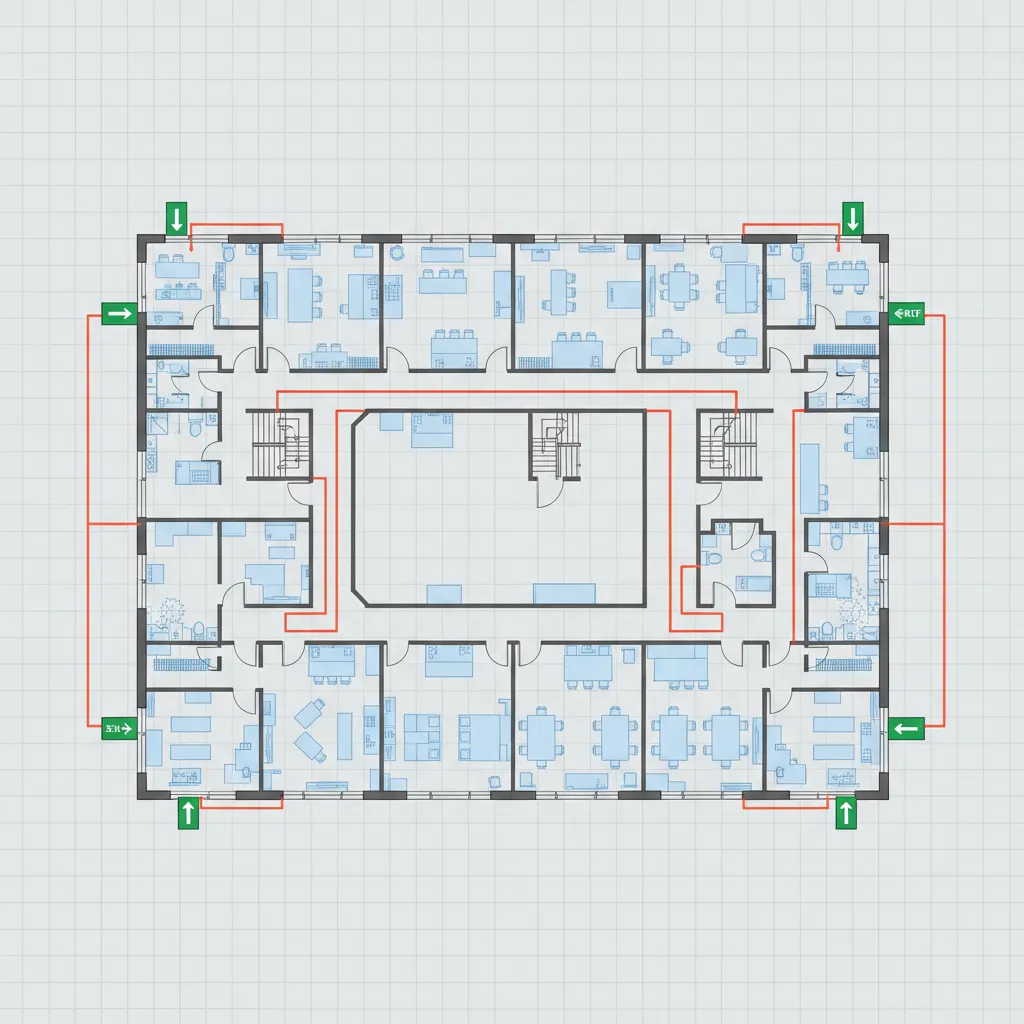

Emergency Exit Placement and Evacuation Routes

Key Insight: Evacuation speed depends more on exit placement than on the number of exits.

Designers often assume that simply adding more emergency exits improves safety. In reality, poorly distributed exits can create dangerous bottlenecks.

A well-designed school evacuation route floor plan focuses on travel distance and exit balance.

Key evacuation design principles include:

1. Maximum travel distance limits from classrooms to exits
2. Multiple exit paths that do not intersect early
3. Direct corridors leading to exterior exits
4. Stair placement aligned with major hallway routes

One mistake I frequently see in older campuses is "exit clustering" where several doors are located near the same wing of the building. During evacuation drills this causes congestion while other exits remain underused.

Modern school safety planning floor plans distribute exits so each major circulation corridor feeds at least two separate exit directions.

save pin

Reducing Blind Spots and Supervision Gaps

Key Insight: Layout visibility matters more than camera coverage for daily school safety.

Architectural blind spots are one of the most overlooked risks in school building risk management layout planning. Cameras help, but they cannot fully replace natural supervision.

Common design features that create supervision problems include:

1. L‑shaped corridors with no visibility overlap
2. Hidden alcoves near locker areas
3. Stairwells isolated from main traffic zones
4. Restroom entrances hidden behind corners

To prevent these issues, designers often apply a "passive supervision" approach.

Layout strategies that improve visibility:

1. Position staff offices near major corridor intersections
2. Use glass panels in administrative areas
3. Align hallways so long sightlines remain visible
4. Avoid unnecessary wall offsets in high‑traffic areas

Facility planners testing these ideas often start by mapping visibility zones using a

save pin

room layout planning tool that lets you test supervision lines and hallway visibility before finalizing the building configuration.

Designing Safe Corridors and Stairways

Key Insight: Corridor congestion during peak class changes is one of the most common safety risks in schools.

Hallways may seem simple, but they're where most daily accidents and emergency slowdowns occur.

In safe school corridor layout design, architects consider both width and flow direction.

Design strategies include:

1. Minimum corridor widths scaled to student population
2. Avoiding narrow junctions where corridors merge
3. Locating stairways at natural circulation endpoints
4. Separating locker zones from primary traffic routes

In several large high school projects I've worked on, widening just two key corridor intersections reduced hallway congestion by more than half during class transitions.

That kind of improvement doesn't come from furniture changes. It comes from circulation design.

Security Zones and Controlled Access Areas

Key Insight: Effective school security design starts with zoning, not surveillance equipment.

Modern security design for school facilities relies heavily on layered access control.

Instead of allowing unrestricted movement, the building is divided into zones.

Typical school security zones include:

1. Public zone: entrance lobby and reception
2. Administrative zone: offices and staff workspaces
3. Academic zone: classrooms and learning areas
4. Restricted service zones: storage and mechanical areas

Visitors should only access the public zone unless escorted. When zoning is done well, the building layout itself prevents unauthorized access.

save pin

Answer Box

The safest school layouts prioritize visibility, balanced evacuation routes, and controlled entry points. When supervision lines, corridor capacity, and access zoning are planned early, many common safety risks disappear before construction begins.

Using a School Floor Planner for Safer Layouts

Key Insight: Digital layout testing reveals safety problems long before a building is constructed.

Many institutions now simulate movement patterns before approving final construction drawings. This allows planners to test evacuation routes, crowd flow, and visibility conditions.

Design teams often prototype layouts using tools like a free platform for drafting and testing school floor plan layouts so administrators and safety consultants can review the design together.

These simulations help answer questions such as:

1. How quickly can students reach exits?
2. Where do hallway bottlenecks occur?
3. Which areas lack supervision visibility?
4. Can emergency responders access all wings efficiently?

In several recent campus redesigns I've worked on, layout simulation revealed circulation conflicts that were invisible in traditional 2D drawings.

Final Summary

1. School safety begins with smart building layout planning.
2. Balanced exit placement improves evacuation speed.
3. Visibility reduces supervision gaps and behavior risks.
4. Corridor flow design prevents congestion accidents.
5. Security zoning limits unauthorized building access.

FAQ

What is the safest layout for a school building?

Layouts with clear evacuation routes, visible corridors, and controlled entrances provide the safest environment for students and staff.

How many emergency exits should a school have?

Building codes require multiple exits based on occupancy. The key is distributing exits evenly so evacuation routes remain balanced.

Why are blind spots dangerous in school layouts?

Blind spots reduce natural supervision, making it harder for staff to monitor behavior and respond quickly to incidents.

What corridor width is recommended for schools?

Most modern schools use corridors between 8 and 12 feet wide depending on student population and building occupancy.

How do architects design safer evacuation routes?

They calculate travel distance, distribute exits evenly, and align hallways with exit paths to prevent congestion.

Can a school floor planner help improve safety?

Yes. A school floor planner allows designers to test evacuation paths, identify blind spots, and improve school building layout safety design.

What is zoning in school security design?

Zoning divides the building into controlled access areas such as public zones, administrative zones, and student learning areas.

What are common school floor plan safety mistakes?

Common issues include hidden corridors, poorly placed stairways, clustered exits, and long hallways without supervision visibility.
