Relay Room vs Control Room vs Switchgear Room Design Differences: Understand how relay rooms, control rooms, and switchgear rooms differ so you can plan safer and more efficient power system spaces.

Direct Answer

A relay room, control room, and switchgear room serve different roles in electrical infrastructure. Relay rooms house protection relays and automation equipment, control rooms centralize monitoring and operational control, while switchgear rooms contain high‑voltage switching and protection hardware. Because the equipment risks and operational needs differ, each room requires a distinct layout, environment, and safety design.

Quick Takeaways

1. Relay rooms focus on protection relays, communication panels, and automation systems.
2. Control rooms are designed for operators, monitoring displays, and system management.
3. Switchgear rooms contain high‑energy electrical equipment requiring strict safety separation.
4. Temperature, ventilation, and fire protection needs differ significantly across the three spaces.
5. Mixing these functions in one room often creates maintenance and safety risks.

Introduction

After working on multiple substation and industrial power facility projects, I’ve noticed one recurring confusion among clients and even junior engineers: the difference between a relay room vs control room vs switchgear room. On paper the distinction looks simple, but in real projects the boundaries blur quickly.

I’ve walked into facilities where protection relays were squeezed next to medium‑voltage switchgear, or where operators were forced to sit inside spaces designed purely for equipment. Those design shortcuts often lead to overheating, poor maintenance access, and unnecessary safety risks.

Understanding the difference between these three spaces is not just an engineering detail. It directly affects safety clearances, cooling requirements, cable routing, and long‑term maintenance efficiency.

If you're planning layouts for electrical infrastructure, it helps to visualize how rooms and equipment interact spatially. Many designers start by mapping equipment zones using a visual workflow for planning technical room layouts in 3D, which makes separation requirements much easier to evaluate.

In this guide, I’ll break down what each room actually does, how their layouts differ, and when each type should be used in power system design.

save pin

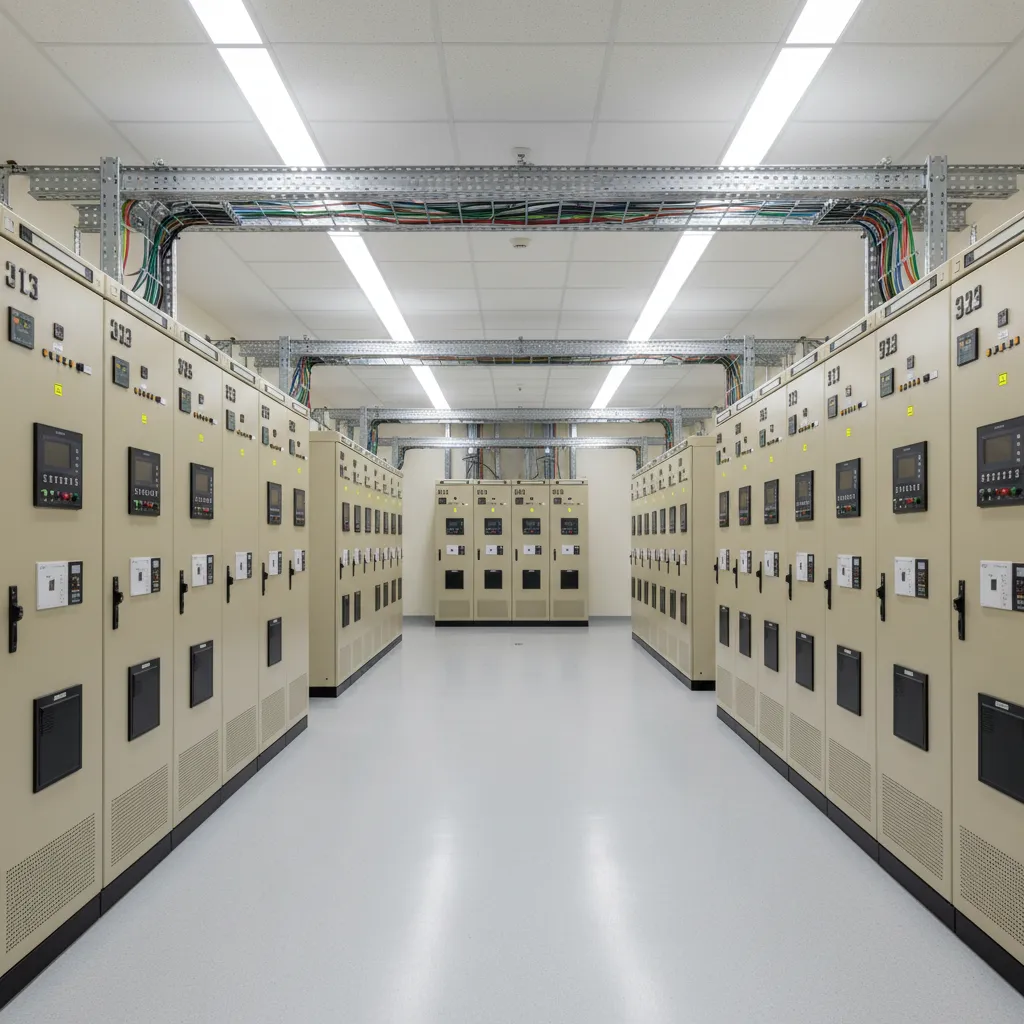

What Is a Relay Room?

Key Insight: A relay room is dedicated to protection and automation systems that monitor electrical equipment and trigger protective actions.

Relay rooms are the "decision centers" of a power system’s protection architecture. They house protective relays, control panels, SCADA interfaces, communication equipment, and sometimes battery systems.

Unlike switchgear spaces, relay rooms deal with low‑energy control circuits rather than high‑energy power switching. That distinction dramatically changes the room’s layout and environmental requirements.

Typical equipment found in relay rooms:

1. Protection relay panels
2. Automation controllers
3. SCADA communication racks
4. RTUs and networking hardware
5. Station batteries and DC panels

In modern substations, digital relays and IEC 61850 communication systems have significantly increased the amount of rack‑mounted electronics inside relay rooms. According to IEEE substation design guidelines, separating protection electronics from high‑energy equipment helps reduce electromagnetic interference and improves maintenance accessibility.

One design mistake I see frequently is underestimating cable routing. Relay panels require extensive fiber, signal, and control cabling, which means cable trenches or overhead trays must be planned early in the layout.

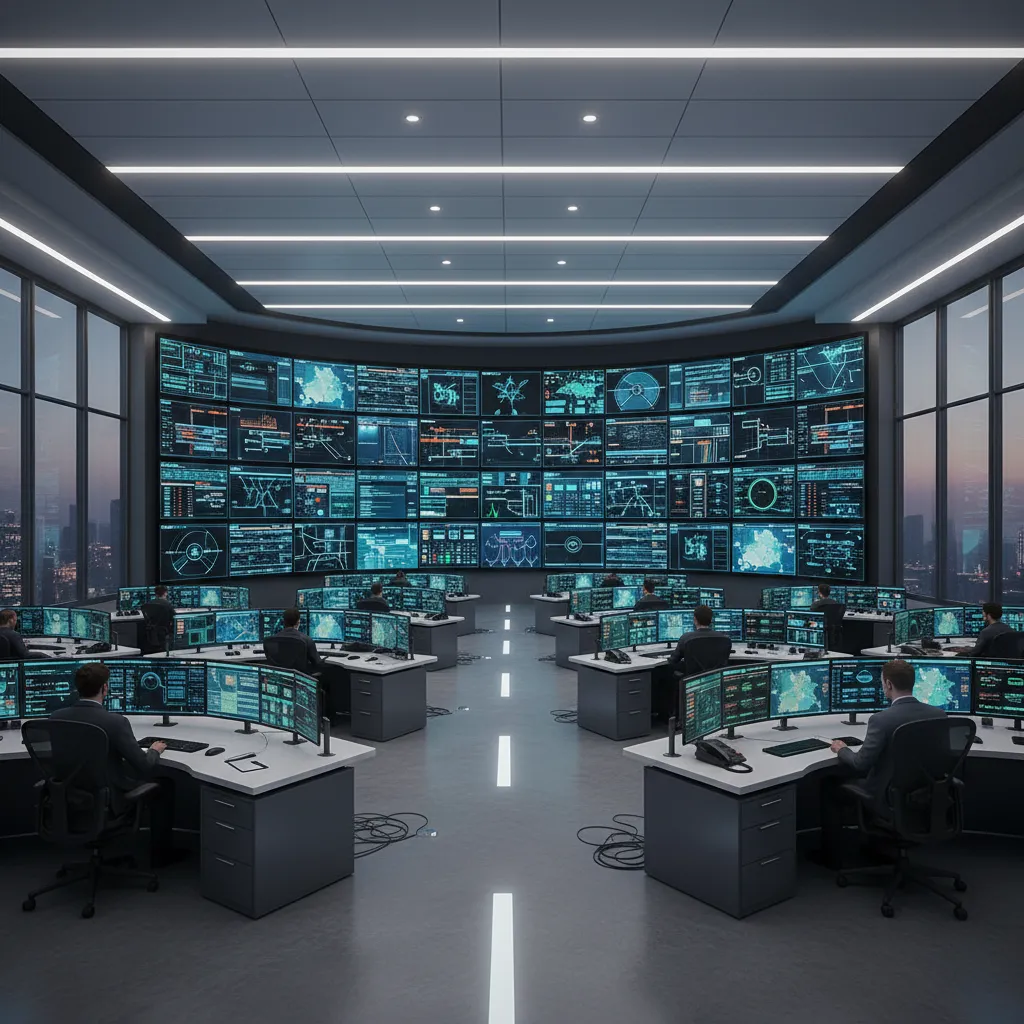

What Is a Control Room?

Key Insight: A control room is designed for human operators who monitor and control electrical systems in real time.

While relay rooms focus on automated protection, control rooms prioritize human interaction with the system. Operators need clear visibility, ergonomic workstations, and reliable communication infrastructure.

Typical control room components include:

1. Operator consoles and desks
2. Large monitoring displays
3. SCADA monitoring systems
4. Communication equipment
5. Alarm and event monitoring systems

The biggest design difference is ergonomics. Lighting, noise levels, HVAC stability, and line‑of‑sight across monitoring displays become critical.

In large utilities, control rooms may supervise multiple substations simultaneously. The U.S. Department of Energy emphasizes that operator environments should maintain stable temperatures and low noise to reduce fatigue and operational error.

From a spatial perspective, control rooms are usually located away from high‑voltage equipment areas but close enough for operational staff to coordinate maintenance teams.

save pin

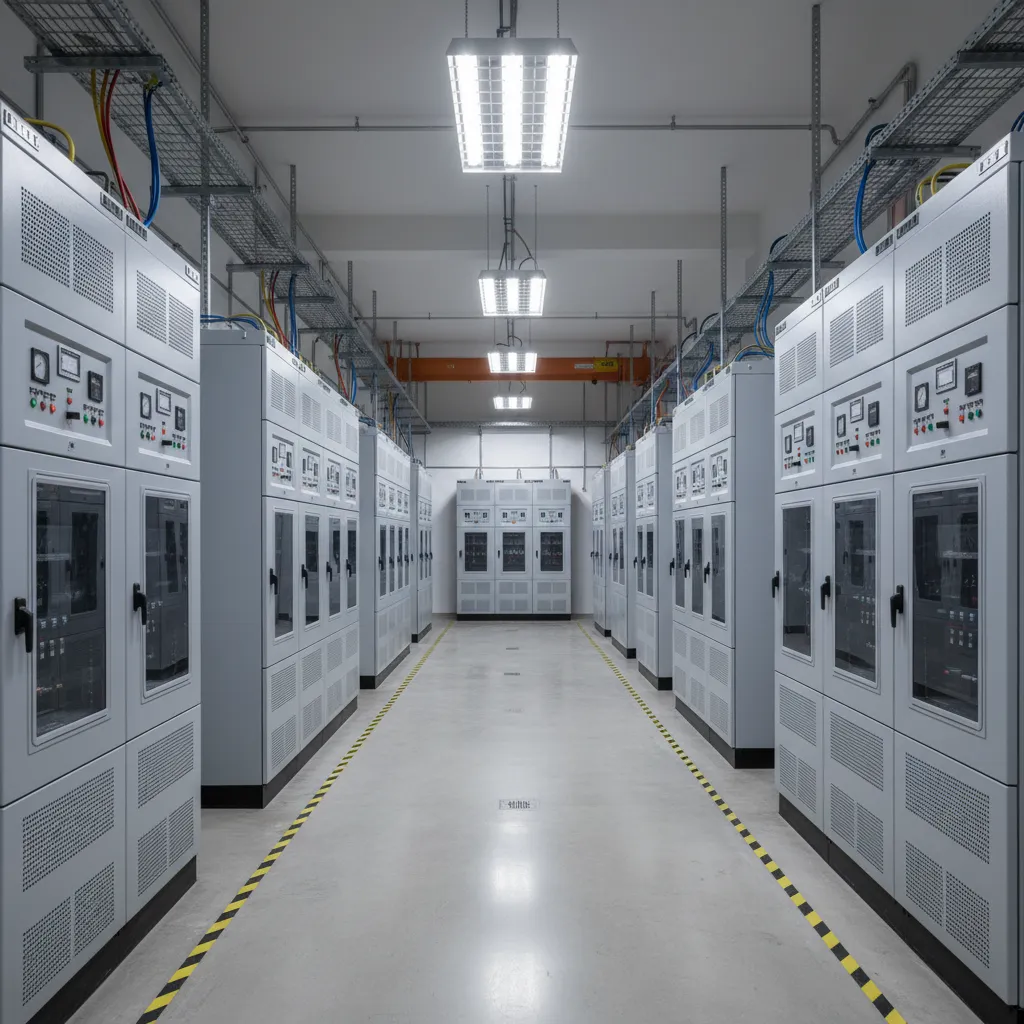

What Is a Switchgear Room?

Key Insight: A switchgear room houses high‑voltage electrical switching equipment that physically controls power flow.

This is the most hazardous of the three spaces. Switchgear equipment handles large electrical loads and carries arc‑flash risks that require strict clearance rules.

Common equipment inside switchgear rooms includes:

1. Circuit breakers
2. Disconnect switches
3. Busbars
4. Protection panels integrated into switchgear assemblies
5. Arc‑flash mitigation systems

Unlike relay rooms or control rooms, the design priority here is safety and equipment clearance.

Typical design requirements include:

1. Minimum aisle clearance for maintenance
2. Arc‑flash safety boundaries
3. High‑capacity ventilation or heat extraction
4. Fire‑rated construction
5. Restricted personnel access

Many facilities also physically isolate switchgear rooms from monitoring areas using reinforced walls or separate building zones.

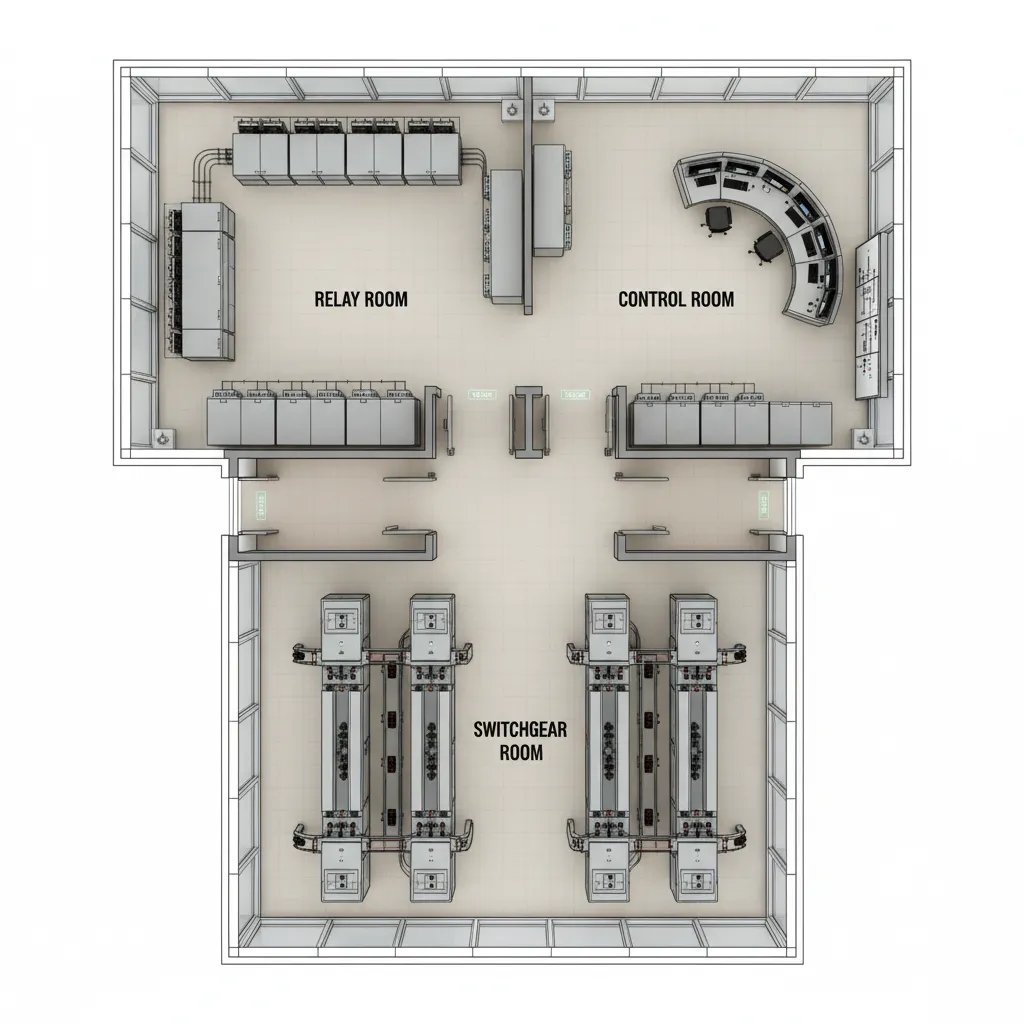

Key Design Differences in Layout and Equipment

Key Insight: The biggest layout difference between relay rooms, control rooms, and switchgear rooms is whether the space prioritizes equipment safety, electronic reliability, or human operation.

Here’s how the three environments typically compare.

1. Relay Room LayoutPanel rows or rack cabinets
2. Large cable management systems
3. Moderate cooling requirements
4. Minimal operator presence
5. Control Room LayoutOperator desks and monitoring walls
6. Open floor space for visibility
7. Quiet and comfortable environment
8. Redundant communication systems
9. Switchgear Room LayoutHeavy equipment aligned in switchgear lineups
10. Large maintenance aisles
11. Strict electrical clearances
12. Limited occupancy

Designers often model equipment spacing early using a practical layout planning workflow for equipment roomsto verify aisle widths and maintenance access before construction.

save pin

Environmental and Safety Requirements Compared

Key Insight: Each room type requires different environmental control strategies because the equipment risks and heat loads are completely different.

Environmental priorities vary significantly.

1. Relay RoomsStable temperature for electronics
2. Low humidity to protect circuit boards
3. Dust control
4. Control RoomsComfortable working conditions
5. Acoustic control
6. Redundant power for monitoring systems
7. Switchgear RoomsHeat removal from electrical equipment
8. Arc‑flash protection systems
9. Fire detection and suppression

A commonly overlooked cost appears when these rooms share ventilation systems. Electronics in relay rooms typically require cooler, cleaner environments than switchgear equipment, so separating HVAC zones often improves reliability.

Answer Box

Relay rooms contain protection electronics, control rooms support system operators, and switchgear rooms house high‑voltage switching equipment. Because the operational risks differ, each space requires different layout, safety clearances, and environmental controls.

When to Use Each Type of Room in Power Systems

Key Insight: Most medium and large substations require all three room types because protection systems, operators, and switching equipment serve fundamentally different functions.

Typical applications include:

1. Relay RoomsUtility substations
2. Industrial power plants
3. Transmission switching stations
4. Control RoomsGrid monitoring centers
5. Industrial energy management
6. Power plant operations
7. Switchgear RoomsMedium‑voltage distribution systems
8. Large commercial facilities
9. Utility substations

During early planning phases, teams often simulate equipment placement and circulation paths using interactive tools that help design technical equipment floor plansto ensure safe spacing and maintenance access.

save pin

Final Summary

1. Relay rooms host protection relays and automation equipment.
2. Control rooms support operators and system monitoring.
3. Switchgear rooms contain high‑voltage switching equipment.
4. Each room requires unique layout, cooling, and safety strategies.
5. Separating these spaces improves reliability and maintenance access.

FAQ

What is the difference between a relay room and a control room?

A relay room houses protection relays and automation systems, while a control room is designed for operators who monitor and control electrical networks.

What is the difference between a relay room and a switchgear room?

A relay room contains electronic protection devices, whereas a switchgear room contains high‑voltage electrical switching equipment.

Can relay panels be installed inside a switchgear room?

In small installations they sometimes are, but separating them reduces heat exposure, electromagnetic interference, and maintenance risk.

Why do substations often separate relay rooms and control rooms?

Protection equipment requires stable environmental conditions, while control rooms focus on operator comfort and monitoring visibility.

Is a protection room the same as a relay room?

In many substations, the protection room and relay room refer to the same space where protective relays and communication panels are installed.

What temperature should a relay room maintain?

Most facilities keep relay rooms between 20–25°C to maintain stable electronics performance.

Do switchgear rooms require special fire protection?

Yes. Switchgear rooms often require fire‑rated walls, arc‑flash mitigation systems, and specialized detection equipment.

What rooms are typically included in a modern power substation?

Large substations commonly include switchgear rooms, relay rooms, control rooms, battery rooms, and communication rooms.
