Renai Medicity Rooms: A Comprehensive How-To Guide: 1 Minute to Understand Renai Medicity Room Options & Selection

I’ve planned and refined medical suites for over a decade, and the rooms at Renai Medicity deserve the same rigor any high‑acuity facility demands: clinically precise layouts, quiet acoustics, glare‑free light, and materials that hold up under constant cleaning. The goal is a space that supports staff workflow while offering patients psychological safety and comfort.

Evidence matters. WELL v2 highlights that providing access to daylight and quality electric lighting is linked to reduced stress and improved occupant satisfaction; its visual lighting guidelines emphasize appropriate illuminance, color quality, and glare control for health environments. Steelcase research reports that 34% of healthcare workers cite environmental stressors (noise, clutter, poor ergonomics) as key contributors to fatigue and burnout, reinforcing the need for tidy, well‑organized rooms with supportive furniture and clear circulation. These baselines guide every decision from light levels to storage volumes.

Color and psychology round out the clinical metrics. Verywell Mind’s color psychology overview notes cool greens and muted blues are associated with calmness and reduced anxiety. In patient rooms, I use desaturated hues (LRV 50–70) to maintain brightness without causing visual overstimulation, and I balance them with warm wood tones that meet infection control standards through durable, cleanable laminates.

Room Typologies and Core Intent

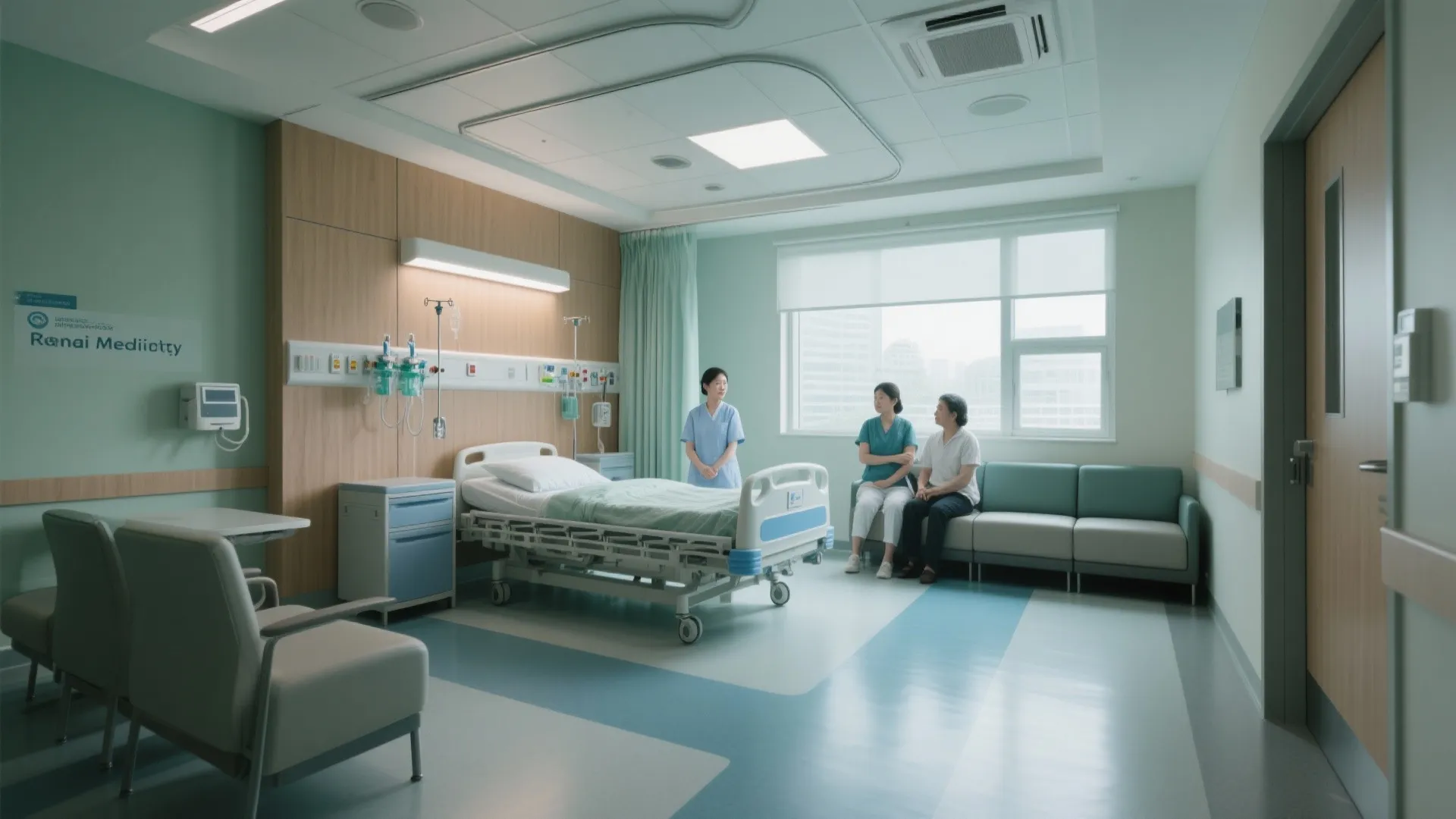

Renai Medicity rooms fall into four typical categories: inpatient rooms, procedure suites, consult/exam rooms, and recovery bays. Each has distinct spatial ratios, acoustic needs, and lighting targets. Inpatient rooms prioritize patient dignity and family accommodation, with clear staff routes and observation lines. Procedure suites require fixed clearances around equipment and controlled task lighting. Consult rooms focus on conversational privacy and ergonomic seating. Recovery bays emphasize visual control, easy nurse access, and comfort.

Space Planning and Clearances

Circulation needs to be legible and unobstructed. For inpatient rooms, maintain a minimum 5 ft (1524 mm) side clearance on at least one bed side for equipment and staff, and 3 ft (914 mm) at the foot for transport. Handwashing stations should be within the room entry line of sight to cue compliance. Keep bed headwalls directly aligned with medical gases and power rails, avoiding cable crossing paths. When testing different bed orientations, I often use a room layout tool to simulate nurse approach angles, family seating, and lift device paths: room layout tool.

Lighting: Illuminance, Color Temperature, and Glare

Layered lighting supports clinical accuracy and patient rest. Target ~300–500 lux ambient in exam conditions, dimmable to ~100–150 lux for rest, with task lights at 750–1000 lux focused on clinical zones. Keep correlated color temperature flexible: 3500–4000K for day tasks (high color rendering for wound assessment) and 2700–3000K for evening comfort. Shield lenses and use indirect uplight to mitigate glare; bedside lights should have cut‑off angles that avoid direct eye exposure. Follow IES healthcare recommendations for vertical illuminance at faces to aid communication without harsh contrast.

Ergonomics and Human Factors

Staff reach and patient mobility are non‑negotiable. Place high‑touch items within 20–24 in (510–610 mm) reach envelopes and 28–34 in (710–865 mm) working heights for seated tasks. Bed controls must be intuitive, contrasted, and tactile. Nurse documentation points benefit from sit‑stand work surfaces to reduce fatigue. Clear floor markings—subtle and color‑integrated—help guide portable equipment parking to prevent corridor buildup.

Acoustic Comfort and Speech Privacy

Noise undermines healing and efficiency. Aim for NC 30–35 (or equivalent) in inpatient rooms through high‑performance ceiling tiles, gasketed doors, and soft‑close hardware. Use resilient flooring with high impact sound absorption in corridors adjoining patient rooms. Place sound‑absorbing panels at first reflection points near nurse stations to reduce reverberation spill into rooms. White‑noise masking should be carefully balanced to preserve clinical audibility while protecting conversations.

Material Selection and Infection Control

Durability and cleanability drive finishes. Opt for PVC‑free resilient sheet flooring with heat‑welded seams, integral coves, and stain resistance. Wall protection at bed and equipment impact zones prevents damage; choose cleanable, non‑porous surfaces. Upholstery should be healthcare‑grade polyurethane or coated textiles with moisture barriers. Warmth comes from pattern and texture, not uncontrolled porosity—wood‑look laminates with antimicrobial properties provide the hospitality feel without compromising protocols. Keep FF&E edges radiused to minimize dirt trapping.

Behavioral Patterns and Workflow

Staff need predictable routes: entry → hand hygiene → patient assessment → documentation → supplies. Align storage near the point of use to cut footsteps and cognitive load. Family zones sit away from staff pathways but retain sightlines to the patient; movable lounge chairs and a compact sleeper bench keep the footprint flexible. Visual anchors—a contrasting headwall, a softly colored nurse alcove—help orient newcomers and reduce wayfinding stress.

Recovery Bays and Observation

These areas benefit from semi‑transparent privacy solutions—curtains with clear upper panels or glazed partitions with electrochromic control. Lighting should present a calm baseline (150–200 lux) with adjustable task lighting at each bay. Nurse view corridors stay unobstructed, and equipment booms or rails prevent floor clutter. Acoustic drapery and ceiling absorption temper cross‑bay chatter.

Procedure Suites: Precision and Safety

Lay out fixed equipment and utilities first, then map staff movement around sterile fields. Keep 6 ft (1829 mm) minimum clearance at sides where procedure carts circulate. Use high color‑rendering task lighting, glare‑controlled, with dimming presets. Surfaces must tolerate aggressive disinfectants without delaminating. Line storage is best in tall, shallow cabinets to maintain visibility and minimize rummaging.

Consult and Exam Rooms: Comfort and Rapport

Patients open up in spaces that feel safe and clear. Use rounded table corners, upholstered side chairs with arms (for easier stand‑up), and provide a direct sightline to the door for a sense of agency. Dim‑to‑warm lighting supports transitions from clinical exam to conversation. Acoustic doors and wall construction strengthen confidentiality.

Color Psychology and Visual Balance

Muted greens, pale blues, and soft earth tones set a calming baseline. Keep saturation low and introduce contrast where functional—headwalls, handrails, and emergency buttons need clear chromatic differentiation without hazard‑striping aesthetics. Rhythm comes from repeated vertical elements (panels, fins) and linear light lines that visually organize the ceiling without clutter.

Technology Integration

Plan for cable management and device docking. Use recessed raceways at the headwall and vertical channels that separate low‑voltage from medical gases. Wireless charging in family areas reduces tangle and clutter. Displays should be arm‑mounted with easy detents and stow positions to avoid protrusions into circulation paths.

Sustainability and Maintenance

Prioritize low‑VOC materials and robust life‑cycle profiles. Choose modular ceiling systems that simplify maintenance above patient zones. LED luminaires with 90+ CRI reduce energy while supporting clinical accuracy. Water‑based adhesives and finishes cut emissions. Document cleaning protocols alongside material warranties to align operations with design intent.

Commissioning and Post‑Occupancy Feedback

Before opening, commission lighting levels, test acoustic performance, and run staff simulations. After move‑in, gather feedback at 30/60/90 days to adjust storage, signage, and light presets. Incremental tweaks—relocating glove boxes, adding visual shelves for personal items—often yield outsized improvements.

Authority References

For lighting quality and occupant health standards, see WELL v2 performance features at v2.wellcertified.com. For workplace and healthcare environment insights affecting staff well‑being and burnout, review Steelcase Research at steelcase.com/research.

FAQ

Q1: What ambient and task light levels work best in patient rooms?

A1: Use 300–500 lux ambient for exams, dimmable down to 100–150 lux for rest. Provide 750–1000 lux task lighting at clinical zones, with 2700–3000K warmth at night and 3500–4000K for daytime accuracy.

Q2: How can I reduce noise without overhauling construction?

A2: Add high‑NRC ceiling tiles, soft‑close hardware, acoustic curtains in recovery bays, and door gasketing. Strategic sound‑absorbing panels near nurse stations reduce spill into rooms.

Q3: Which colors support patient calm?

A3: Desaturated blues and greens with neutral warm undertones provide calm without sterility. Maintain a mid‑high LRV (50–70) to keep brightness without glare.

Q4: What clearances do staff need around the bed?

A4: Keep about 5 ft on at least one side for equipment and staff circulation, and around 3 ft at the foot for transport. Ensure unbroken paths from entry to handwashing to patient.

Q5: How do I manage cables and devices in tight rooms?

A5: Use headwall raceways, vertical channels separating low‑voltage and gases, and arm‑mounted displays with stow positions. Provide wireless charging in family areas to reduce clutter.

Q6: What materials balance warmth and infection control?

A6: PVC‑free resilient sheet flooring with heat‑welded seams, cleanable laminates for wood look, and healthcare‑grade coated textiles. Avoid deep textures that trap debris.

Q7: How do ergonomics shape storage and documentation points?

A7: Place supplies at point of use within 20–24 in reach and 28–34 in working heights. Integrate sit‑stand stations for nurse documentation to cut fatigue.

Q8: Are there quick layout tests before construction?

A8: Yes—use a digital interior layout planner to simulate bed orientation, nurse approach angles, and equipment paths to confirm clearances and sightlines.

Q9: What supports privacy in consult rooms?

A9: Acoustic doors and wall assemblies, white‑noise masking tuned to protect speech, and furniture that keeps patient sightlines to the door.

Q10: How should recovery bays balance visibility and privacy?

A10: Combine semi‑transparent upper panels or electrochromic glazing with acoustic curtains; keep unobstructed nurse view corridors and adjustable task lights at each bay.

Q11: What commissioning steps matter most?

A11: Verify illuminance and glare, test acoustic targets, confirm equipment reach envelopes, and run staff workflow rehearsals. Follow with 30/60/90‑day feedback loops.

Q12: Which sustainability choices pay off in healthcare rooms?

A12: Low‑VOC finishes, LED luminaires with 90+ CRI, modular ceilings for maintenance, and materials with strong life‑cycle performance reduce cost and environmental impact.
