Residential HVAC Duct Sizing Standards for Small Rooms: Professional guidelines, CFM rules, and real contractor methods for sizing ducts in bedrooms and small residential spaces

Direct Answer

Residential HVAC duct sizing for small rooms is typically based on airflow requirements measured in CFM and calculated using industry standards such as ACCA Manual D. For most rooms under 200 square feet, HVAC professionals design ducts to deliver roughly 60–120 CFM depending on insulation, climate, and load calculations.

In practice, this often results in branch ducts between 5 and 7 inches in diameter, with a 6‑inch duct frequently used for bedrooms around 120–180 square feet.

Quick Takeaways

1. Most small residential rooms require 60–120 CFM of airflow.
2. ACCA Manual D is the primary professional standard used for duct sizing.
3. Bedrooms under 200 sq ft commonly use 5–7 inch branch ducts.
4. Proper airflow distribution matters more than duct diameter alone.
5. Contractors size ducts based on load calculations, not just square footage.

Introduction

When homeowners ask about HVAC duct sizing standards for small rooms, they’re usually expecting a simple answer like “use a 6‑inch duct.” After working on residential design projects for more than a decade, I can tell you the reality is a little more nuanced.

Professional HVAC designers rarely size ducts based only on room square footage. Instead, they calculate the airflow required to heat or cool the space and then select duct diameters that can deliver that airflow efficiently.

This becomes especially important in smaller bedrooms, offices, and compact living spaces. An undersized duct can create poor airflow, uneven temperatures, and noisy systems, while an oversized duct can reduce velocity and airflow balance.

Before contractors even get to duct sizing, they usually start by understanding the room layout and airflow path. In modern planning workflows, many designers begin by mapping the room configuration first using tools that help visualize furniture layout and airflow pathways inside a room, because furniture placement, door location, and ceiling height can influence vent positioning.

In this guide, I’ll walk through how professionals actually size residential HVAC ducts for small rooms, including CFM guidelines, Manual D standards, and the practical decisions contractors make on real projects.

save pin

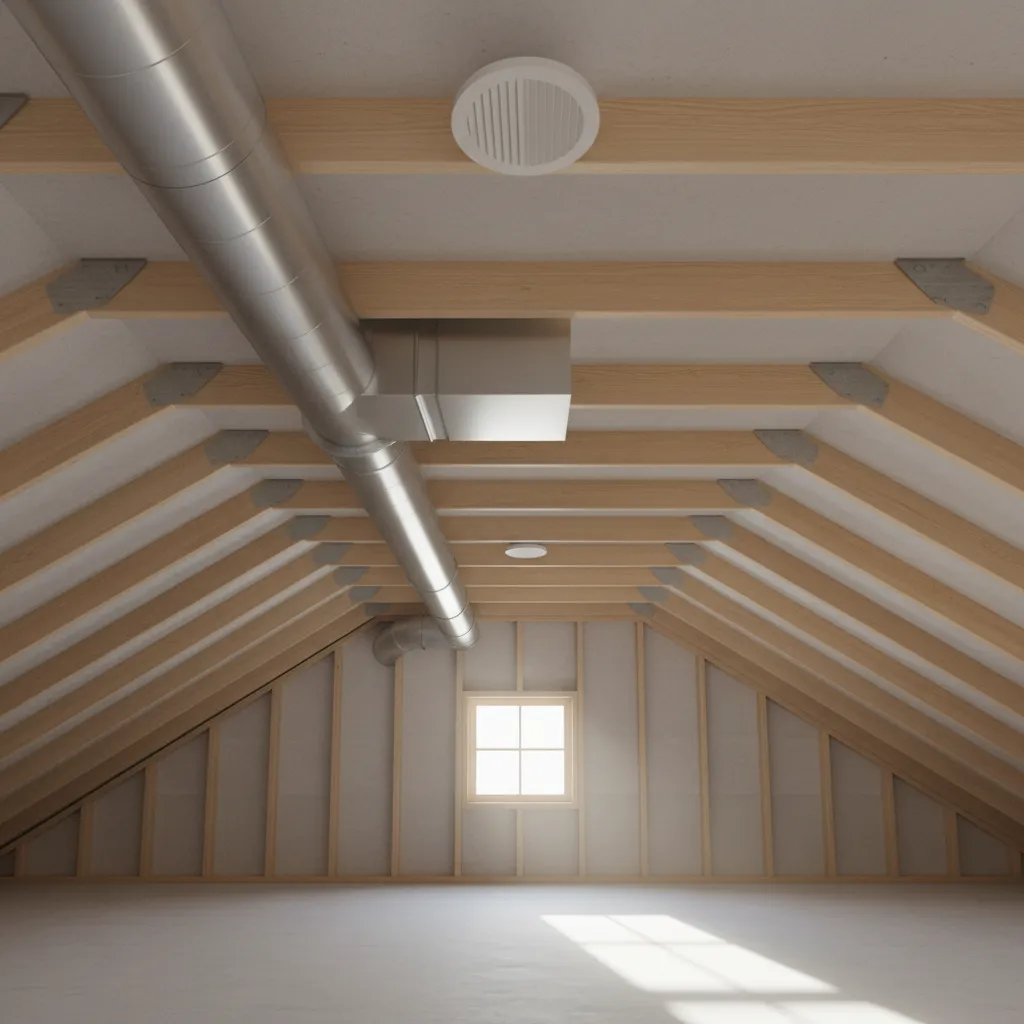

How HVAC Professionals Size Ducts for Residential Rooms

Key Insight: HVAC contractors size ducts by calculating airflow demand first, then selecting duct diameters that can deliver that airflow with acceptable pressure loss.

Professionally designed systems follow a sequence that typically looks like this:

1. Step 1: Perform a heating and cooling load calculation (Manual J)
2. Step 2: Determine airflow requirements in CFM for each room
3. Step 3: Design the duct layout (Manual D)
4. Step 4: Select duct sizes that meet airflow and friction limits

Many homeowners are surprised by this workflow. The duct size is actually one of the last decisions in the process.

For example, a small bedroom that requires 90 CFM will likely use a different duct size depending on:

1. Length of the duct run
2. Number of bends
3. Type of duct material
4. Static pressure limits of the HVAC system

According to ACCA guidance, maintaining proper friction rate and airflow velocity is essential for both efficiency and comfort.

CFM Guidelines for Bedrooms and Small Living Spaces

Key Insight: Most residential bedrooms require between 0.5 and 1 CFM per square foot depending on insulation quality and climate zone.

While exact airflow requirements come from load calculations, industry practice often follows general airflow benchmarks.

Typical airflow estimates:

1. 100 sq ft room: 50–70 CFM
2. 120 sq ft room: 60–80 CFM
3. 150 sq ft room: 75–100 CFM
4. 180 sq ft room: 90–110 CFM
5. 200 sq ft room: 100–120 CFM

However, square footage alone doesn’t determine airflow. Contractors also evaluate:

1. Window size and solar heat gain
2. Ceiling height
3. Exterior wall exposure
4. Insulation performance

In many homes I’ve reviewed, the biggest mistake isn’t duct size—it’s ignoring these variables during system design.

save pin

Manual D and Other HVAC Design Standards

Key Insight: ACCA Manual D is the primary industry standard used to design residential HVAC duct systems.

Manual D provides the engineering framework contractors use to size ductwork correctly.

It defines:

1. Allowable friction rate
2. Duct velocity limits
3. Equivalent length of duct fittings
4. Static pressure budgeting

Other standards and organizations that influence residential HVAC design include:

1. ACCA (Air Conditioning Contractors of America)
2. ASHRAE guidelines
3. International Residential Code (IRC)

One overlooked factor is how duct routing interacts with the building layout. On renovation projects, designers often review floor plans carefully to determine the most efficient routing path. Tools that help generate a 3D floor layout for home planning and renovation make it easier to visualize mechanical routes before construction begins.

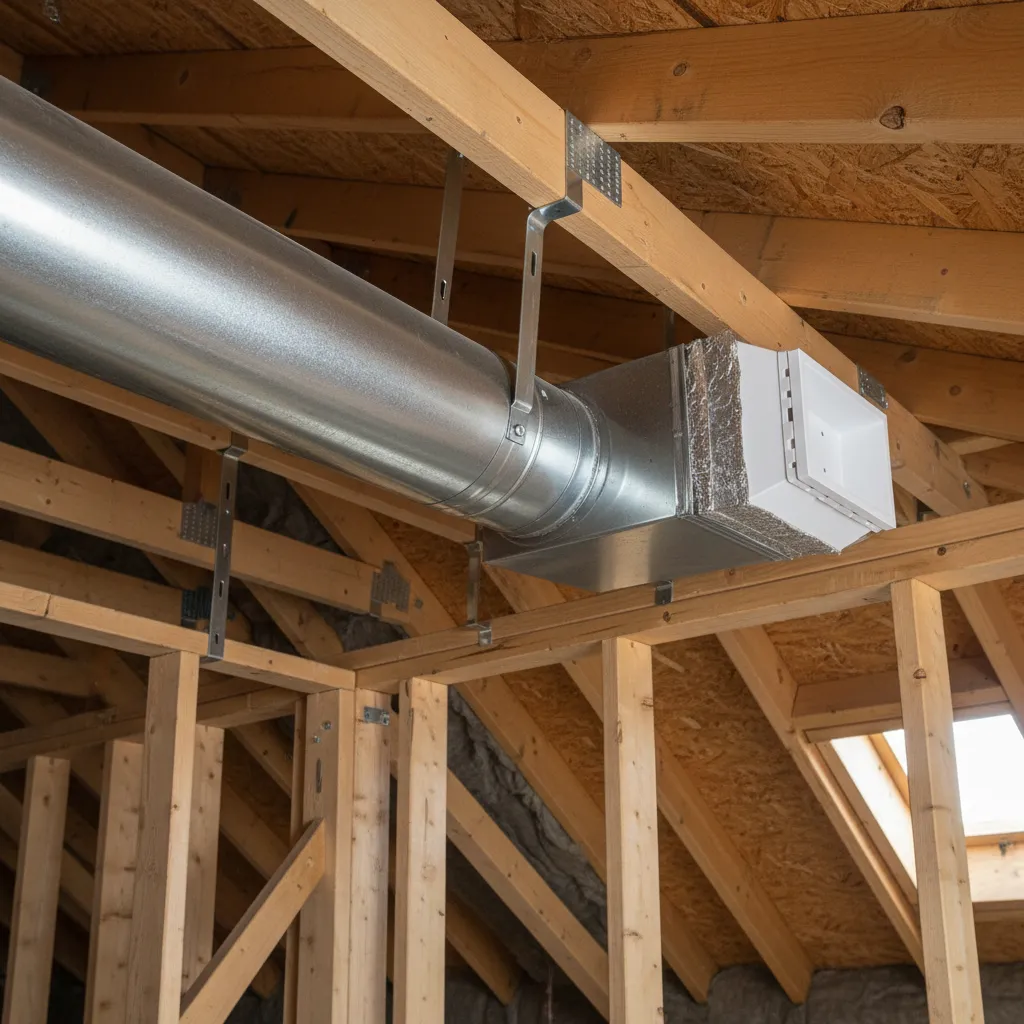

Typical Duct Sizes Used for Rooms Under 200 Sq Ft

Key Insight: Most residential rooms under 200 square feet are served by ducts between 5 and 7 inches in diameter.

Here’s a simplified reference used in many HVAC design scenarios.

1. 5-inch duct: ~40–60 CFM
2. 6-inch duct: ~60–110 CFM
3. 7-inch duct: ~100–160 CFM

For this reason, a 6‑inch duct often becomes the default choice for average-sized bedrooms.

But there’s a hidden tradeoff many guides never mention: duct length can dramatically change capacity. A long duct run with multiple elbows can reduce airflow enough that a 7‑inch duct performs better than a 6‑inch duct even for the same room size.

This is why professional HVAC design focuses on airflow performance instead of diameter alone.

save pin

How Contractors Evaluate Air Distribution

Key Insight: Proper air distribution depends on vent placement, return airflow, and pressure balance—not just duct diameter.

Experienced contractors evaluate three airflow factors inside each room:

1. Supply vent location
2. Return air path
3. Air mixing across the space

A well‑designed system typically places supply vents near windows or exterior walls where heat gain or loss occurs.

Common evaluation checklist:

1. Is airflow reaching the far side of the room?
2. Is furniture blocking supply vents?
3. Is there a return air path under the door or through a grille?
4. Does the room maintain neutral pressure?

Interior layouts can significantly affect airflow patterns. Designers sometimes test these layouts early by modeling spaces that quickly generate a clean residential floor plan before renovation, helping identify whether supply vents will be obstructed by furniture or walls.

Applying Industry Guidelines to a 150 Sq Ft Room

Key Insight: A typical 150 sq ft bedroom usually requires around 80–100 CFM, which aligns well with a 6‑inch duct in many systems.

Example design scenario:

1. Room size: 150 sq ft
2. Ceiling height: 8 ft
3. Climate: mixed climate zone
4. Cooling load: moderate

Typical outcome:

1. Required airflow: ~90 CFM
2. Recommended duct size: 6-inch branch duct
3. Supply register: 4x10 or similar

However, if the duct run is long or includes several bends, designers might increase the duct size to 7 inches to maintain airflow efficiency.

Final Summary

1. Residential duct sizing is based on airflow demand, not square footage alone.
2. Most small bedrooms require 60–120 CFM of airflow.
3. Manual D is the primary standard for residential duct design.
4. Rooms under 200 sq ft commonly use 5–7 inch ducts.
5. Air distribution quality depends on vent placement and pressure balance.

FAQ

What size duct is usually used for a bedroom?

Most bedrooms between 120 and 180 square feet use a 6‑inch supply duct delivering around 70–100 CFM of airflow.

What is the recommended CFM for a 150 sq ft room?

Most HVAC designs target roughly 80–100 CFM for a 150 sq ft room, depending on insulation, windows, and climate conditions.

What standard is used for residential duct sizing?

ACCA Manual D is the primary industry standard used by HVAC contractors to size residential duct systems.

Can a 5-inch duct supply a small bedroom?

Sometimes. A 5‑inch duct typically supports around 40–60 CFM, which may be enough for very small bedrooms under 100 sq ft.

Do contractors size ducts based on room square footage?

No. Square footage is only a starting point. Professionals use load calculations and airflow requirements to size ducts accurately.

What happens if a duct is undersized?

An undersized duct restricts airflow, causing uneven temperatures, higher energy use, and increased system noise.

Is Manual D required for residential HVAC design?

Many building codes and professional standards recommend Manual D, though enforcement varies by region.

How do HVAC duct sizing standards affect comfort?

Proper HVAC duct sizing standards ensure each room receives balanced airflow, preventing hot or cold spots throughout the home.
