Restaurant Layout Design Standards Used in the Hospitality Industry: Professional spacing, kitchen ratios, and planning principles designers use to build efficient and profitable restaurant floor plans.

Direct Answer

Restaurant layout design standards in the hospitality industry focus on balancing seating density, service efficiency, safety regulations, and customer comfort. Most professional restaurant floor plans allocate roughly 60% of space to dining and 40% to kitchen and support areas while maintaining clear circulation paths and regulated table spacing.

These standards help restaurants improve staff workflow, meet safety codes, and maximize revenue per square foot without compromising guest experience.

Quick Takeaways

1. Most restaurants allocate about 60% dining space and 40% kitchen and support space.
2. Standard table spacing usually ranges between 18 and 24 inches between occupied chairs.
3. Efficient layouts prioritize service routes between kitchen, bar, and main dining zones.
4. Clear aisle widths and ADA accessibility are required in professional hospitality layouts.
5. Successful restaurants design circulation paths before placing tables.

Introduction

After working on restaurant interiors for more than a decade, one thing becomes obvious very quickly: beautiful restaurants fail all the time because the layout was wrong.

The hospitality industry follows fairly consistent restaurant layout design standards that balance guest comfort with operational efficiency. When owners ignore these benchmarks, problems show up immediately—servers walking too far, kitchens getting congested, or dining rooms feeling cramped.

In many renovation projects I’ve worked on, the issue wasn’t the brand concept or the food program. It was the floor plan.

Modern design teams increasingly use tools that help visualize circulation and spacing early. When clients want to test different seating densities quickly, I often start with a digital model using a platform that lets them visualize a complete restaurant layout in a 3D floor planning environmentbefore construction begins.

In this guide, I’ll walk through the real hospitality industry floor plan guidelines professionals use—covering seating spacing standards, kitchen ratios, accessibility requirements, and layout models that consistently perform well.

save pin

Why Industry Standards Matter in Restaurant Floor Planning

Key Insight: Industry standards exist because poorly planned layouts directly reduce restaurant profitability.

Many first‑time restaurant owners assume layout decisions are purely aesthetic. In reality, they’re operational.

A poorly placed service station or tight aisle can add seconds to every server trip. Multiply that by hundreds of tables per night and the operational cost becomes obvious.

The National Restaurant Association frequently emphasizes that efficient layouts reduce staff travel distance and improve table turnover rates. In several projects I’ve redesigned, simply improving circulation paths increased service speed without adding staff.

Common mistakes I often see:

1. Placing tables before defining service routes
2. Overpacking seats to chase capacity
3. Separating kitchen pass areas too far from dining zones
4. Ignoring delivery and staff-only circulation

The counterintuitive truth: restaurants that slightly reduce seating density often earn more because service becomes faster and the dining experience improves.

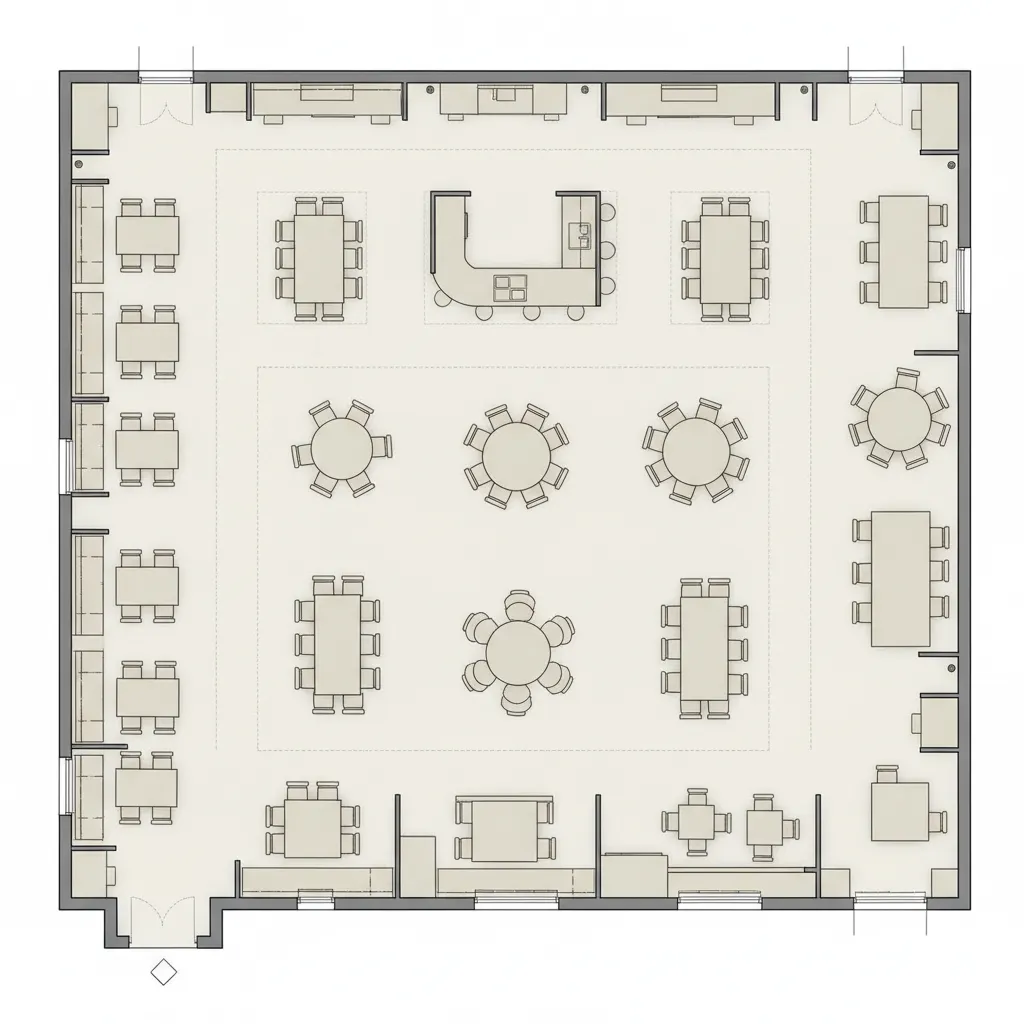

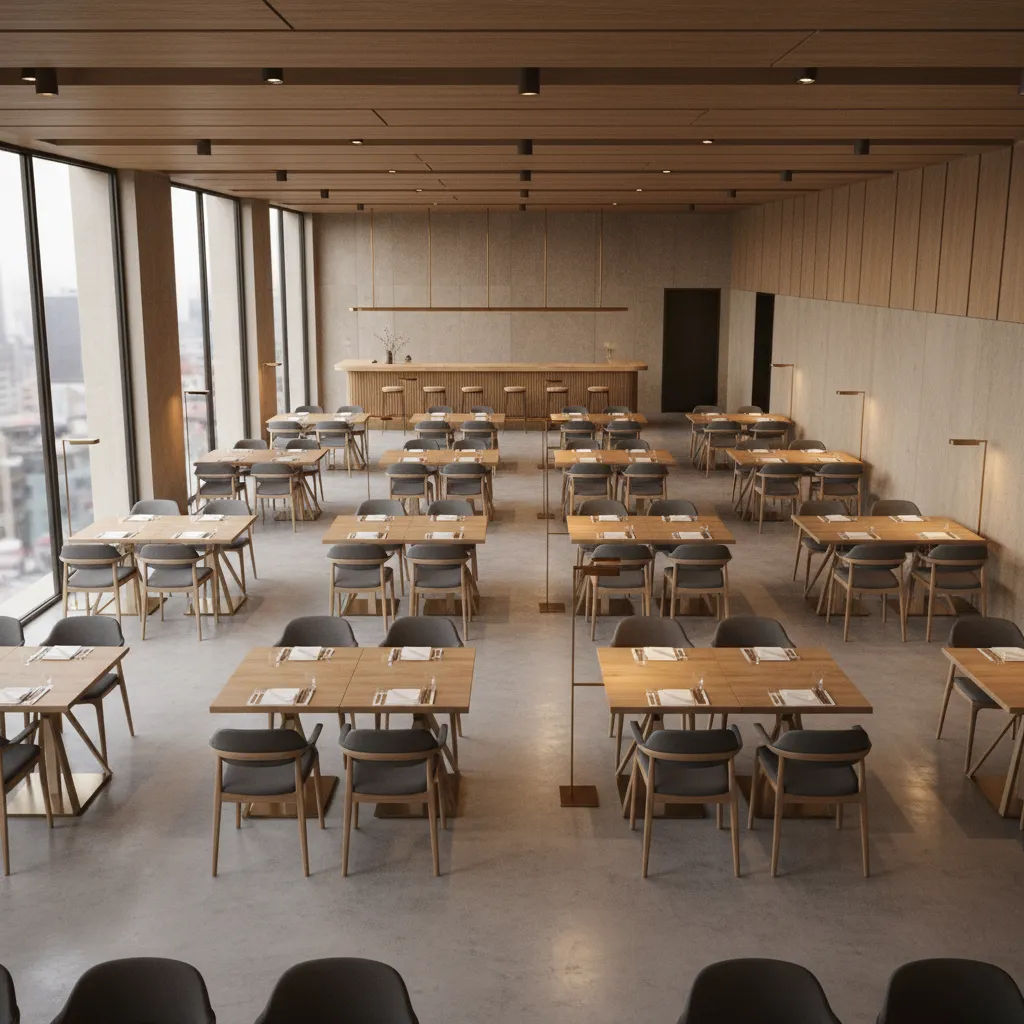

Recommended Table Spacing and Seating Density

Key Insight: The most widely accepted restaurant seating spacing standards aim for comfort while maintaining profitable seat counts.

Professional restaurant designers rarely guess spacing. We follow industry benchmarks developed through decades of hospitality operations.

Typical restaurant seating spacing standards:

1. 18–24 inches between occupied chairs
2. 42–60 inches for main aisles
3. 36 inches for secondary server aisles
4. 24 inches minimum between table edges

Typical seating density guidelines:

1. Fine dining: 18–20 sq ft per guest
2. Casual dining: 15–18 sq ft per guest
3. Fast casual: 11–14 sq ft per guest
4. Cafes: 10–15 sq ft per guest

In practice, the biggest mistake I see is ignoring chair movement. Designers sometimes measure table‑to‑table spacing but forget the space needed when chairs are pulled out.

This is exactly why many teams prototype layouts digitally before construction. Using a tool that lets you experiment with seating arrangements and circulation pathsmakes it much easier to test density without breaking service flow.

save pin

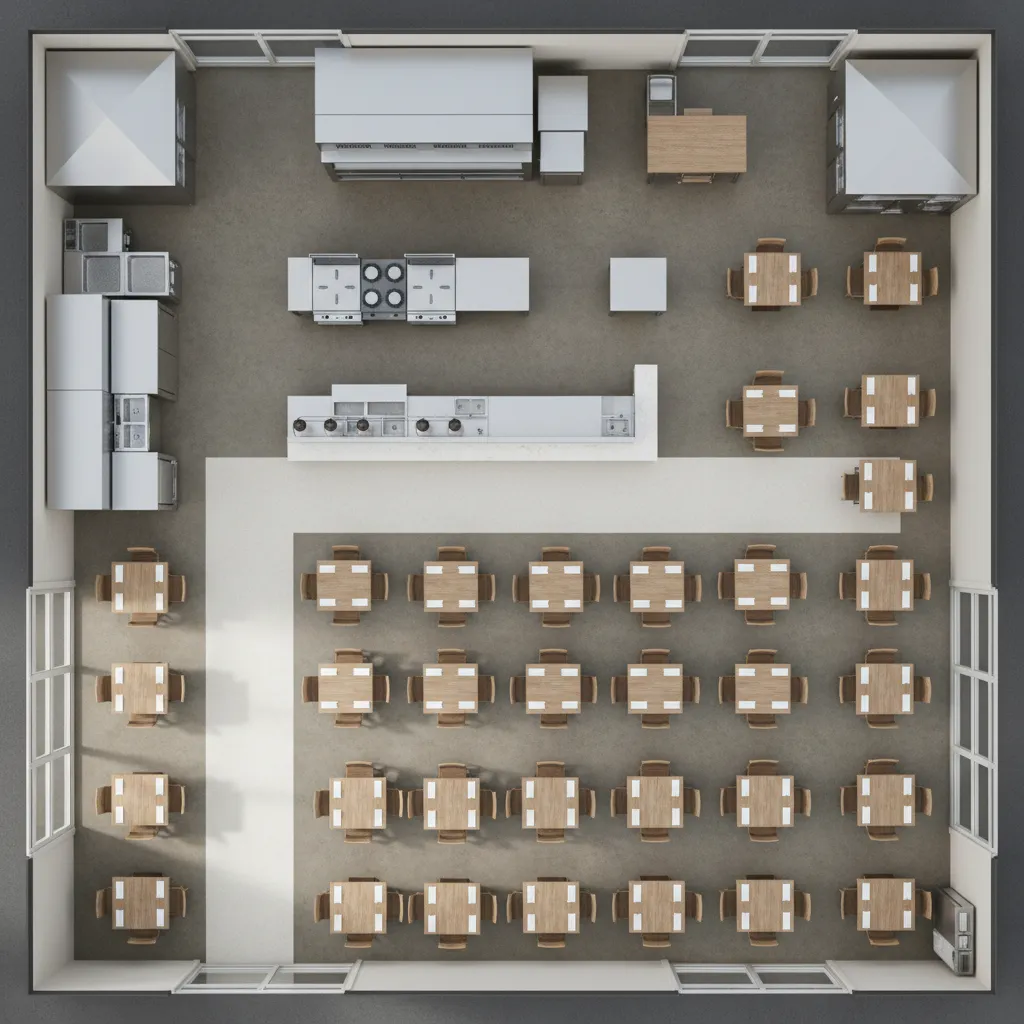

Kitchen to Dining Area Space Allocation Guidelines

Key Insight: Most successful restaurants follow a roughly 60/40 rule—about 60% dining space and 40% kitchen and support functions.

This ratio has proven reliable across thousands of restaurants because it balances revenue‑generating seating with operational capacity.

Typical restaurant space allocation:

1. Dining area: 60%
2. Kitchen: 30%
3. Storage and prep: 5%
4. Restrooms and circulation: 5%

However, there are exceptions:

1. Chef-driven restaurants often require larger kitchens
2. Fast casual concepts may shrink kitchens using prep automation
3. Delivery-heavy restaurants allocate more packing space

According to the Foodservice Consultants Society International (FCSI), kitchen efficiency depends more on workflow layout than total size.

In many redesign projects, I use kitchen workflow simulations through a professional kitchen workflow and equipment layout plannerto test prep zones, cooking lines, and service pass placement.

save pin

Accessibility and Safety Requirements in Restaurant Layouts

Key Insight: Accessibility and safety codes are non‑negotiable constraints that shape every professional restaurant layout.

In the United States, restaurants must comply with ADA accessibility standards and local fire codes.

Common regulatory layout requirements:

1. Minimum 36-inch accessible pathways
2. At least 5% of seating must be accessible
3. Wheelchair turning radius of 60 inches
4. Clearly marked emergency exit routes
5. Fire code occupancy limits

A hidden issue many designers underestimate is restroom access distance. If restrooms are too far or hidden behind service zones, it disrupts customer flow and violates some local building guidelines.

Another overlooked factor is acoustic spacing. Overcrowded dining rooms dramatically increase noise levels, which negatively affects guest satisfaction.

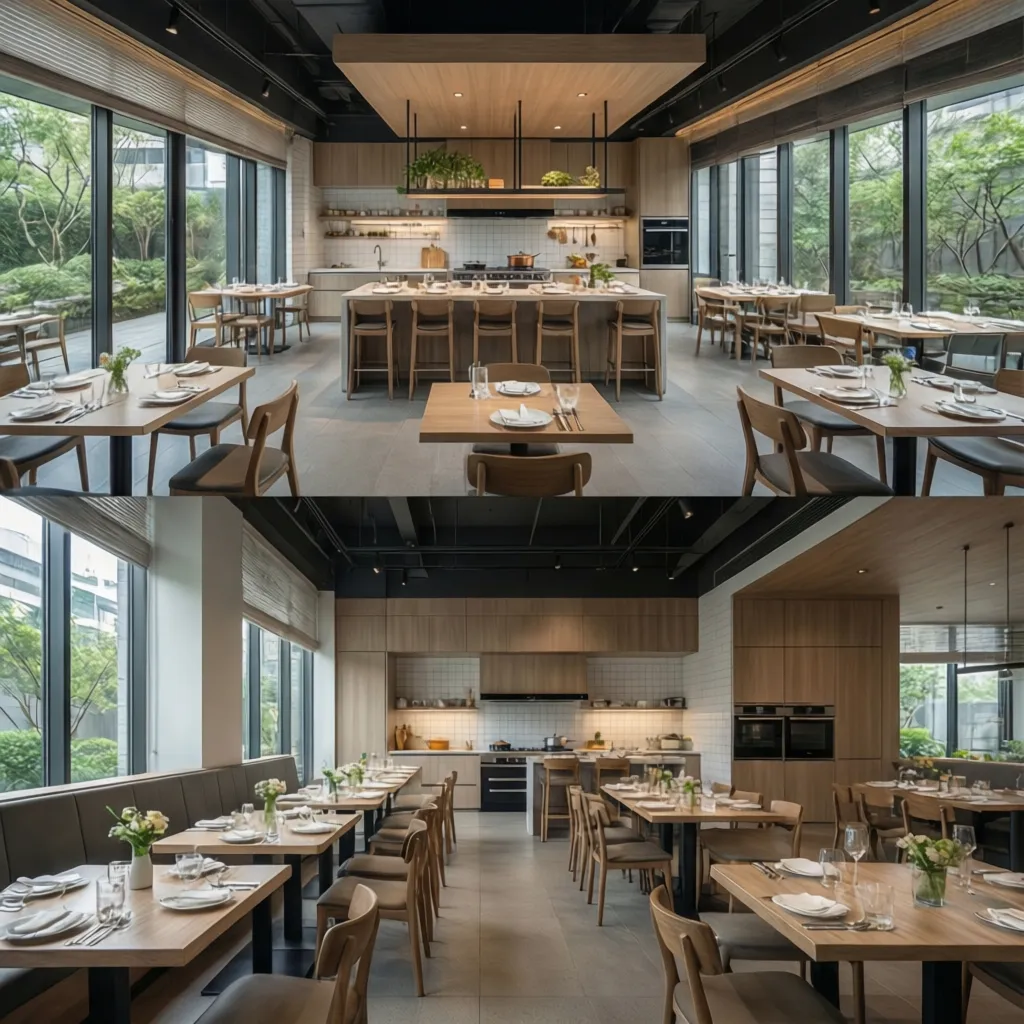

Typical Layout Models Used by Successful Restaurants

Key Insight: Most restaurant layouts follow a few repeatable structural models optimized for different service styles.

Through years of hospitality design work, I’ve seen a handful of layout patterns consistently outperform others.

Common restaurant layout models:

1. Central kitchen layout – kitchen placed in the center for equal service distance
2. Back-wall kitchen layout – most common for small restaurants
3. Open kitchen concept – increases guest engagement
4. Zoned dining layout – divides space into booths, tables, and bar seating

The layout model usually depends on the building structure more than the brand concept. Retrofitting old buildings often forces designers to adapt creatively.

save pin

Answer Box

The most reliable restaurant layout design standards balance seating density, kitchen efficiency, and circulation flow. Restaurants typically allocate 60% of space to dining and maintain 18–24 inches between chairs to ensure comfort and service efficiency.

Applying Industry Standards in 3D Floor Plan Design

Key Insight: Modern restaurant planning increasingly happens in 3D because it reveals operational problems early.

Twenty years ago, restaurant layouts were drafted in 2D drawings. Today, 3D visualization allows teams to simulate real movement, sightlines, and seating density.

Benefits of 3D layout planning:

1. Detect circulation bottlenecks early
2. Test different seating densities
3. Visualize lighting and sightlines
4. Align kitchen workflow with service paths

From experience, clients understand layouts much faster when they see them in 3D instead of interpreting technical floor plans.

Final Summary

1. Restaurant layout design standards focus on efficiency, comfort, and safety.
2. Most restaurants follow a 60% dining and 40% kitchen space allocation.
3. Chair spacing of 18–24 inches is widely accepted across hospitality design.
4. Circulation paths should be planned before placing tables.
5. 3D planning tools help test layouts before construction begins.

FAQ

What are restaurant layout design standards?

Restaurant layout design standards are professional guidelines used to organize dining areas, kitchens, and circulation paths to maximize efficiency, safety, and guest comfort.

What is the standard spacing between restaurant tables?

Most restaurant seating spacing standards recommend 24 inches between tables and 18–24 inches between occupied chairs.

How much space should a restaurant allocate to the kitchen?

Many restaurants allocate about 30% of total space to the kitchen, with the full back‑of‑house area reaching roughly 40%.

How many square feet per customer in a restaurant?

Casual dining restaurants typically allocate 15–18 square feet per guest, while fine dining restaurants may require 18–20 square feet.

What is the most efficient restaurant layout?

Layouts with short service routes between the kitchen, service stations, and dining tables tend to perform best operationally.

Why are restaurant floor plan industry benchmarks important?

Restaurant floor plan industry benchmarks help ensure staff efficiency, regulatory compliance, and comfortable dining experiences.

Can small restaurants follow the same layout standards?

Yes, but small restaurants often adjust seating density while maintaining minimum aisle widths and accessibility requirements.

Do restaurant layouts affect profitability?

Yes. Efficient layouts reduce staff travel distance, improve service speed, and allow higher table turnover.
