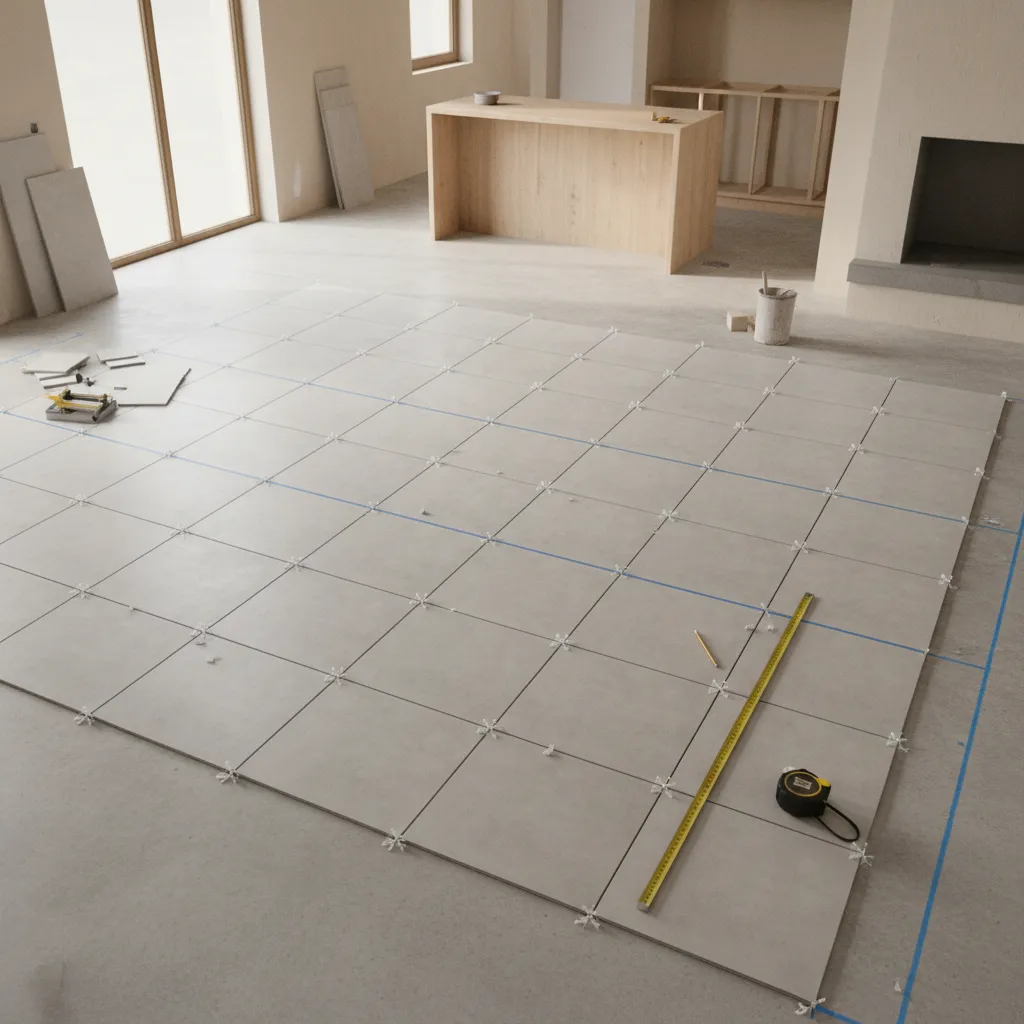

Risk Control: Avoiding Costly Tile Layout Errors Before Installation: A practical tile layout planning guide to prevent expensive installation mistakes before the first tile is set.

Direct Answer

Most costly tile installation problems happen before the first tile is laid. Careful tile layout planning—checking measurements, centering layouts, and testing patterns—prevents uneven cuts, pattern misalignment, and wasted materials.

Professionals treat layout planning as risk control. A few preparation steps can prevent hours of rework and hundreds of dollars in material loss.

Quick Takeaways

1. Most tile failures are layout mistakes, not installation mistakes.
2. A centered layout usually eliminates awkward slivers along walls.
3. Dry‑running your tile pattern exposes problems before adhesive is applied.
4. Small measurement errors multiply across an entire room.
5. Pattern transitions between rooms require pre‑planning.

Introduction

After more than a decade working on residential flooring projects, I can say confidently that tile layout mistakes are one of the most expensive problems homeowners face during renovations.

Ironically, the installation itself is rarely the issue. Most problems start during planning. Tiles end up with awkward slivers against the wall, grout lines drift off center, or patterns shift between rooms. Once adhesive is applied, correcting these mistakes becomes slow, messy, and costly.

This is why professional installers spend significant time on tile layout planning before opening a single bag of thin‑set. Even a simple grid pattern needs a careful strategy.

When I begin a project, I usually start by helping homeowners visualize the exact tile layout on a scaled floor plan. Seeing the layout before installation often reveals problems that measurements alone miss.

In this guide, I'll walk through the most common tile layout mistakes to avoid and the planning steps that prevent them.

save pin

Why Tile Layout Mistakes Can Be Expensive

Key Insight: Tile layout errors become expensive because they are usually discovered after materials are already installed.

Unlike paint or furniture placement, tile installation is permanent. Once thin‑set mortar cures, removing tiles typically destroys both the tile and the substrate.

From experience, these are the most common cost drivers:

1. Material waste from removing incorrectly placed tiles
2. Extra labor for demolition and reinstallation
3. Additional tile purchases when spare pieces run out
4. Uneven visual alignment that reduces property value

The National Tile Contractors Association consistently emphasizes layout planning as the first step of professional installation standards. Their field guidelines stress dry layout and centering lines before applying adhesive.

One hidden cost many homeowners miss: misaligned layouts often force additional tile cuts, which increases both labor time and tile breakage.

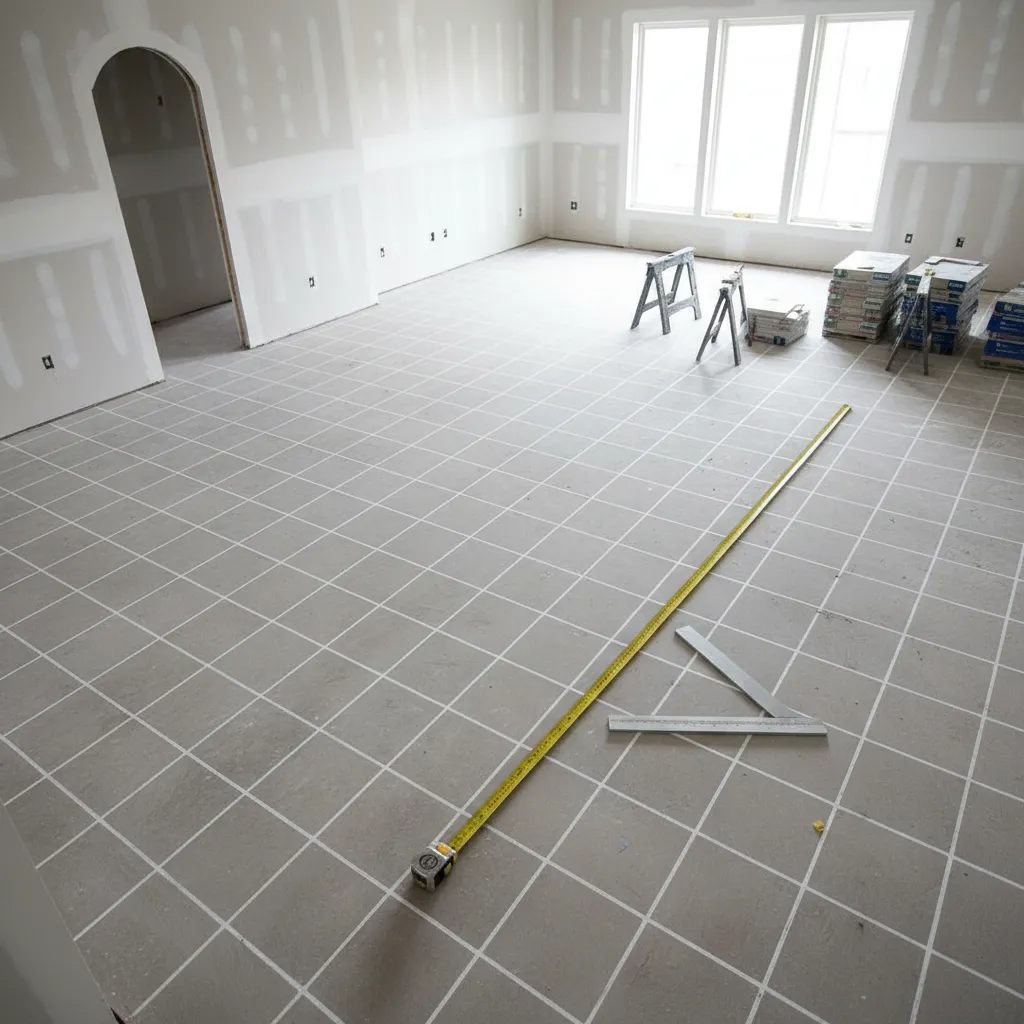

Checking Room Measurements Before Layout

Key Insight: Even a half‑inch measurement error can shift an entire tile grid across the room.

Rooms are rarely perfectly square. Walls may taper slightly, and corners are often off by several degrees—especially in older homes.

Before finalizing a tile layout, I typically measure:

1. Length of each wall
2. Diagonal corner measurements
3. Doorway alignment
4. Centerline across the room

If diagonals differ, the room is not square. That means the layout must compensate visually rather than follow the wall exactly.

Many installers now map tile cuts with a detailed 3D floor layout previewbefore installation. This approach makes irregular rooms far easier to plan.

save pin

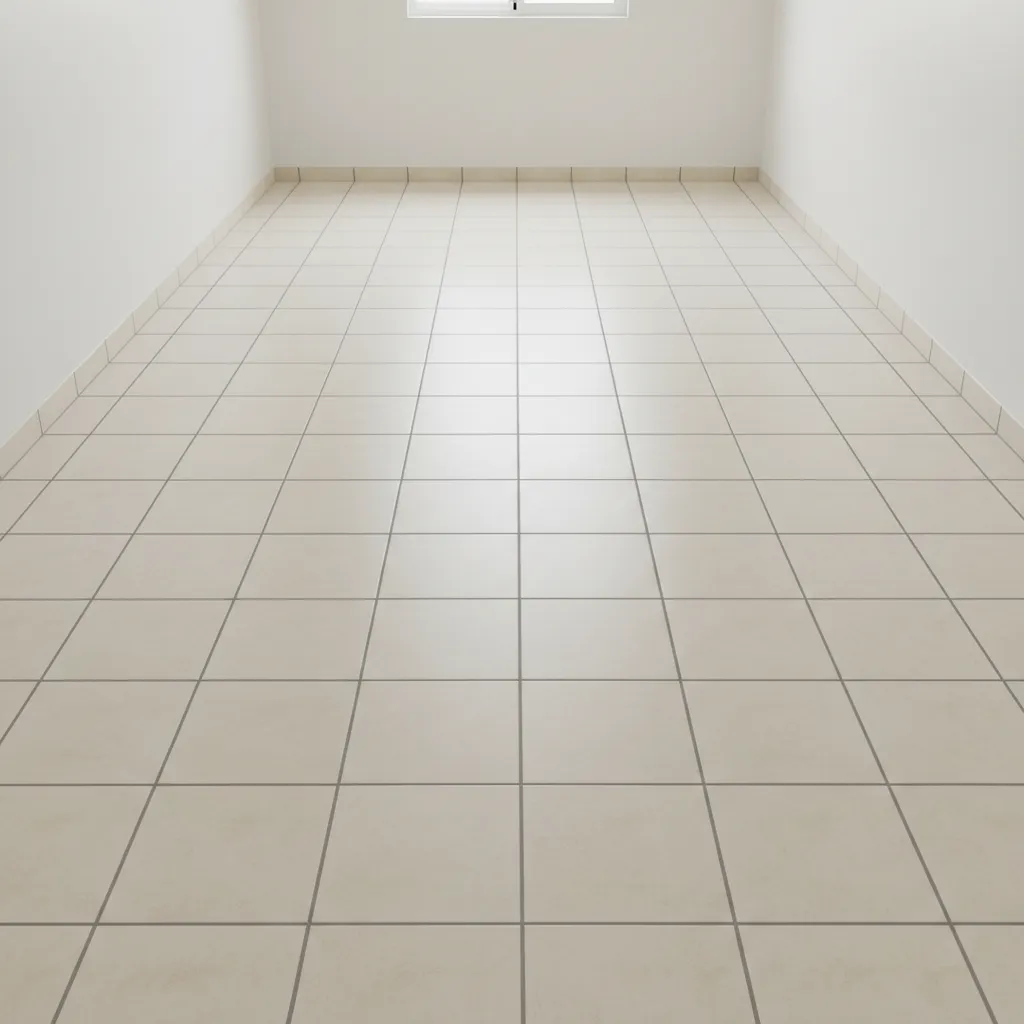

Avoiding Narrow Tile Slivers Along Walls

Key Insight: Narrow tile strips along walls are the clearest sign of poor layout planning.

One of the most common tile layout mistakes to avoid is starting from the wall instead of the room center.

When tiles are installed starting from one edge, the opposite wall often ends up with tiny cut pieces that look awkward and break easily.

The professional approach usually follows these steps:

1. Find the center of the room
2. Snap perpendicular chalk lines
3. Lay tiles outward from the center
4. Adjust slightly to balance wall cuts

The goal is balanced cuts on both sides of the room.

In most professional layouts, edge pieces should be at least half a tile wide whenever possible.

save pin

Preventing Pattern Misalignment Across Rooms

Key Insight: Tile patterns should align across connected spaces whenever flooring is continuous.

One mistake I see frequently in DIY installations is treating each room independently. That works for isolated bathrooms but becomes a problem in open‑plan homes.

Imagine a hallway tile pattern that shifts slightly when entering the kitchen. Even a one‑inch offset is noticeable.

Before installation, evaluate:

1. Sightlines from entry points
2. Doorway thresholds
3. Pattern continuity between rooms
4. Transition strips or expansion joints

For example, many homeowners now experiment with different kitchen tile layout scenarios before installation to confirm pattern alignment with adjacent floors.

Planning transitions early prevents awkward grout line shifts later.

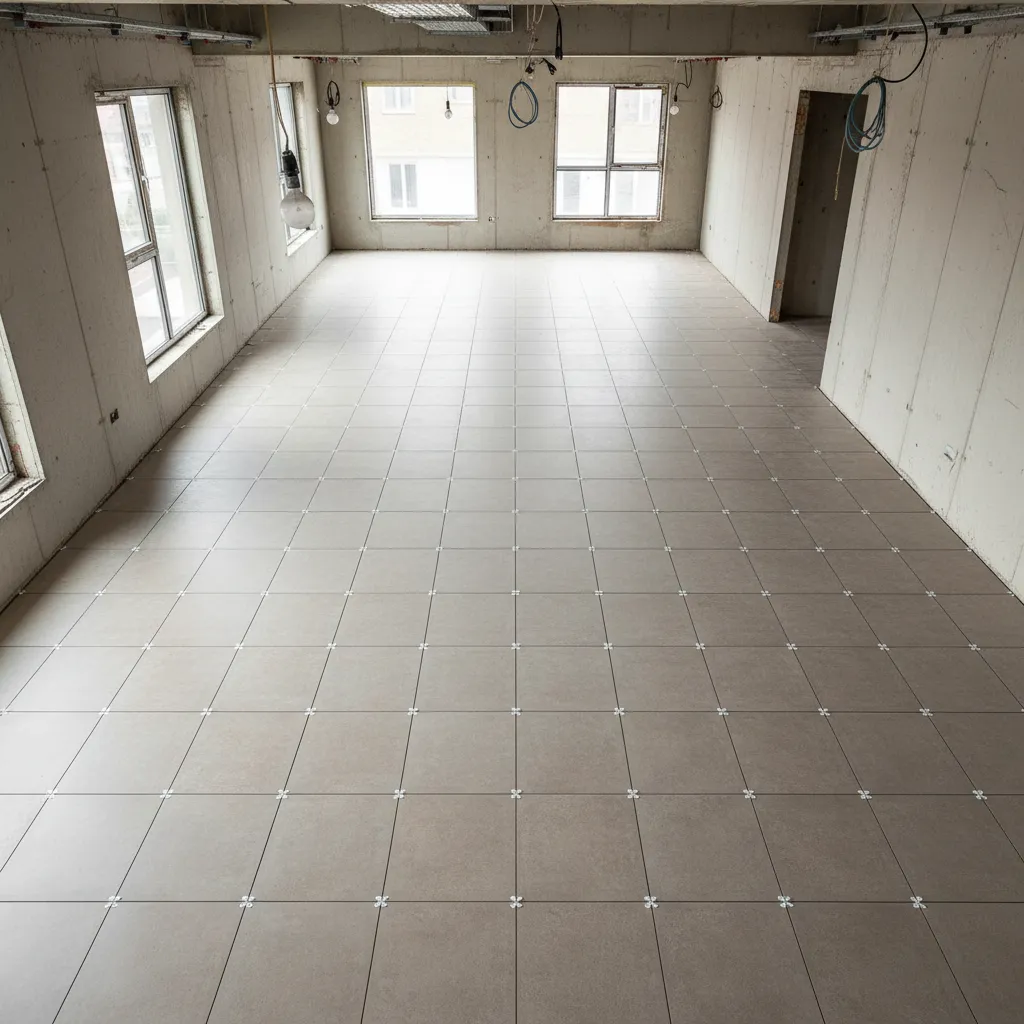

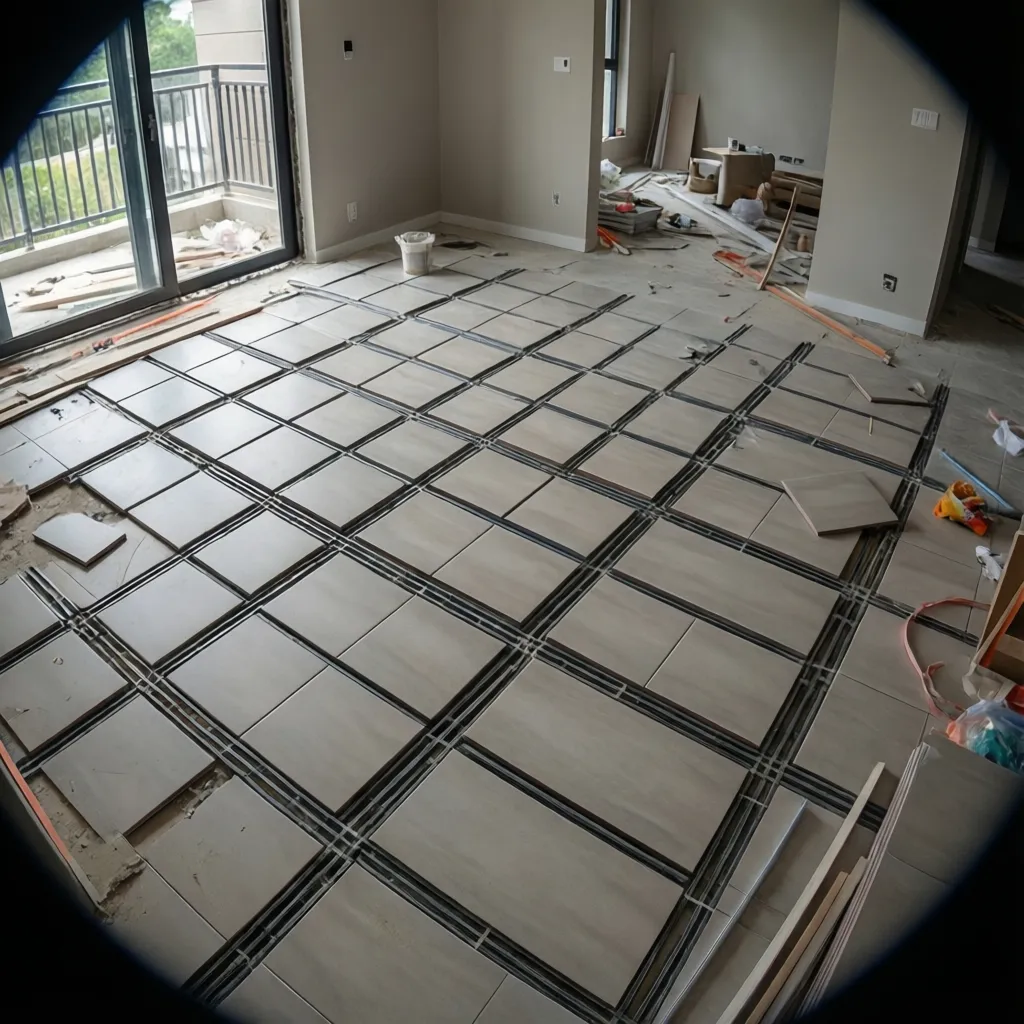

Testing Layout with a Full Dry Run

Key Insight: A dry layout reveals layout flaws faster than any drawing or measurement.

Professional installers almost always perform a dry run before installation. Tiles are placed on the floor without adhesive to confirm alignment and spacing.

During a dry layout, check:

1. Wall cut sizes
2. Pattern symmetry
3. Doorway alignment
4. Grout spacing
5. Visual balance across the room

This step usually takes less than an hour but can prevent a full day of corrections later.

save pin

Answer Box

The safest way to prevent tile layout mistakes is to measure carefully, center the layout, and perform a full dry run before installation. These steps reveal alignment issues and prevent awkward tile cuts.

Most professional installers consider layout planning the most important stage of tile installation.

Pre Installation Checklist for Tile Layout Accuracy

Key Insight: A short planning checklist prevents the majority of tile installation planning errors.

Before installing tiles, I recommend verifying these items:

1. Room measurements confirmed twice
2. Centerlines snapped with chalk
3. Edge tile sizes checked for balance
4. Pattern alignment across rooms reviewed
5. Dry layout tested with spacers
6. Tile quantities verified with extra waste allowance

Even experienced installers rely on checklists because layout mistakes compound quickly once installation begins.

Final Summary

1. Tile layout planning prevents the most expensive installation errors.
2. Centered layouts reduce awkward wall cuts.
3. Dry‑running the layout exposes problems early.
4. Connected rooms require coordinated pattern alignment.
5. Measurement accuracy is critical for balanced layouts.

FAQ

What are the most common tile layout mistakes to avoid?

Starting from a wall, ignoring room squareness, and failing to test a dry layout are the most common tile layout mistakes.

How do you prevent small tile cuts along walls?

Start your tile layout from the room center and adjust the grid so edge pieces remain at least half a tile wide.

Should tile layouts start from the wall or the center?

Most professionals start from the center of the room to keep tile cuts balanced on both sides.

Is a dry tile layout really necessary?

Yes. A dry run helps identify alignment issues, uneven cuts, and pattern problems before installation.

How do professionals plan tile floor layouts?

They measure carefully, snap centerlines, test patterns, and perform a full dry layout before applying mortar.

How much extra tile should be ordered?

Most installers recommend ordering 10–15% extra tile to account for cuts, breakage, and layout adjustments.

Can tile layout mistakes be fixed after installation?

Fixing tile layout mistakes usually requires removing installed tiles, which is why planning is critical.

What tools help prevent tile layout problems?

Digital floor planners, chalk lines, and layout spacers all help prevent tile layout problems before installation.

References

1. National Tile Contractors Association Installation Guidelines
2. Tile Council of North America Handbook for Ceramic Tile Installation
3. Residential flooring installation field experience (Daniel Harris projects)
