Risk Factors When Installing Offset Bathroom Vanities and How to Avoid Them: Practical planning tips to prevent plumbing conflicts, sizing mistakes, and countertop alignment problems during offset vanity installation.

Direct Answer

The biggest risks when installing an offset bathroom vanity come from plumbing misalignment, incorrect cabinet sizing, and countertop cutout mistakes. These problems typically appear when the sink offset is chosen before verifying wall plumbing and clearance measurements. Careful layout planning and pre‑installation measurement checks can prevent most costly installation errors.

Quick Takeaways

1. Most offset vanity installation problems start with plumbing locations that don't match the sink offset.
2. Cabinet depth and wall clearance are frequently underestimated in small bathrooms.
3. Countertop cutouts must align perfectly with both sink placement and faucet drilling.
4. A detailed measurement checklist can eliminate most installation risks.
5. Digital layout planning reduces layout errors before renovation begins.

Introduction

After working on dozens of bathroom remodels over the past decade, I've noticed that offset bathroom vanities cause more installation surprises than standard center‑sink cabinets. The idea seems simple—move the sink to one side to create more counter space—but the reality is that plumbing, cabinet dimensions, and countertop fabrication suddenly become less forgiving.

The most common issue I see isn't the vanity itself. It's the mismatch between the sink offset and the existing plumbing rough‑in. Once drywall, tile, or stone countertops are installed, fixing that mistake becomes expensive fast.

Another problem appears during layout planning. Many homeowners assume the cabinet simply slides into the space like a normal vanity. But when the sink shifts left or right, the faucet, drain, and P‑trap also shift—sometimes directly into studs or drawers.

Before starting any remodel, I strongly recommend mapping the bathroom layout digitally. Visual planning helps you catch conflicts early. Tools that allow you to experiment with vanity placement—like this interactive planner that helps visualize bathroom layouts before construction begins (https://www.coohom.com/case/bathroom-design-tool)—can save both time and renovation budget.

In this guide, I'll break down the most common offset bathroom vanity installation risks I encounter in real projects—and more importantly, how to avoid them.

save pin

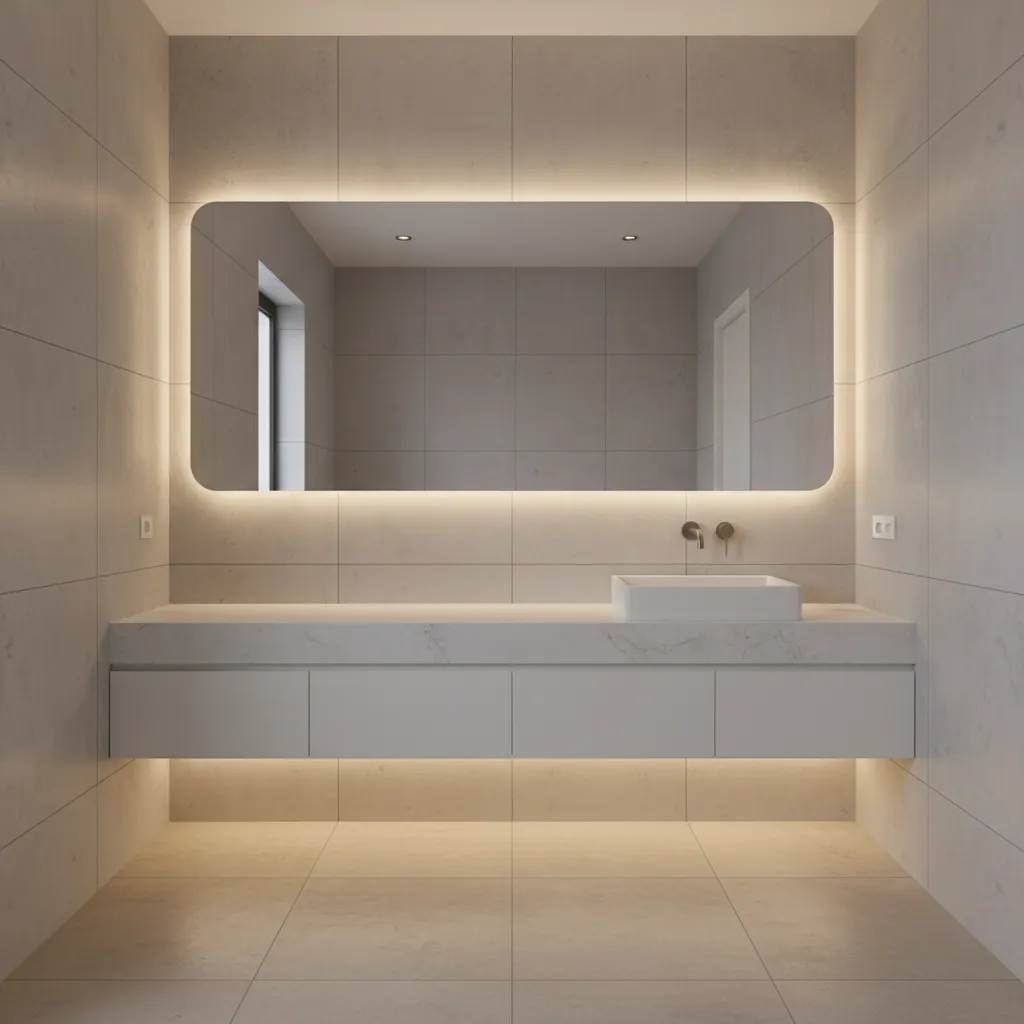

Common Risks When Choosing an Offset Bathroom Vanity

Key Insight: The biggest mistake happens before installation even begins—choosing an offset layout without confirming room dimensions and plumbing positions.

Offset vanities are popular because they create asymmetrical counter space, which can be useful in tight bathrooms. However, they also introduce structural and layout variables that standard vanities don't have.

Here are the risks I see most often:

1. Drain pipe positioned directly behind drawers
2. Sink basin interfering with cabinet framing
3. Faucet drilling placed too close to walls
4. Mirror and lighting no longer centered with the sink
5. Countertop overhang becoming uneven

According to the National Kitchen & Bath Association (NKBA), plumbing alignment and clearances are among the top causes of bathroom remodeling delays. Offset vanities increase that risk because the plumbing centerline shifts away from the cabinet center.

Designers often solve this by planning vanity layouts in advance using digital floor‑planning tools that allow precise measurement adjustments before construction begins.

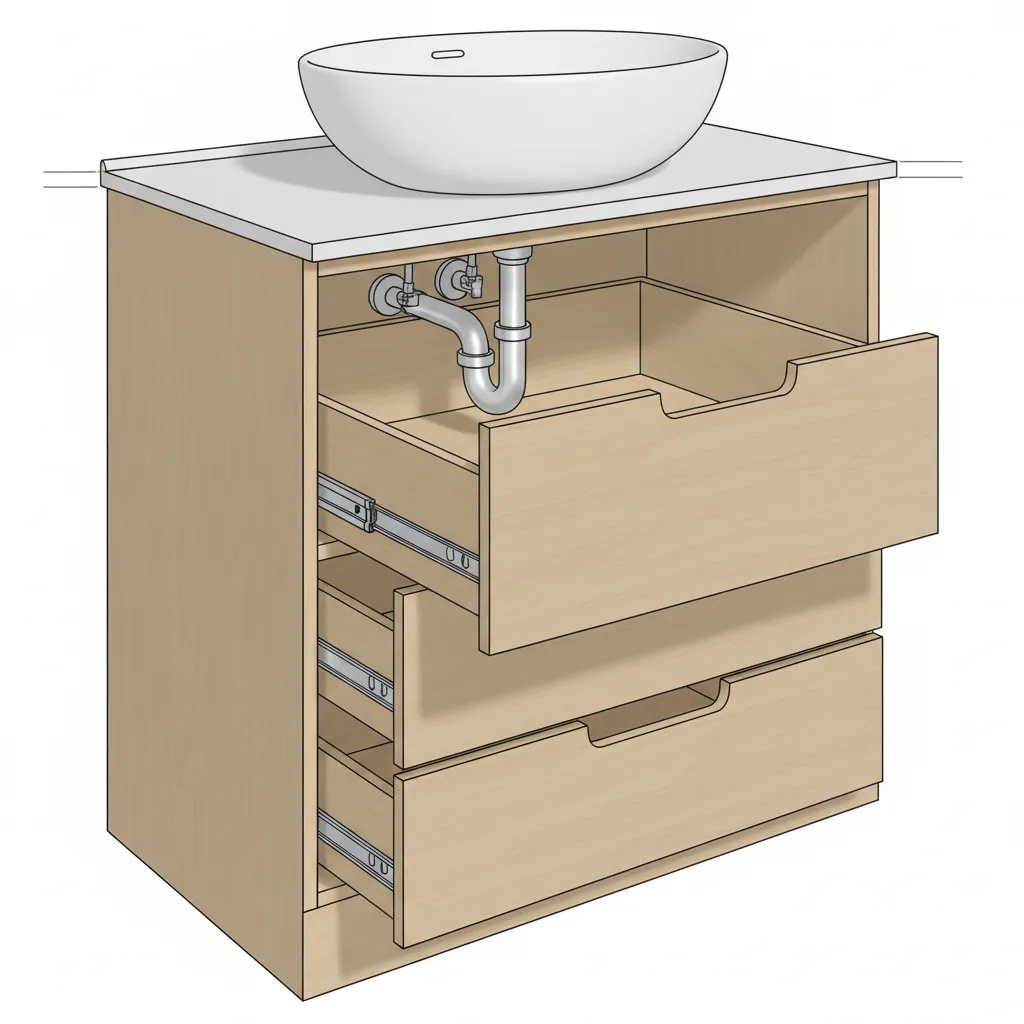

Plumbing Location Conflicts With Sink Offset

Key Insight: Plumbing rough‑ins are usually centered, while offset sinks are not—this mismatch creates the most expensive installation problems.

Most homes are built with centered plumbing because traditional vanities place the sink in the middle. When installing an offset vanity, the drain and water supply lines may need to move several inches.

If that shift isn't planned early, the following problems appear:

1. P‑traps colliding with cabinet drawers
2. Drain pipes entering cabinet side panels
3. Water supply lines blocking storage space
4. Extra plumbing bends causing drainage issues

In older homes, moving plumbing may also require opening finished walls or relocating studs. That turns a simple vanity swap into a plumbing renovation.

Before buying the vanity, I recommend measuring three key dimensions:

1. Distance from wall corner to plumbing center
2. Cabinet interior width
3. Offset distance between cabinet center and sink center

Running a quick layout simulation with a bathroom floor planning tool that allows precise fixture placement can reveal these conflicts instantly (https://www.coohom.com/case/free-floor-plan-creator).

save pin

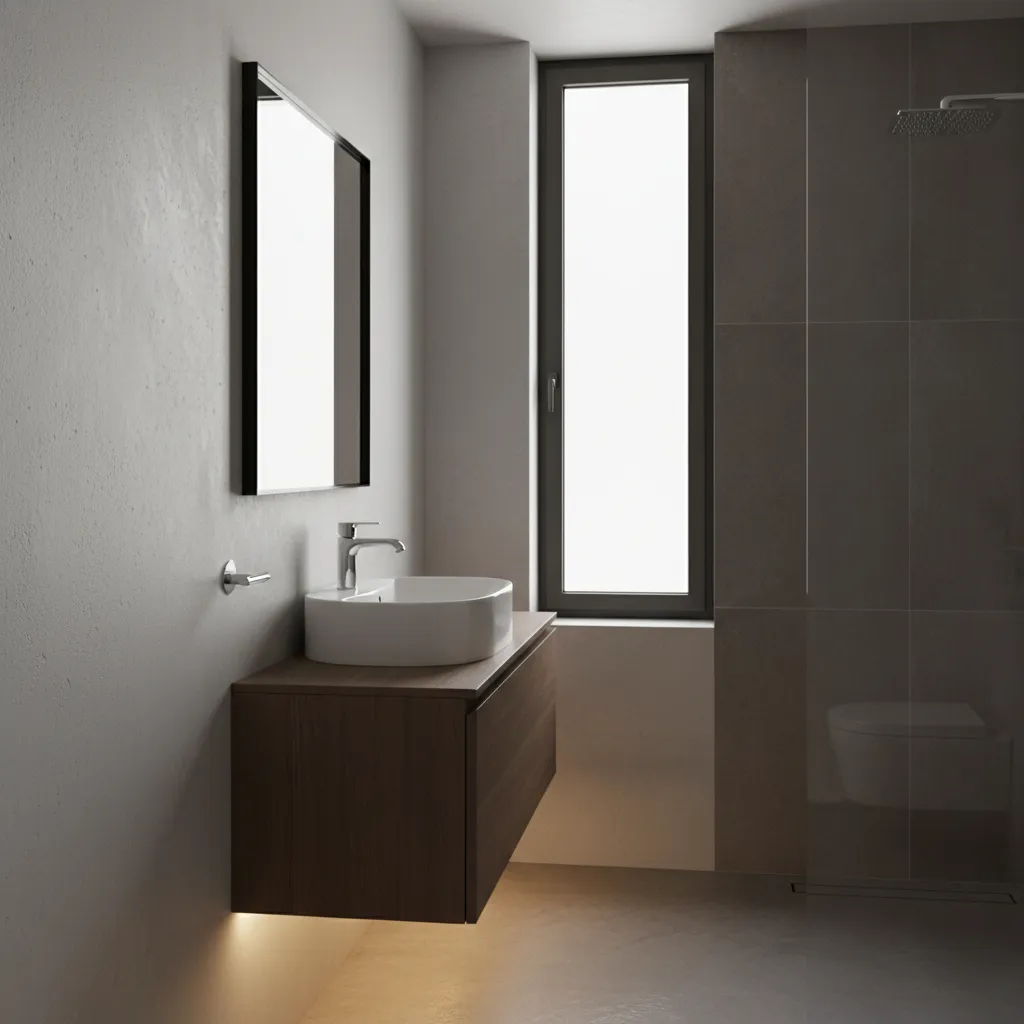

Cabinet Size and Wall Clearance Risks

Key Insight: Offset vanities often fail installation because side clearances and door swing space were not calculated correctly.

Many bathrooms—especially in apartments—have tight wall spacing. When a sink shifts to one side, the faucet and bowl may sit dangerously close to a wall.

This creates several usability problems:

1. Faucet handles hitting walls
2. Limited cleaning access around the sink
3. Mirror placement becoming visually awkward
4. Cabinet doors unable to open fully

Professional designers typically leave at least:

1. 4–6 inches between sink edge and adjacent wall
2. 2 inches between faucet handle swing and wall
3. 18–24 inches of clear standing space in front of the vanity

Ignoring these spacing rules doesn't just affect comfort—it can violate building codes in some regions.

save pin

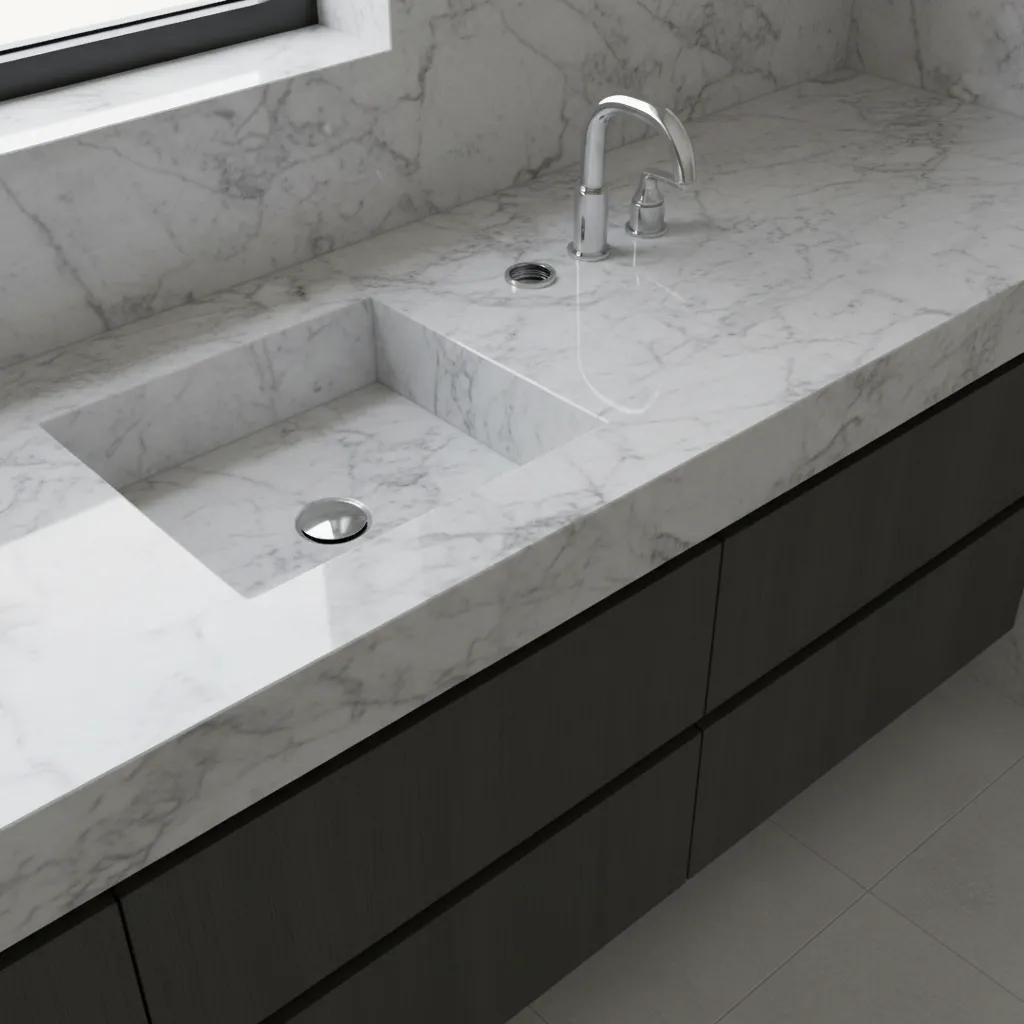

Countertop Cutout and Sink Alignment Issues

Key Insight: Countertop fabrication errors are more likely with offset sinks because every cutout measurement must be exact.

Stone fabricators usually rely on precise templates. When the sink is centered, margin errors are easier to hide. With offset layouts, a small mistake becomes visually obvious.

Common fabrication mistakes include:

1. Sink cutout shifted too close to the edge
2. Incorrect faucet hole alignment
3. Backsplash seams not aligning with the sink
4. Uneven countertop overhangs

In high‑end projects, I always confirm three measurements before ordering countertops:

1. Exact sink centerline
2. Distance from sink edge to cabinet frame
3. Faucet hole spacing requirements

Creating a 3D vanity preview helps visualize the final alignment before fabrication begins. This type of planning layout used by professional designers can reveal symmetry problems early (https://www.coohom.com/case/3d-render-home).

save pin

Pre‑Installation Checklist to Prevent Costly Errors

Key Insight: A simple pre‑installation checklist can eliminate most offset vanity installation risks.

Before installation day, I walk through a quick verification process that prevents nearly every issue mentioned earlier.

Offset Vanity Installation Checklist:

1. Confirm plumbing centerline vs sink centerline
2. Measure cabinet interior clearance for P‑trap
3. Verify faucet hole spacing and wall clearance
4. Ensure drawer boxes avoid plumbing path
5. Check countertop overhang symmetry
6. Confirm mirror and lighting alignment

This takes about 20 minutes but can prevent hundreds—or sometimes thousands—of dollars in fixes.

Professional Tips for Safe Offset Vanity Installation

Key Insight: The safest offset vanity installations are planned like full layout projects, not simple cabinet replacements.

Here are a few practices experienced designers follow:

1. Always verify plumbing before purchasing the vanity.
2. Choose cabinets with removable back panels for easier plumbing adjustments.
3. Leave extra wall clearance for faucet maintenance.
4. Align mirrors and lighting with the sink—not the cabinet center.
5. Use full‑scale layout drawings before ordering countertops.

One overlooked detail: visual balance. When the sink moves to one side, lighting and mirrors must shift too. Otherwise the entire vanity wall feels misaligned.

Answer Box

Offset bathroom vanity installation risks usually come from plumbing misalignment, cabinet clearance problems, and countertop cutout errors. Measuring plumbing positions and planning the layout before purchase prevents most installation mistakes.

Final Summary

1. Offset vanities require more precise planning than centered sinks.
2. Plumbing alignment is the most common installation problem.
3. Wall clearance and cabinet size mistakes affect usability.
4. Countertop fabrication errors are harder to hide with offset sinks.
5. A detailed checklist prevents most renovation surprises.

FAQ

1. What are the biggest offset bathroom vanity installation risks?

Plumbing misalignment, cabinet clearance problems, and countertop cutout mistakes are the most common risks during offset bathroom vanity installation.

2. Can I install an offset vanity without moving plumbing?

Sometimes, but only if the existing plumbing lines up with the sink offset. Many installations require small plumbing adjustments.

3. How far should an offset sink be from the wall?

Ideally at least 4–6 inches. Less space can make faucet use and cleaning difficult.

4. Are offset vanities harder to install than centered vanities?

Yes. Offset bathroom vanity installation risks increase because plumbing and countertop measurements must be more precise.

5. Do offset vanities reduce storage space?

Sometimes. Plumbing placement may block drawers on the sink side of the cabinet.

6. Should mirrors be centered with the cabinet or the sink?

Always center the mirror with the sink to maintain visual balance.

7. What measurement mistakes happen most often?

Incorrect sink centerline measurements and ignoring faucet wall clearance are the most common errors.

8. How can I avoid mistakes installing offset sink vanities?

Measure plumbing locations first, verify cabinet interior space, and plan the layout before ordering countertops.

References

1. National Kitchen & Bath Association Bathroom Planning Guidelines
2. International Residential Code – Bathroom Fixture Spacing
3. NKBA Kitchen and Bathroom Design Standards
