Rock Light Installation Practices Used by Off-Road Shops: Professional wiring, mounting, and protection methods used by off‑road shops to install durable rock light systems.

Direct Answer

Professional off-road shops install rock lights by using fused power distribution, sealed wiring connections, relays, and carefully routed cables to protect the system from mud, vibration, and water exposure. The goal is reliability during harsh trail conditions, which is why professional installations prioritize electrical protection and structured cable routing rather than simply connecting lights to a battery.

Quick Takeaways

1. Professional installers almost always use relays and fuse protection for rock light systems.
2. Wire routing and waterproof connections matter more than the lights themselves.
3. Mounting position determines how well rock lights illuminate obstacles.
4. Labor cost is mostly driven by cable routing and protection work.
5. Professional installs prioritize durability over the fastest wiring method.

Introduction

After working with dozens of off-road vehicle owners and shop installers over the years, one thing becomes clear: rock light installation is rarely as simple as most online tutorials make it seem. A professional rock light installation is designed to survive water crossings, vibration, mud, and constant suspension movement.

The biggest mistake DIY installers make is focusing only on the lights themselves. In reality, most professional off-road shops spend far more time on wiring protection, mounting locations, and electrical load management.

If you look at professional workflows used by established off-road shops, you will see that the lighting system is treated more like a small electrical network than a set of accessories. That means relays, fuse blocks, distribution points, and carefully planned cable routing.

Interestingly, the same planning mindset used when professionals plan lighting layout and placement in a realistic space visualization workflowalso applies to vehicle lighting: positioning determines performance just as much as the hardware itself.

In this article I'll break down the real-world installation practices used by off-road shops, including wiring standards, mounting strategies, labor workflow, and what actually drives installation cost.

save pin

How Professional Off-Road Shops Install Rock Lights

Key Insight: Professional installers approach rock lights as a complete electrical system rather than a simple accessory add-on.

In most shops, installation starts with evaluating the vehicle's electrical capacity and deciding how the lighting circuit should be integrated with the existing system. Rather than tapping random power sources, installers typically create a dedicated circuit.

Typical professional installation workflow:

1. Evaluate vehicle battery and available power distribution points
2. Select mounting positions near suspension components
3. Plan cable routing paths along frame rails
4. Install fused power source and relay control
5. Mount lights with vibration-resistant hardware
6. Route waterproof wiring harness
7. Test voltage stability and switch operation

Many shops also simulate light spread before final mounting, similar to how designers preview lighting when using tools like a 3D layout planning workflow for accurate spatial positioning. The same principle applies: lighting performance depends heavily on placement.

Standard Electrical Protection Used by Installers

Key Insight: Electrical protection is the biggest difference between a professional rock light installation and a quick DIY setup.

Trail conditions expose wiring to water, dust, heat, and vibration. Without proper protection, electrical failures are almost guaranteed over time.

Most professional installations include these protective elements:

1. Inline fuse or fuse block near battery
2. Automotive relay to isolate switch circuits
3. Heat‑shrink sealed connectors
4. Split‑loom wire protection
5. Frame‑mounted cable clamps
6. Waterproof connectors near lights

According to common off-road electrical standards recommended by manufacturers like Baja Designs and KC HiLiTES, proper circuit protection significantly reduces wiring failures in off-road lighting systems.

save pin

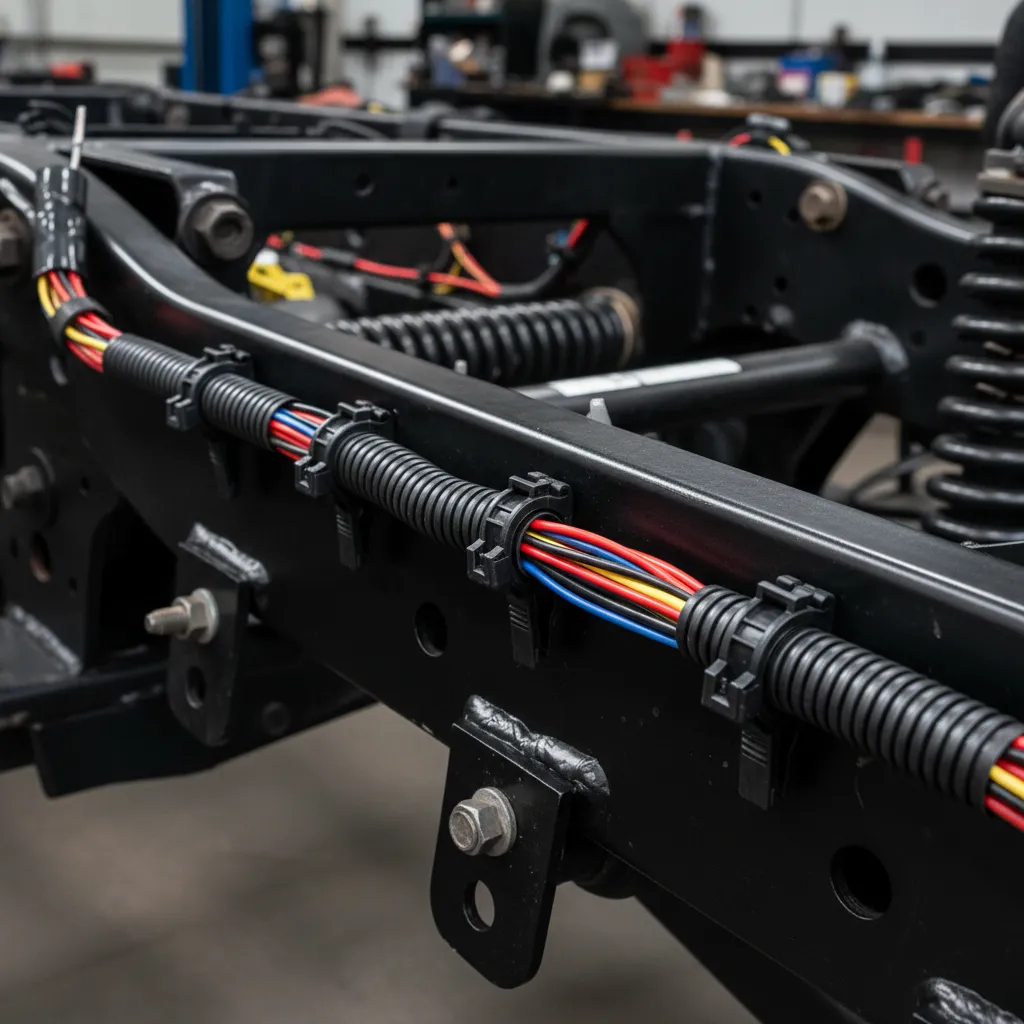

Professional Mounting and Cable Routing Techniques

Key Insight: Correct cable routing is often more important than the rock light brand itself.

One hidden mistake I see frequently is routing wires along suspension components or sharp frame edges. Professional installers avoid these failure points by following structured routing paths.

Professional cable routing practices include:

1. Routing along frame rails instead of suspension arms
2. Leaving slack near moving suspension parts
3. Using rubber grommets through metal panels
4. Securing wiring every 8–12 inches
5. Avoiding heat sources like exhaust systems

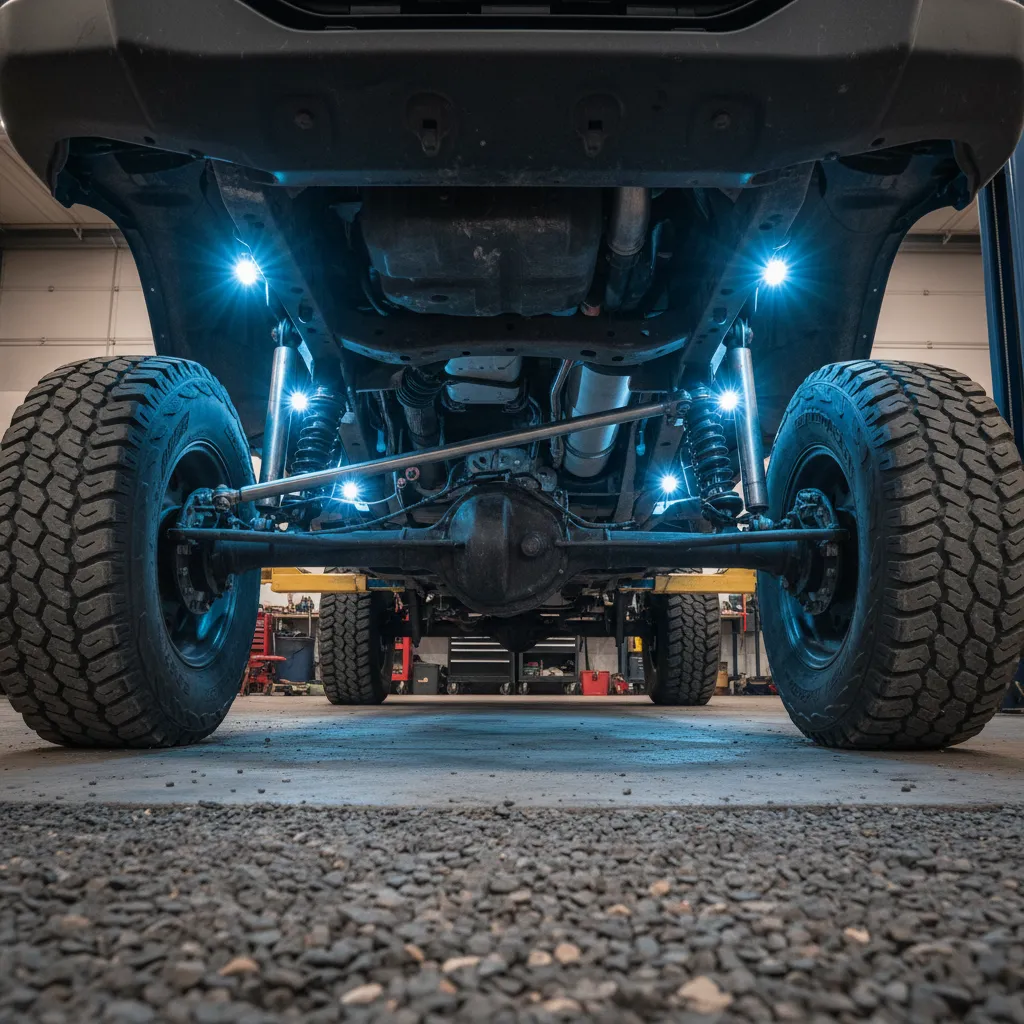

Mounting positions are also strategic. The most common locations include:

1. Wheel wells
2. Frame rails
3. Shock mounts
4. Bumper underside

These positions maximize ground visibility while minimizing direct rock impacts.

save pin

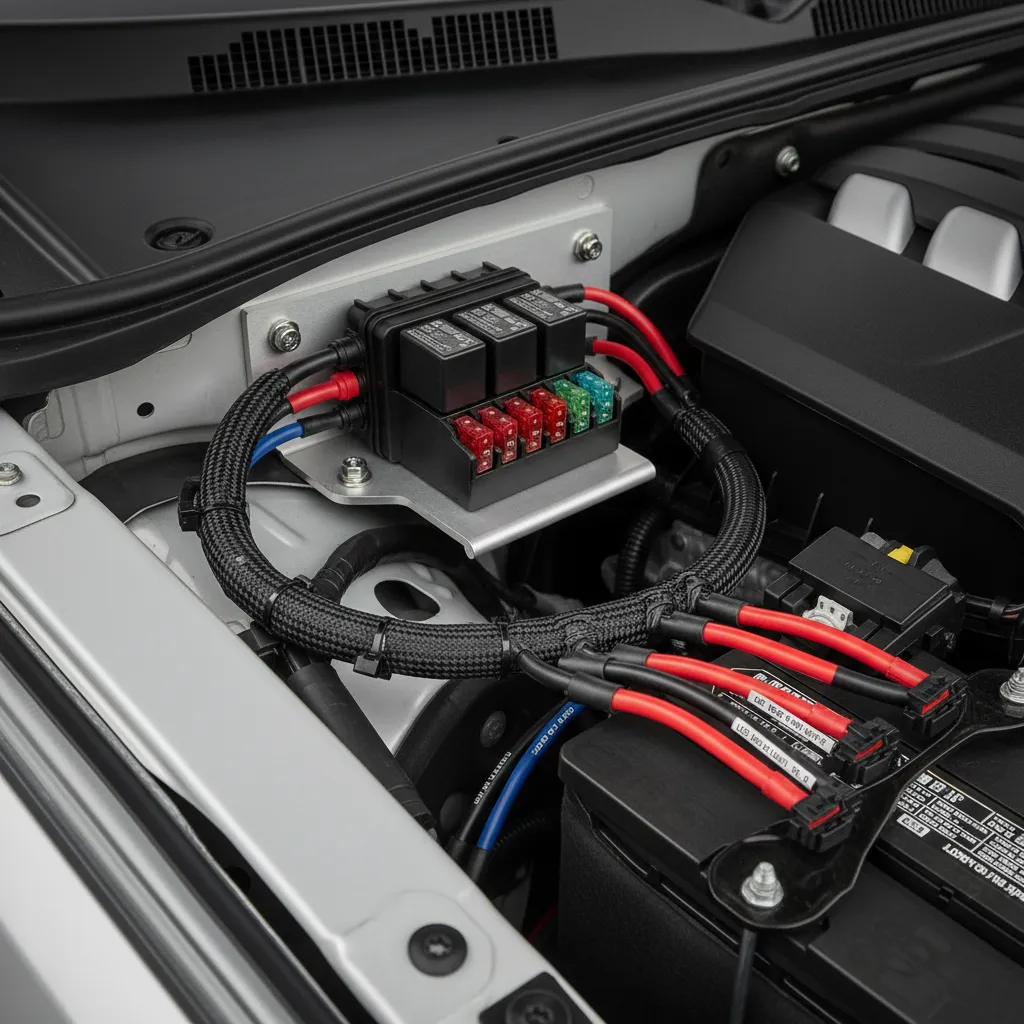

Why Shops Often Use Relays and Distribution Blocks

Key Insight: Relays protect vehicle switches and stabilize power delivery to multiple lights.

A relay acts as an electrically controlled switch that allows a small dashboard switch to control a high-current lighting circuit. Without it, switch contacts can wear out quickly.

Professional installers typically use:

1. 30A or 40A automotive relay
2. Dedicated fuse block
3. Ground distribution point
4. Weatherproof relay housing

This setup keeps current flow stable and makes troubleshooting far easier. The concept is similar to centralized planning systems used in a structured layout planning environment that organizes multiple elements into one control point.

Typical Labor Steps in a Rock Light Installation

Key Insight: Most installation time goes into routing and protecting wiring.

A professional rock light installation usually takes between 2 and 5 hours depending on vehicle type and number of lights.

Typical labor steps:

1. Vehicle lift and underbody inspection
2. Mounting bracket installation
3. Running main power cable
4. Installing relay and fuse protection
5. Routing individual light cables
6. Waterproof connector installation
7. Testing and night visibility check

Vehicles with skid plates, lift kits, or complex suspension systems may require additional routing work.

Cost Breakdown of Professional Rock Light Installs

Key Insight: Most of the cost comes from labor and electrical protection components rather than the lights themselves.

Typical cost ranges at professional off-road shops:

1. Basic install (4 lights): $150–$300 labor
2. Full 8-light system: $300–$600 labor
3. Advanced multi-zone lighting: $600–$1,000+

Cost factors include:

1. Number of lights
2. Vehicle frame accessibility
3. Switch panel integration
4. Waterproof connector upgrades
5. Relay and fuse block systems

Answer Box

Professional rock light installations prioritize electrical protection, relay-controlled circuits, and carefully routed waterproof wiring. These practices dramatically improve reliability during off-road driving compared with basic battery-connected setups.

Final Summary

1. Professional shops treat rock lights as a full electrical system.
2. Relays and fuse protection are industry-standard practices.
3. Proper cable routing prevents most long-term failures.
4. Labor cost mainly comes from wiring protection work.
5. Mounting location strongly affects lighting performance.

FAQ

1. How do off road shops wire rock lights?

Most shops run a fused power line from the battery, connect a relay, then distribute power to each light through a protected wiring harness.

2. What is the industry standard rock light wiring method?

The common approach uses a relay, inline fuse, sealed connectors, and frame-mounted cable routing for durability.

3. How long does a professional rock light installation take?

Most installations take between two and five hours depending on the number of lights and vehicle layout.

4. How much does a professional rock light installation cost?

Labor usually ranges from $150 to $600 depending on system complexity and wiring work.

5. Do professional installers use relays for rock lights?

Yes. Relays protect dashboard switches and allow stable power delivery to multiple lights.

6. Where are rock lights usually mounted?

Common locations include wheel wells, frame rails, and suspension mounting points to illuminate obstacles near tires.

7. Can rock lights be wired directly to a battery?

Technically yes, but professional installers rarely recommend it because it lacks circuit protection.

8. What makes a professional LED rock light setup more reliable?

Weatherproof connectors, proper grounding, protected cable routing, and relay-controlled circuits significantly increase durability.
