Roll-Up Doors vs Sectional Doors in Floor Plan Design: How the right door choice affects space efficiency, traffic flow, and structural planning in modern building layouts

Direct Answer

Roll-up doors typically require less interior clearance and work better in tight industrial layouts, while sectional doors need ceiling tracks but provide better insulation and smoother daily operation. In floor plan design, the right choice depends on available overhead space, workflow patterns, and structural constraints.

For warehouses and compact industrial layouts, roll‑up doors usually preserve more usable floor area. For garages, workshops, and climate‑controlled spaces, sectional doors often integrate better with building systems.

Quick Takeaways

1. Roll-up doors save interior ceiling space and suit compact industrial floor plans.
2. Sectional doors require track clearance but offer better insulation and sealing.
3. Traffic flow and equipment movement often determine the better door type.
4. Structural framing requirements differ significantly between the two systems.
5. Maintenance costs vary depending on frequency of use and environmental exposure.

Introduction

In over a decade of designing residential garages, workshops, and industrial facilities, one question appears constantly during early planning: should the floor plan use roll‑up doors or sectional doors?

The decision sounds simple, but it can quietly reshape an entire building layout. Door systems affect ceiling structure, wall clearances, traffic flow, and even long‑term maintenance costs.

I’ve seen projects where a poorly chosen door type forced major structural revisions after construction started. In one warehouse retrofit, switching from sectional doors to roll‑up doors freed almost 12 feet of ceiling clearance that forklifts desperately needed.

If you're still shaping the building layout, it helps to visualize door placement early using a visual planning workflow for mapping building layouts in 3D. Seeing overhead clearance and circulation paths often reveals problems that 2D plans hide.

This guide breaks down the real design differences between roll‑up and sectional doors—from space requirements to workflow impact—based on what actually matters during floor plan development.

save pin

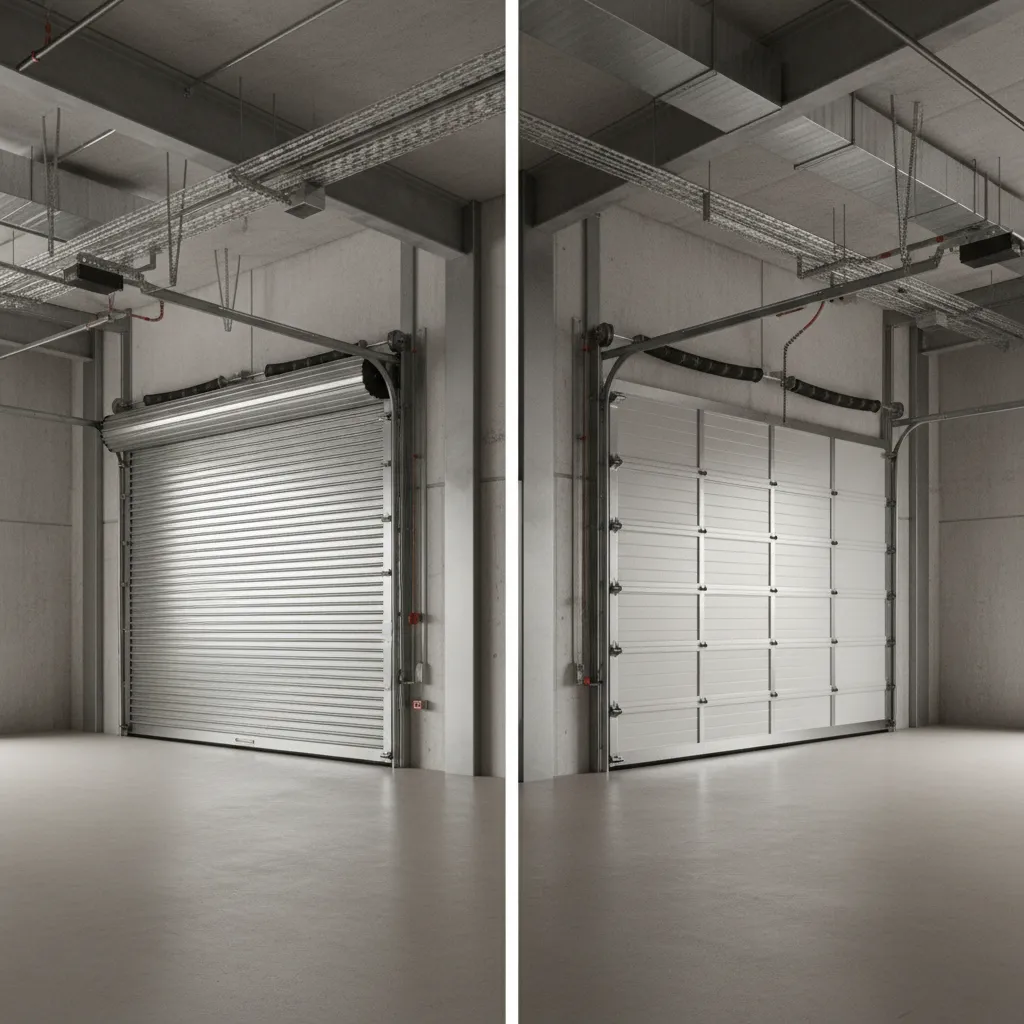

Overview of Roll-Up Doors and Sectional Doors

Key Insight: Roll‑up doors coil into a compact drum above the opening, while sectional doors slide along ceiling tracks, which directly affects how ceiling space can be used.

Although both door types close the same opening, their mechanical systems behave very differently within a building plan.

Roll‑up doors are built from narrow horizontal slats that wrap around a drum above the doorway. Sectional doors use large hinged panels that travel along overhead tracks.

1. Roll-Up Doors
2. Coil vertically into a drum
3. Minimal ceiling interference
4. Common in warehouses and storage facilities
5. Sectional Doors
6. Panels slide along tracks
7. Require ceiling clearance
8. Common in garages and climate‑controlled buildings

Design implication: If your building relies heavily on overhead mechanical systems, lighting grids, or mezzanines, roll‑up doors usually integrate more easily.

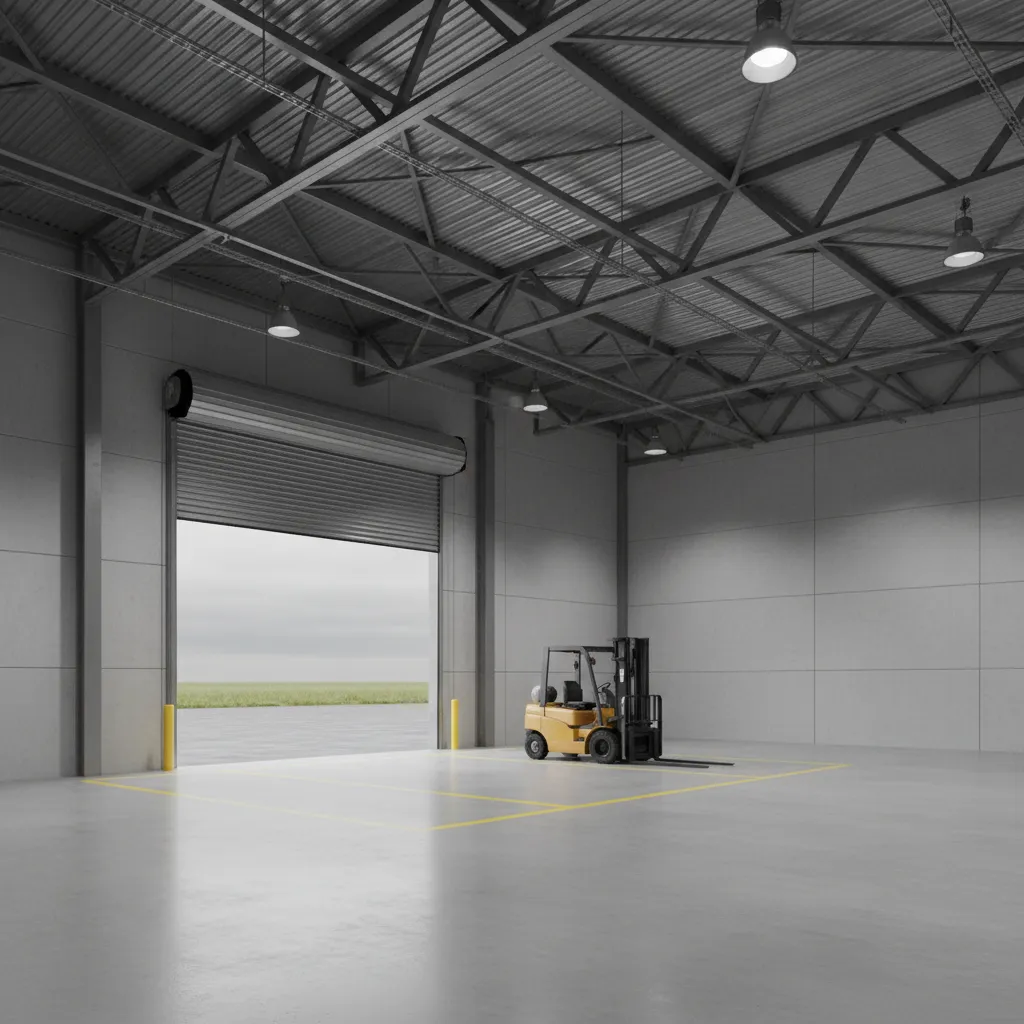

Space Requirements in Floor Plans

Key Insight: The biggest floor plan difference between roll‑up and sectional doors is overhead clearance, not wall width.

This is where many floor plan mistakes happen. Designers often focus on the door opening width but forget the ceiling mechanics.

Typical clearance requirements:

1. Roll‑up door drum: 12–24 inches above opening
2. Sectional door tracks: often extend 8–15 feet into the building
3. Sectional ceiling height requirement: typically 12–18 inches above opening

That track depth can disrupt lighting plans, sprinkler systems, or storage racks.

When planning layouts, I usually test both options using a digital tool for testing multiple door layouts inside a floor plan. Seeing the track projection visually helps clients immediately understand the trade‑offs.

save pin

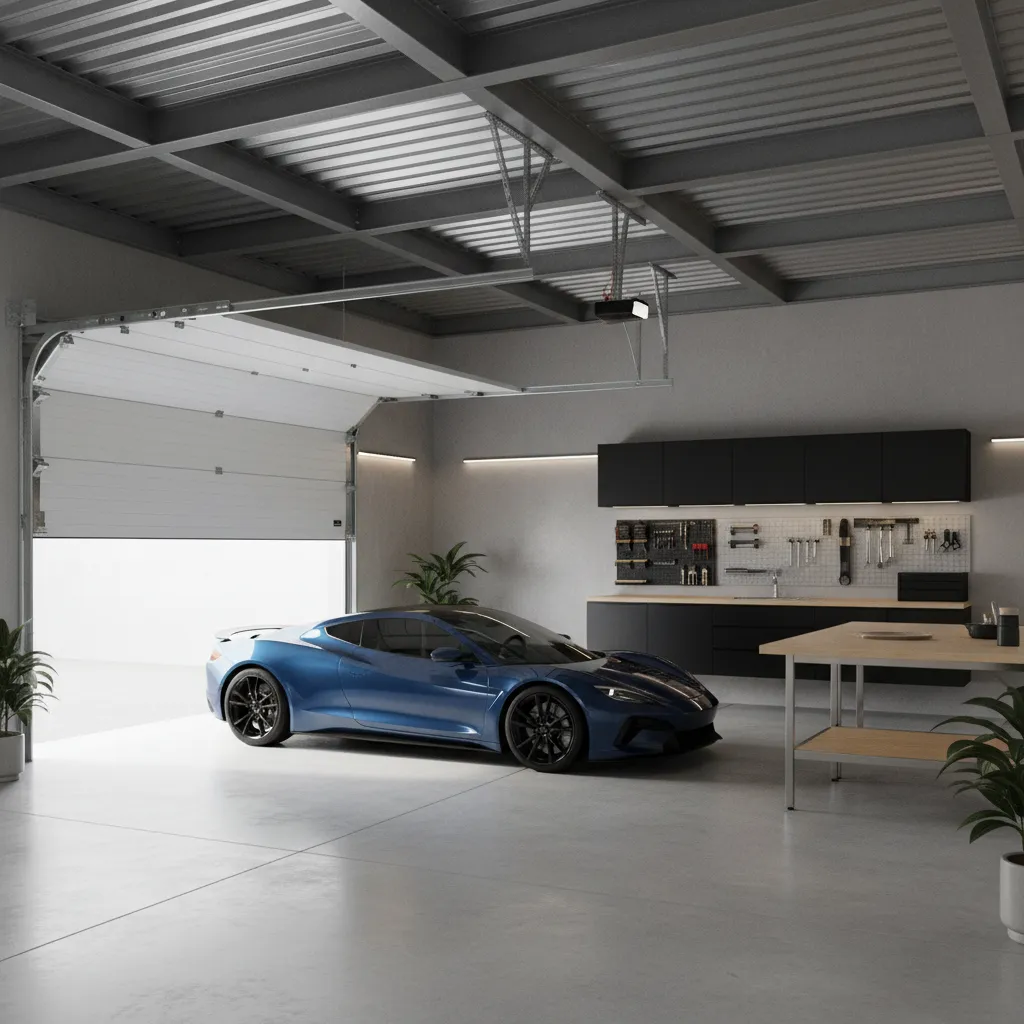

Installation Constraints and Structural Impact

Key Insight: Roll‑up doors typically require stronger header framing, while sectional doors demand more ceiling support.

One overlooked cost difference comes from structural integration.

Roll‑up door structural considerations:

1. Heavy steel drum concentrated above opening
2. Requires reinforced header beam
3. Minimal ceiling track support

Sectional door structural considerations:

1. Distributed weight along track system
2. Requires ceiling mounting points
3. Needs unobstructed overhead space

In retrofit buildings, ceiling obstructions like ductwork often make roll‑up doors the only practical option.

save pin

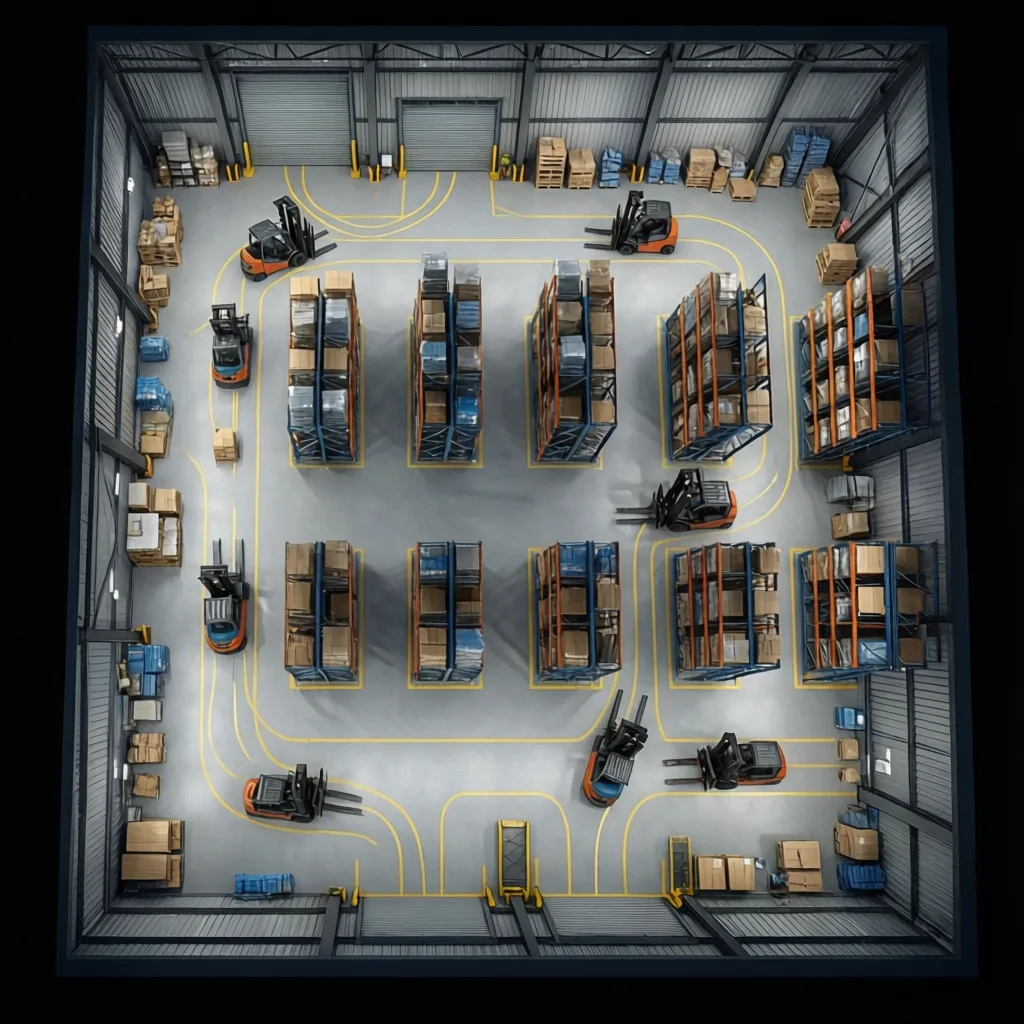

Workflow and Traffic Flow Considerations

Key Insight: Door choice affects how equipment, vehicles, and people move through the building.

In logistics facilities, door placement is about movement efficiency as much as architecture.

Here’s how each door type influences workflow:

1. Roll‑Up Doors
2. Faster opening cycles
3. Better for frequent loading operations
4. Minimal interference with overhead cranes
5. Sectional Doors
6. Smoother operation for vehicles
7. Better sealing for temperature control
8. Quieter operation in residential spaces

When mapping forklift routes or delivery zones, designers often simulate circulation using an interactive layout planning environment for testing movement flow. Door positioning becomes much clearer when traffic paths are visualized.

save pin

Cost and Maintenance Differences

Key Insight: Roll‑up doors usually have higher upfront durability but sectional doors can be cheaper to repair.

Many articles oversimplify this comparison. The reality depends heavily on usage frequency.

Typical cost factors:

1. Roll‑up doors: heavier construction, fewer moving parts
2. Sectional doors: cheaper initial installation
3. Industrial roll‑up systems: built for high cycle counts
4. Sectional panels: easier to replace individually

A hidden cost many planners miss is downtime. In high‑traffic loading docks, durability often outweighs initial price.

Which Door Type Fits Different Building Layouts

Key Insight: The best door type depends on building function, not just dimensions.

After working on dozens of building layouts, these patterns appear consistently:

1. Warehouses → Roll‑up doors for durability and space efficiency
2. Industrial workshops → Roll‑up doors for machinery clearance
3. Residential garages → Sectional doors for insulation and quiet operation
4. Commercial service bays → Either option depending on ceiling systems

The most common planning mistake is choosing a door before designing the ceiling infrastructure.

Answer Box

Roll‑up doors are generally better for space‑efficient industrial floor plans because they minimize ceiling interference. Sectional doors are better for insulated garages and buildings where quiet operation and sealing matter more than overhead clearance.

Final Summary

1. Roll‑up doors maximize ceiling space and suit industrial layouts.
2. Sectional doors integrate better with insulated residential structures.
3. Ceiling clearance is the most important planning factor.
4. Traffic flow and equipment movement should guide door selection.
5. Door decisions should happen early in the floor plan process.

FAQ

1. What is the main difference between roll‑up and sectional doors?

Roll‑up doors coil into a drum above the opening, while sectional doors slide along ceiling tracks inside the building.

2. Which door type saves more space in a floor plan?

Roll‑up doors usually save more interior space because they don't extend deep into the ceiling area.

3. Are roll‑up doors better for warehouse layouts?

Yes. Roll‑up doors are commonly used in warehouses due to durability and minimal ceiling interference.

4. Do sectional doors require more ceiling height?

Yes. Sectional doors require overhead track space that can extend several feet into the building.

5. Which door type is cheaper?

Sectional doors often have lower initial costs, but heavy‑duty roll‑up doors can last longer in industrial environments.

6. Are sectional doors better for insulation?

Yes. Sectional doors typically provide better insulation and weather sealing than most roll‑up doors.

7. How do door types affect building floor plans?

Door systems influence ceiling structure, traffic routes, equipment clearance, and wall framing.

8. Should door type be decided before finishing the floor plan?

Ideally yes. Choosing between roll up doors vs sectional doors early prevents structural redesign later.
