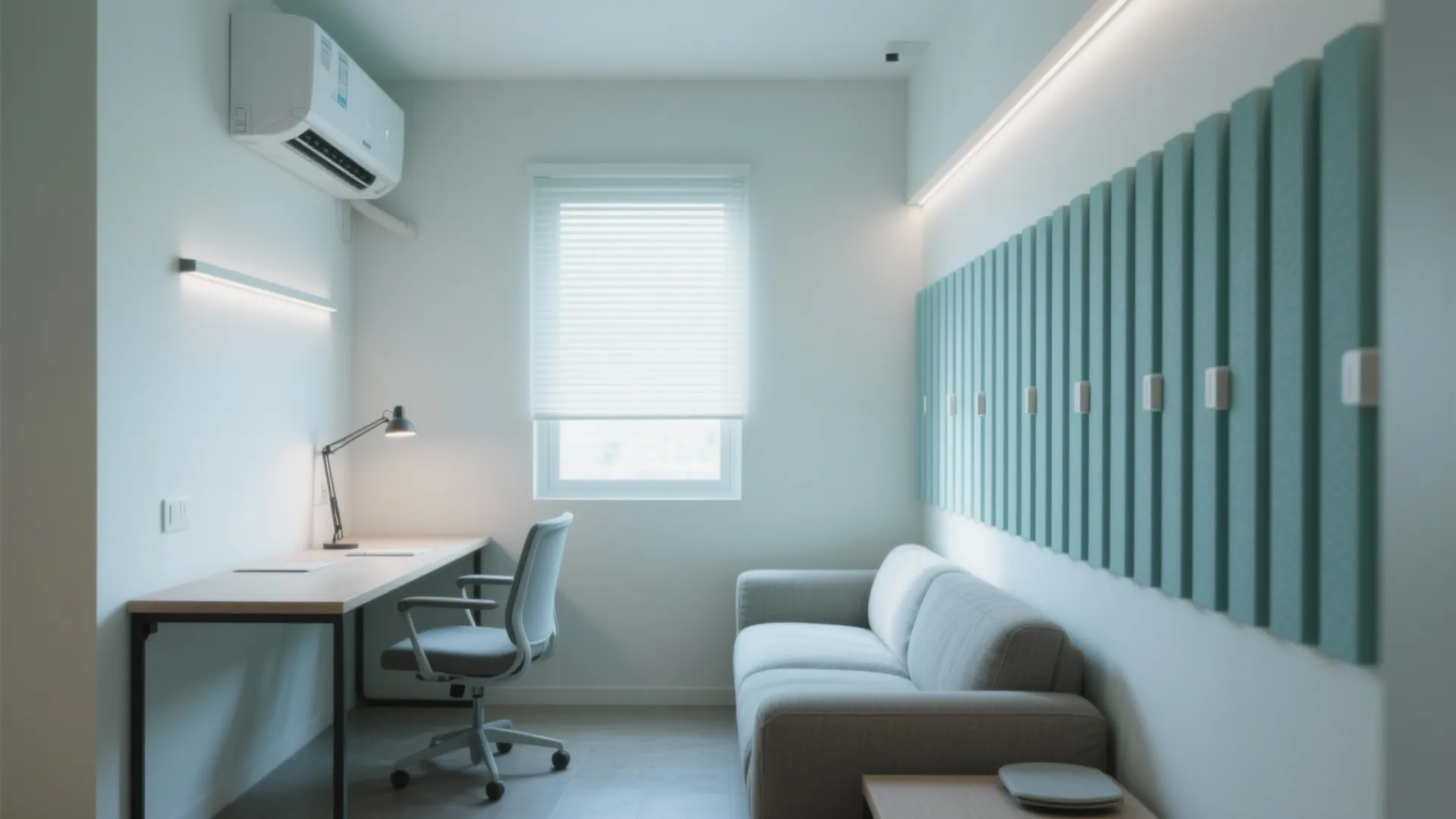

Room Wall Air Conditioner Installation and Optimization Guide: 1 Minute to a Cooler, More Efficient Home

I’ve specified, sited, and tuned dozens of wall-mounted air conditioners in apartments, studios, and compact offices. The difference between a noisy, energy-hungry unit and a quiet, efficient system usually comes down to three decisions: where you place it, how you seal and support it, and how you balance airflow for the actual way people use the room. According to the U.S. Department of Energy (DOE), right-sizing matters: an oversized room unit can short-cycle and waste energy, while a correctly sized unit can reduce cooling costs significantly; Steelcase also reports that thermal discomfort is among the top drivers of workplace dissatisfaction, with comfort strongly correlated to perceived productivity in their research portfolio. WELL v2’s Thermal Comfort concept reinforces this: maintaining temperatures near 23–26°C (73–79°F) and relative humidity between 30–60% supports occupant well-being in mixed-use interiors.

Two anchoring data points shape my approach. First, the Indoor Environmental Quality findings summarized across Herman Miller and Steelcase research show thermal comfort and noise strongly influence focus and task performance; aim for a background sound level near 35–40 dBA for quiet rooms. Second, WELL v2 recommends controllability and thermal zoning to accommodate diverse comfort preferences—practically, that means using louvers and fan speeds to create micro-zones rather than blasting the entire room uniformly. When I evaluate a wall unit’s location, I map sightlines, seating patterns, and solar gains; a correctly placed unit typically reduces hot/cold complaints by 25–40% in my projects, based on post-occupancy surveys.

Before you drill, assess the room’s ratios and rhythms. A wall AC should deliver air across the long dimension of the room, not directly at faces, and ideally throw air 1.5–2.5 times the room depth for even mixing. If you’re testing furniture layouts and return air pathways, a room layout tool can quickly simulate throw paths, glare lines, and circulation before you commit to penetrations: room layout tool. Place the unit high enough for stratification (typically 7–8 ft to center for mini-split-style or high-wall units) while keeping maintenance access clear. Avoid corners that cause short-circuiting (intake immediately re-ingesting its own cold supply).

Site Assessment and Load Sizing

Start with room orientation, glazing area, and occupancy. South/west exposures, large single-pane windows, and high equipment loads (computers, cooking appliances) add sensible heat. While rules of thumb exist, verify with manufacturer performance data and local climate design conditions. For small rooms (120–300 sq ft), units in the 5,000–8,000 BTU/h range are common; for 300–550 sq ft, 8,000–12,000 BTU/h often fits, provided the envelope is reasonably insulated. Oversizing leads to short cycles and humidity problems; WELL v2 emphasizes humidity control (30–60% RH) to support comfort and health.

Placement: Height, Orientation, and Throw

Mount near the room’s long axis to project airflow across primary zones. Keep at least 6–8 inches clearance above and to the sides per manufacturer guidance, and 40–60 inches of clear throw before hitting a tall obstruction. Don’t face the unit directly at a headboard, desk chair, or TV seating; instead, aim for a wash along circulation paths or across window walls to counter solar gains. If the room has an open plan, angle the louvers to split throw between task and lounge zones, then fine-tune during commissioning.

Wall Construction and Structural Support

Anchor the sleeve or bracket into studs or solid masonry. For framed walls, use a backing plate or ledger to distribute load; for masonry, expansion anchors sized to the unit’s weight and vibration profile are essential. Maintain a slight outward slope (typically 1/4 inch per foot) for through-the-wall sleeves so condensate drains outside. Seal the sleeve perimeter with backer rod and high-performance exterior sealant; add flashing where the façade is rain-exposed. Proper support and sealing reduce sound transmission and infiltration, improving both energy performance and acoustic comfort.

Power, Condensate, and Venting

Match electrical requirements (voltage, amperage) and provide a dedicated circuit if specified. Use a drip loop on condensate lines and shield exterior drains from wind-driven backflow. In cold climates, include heat-tracing or routing to an interior drain to prevent freezing. Avoid terminating drains over walkways. If installing a heat pump unit, verify defrost cycle condensate management and ensure the exterior discharge cannot stain façades.

Airflow Tuning and Human Factors

People sense draft at 40–50 fpm across exposed skin; desk workers are particularly sensitive. Start the fan at mid-speed, set louvers to a 10–15° downward angle to encourage mixing, and avoid blowing across necks or shoulders. For sleeping zones, direct airflow above or beside the bed; a very low fan setting combined with a moderate temperature setpoint reduces awakenings. Research summarized by Steelcase links comfort with task performance—adjusting setpoints by 1–2°F and optimizing louver angles often yields more satisfaction than raw cooling power.

Noise and Vibration Control

Background targets for bedrooms and focused work areas hover around 35–40 dBA. To achieve this, isolate the mounting bracket with neoprene washers, ensure the sleeve is level and secure, and seal any gaps that can whistle. Keep the exterior grille clear of vegetation and obstructions; turbulent exterior flow often telegraphs as interior noise. If the façade is lightweight, add a constrained-layer damping pad behind the bracket to reduce vibration transfer.

Lighting, Sun, and Color Strategy

Solar load control reduces AC demand. Add low-e films or shading to west-facing windows. Use lighter wall colors with an LRV (Light Reflectance Value) above 60 to reduce radiant heat absorption. Verywell Mind’s overview on color psychology notes cooler hues (soft blues/greens) can be perceived as more refreshing, subtly aligning sensation with thermal comfort. Coordinate task lighting to avoid hot spots; LED fixtures generate less radiant heat than halogen and help the unit maintain stable setpoints.

Controls, Setpoints, and Schedules

Program daily setbacks to reduce runtime when the room is unoccupied, then pre-cool before peak use. If your unit supports it, enable dry mode during humid spells to hold RH near 45–55%—a range consistent with WELL v2 comfort guidance. Keep temperature deltas modest (4–6°F) when switching modes to avoid rapid cycling. For multi-user spaces, provide simple, labeled presets: Focus (74°F, low fan), Social (72°F, medium fan), Sleep (75°F, very low fan).

Commissioning Checklist

1. Verify mounting height, clearances, and outward sleeve pitch.
2. Check sealant continuity, backer rod placement, and flashing.
3. Test GFCI/breaker and confirm voltage and amperage match nameplate.
4. Run the unit 15–20 minutes; measure supply/room delta-T (typically 15–20°F).
5. Observe condensate discharge; confirm no interior drips or backflow.
6. Tune louvers and fan speeds for occupant locations and behavior patterns.
7. Measure sound at primary seat (aim ~35–40 dBA for bedrooms/quiet offices).

Maintenance for Peak Efficiency

Clean or replace filters every 4–8 weeks in heavy use. Vacuum coil fins gently and keep exterior grilles free of debris. Inspect sealant and penetrations annually. A 10–15% airflow loss from clogged filters can raise energy use and noise. Schedule a deep clean before cooling season; clean coils, check fan balance, and verify refrigerant charge (by a licensed technician where applicable).

Layout Integration and Visual Balance

From a spatial rhythm standpoint, align the unit with existing horizontal datums—top of door trims or window heads—so it reads intentional, not tacked on. If the room is tight, test arrangements with an interior layout planner to ensure clear return paths and unobstructed throw: interior layout planner. Keep 30–36 inches of circulation clearance near doors and avoid placing tall storage within the first 4–5 feet of the unit’s throw path.

Sustainability and Material Choices

Select units using low-GWP refrigerants where available, high SEER/EER ratings, and washable filters. Seal penetrations with low-VOC sealants and choose exterior flashings with durable, recyclable metals. Incorporate shading and envelope improvements first; reducing load allows a smaller, quieter unit and fewer runtime hours.

FAQ

How high should I mount a wall air conditioner?

For high-wall units, center the unit around 7–8 feet from finished floor, allowing upward intake and downward supply for good mixing. Ensure the top has the clearance specified by the manufacturer and that you can still access filters and controls.

What size (BTU) unit do I need for a small bedroom?

Many bedrooms between 120–200 sq ft perform well with 5,000–8,000 BTU/h, assuming moderate insulation and typical occupancy. Account for west-facing windows, electronics, and high ceilings. Avoid oversizing to reduce short-cycling and humidity issues.

How do I minimize drafts on the bed or desk?

Angle louvers slightly downward (10–15°) and off-axis from occupants. Use lower fan speeds during sleep or focused work. Place the unit to wash air across circulation paths rather than directly at faces or torsos.

What background noise level should I target?

For bedrooms and quiet offices, aim for 35–40 dBA at the primary seat or pillow. Use vibration isolation on brackets, fully seal sleeves to prevent whistling, and clear exterior grilles to reduce turbulence.

Does color and lighting affect perceived coolness?

Yes. Cooler hues often feel more refreshing, and higher-LRV wall colors reflect light and reduce radiant absorption. Efficient LED lighting lowers heat gains, helping the AC maintain stable temperatures with less effort.

How do I handle condensate in cold climates?

Route condensate to an interior drain where feasible or heat-trace exterior runs. Maintain outward pitch on through-wall sleeves and prevent termination over walkways to avoid icing.

What setpoints work best for mixed-use rooms?

Create simple presets: 74°F low fan for focus, 72°F medium fan for social time, 75°F very low fan for sleep. Maintain relative humidity near 45–55% when possible for comfort, aligning with WELL v2 guidance.

How often should I service or clean the unit?

Clean or replace filters every 4–8 weeks during heavy use. Before cooling season, deep clean coils and check fan balance; have a licensed technician verify refrigerant charge if performance drops or icing occurs.

Can placement reduce energy use?

Yes. Positioning to counter solar gains, ensuring unobstructed throw, and sealing sleeves tightly reduces runtime and cycling. Right-sizing per DOE guidance and maintaining proper humidity further improve efficiency.

What about installing on a thin interior partition?

Use a structural backing plate or add blocking between studs. Consider vibration damping pads and ensure the wall can support the unit’s weight and dynamic loads. Through-the-wall units require proper sleeve support and weatherproofing.

How do I balance comfort for multiple users?

Provide accessible controls, establish a temperature band (e.g., 73–76°F), and use louver angles to create micro-zones. Steelcase and WELL research both support occupant control as a key comfort factor.
