Safety and Weight Limits for Fixed TV Wall Mount Installations: Learn how to calculate safe load limits, choose the right wall structure, and prevent common mounting failures when installing a fixed TV wall mount.

Direct Answer

A fixed TV wall mount is only as safe as the wall structure and mounting hardware supporting it. Most mounts can hold 60–150 pounds, but the real safety limit depends on stud anchoring, wall material, and proper installation technique.

For secure installations, the mount should always attach to wall studs or structural masonry, never drywall alone. Correct load distribution and hardware selection are critical to prevent failure.

Quick Takeaways

1. Most fixed TV wall mounts support between 60 and 150 pounds when installed correctly.
2. Mounting directly into wall studs dramatically increases structural safety.
3. Drywall anchors alone rarely provide safe long‑term support for televisions.
4. Larger TVs require wider stud spacing and higher rated mounting brackets.
5. Post‑installation inspections help detect loosening hardware before problems appear.

Introduction

Over the past decade installing televisions for clients, I’ve noticed that most mounting problems don’t come from bad hardware—they come from misunderstanding structural limits. A fixed TV wall mount is designed to be simple and stable, but that simplicity sometimes makes people underestimate the importance of load capacity and wall structure.

In several projects I’ve consulted on, homeowners bought a mount rated for 120 pounds and assumed that meant their wall could hold 120 pounds as well. That’s not always true. The mount rating only tells you what the bracket can hold, not what your drywall, anchors, or studs can safely support.

Before any installation, I often recommend sketching the room layout and wall positions so the TV location aligns with studs and viewing angles. A simple planning approach like mapping your wall layout before choosing the TV positioncan prevent structural compromises later.

In this guide, I’ll walk through the practical safety factors professionals consider: weight limits, stud mounting, drywall risks, heavy TV support, and inspection steps that keep installations secure for years.

save pin

Understanding TV Mount Weight Ratings

Key Insight: A mount's weight rating reflects the strength of the bracket itself, not the strength of the wall supporting it.

Manufacturers typically test mounts under controlled conditions with solid structural anchoring. In real homes, however, the final load capacity depends on multiple factors.

Key factors affecting real‑world load limits:

1. Wall structure (stud, concrete, brick, or drywall)
2. Anchor type and bolt size
3. Stud spacing and wood quality
4. TV weight including soundbars or accessories
5. Dynamic forces such as tilting or cable tension

For example, a mount rated at 132 pounds might safely hold a 90‑pound TV on two solid studs—but the same mount could fail quickly if attached only to drywall anchors.

According to installation guidelines from manufacturers like Sanus and Vogel’s, mounting brackets should support at least double the actual TV weight for safety margin.

Checking Wall Type Before Installation

Key Insight: The wall structure determines whether a mount installation is safe long term.

Before installing any TV mount, identifying the wall material is critical. Each material has different load‑bearing behavior.

Common wall types and their mounting strength:

1. Wood studs: Ideal for most installations.
2. Concrete or brick: Extremely strong when proper anchors are used.
3. Metal studs: Require specialized anchors and wider load distribution.
4. Drywall only: Not recommended for TVs.

In many apartment renovations I’ve worked on, drywall looks solid but actually hides thin metal studs spaced farther apart than standard residential framing. Without proper anchors or backing plates, even medium TVs can pull out of the wall.

save pin

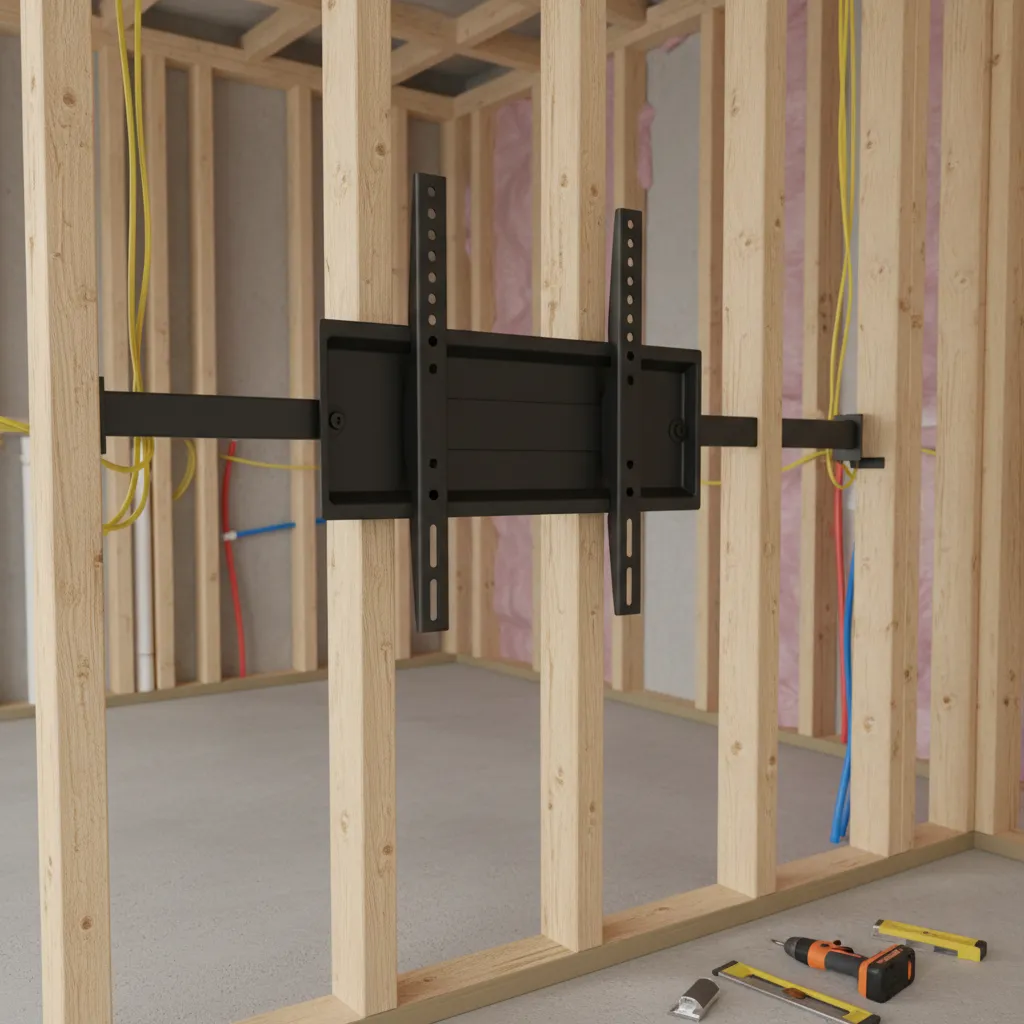

Stud Mounting vs Drywall Anchors

Key Insight: Mounting directly into studs is the single most important safety step in TV installation.

Stud mounting distributes weight into the structural framing of the building, while drywall anchors rely on compression inside gypsum board.

Comparison:

1. Stud mounting
2. High load capacity
3. Long‑term stability
4. Recommended for TVs over 40 inches
5. Drywall anchors
6. Limited load capacity
7. Higher failure risk
8. Suitable only for lightweight decor

In practice, even "heavy duty" drywall anchors can loosen over time due to vibration, cable movement, or temperature expansion.

When planning wall installations in complex rooms, I often advise clients to visualize stud positions using layout diagrams—something similar to creating a quick wall layout to locate structural mounting points. It helps avoid situations where the TV placement conflicts with the framing behind the wall.

Preventing Mount Failure or Wall Damage

Key Insight: Mount failures usually occur because of small installation mistakes rather than weak equipment.

After inspecting dozens of problematic installs, the same errors appear repeatedly.

Common installation mistakes:

1. Using incorrect bolt length
2. Mounting into drywall instead of studs
3. Over‑tightening lag bolts and stripping studs
4. Ignoring wall stud spacing
5. Not leveling the bracket before tightening

One overlooked factor is leverage. Even though fixed mounts sit close to the wall, large TVs still create torque if the bracket isn't centered on studs.

Professional installers typically test mounts by gently applying downward force before hanging the TV to confirm structural stability.

save pin

Answer Box

The safest fixed TV wall mount installations anchor directly into wood studs or masonry and support at least twice the TV's weight. Drywall anchors alone are rarely sufficient for televisions.

Most failures occur because the wall structure wasn't evaluated before installation.

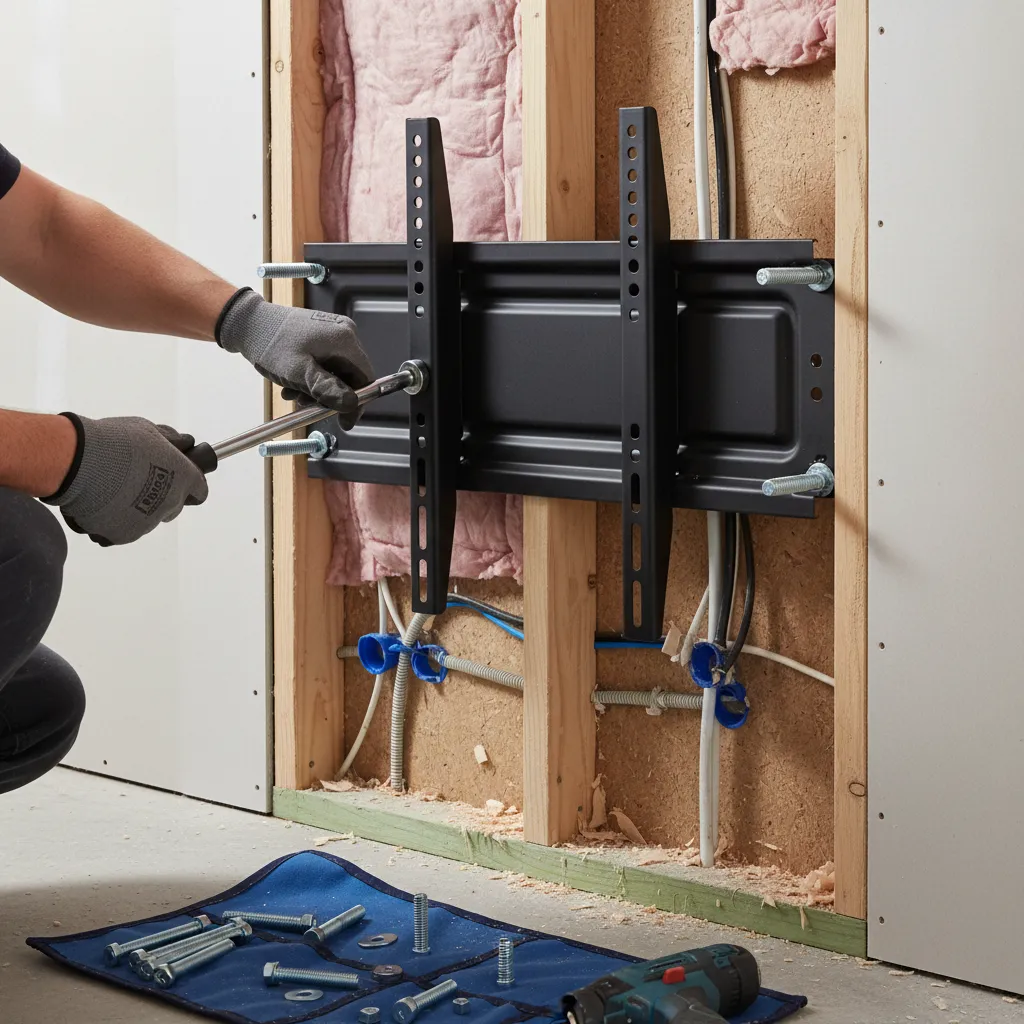

How to Secure Large and Heavy TVs

Key Insight: TVs over 75 inches require wider mounting brackets and careful weight distribution across multiple studs.

Large televisions create more structural stress because their weight sits farther from mounting bolts.

Best practices for large screens:

1. Use mounts rated for at least 150 pounds
2. Anchor into two or more studs
3. Use larger lag bolts (typically 5/16 inch)
4. Confirm stud spacing compatibility (16" or 24")
5. Install backing plates if studs are offset

Industry installers often recommend distributing weight across wider brackets for TVs larger than 80 inches.

Child Safety Considerations for Wall Mounted TVs

Key Insight: Proper wall mounting dramatically reduces tip‑over accidents but only when hardware remains secure.

According to safety guidance from the U.S. Consumer Product Safety Commission, thousands of TV tip‑over incidents occur each year—many involving children.

Important precautions:

1. Use anti‑tip safety straps in addition to the wall mount
2. Conceal cables that children might pull
3. Avoid placing climbable furniture beneath TVs
4. Periodically check bolt tightness

These simple precautions dramatically reduce the risk of accidental stress on the mount.

Inspection Checklist After Installation

Key Insight: A five‑minute inspection after mounting prevents most long‑term failures.

Once the television is mounted, I always run through a quick safety checklist.

Post‑installation checklist:

1. Confirm all lag bolts are tight
2. Verify mount plate sits flush with the wall
3. Check TV locking mechanism
4. Ensure cables aren't pulling downward
5. Test stability with gentle pressure

If you're redesigning the entertainment area afterward, visualizing the final layout with something like previewing the finished living room setup before installationhelps ensure furniture placement won't interfere with the mount.

save pin

Final Summary

1. TV mount ratings reflect bracket strength, not wall strength.
2. Stud mounting is the safest method for nearly all televisions.
3. Drywall anchors alone are rarely safe for TV installations.
4. Large TVs require wider mounts and multiple stud anchors.
5. Routine inspections prevent long‑term mounting failures.

FAQ

How much weight can a TV wall mount hold?

Most fixed TV wall mounts support between 60 and 150 pounds. The actual safe load depends heavily on stud anchoring and wall structure.

Is drywall safe for TV mount installation?

Drywall alone is generally unsafe for televisions. A fixed TV wall mount should attach to wood studs, concrete, or brick for reliable structural support.

Do all TVs need to be mounted on studs?

For most TVs above 40 inches, yes. Stud mounting provides significantly higher load capacity and long‑term stability.

What happens if a TV mount exceeds its weight limit?

Exceeding the weight rating can cause bracket bending, anchor pull‑out, or wall damage over time.

How do I find studs behind drywall?

A stud finder is the easiest method. Tapping the wall and measuring 16‑inch spacing can also help locate studs.

Are fixed TV wall mounts safer than tilting mounts?

Fixed mounts typically create less leverage and fewer moving parts, which can improve long‑term stability.

Can large TVs be mounted on metal studs?

Yes, but specialized anchors or backing plates are required because metal studs are thinner than wood framing.

How often should a TV mount be inspected?

Check bolts and stability every 6–12 months to ensure the fixed TV wall mount remains secure.

References

1. Consumer Product Safety Commission TV Tip‑Over Safety Reports
2. Sanus Mount Installation Guidelines
3. Vogel's Professional Mounting Documentation
